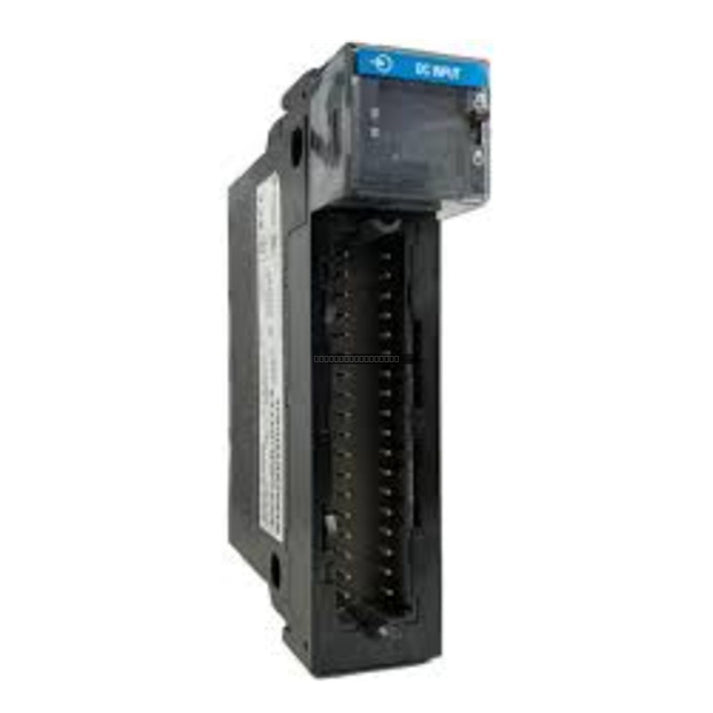

Allen-Bradley 1756-IV16 ControlLogix 16-Point 12/24V DC Digital Input Module

Allen-Bradley 1756-IV16 ControlLogix 16-Point 12/24V DC Digital Input Module

Description

The Allen-Bradley 1756-IV16 is a high-performance digital DC input module designed for the ControlLogix platform. This module provides 16 sinking input points, engineered to interface with field devices operating within...

21 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1756-IV16
Vendor: Allen-Bradley
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-IV16 is a high-performance digital DC input module designed for the ControlLogix platform. This module provides 16 sinking input points, engineered to interface with field devices operating within a 10-30V DC voltage range. It is ideal for industrial automation applications requiring reliable signal acquisition in demanding environments.

Features

  • 16 isolated sinking DC input points.
  • Operating voltage range of 10-30V DC, compatible with standard 12/24V DC systems.
  • Integrated input filtering to provide adjustable signal debouncing and noise immunity.
  • Standard 20-pin configuration for simplified wiring and module replacement.
  • Optimized for low power consumption on the ControlLogix backplane.

Technical Specifications

Product Model 1756-IV16
Module Type Digital DC Input Module
Input Points 16
Operating Voltage Range 10-30V DC
Input Delay Time 2 ms plus selectable filter time
Min. Operating Current 2 mA at 10V DC
Max. Operating Current 10 mA at 30V DC
Backplane Current (5V) 110 mA
Backplane Current (24V) 2 mA

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • Use a compatible 20-pin Removable Terminal Block (RTB) to connect field wiring.
  • Maintain proper grounding practices to minimize electrical interference.
  • Ensure the module is fully seated in the chassis slot and secured with the top and bottom latches.
  • Verify that field device voltage levels are within the specified 10-30V DC range to prevent damage to the input circuitry.

FAQ

What is the primary function of the 1756-IV16?
This module serves as a digital input interface for the ControlLogix system, allowing the PLC to monitor the state of 16 individual DC field devices.

Is this module compatible with standard 24V DC sensors?
Yes, the 1756-IV16 supports an operating range of 10-30V DC, making it fully compatible with standard 12V and 24V DC sensors and switches.

Does this module require external power?
The module draws its backplane power from the ControlLogix chassis, while the inputs are powered by the external field-side DC supply connected through the terminal block.
