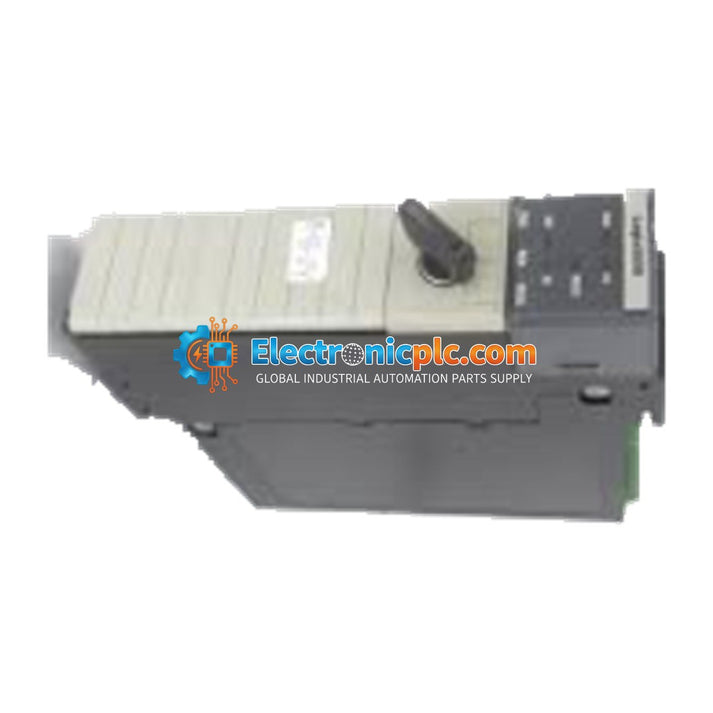

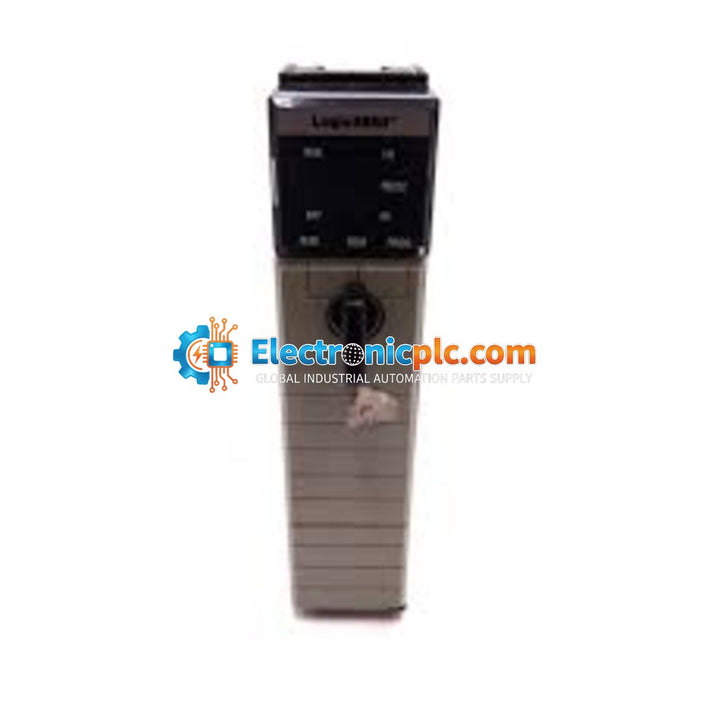

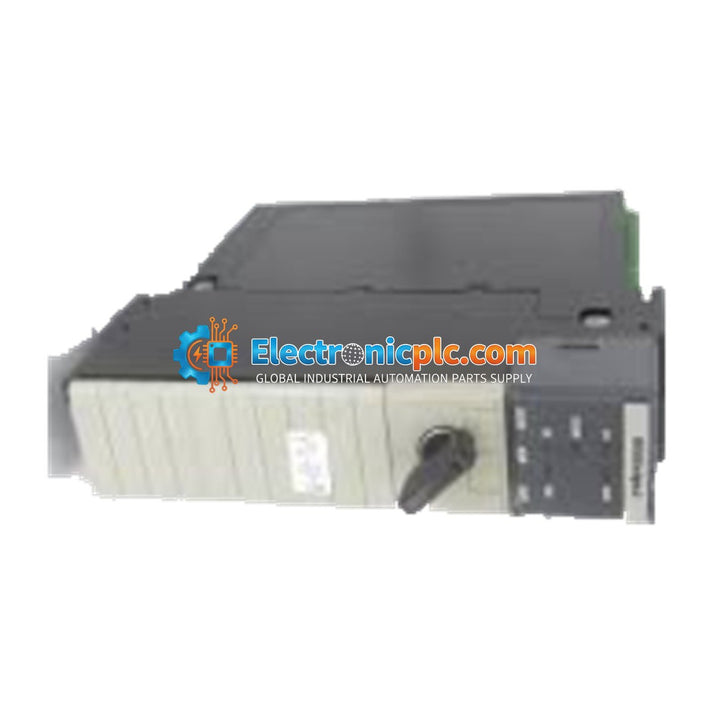

Allen-Bradley 1756-L1 Logix5550 Processor Module

Allen-Bradley 1756-L1 Logix5550 Processor Module

Description

The Allen-Bradley 1756-L1 is a foundational processor module within the ControlLogix (Logix5550) automation family. As a chassis-based controller, it is designed to reside in any slot of a 1756 ControlLogix...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1756-L1
Vendor: Allen-Bradley
Category: PLC Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-L1 is a foundational processor module within the ControlLogix (Logix5550) automation family. As a chassis-based controller, it is designed to reside in any slot of a 1756 ControlLogix chassis, facilitating seamless communication with I/O modules and other controllers across the ControlBus backplane. This module provides a modular and flexible control solution for various industrial automation tasks.

Features

  • Modular Design: Occupies a single slot in any standard 1756 ControlLogix chassis.
  • Memory Expansion: Features 64 KB of built-in user memory, with support for expansion via 1756-M1 (128 KB), 1756-M2 (512 KB), or 1756-M3 (2 MB) memory modules.
  • Data Retention: Supports 1756-BA1 or 1756-BA2 lithium battery modules to maintain volatile memory during power-down cycles.
  • Backplane Communication: High-speed data exchange via the ControlLogix backplane.

Technical Specifications

Brand Allen-Bradley
Product Line ControlLogix (Logix5550)
Module Type Processor / Controller
User Memory 64 KB
Backplane Current (5V DC) 120 mA
Backplane Current (24V DC) 2 mA
Power Dissipation 4.1 Watts
Isolation Voltage 30V (Continuous)
Slot Width 1 Slot
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
  • Power Down: Ensure the chassis power is disconnected before inserting or removing the processor module from the backplane.
  • Slot Placement: The 1756-L1 can be installed in any slot of a 1756 chassis; ensure the module is fully seated and the top/bottom latches are secured.
  • Battery Installation: Install the compatible lithium battery module (1756-BA1 or 1756-BA2) prior to operation to ensure program retention.
  • Environment: Maintain adequate airflow within the cabinet to ensure the module operates within its specified temperature range of 0 to 60 degC.

FAQ

Does this module include a memory card?

No, the 1756-L1 comes with 64 KB of built-in memory. External memory expansion modules (1756-M1, 1756-M2, or 1756-M3) must be purchased separately if additional memory is required.

Is this module compatible with modern ControlLogix chassis?

Yes, the 1756-L1 is compatible with standard 1756 ControlLogix chassis, provided the system architecture supports the specific Logix5550 processor generation.
