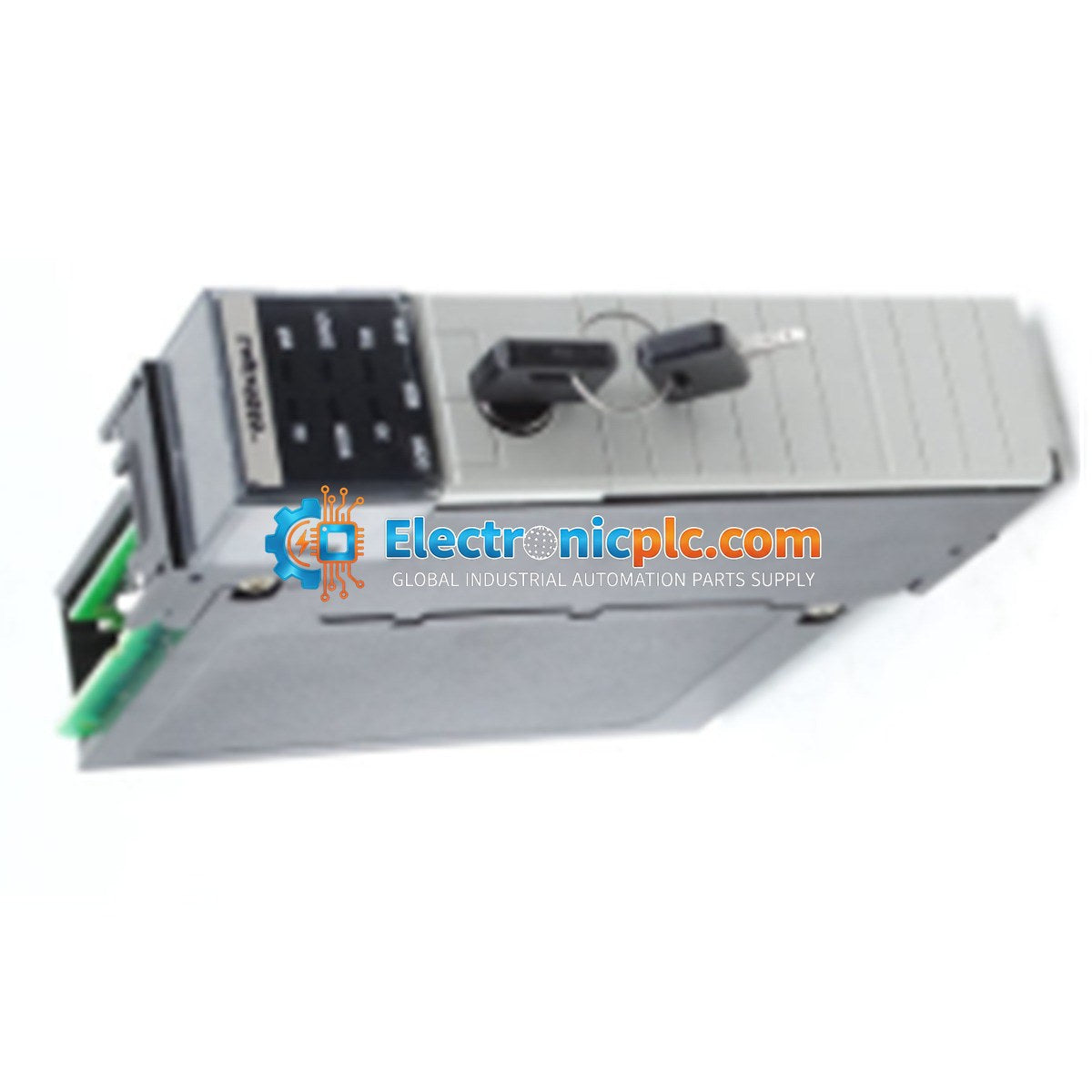

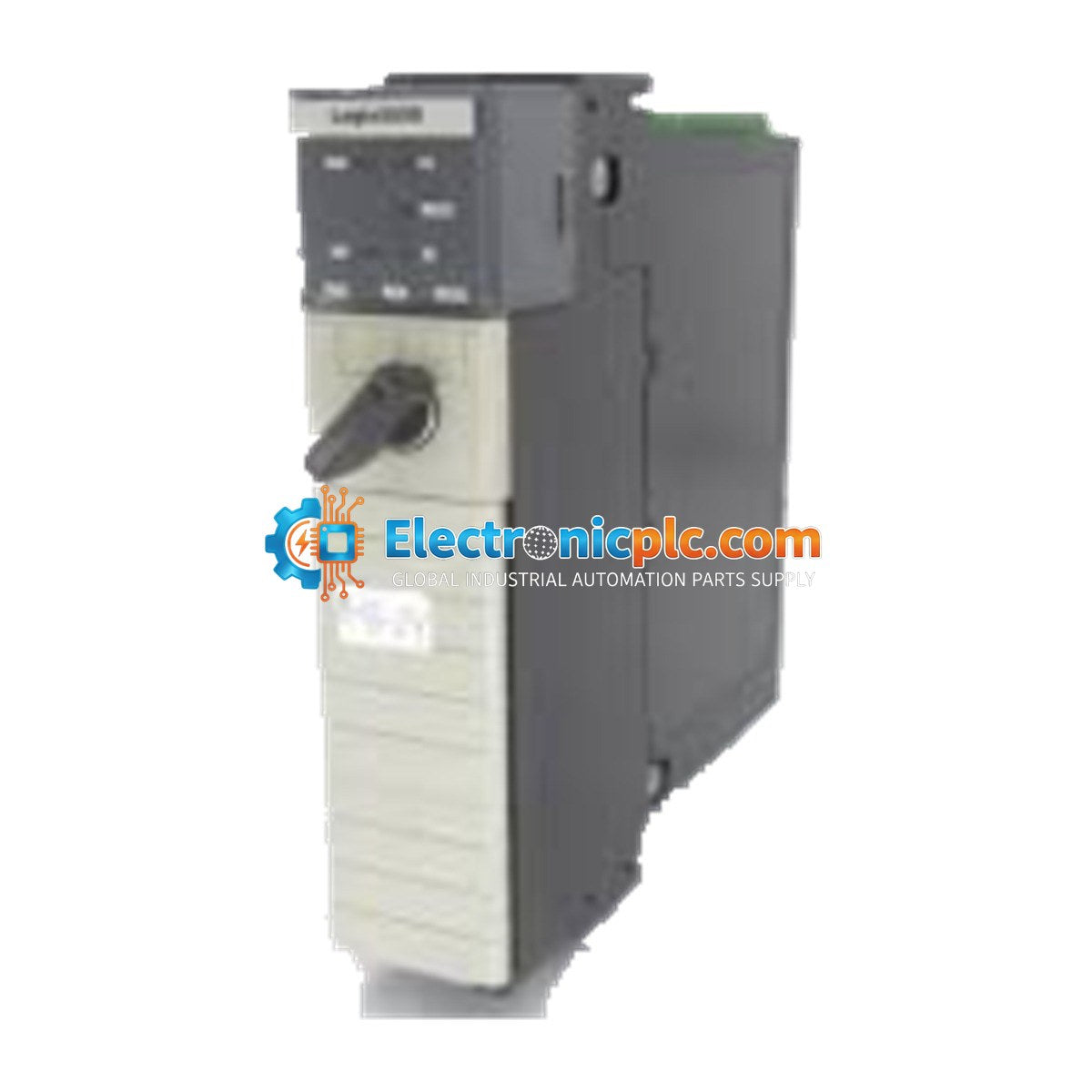

Allen-Bradley 1756-L63 ControlLogix Logix5563 Controller Module

Allen-Bradley 1756-L63 ControlLogix Logix5563 Controller Module

Description

The Allen-Bradley 1756-L63 is a high-performance Logix5563 controller module designed for the ControlLogix platform. This processor provides robust control and communication capabilities for demanding industrial automation applications, offering 8 MB...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 1756-L63
Vendor: Allen-Bradley
Category: PLC Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-L63 is a high-performance Logix5563 controller module designed for the ControlLogix platform. This processor provides robust control and communication capabilities for demanding industrial automation applications, offering 8 MB of user memory and 478 KB of I/O memory to handle complex logic, motion, and process control tasks.

Features

  • Supports up to 32 tasks with 100 programs per task.
  • Integrated RS-232 serial communication port for local device connectivity.
  • High-capacity memory architecture: 8 MB user memory and 478 KB I/O memory.
  • Scalable I/O support: up to 128,000 digital I/O and 4,000 analog I/O points.
  • Optional nonvolatile memory storage support up to 128 MB.

Technical Specifications

Parameter Specification
Product Model 1756-L63
User Memory 8 MB
I/O Memory 478 KB
Nonvolatile Storage (Optional) 128 MB
Max Digital I/O 128,000
Max Analog I/O 4,000
Current Draw @ 5.1V DC 1200 mA
Current Draw @ 24V DC 14 mA
Power Dissipation 3.5 W
Thermal Dissipation 11.9 BTU/hr

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the controller module to prevent electrical damage.
  • The module must be seated firmly into the chassis slot; secure the top and bottom latches to ensure proper backplane connection.
  • Maintain adequate clearance around the chassis to ensure proper ventilation and prevent overheating.
  • Follow standard ESD (Electrostatic Discharge) procedures when handling the module to protect internal circuitry.
  • Ensure all communication cables are routed away from high-voltage power lines to minimize EMI interference.

FAQ

What is the primary function of the 1756-L63?

The 1756-L63 serves as the central processing unit for a ControlLogix system, executing user programs, managing I/O data, and coordinating communications across the backplane.

Can this controller be used for motion control?

Yes, the Logix5563 processor supports integrated motion control capabilities within the ControlLogix environment, provided the appropriate motion modules and software configuration are utilized.
