Description

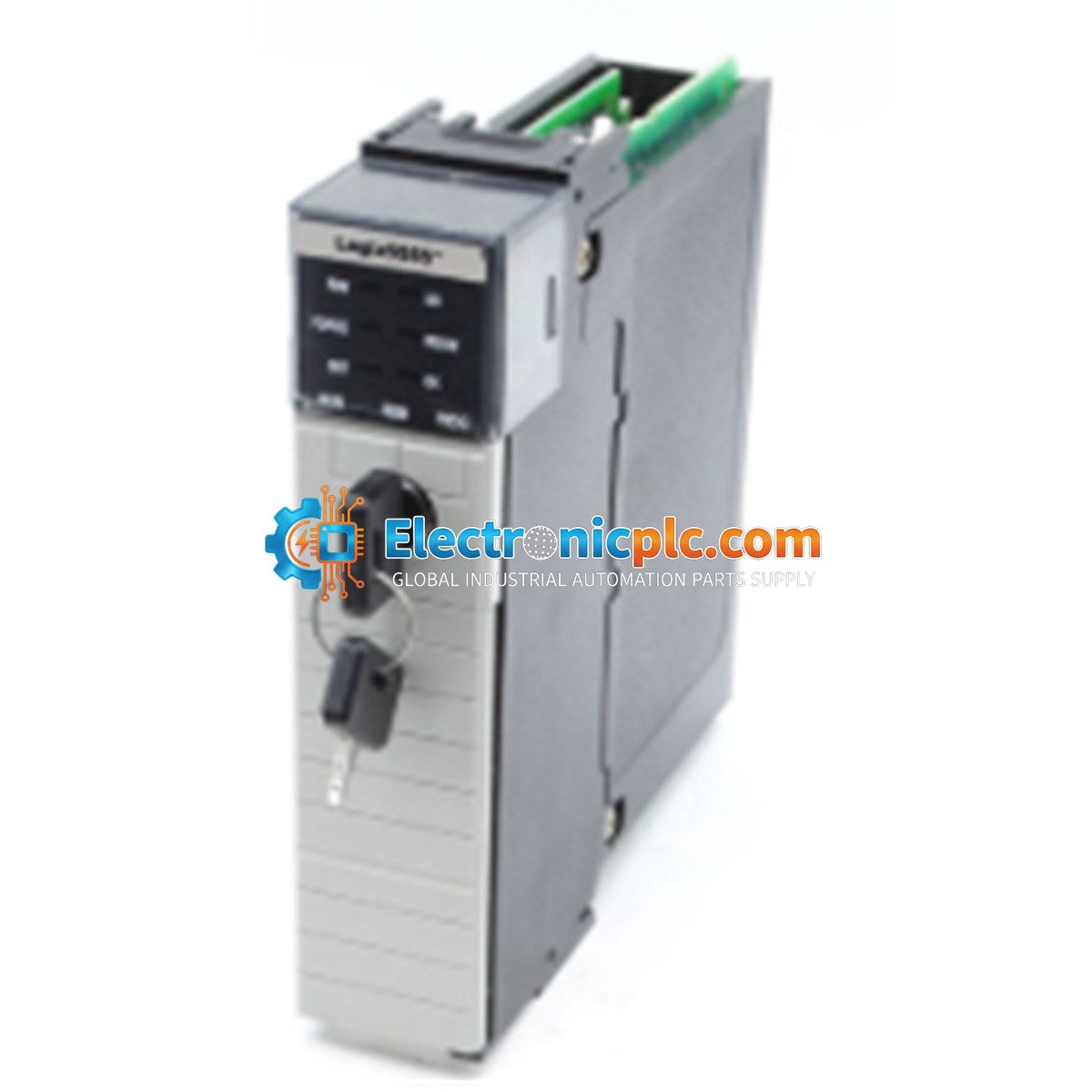

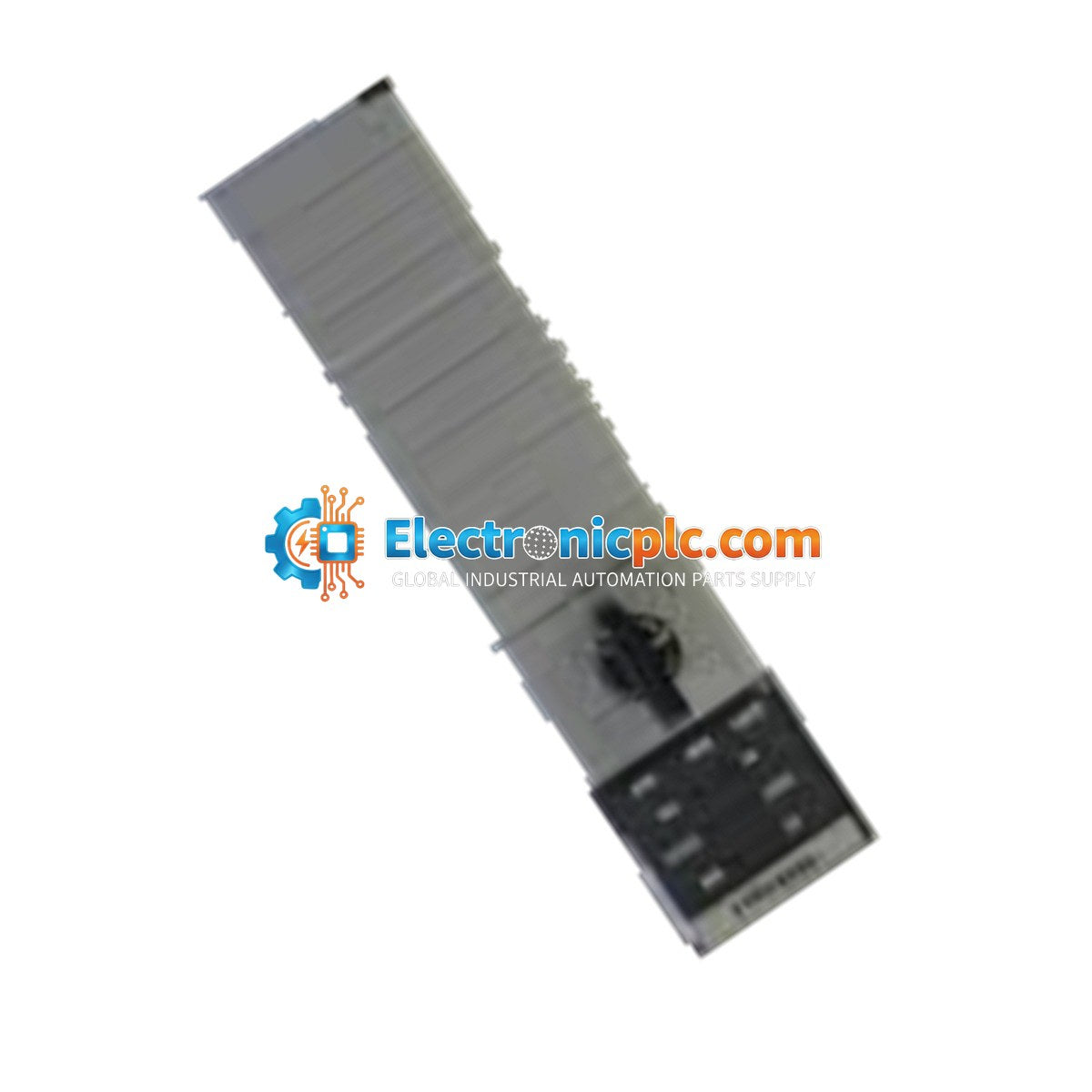

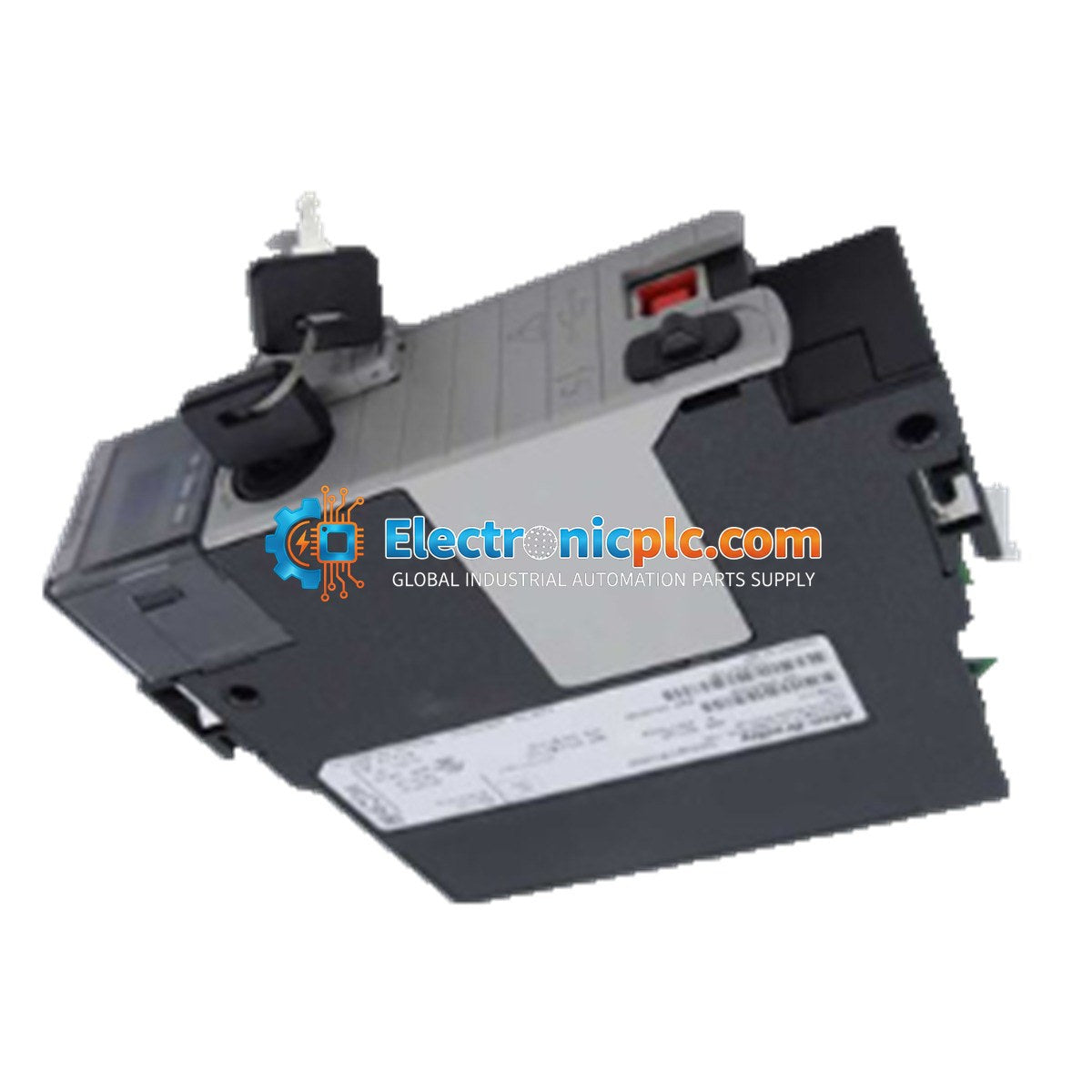

The Allen-Bradley 1756-L63XT is a high-performance Logix5563 controller designed for the ControlLogix-XT (Extreme Temperature) platform. This processor is engineered for operation in harsh industrial environments where exposure to extreme temperatures, corrosive gases, and high levels of vibration is present. Providing 8 MB of user memory and 478 KB of I/O memory, the 1756-L63XT supports complex control applications, motion control, and high-speed data processing within the ControlLogix architecture.

Features

• Designed for extreme temperature environments (ControlLogix-XT series).
• 8 MB user memory for large-scale control programs.
• Supports up to 128,000 I/O points and 4,000 analog I/O points.
• Integrated serial port for communication and programming.
• 250 controller connections for robust network integration.
• Diagnostic LED indicators for real-time status monitoring.
• Low power dissipation of 3.5 Watts.

Applications

The 1756-L63XT is specifically suited for critical infrastructure and industrial processes located in challenging climates or hazardous environments. It is commonly deployed in oil and gas, chemical processing, and heavy industrial manufacturing where standard controllers may fail due to thermal stress or environmental contaminants.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is properly grounded before installing the module.
• The 1756-L63XT must be installed in a compatible ControlLogix chassis; ensure the module is fully seated and the locking tab is engaged.
• Power down the chassis before inserting or removing the processor module to prevent electrical damage or unexpected system behavior.
• Maintain adequate clearance around the chassis to ensure proper airflow, even for XT-rated components.
• Use shielded communication cables for the serial port to minimize EMI interference in industrial environments.
• Handle with care using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

What does the XT suffix signify?

The XT suffix stands for Extreme Temperature. These modules are built with conformal coating and specialized components to withstand harsher environmental conditions than standard ControlLogix modules, including wider temperature ranges and corrosive atmospheres.

Is this module compatible with standard ControlLogix chassis?

Yes, the 1756-L63XT is designed to fit into standard 1756 ControlLogix chassis, allowing it to be integrated into existing systems that require enhanced environmental protection.
