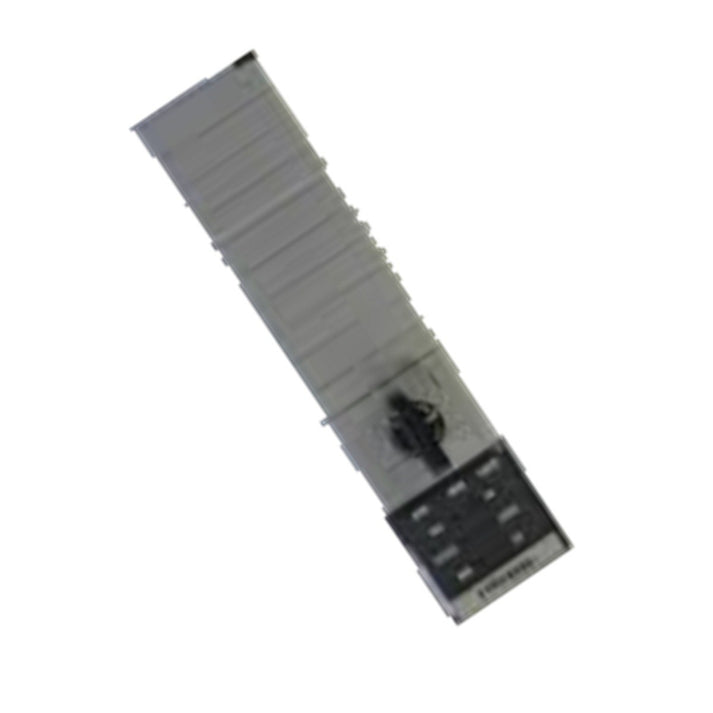

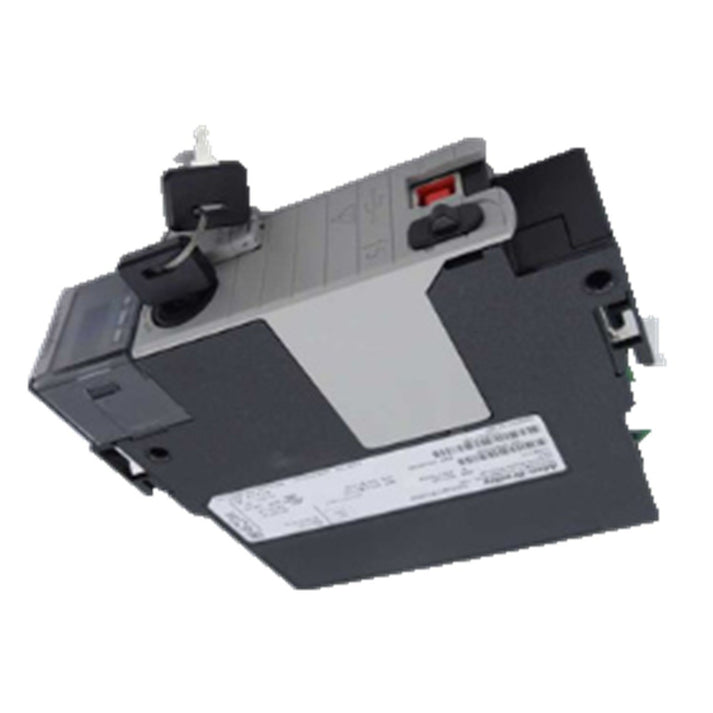

Allen-Bradley 1756-L65 ControlLogix Logix5565 Processor Module

Allen-Bradley 1756-L65 ControlLogix Logix5565 Processor Module

The Allen-Bradley 1756-L65 is a high-performance ControlLogix Logix5565 processor module designed for demanding industrial automation applications. As part of the ControlLogix platform, this controller provides robust processing power and memory...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1756-L65
Vendor: Allen-Bradley
Category: Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-L65 is a high-performance ControlLogix Logix5565 processor module designed for demanding industrial automation applications. As part of the ControlLogix platform, this controller provides robust processing power and memory capacity to manage complex control tasks, motion control, and data-intensive operations within a distributed I/O architecture.

Features

  • 32 MB of user memory for complex application programs and data storage.
  • Supports up to 128,000 digital I/O points and 4,000 analog I/O points.
  • High-speed processing capabilities for real-time control and rapid response times.
  • Integrated I/O memory of 478 KB for efficient data handling.
  • Compatible with the standard ControlLogix chassis and backplane communication.

Applications

The 1756-L65 processor is suitable for large-scale manufacturing processes, including automotive assembly, material handling, chemical processing, and power generation systems where high reliability and scalable I/O are required.

Technical Specifications

Parameter Specification
Product Model 1756-L65
Series ControlLogix
User Memory 32 MB
I/O Memory 478 KB
Max Digital I/O 128,000
Max Analog I/O 4,000
Current Draw (5.1V DC) 1200 mA
Current Draw (24V DC) 14 mA
Power Dissipation 3.5 Watts

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the processor module to prevent electrical damage.
  • Slide the module into the designated slot in the chassis and secure it using the top and bottom latching mechanisms.
  • Maintain proper ventilation in the control cabinet; ensure that the module is not obstructed by wiring or other components to allow for adequate heat dissipation.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
  • Verify that the backplane power supply is sized correctly to accommodate the 1200 mA current draw at 5.1V DC.

FAQ

What is the primary function of the 1756-L65?

The 1756-L65 is a central processor unit (CPU) for the Allen-Bradley ControlLogix system, responsible for executing user control programs, managing I/O communication, and coordinating system-wide automation tasks.

Is this module compatible with other ControlLogix components?

Yes, the 1756-L65 is designed for use in standard 1756 ControlLogix chassis and is compatible with the full range of ControlLogix I/O modules and communication bridges.
