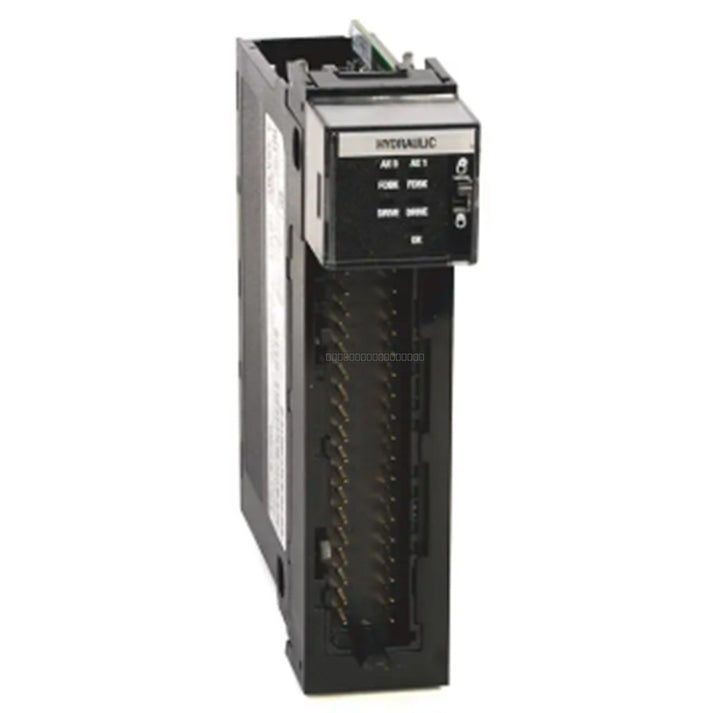

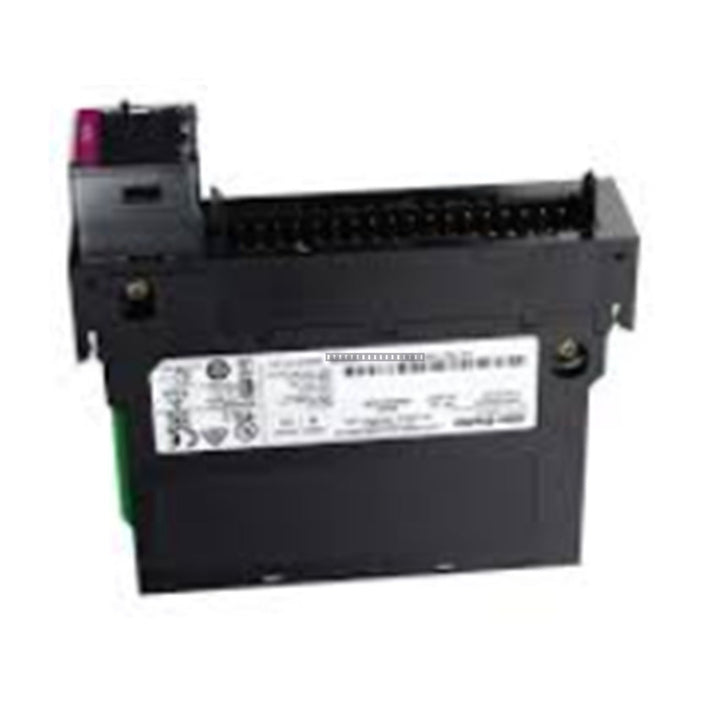

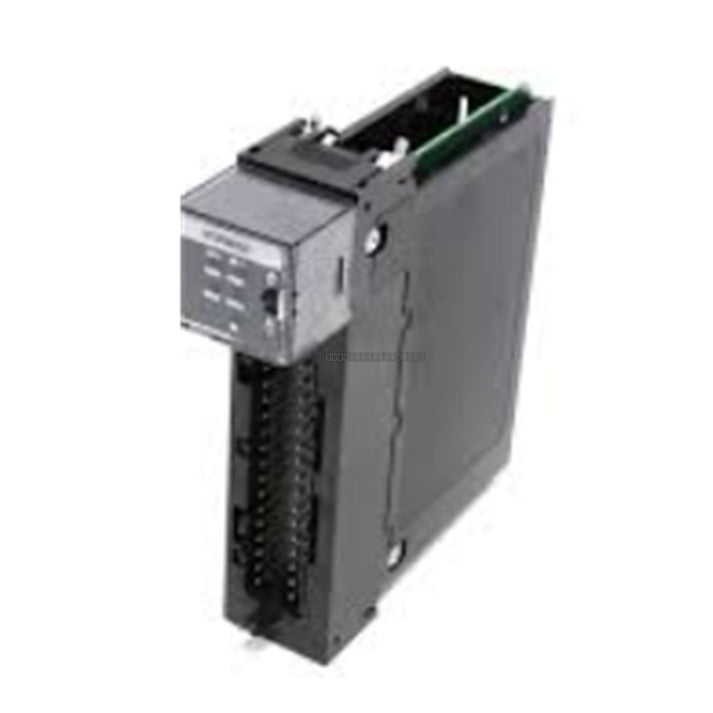

Allen-Bradley 1756-M02AS ControlLogix Integrated Motion Module

Allen-Bradley 1756-M02AS ControlLogix Integrated Motion Module

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1756-M02AS
Vendor: Allen-Bradley
Category: Motion Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with the ControlLogix platform, allowing for up to 32 axes per controller.

Features

  • Supports 2 axes per module.
  • Integrated motion control with 32-bit floating-point gain resolution.
  • Analog voltage servo output with a range of +/- 10V DC.
  • 16-bit analog output resolution for precise control.
  • Includes solid-state isolated relay contacts for discrete outputs.
  • Discrete output operating voltage: 24V DC nominal.

Applications

This module is typically used in complex motion control systems requiring high-speed, synchronized axis management, such as packaging machinery, material handling, and precision assembly lines within the ControlLogix architecture.

Technical Specifications

Product Model 1756-M02AS
Axes per Module 2
Axes per Controller 32
Servo Output Type Analog Voltage
Voltage Range +/- 10V DC
Analog Output Resolution 16 bits
Gain Resolution 32-bit floating point
Backplane Current (5V) 700 mA
Backplane Current (24V) 2.5 mA

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • The module is designed for standard ControlLogix backplane mounting.
  • Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the chassis to a common earth ground to maintain signal integrity.
  • Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.

FAQ

What is the primary function of the 1756-M02AS?
It is a motion control module that interfaces with servo drives using analog voltage signals to control axis movement within a ControlLogix system.

How many axes can this module control?
The 1756-M02AS supports 2 axes per module.
