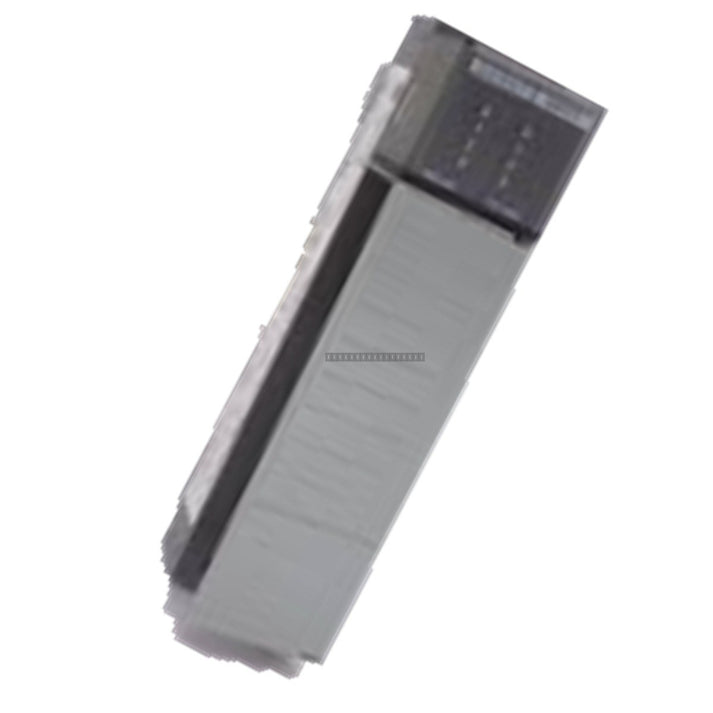

Allen-Bradley 1756-M03SE ControlLogix 3-Axis SERCOS Interface Module

Allen-Bradley 1756-M03SE ControlLogix 3-Axis SERCOS Interface Module

The Allen-Bradley 1756-M03SE is a ControlLogix SERCOS interface module designed to provide high-speed, digital communication between a ControlLogix controller and up to three servo drives. This module facilitates precise motion...

16 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1756-M03SE
Vendor: Allen-Bradley
Category: Motion Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-M03SE is a ControlLogix SERCOS interface module designed to provide high-speed, digital communication between a ControlLogix controller and up to three servo drives. This module facilitates precise motion control by enabling real-time data exchange over the SERCOS (Serial Real-time Communication System) interface, supporting data rates of 4 Mbps or 8 Mbps.

Features

  • Supports up to 3 axes of motion control.
  • Compatible with the ControlLogix platform for seamless system integration.
  • Selectable SERCOS data rates of 4 Mbps or 8 Mbps.
  • Occupies a single slot in the ControlLogix chassis.
  • Low power dissipation of 5.0 W.

Technical Specifications

Product Model 1756-M03SE
Number of Axes 3
SERCOS Data Rate 4 Mbps / 8 Mbps
Current Draw at 5.1V DC 760 mA
Current Draw at 24V DC 2.5 mA
Power Dissipation 5.0 W
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5 to 95% non-condensing
Slot Width 1

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • The module is designed for installation in any slot of a standard ControlLogix chassis.
  • Use appropriate ESD precautions when handling the module to prevent damage to sensitive internal components.
  • Ensure proper grounding of the chassis and shielded cabling for the SERCOS interface to minimize EMI interference.
  • Maintain adequate clearance around the module to ensure proper airflow and cooling, adhering to the specified operating temperature range.

FAQ

What is the primary function of the 1756-M03SE?
The 1756-M03SE acts as a communication bridge between the ControlLogix controller and servo drives, allowing for synchronized multi-axis motion control via the SERCOS protocol.

Is this module compatible with all ControlLogix chassis?
Yes, the 1756-M03SE is designed for use in standard ControlLogix I/O chassis and occupies a single slot.
