Allen-Bradley 1756-OA8 ControlLogix 8-Point AC Discrete Output Module

Allen-Bradley 1756-OA8 ControlLogix 8-Point AC Discrete Output Module

Description

The Allen-Bradley 1756-OA8 is a high-performance discrete output module designed for the ControlLogix platform. This module provides 8 output points, specifically engineered to handle AC voltage applications. It is widely...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: 1756-OA8
Vendor: Allen-Bradley
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

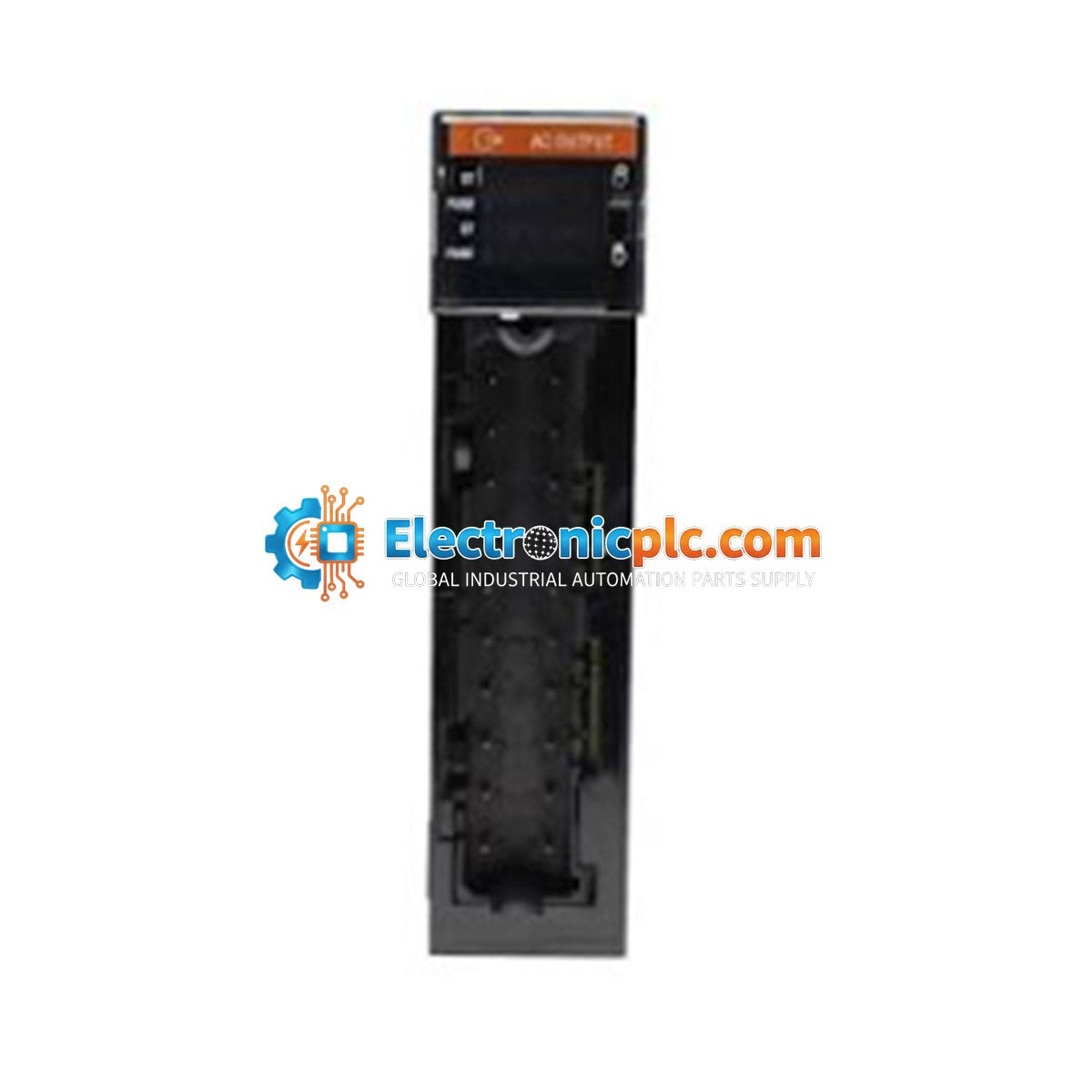

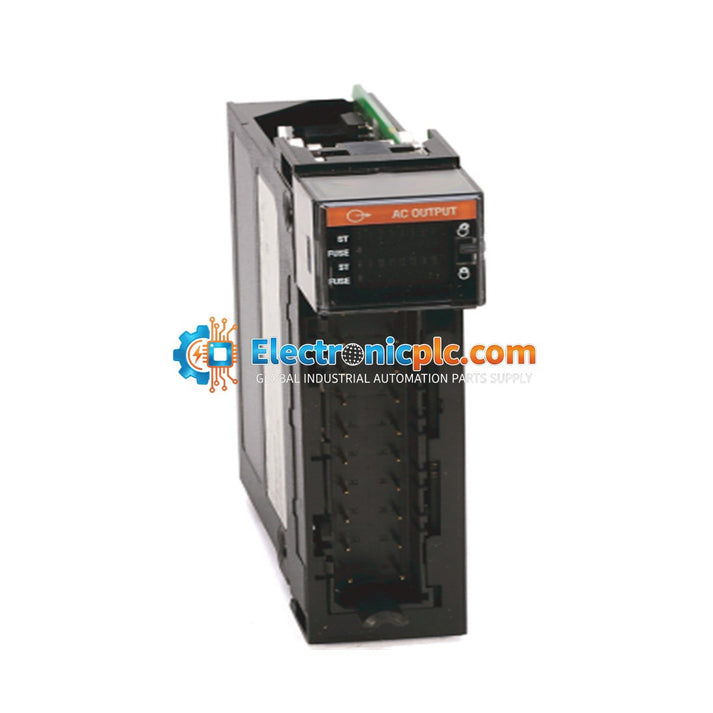

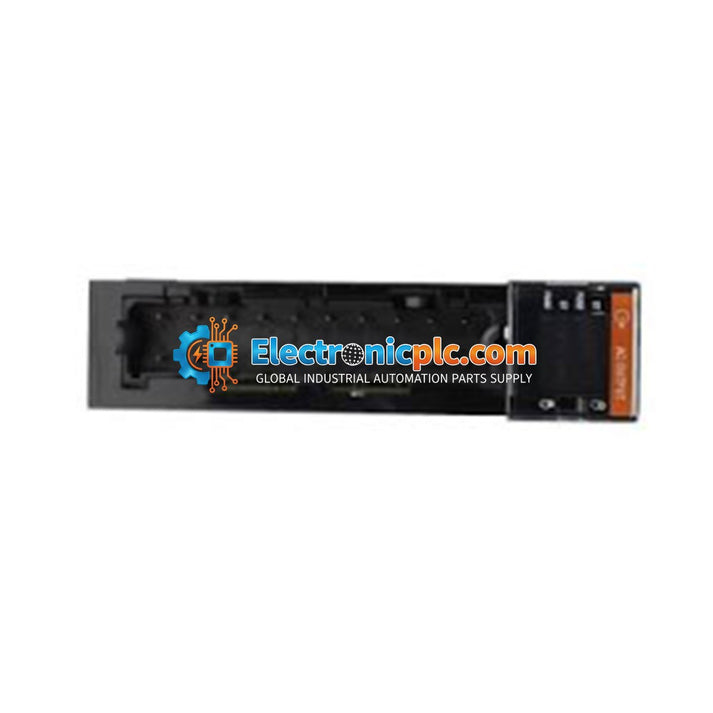

The Allen-Bradley 1756-OA8 is a high-performance discrete output module designed for the ControlLogix platform. This module provides 8 output points, specifically engineered to handle AC voltage applications. It is widely used in industrial automation environments to interface the ControlLogix controller with AC-powered field devices such as motor starters, contactors, and solenoid valves.

Features

  • 8 isolated AC output points for flexible control configurations.
  • Wide operating voltage range of 74-265 Volts AC, supporting both 120V and 240V systems.
  • High current capacity of 0.5 A per point at 60 degC.
  • Integrated status indicators for clear visual diagnostics of output states.
  • Designed for seamless integration into the standard ControlLogix chassis.

Applications

This module is suitable for various industrial control applications, including machine control, process automation, and manufacturing line management where AC load switching is required. It is commonly deployed in systems requiring reliable, high-density AC output control within a unified ControlLogix architecture.

Technical Specifications

Number of Outputs 8
Voltage Category 120 / 240 Volts AC
Operating Voltage Range 74-265 Volts AC
Current per Point 0.5 A @ 60 degC
Current per Group (Max) 2 A @ 60 degC
Backplane Current @ 5V 200 mA
Backplane Current @ 24V 2 mA
Power Dissipation (Max) 5.1 W @ 60 degC
Isolation Voltage 50 Volts Continuous

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-OA8 module to prevent electrical arcing or damage to the backplane.
  • Verify that the module is properly seated in the chassis slot and secured with the top and bottom locking tabs.
  • Use appropriate wire gauges for the terminal block to ensure secure connections and prevent overheating.
  • Route high-voltage AC wiring away from low-voltage signal cables to minimize electromagnetic interference (EMI).
  • Maintain adequate clearance around the module to ensure proper airflow and cooling, as the module dissipates heat during operation.
  • Follow all local electrical codes and safety standards regarding grounding and circuit protection for AC output devices.

FAQ

What is the primary function of the 1756-OA8?

The 1756-OA8 is a discrete output module that allows the ControlLogix controller to switch AC-powered devices on or off based on the control program logic.

Can this module be used with 120V and 240V systems?

Yes, the module supports an operating voltage range of 74-265 Volts AC, making it compatible with both standard 120V and 240V AC industrial control circuits.

Is this module hot-swappable?

Yes, the ControlLogix system supports Removal and Insertion Under Power (RIUP), allowing you to replace the module without shutting down the entire chassis, provided that safety protocols are followed.
