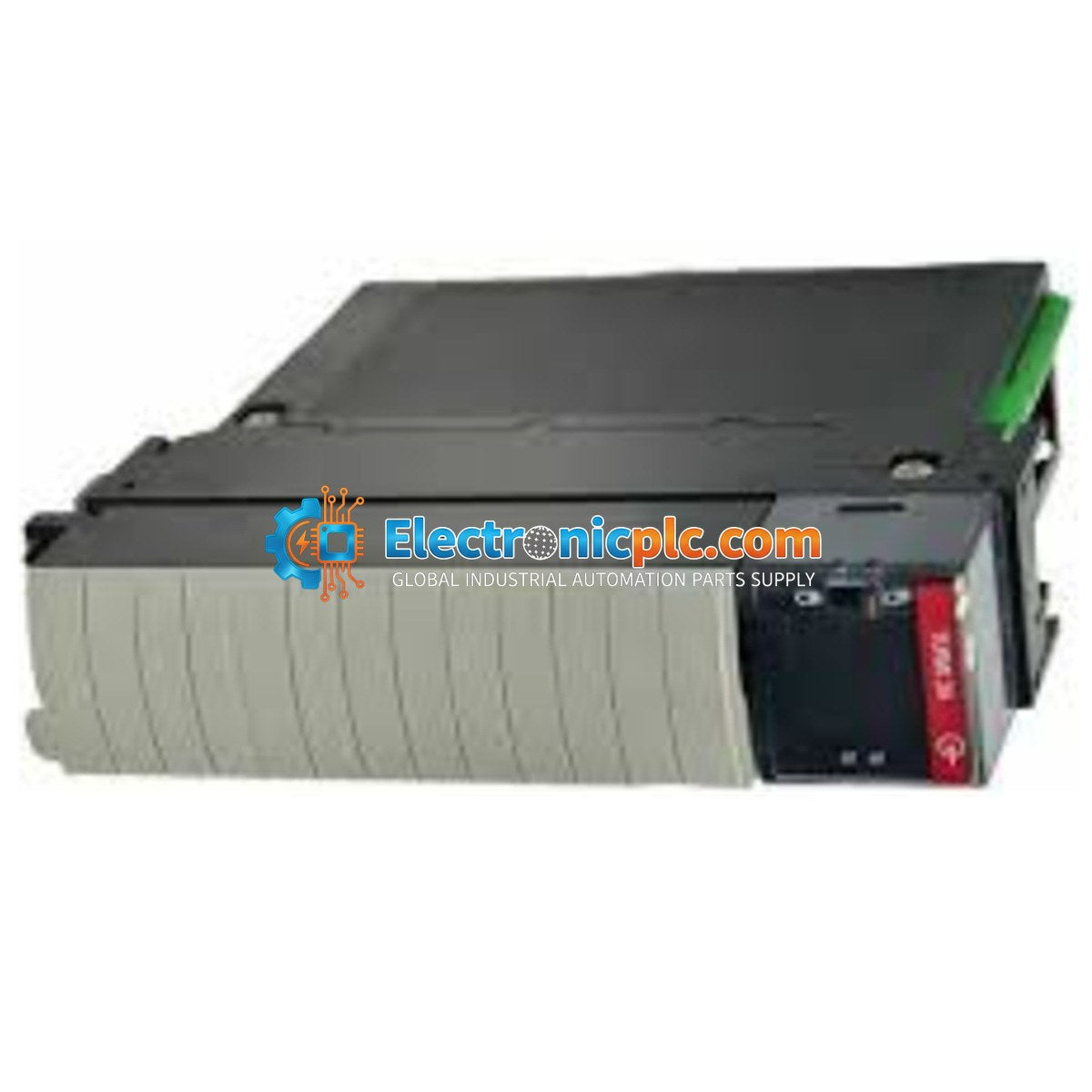

Allen-Bradley 1756-OA8E ControlLogix 8-Point AC Digital Output Module

Allen-Bradley 1756-OA8E ControlLogix 8-Point AC Digital Output Module

Description

The Allen-Bradley 1756-OA8E is a ControlLogix digital AC output module designed for high-performance industrial automation control systems. This module provides eight (8) isolated output channels, specifically engineered for 120V AC...

25 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1756-OA8E
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-OA8E is a ControlLogix digital AC output module designed for high-performance industrial automation control systems. This module provides eight (8) isolated output channels, specifically engineered for 120V AC applications. It features integrated electronic fusing, which provides enhanced protection for the output circuitry against overcurrent conditions, reducing the need for external fuses and simplifying maintenance in dense I/O configurations.

Features

  • Eight (8) electronically-fused AC output channels.
  • Nominal output voltage of 120V AC (operating range 74-132V AC).
  • Maximum output current rating of 2 Amps per point at 60 degC.
  • Designed for seamless integration into the ControlLogix chassis environment.
  • Backplane current draw of 200 mA at 24V DC.
  • Continuous isolation voltage rating of 50V.

Applications

The 1756-OA8E is typically utilized in manufacturing and process control environments for driving AC-powered actuators, contactors, solenoids, and motor starters. Its electronic fusing makes it suitable for applications where reliable circuit protection and diagnostic feedback are required within a ControlLogix architecture.

Technical Specifications

Parameter Specification
Module Type Digital AC Output Module
Number of Outputs 8
Voltage Category 120V AC
Operating Voltage Range 74-132V AC
Current Rating per Point 2A at 60 degC
Backplane Current (24V DC) 200 mA
Isolation Voltage 50V (continuous)
Protection Electronic Fusing

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical arcing or damage to the backplane.
  • The module should be seated firmly into the chassis slot and secured using the top and bottom latching mechanisms.
  • Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
  • Ensure that the field power supply matches the 120V AC nominal requirement and is properly grounded according to local electrical codes.
  • Maintain adequate clearance around the module to allow for proper airflow and cooling within the control cabinet.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal electronic components.

FAQ

What is the primary advantage of the 1756-OA8E electronic fusing?

The electronic fusing feature provides self-protecting outputs that can detect overcurrent conditions and trip, protecting the module hardware. This eliminates the need for physical external fuses for each point, saving space and reducing downtime during fault recovery.

Is this module compatible with standard ControlLogix chassis?

Yes, the 1756-OA8E is designed to fit into any standard 1756 ControlLogix I/O chassis and is compatible with the standard ControlLogix backplane communication protocols.
