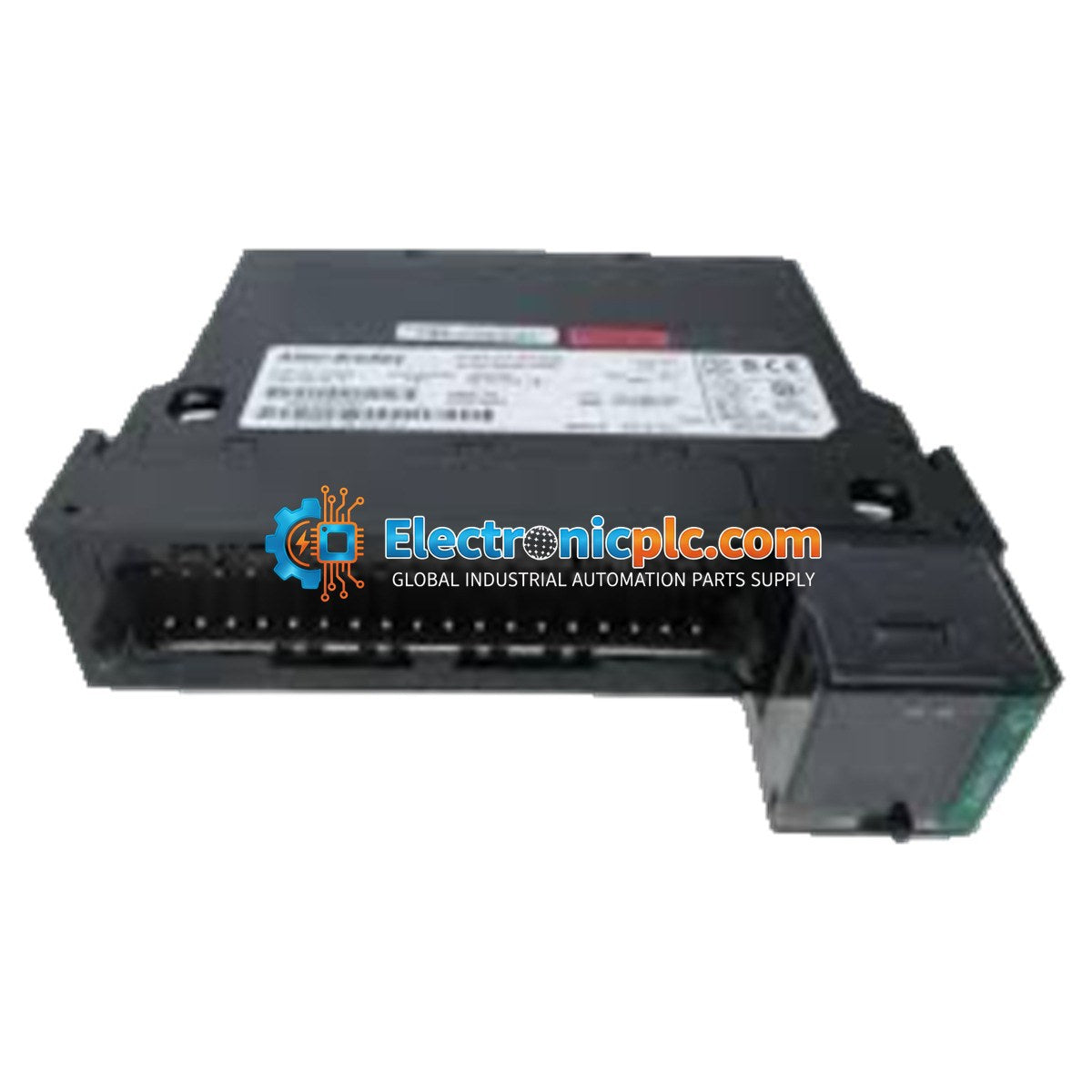

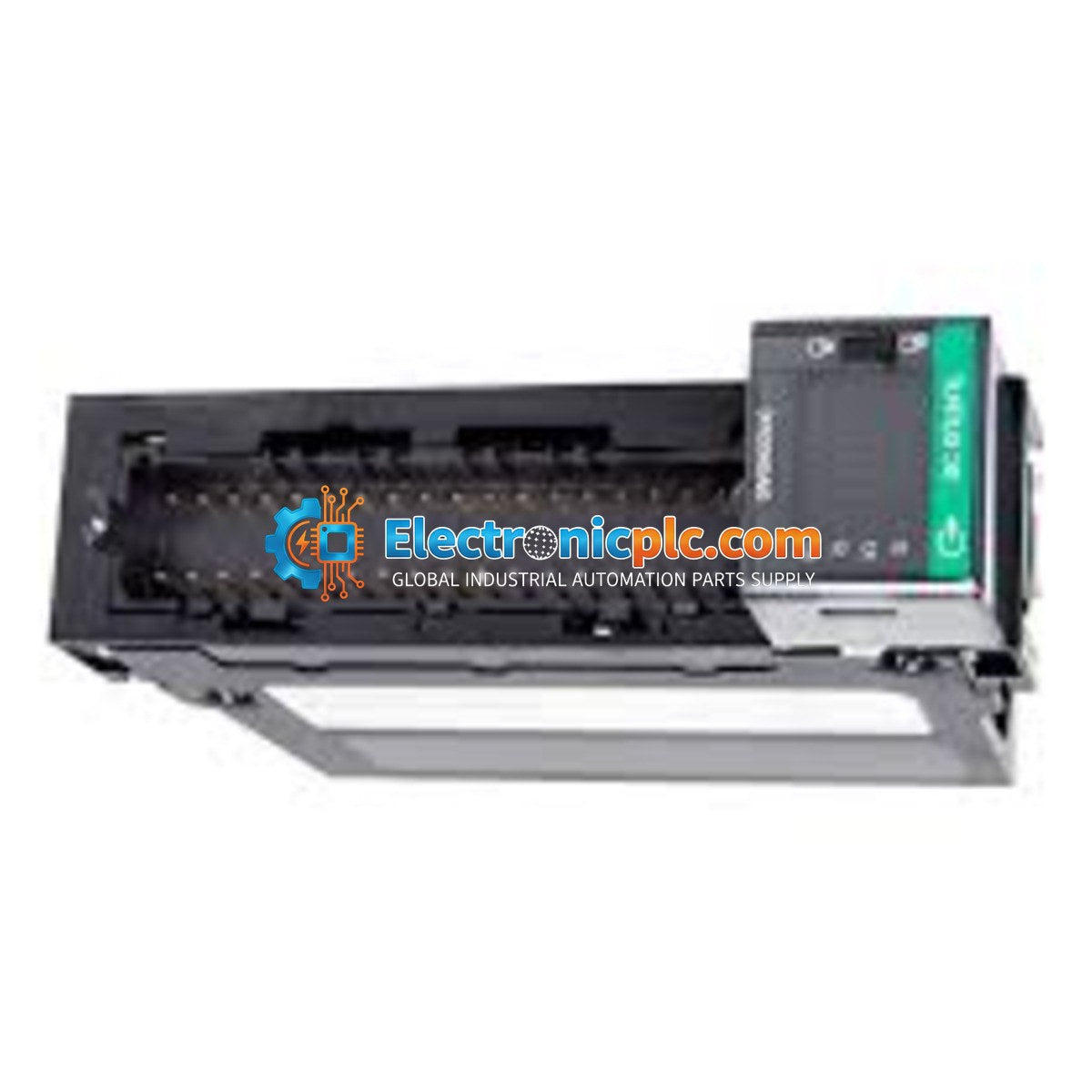

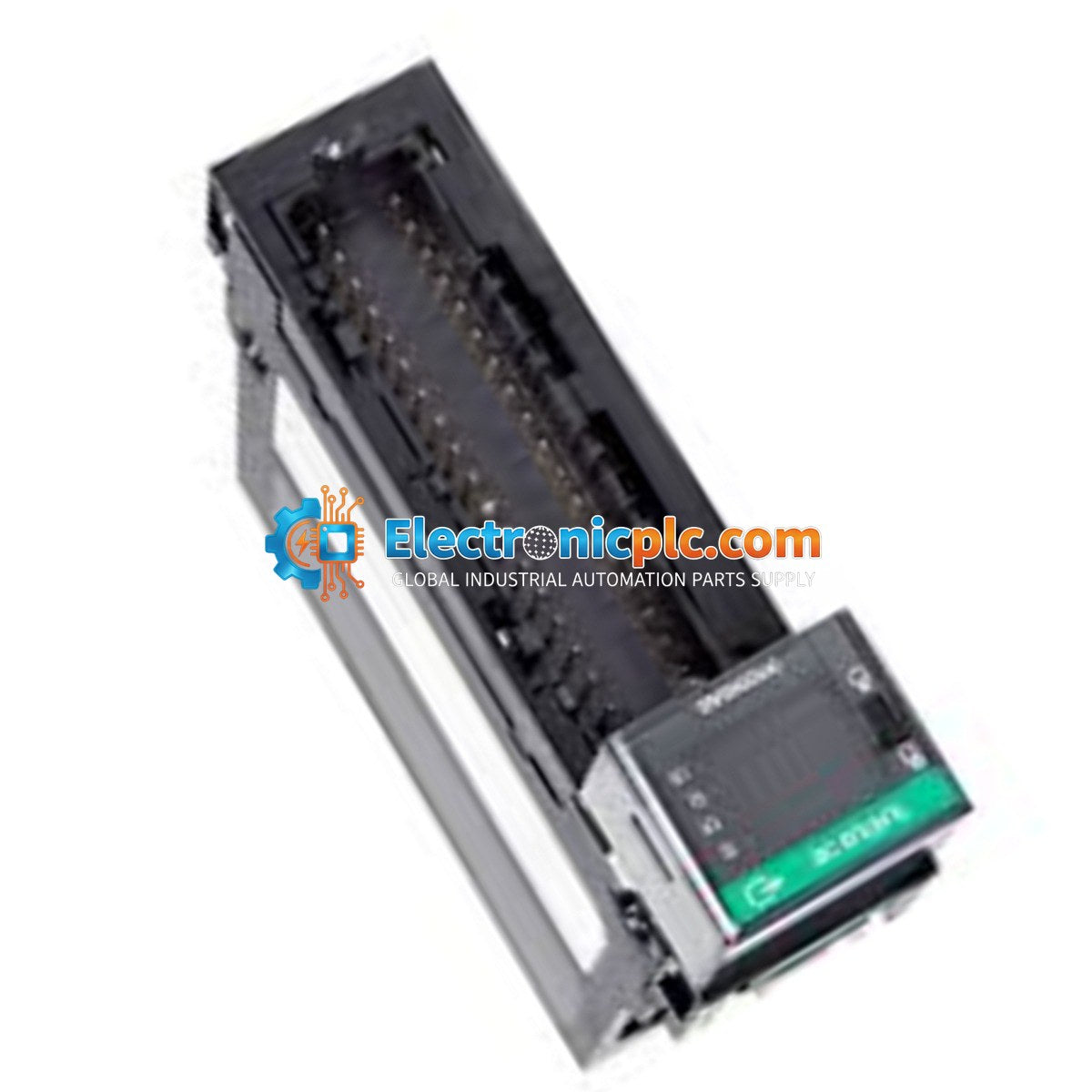

Allen-Bradley 1756-OB16D ControlLogix 16-Point 24V DC Diagnostic Output Module

Allen-Bradley 1756-OB16D ControlLogix 16-Point 24V DC Diagnostic Output Module

Description

The Allen-Bradley 1756-OB16D is a high-performance 16-point diagnostic digital output module designed for the ControlLogix platform. This module provides reliable switching for 24V DC field devices, featuring advanced diagnostic capabilities...

18 people are viewing this right now

Availability: Low stock: 6 left

SKU: 1756-OB16D
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-OB16D is a high-performance 16-point diagnostic digital output module designed for the ControlLogix platform. This module provides reliable switching for 24V DC field devices, featuring advanced diagnostic capabilities to detect load conditions such as open-wire or short-circuit faults. It is engineered to integrate seamlessly into ControlLogix chassis, providing essential status monitoring and control for industrial automation processes.

Features

  • 16-point diagnostic output configuration.
  • Supports 24V DC source output.
  • Diagnostic feedback for improved troubleshooting and system availability.
  • Optimized for high-density I/O requirements in ControlLogix systems.
  • Low power dissipation for efficient thermal management in control cabinets.

Technical Specifications

Model 1756-OB16D
Output Points 16
Voltage Category 24V DC Source
Operating Voltage Range 19.2 - 30V DC
Max Output Current (Per Point) 2 Amps
Backplane Current @ 5V 250 mA
Backplane Current @ 24V 140 mA
Max Power Dissipation 3.3 Watts @ 60 degC

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • The 1756-OB16D must be installed in a standard ControlLogix I/O chassis.
  • Use appropriate shielded cabling for field wiring to minimize EMI interference.
  • Ensure proper grounding of the chassis and module to maintain signal integrity.
  • Verify that the field power supply is within the 19.2-30V DC range before energizing the system.
  • Handle with care using ESD-safe practices to protect internal electronic components.

FAQ

What is the primary function of the diagnostic feature on this module?

The diagnostic feature allows the ControlLogix controller to monitor the health of the output circuit, specifically detecting conditions like open-circuit or short-circuit faults, which helps in reducing downtime by identifying issues at the specific point level.

Is this module compatible with standard ControlLogix chassis?

Yes, the 1756-OB16D is designed for use in any standard Allen-Bradley ControlLogix I/O chassis and communicates via the ControlLogix backplane.
