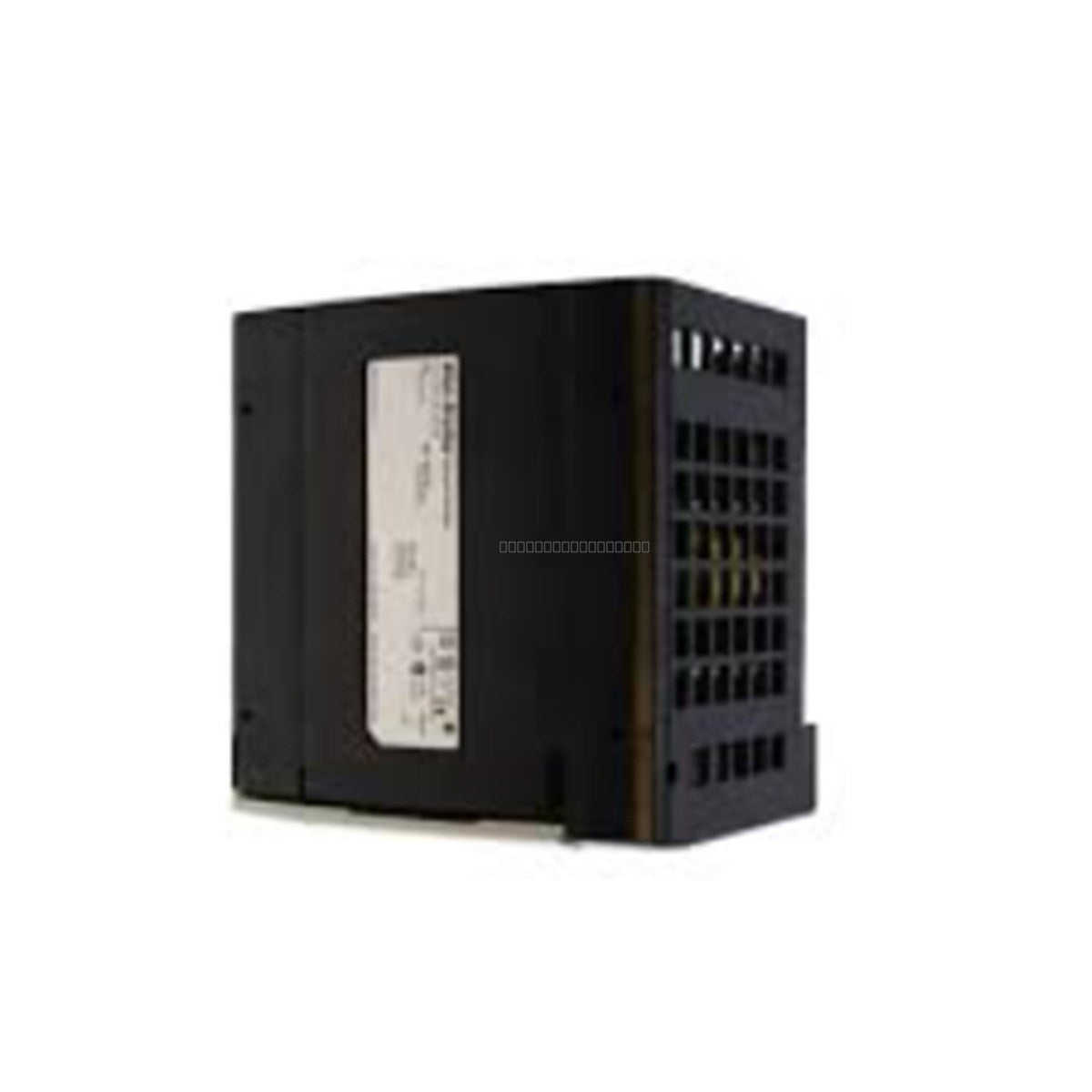

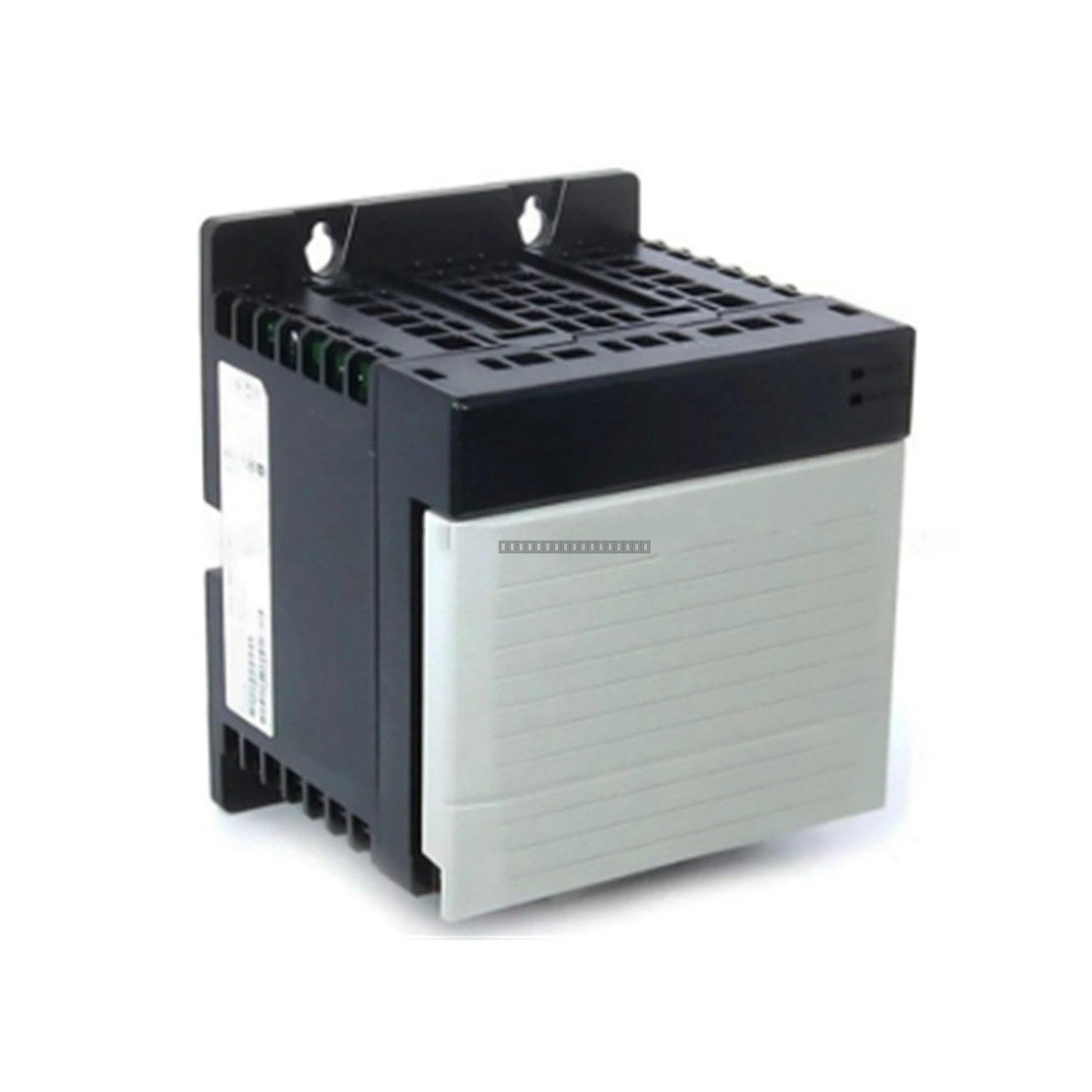

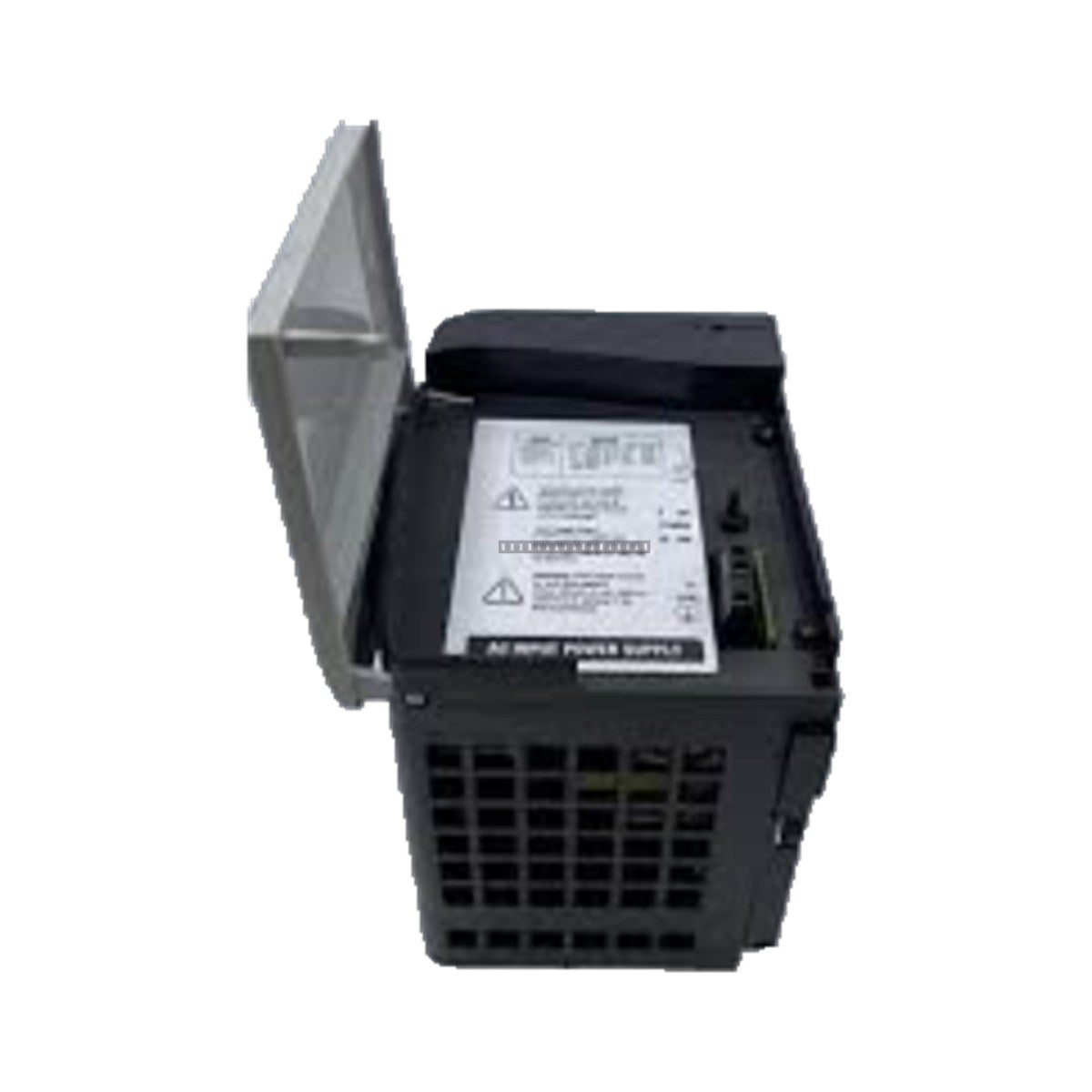

Allen-Bradley 1756-PA75R ControlLogix AC Redundant Power Supply

Allen-Bradley 1756-PA75R ControlLogix AC Redundant Power Supply

The 1756-PA75R is a ControlLogix redundant AC power supply module designed to provide high-availability power for ControlLogix chassis in critical industrial applications. It supports an input voltage range of 85...

17 people are viewing this right now

Availability: In stock

SKU: 1756-PA75R
Vendor: Allen-Bradley
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The 1756-PA75R is a ControlLogix redundant AC power supply module designed to provide high-availability power for ControlLogix chassis in critical industrial applications. It supports an input voltage range of 85 to 265V AC (nominal 120/240V AC) at 47 to 63 Hz, making it suitable for global deployment.

Features

  • Wide-range AC input voltage support
  • Automatic chassis load sharing when used in redundant pairs
  • Seamless failover protection with < 5 ms switchover time
  • Visual status indicators for real-time health monitoring
  • Solid-state relay annunciator output for remote status signaling
  • Hot-swappable design for maintenance without system de-energization

Applications

  • Water/Wastewater: Chemical dosing and valve control systems
  • Oil/Gas/Petrochemical: Pressure loop management and burner gas-feed systems
  • Food/Beverage: PID-controlled temperature regulation for mixing and cooking
  • Power Generation: Steam governor actuators and cooling tower fan speed integration

Technical Specifications

Product Model 1756-PA75R
Input Voltage Range 85-265V AC
Input Frequency 47-63 Hz
Output Power 75 Watts at 60 degC
Backplane Output 5.1V DC / 24V DC
Isolation Voltage 250V (continuous)
Operating Temperature 0 degC to 60 degC
Weight 1.45 kg

Installation Guidelines

  • Ensure all system power is disconnected before handling the module.
  • The 1756-PA75R is typically installed on the far-left side of the chassis or remotely via a chassis adapter.
  • Align the top and bottom guides of the power supply with the chassis grooves and slide the module until the rear connector fully seats into the backplane.
  • Tighten the top and bottom retaining screws to secure the unit.
  • For redundant configurations, use the 1756-PSCA2 chassis adapter and 1756-CPR2 cables.
  • Use 2.5 mm2 (14 AWG) copper wire rated at 90 degC or greater for power connections.

FAQ

What is the input voltage range for the 1756-PA75R?

The module is auto-ranging and supports an input voltage range of 85 to 265V AC (nominal 120V or 240V AC at 47 to 63 Hz).

Can I use this power supply as a standalone unit?

Yes, it can operate as a standalone supply. However, its primary purpose is to function in a redundant pair configuration for high-availability systems.

What components are required to build a redundant power supply assembly?

To assemble a redundant pair, you need two 1756-PA75R power supplies, a 1756-PSCA2 chassis adapter module, and two 1756-CPR2 redundant power supply cables.
