Allen-Bradley 1756-PB72 ControlLogix 24V DC Power Supply

Allen-Bradley 1756-PB72 ControlLogix 24V DC Power Supply

Description

The Allen-Bradley 1756-PB72 is a standard DC power supply module designed for the ControlLogix platform. It provides reliable power distribution to the ControlLogix chassis, ensuring stable operation of the CPU,...

23 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1756-PB72
Vendor: Allen-Bradley
Category: PLC Power Supply
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

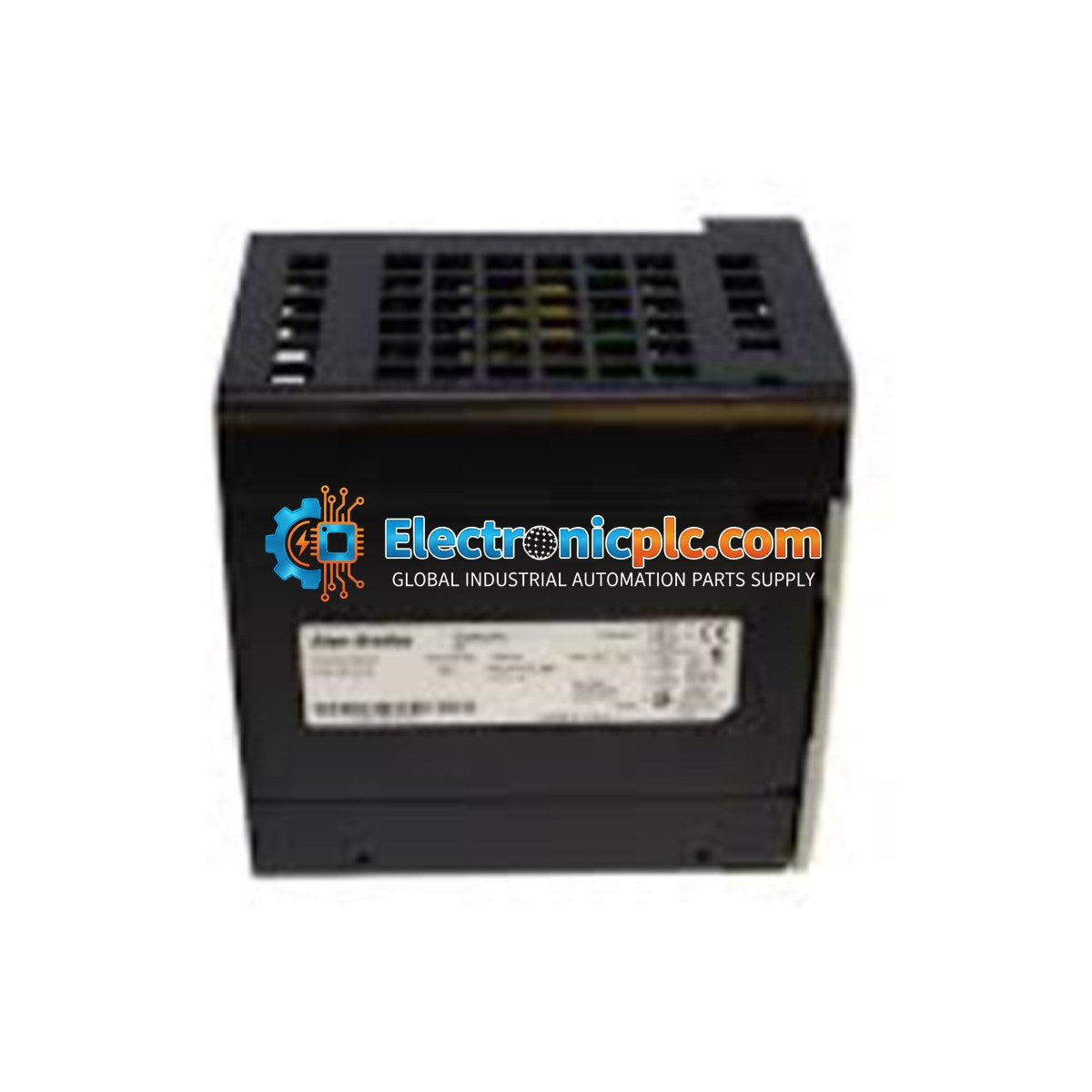

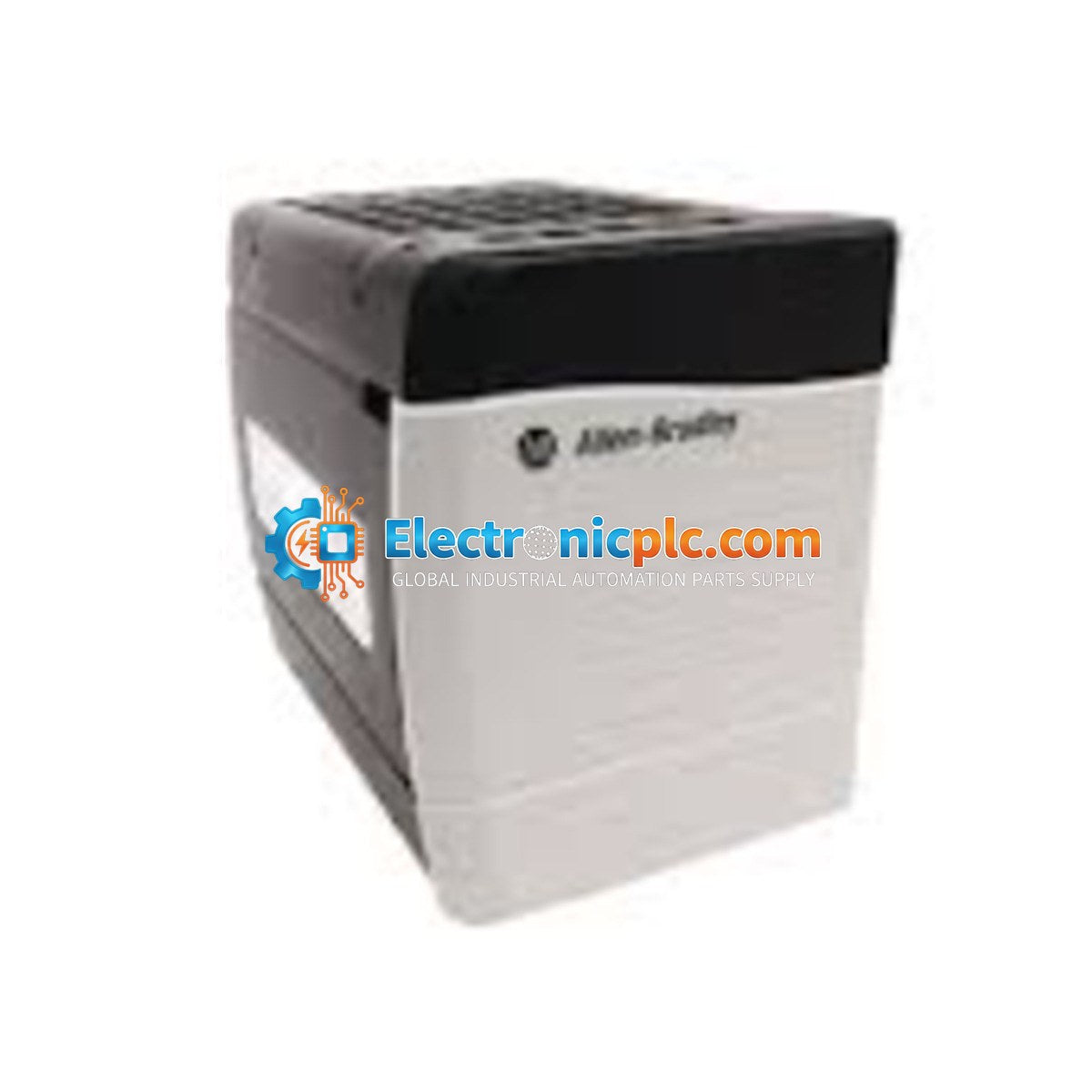

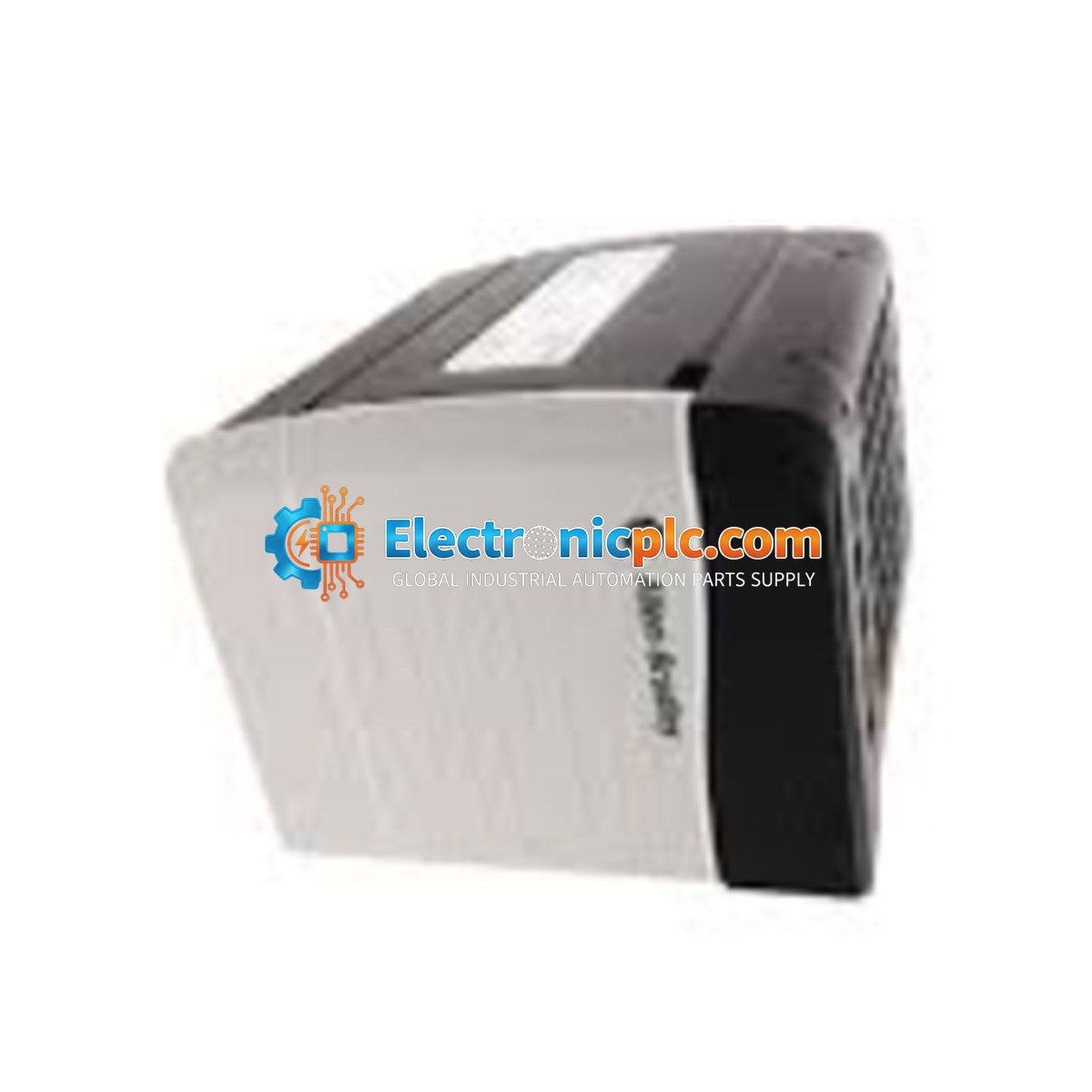

The Allen-Bradley 1756-PB72 is a standard DC power supply module designed for the ControlLogix platform. It provides reliable power distribution to the ControlLogix chassis, ensuring stable operation of the CPU, I/O modules, and communication adapters within the rack. This unit is engineered for industrial environments requiring a 24V DC input source.

Features

  • Designed specifically for the Allen-Bradley ControlLogix chassis system.
  • Supports an input voltage range of 18-32V DC.
  • Delivers a power output of 75W at 60 degC.
  • Robust chassis-mount design for secure installation.
  • Integrated protection against input voltage fluctuations.

Technical Specifications

Model 1756-PB72
Input Voltage 24V DC (18-32V DC range)
Input Power 95W
Output Power 75W at 60 degC
Max Inrush Current 30A
Module Type Standard DC Power Supply
Mounting Chassis Mount

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before installing or removing the power supply module.
  • Slide the module into the designated power supply slot on the left side of the chassis until it is fully seated.
  • Tighten the mounting screws to ensure a secure connection and proper chassis grounding.
  • Use appropriate wire gauges for the DC input terminals to prevent voltage drops and overheating.
  • Maintain adequate clearance around the module to allow for proper airflow and cooling, as the unit is rated for performance up to 60 degC.
  • Avoid routing high-voltage AC cables near the DC input wiring to minimize electromagnetic interference (EMI).

FAQ

Is the 1756-PB72 compatible with all ControlLogix chassis?

Yes, this power supply is designed to be compatible with standard ControlLogix chassis, provided the chassis has the appropriate slot for a power supply module.

What is the primary function of this module?

The 1756-PB72 converts 24V DC input power into the necessary voltages required by the backplane to power the modules installed in the ControlLogix rack.
