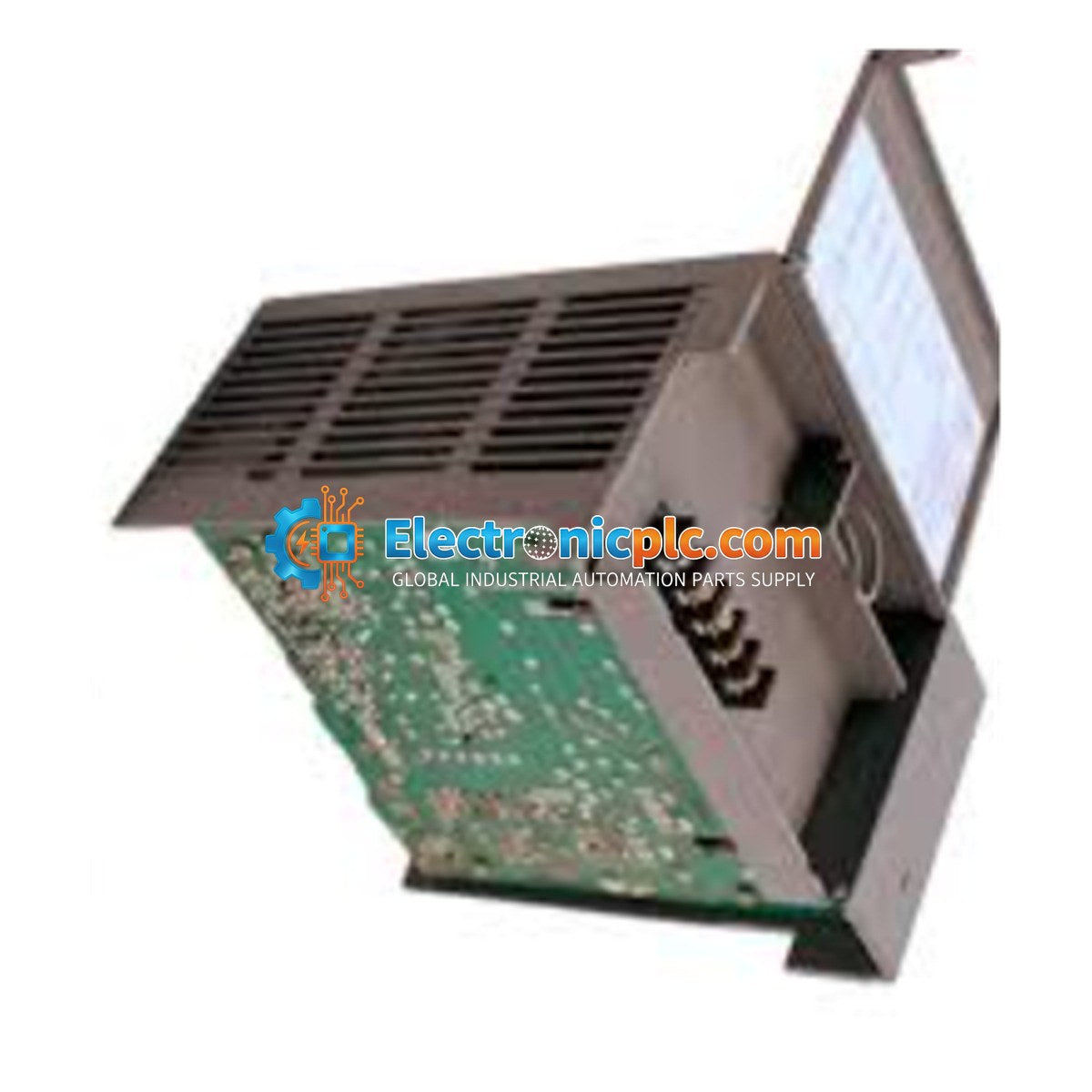

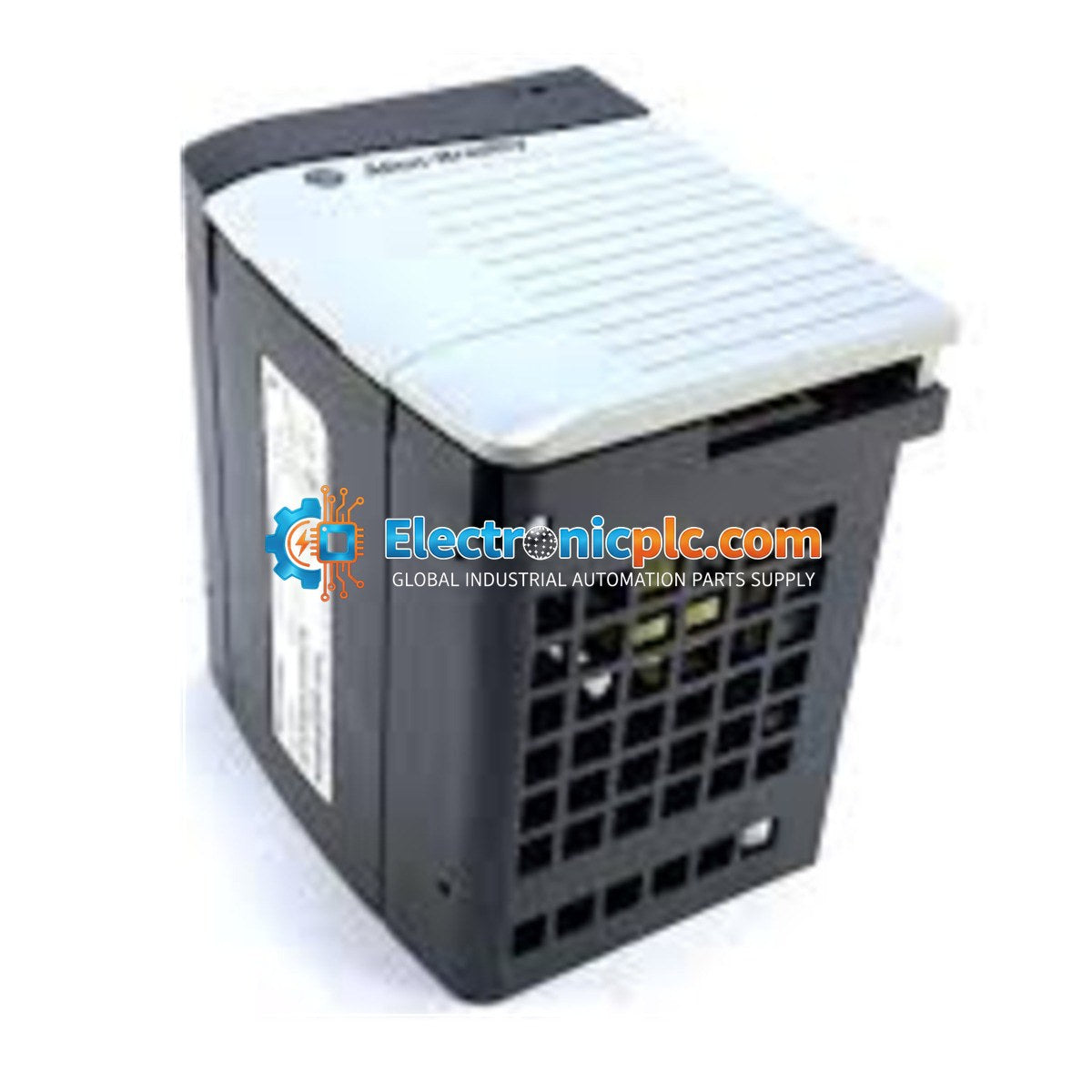

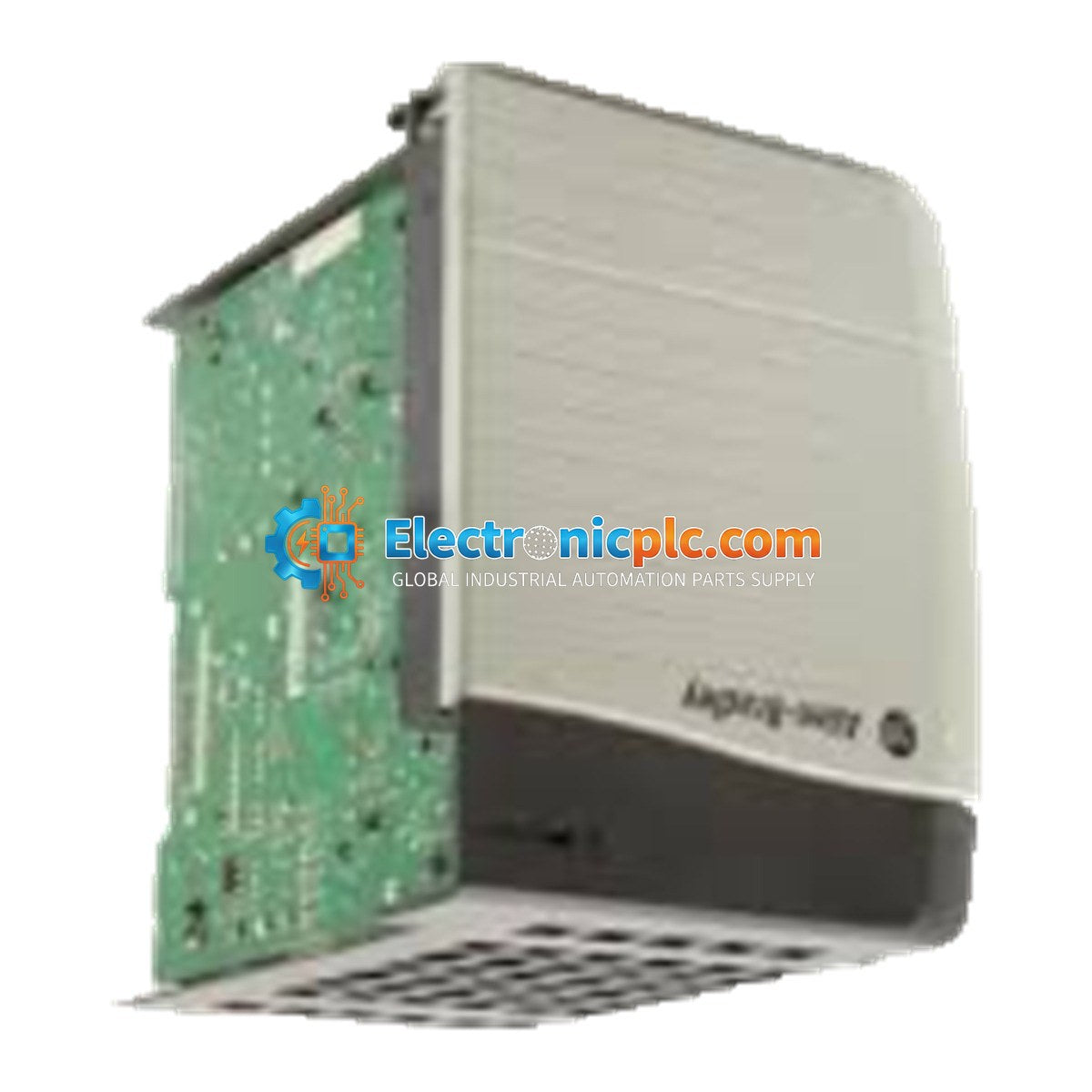

Allen-Bradley 1756-PB75 ControlLogix 24V DC Power Supply

Allen-Bradley 1756-PB75 ControlLogix 24V DC Power Supply

Description

The Allen-Bradley 1756-PB75 is a high-performance, standard DC power supply module designed specifically for the ControlLogix platform. This module is engineered to provide reliable power to the chassis backplane,...

18 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1756-PB75
Vendor: Allen-Bradley
Category: PLC Power Supply
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-PB75 is a high-performance, standard DC power supply module designed specifically for the ControlLogix platform. This module is engineered to provide reliable power to the chassis backplane, converting an 18-32V DC input into the necessary logic voltages (1.2V, 3.3V, 5.1V, and 24V DC) required by ControlLogix I/O and processor modules. With a maximum output power rating of 75W, it is capable of supporting fully populated chassis configurations in demanding industrial environments.

Features

  • 75W maximum output power at 60 degC.
  • Designed for dedicated mounting on the far-left slot of a 1756 chassis.
  • Wide input voltage range: 18-32V DC (24V DC nominal).
  • Integrated overcurrent and overvoltage protection for backplane safety.
  • 250V continuous galvanic isolation between the power source and backplane logic.
  • Compatible with standard 1756 Series B and C chassis (1756-A4, A7, A10, A13, A17).

Technical Specifications

Product Model 1756-PB75
Module Type Standard DC Power Supply
Input Voltage 24V DC (Nominal)
Input Range 18-32V DC
Output Power 75W at 60 degC
Input Power 95W
Mounting ControlLogix Chassis (Leftmost Slot)
Weight 0.98 kg

Applications

  • Water and Wastewater Treatment: Powering controllers for dosing pumps and flow valves.
  • Food and Beverage Production: Supporting automation for pasteurization and bottling lines.
  • Chemical and Petrochemical: Providing stable power for high-precision PID control loops.
  • HVAC and Climate Control: Managing industrial cooling towers and damper systems.
  • Metals and Mining: Supporting hydraulic press control and position monitoring.

Installation Guidelines

  • Ensure the power supply is installed in the dedicated leftmost slot of the 1756 chassis.
  • Always disconnect the main power source before inserting or removing the module from the chassis.
  • Ensure proper grounding of the chassis to minimize EMI and protect against electrical surges.
  • Maintain adequate clearance around the chassis to allow for proper airflow and cooling, as the unit is rated for operation up to 60 degC.
  • Use appropriately sized wiring for the 24V DC input to prevent voltage drop.

FAQ

What is the difference between the 1756-PA75 and 1756-PB75?

The 1756-PA75 is designed for AC power input (85-264V AC), whereas the 1756-PB75 is designed for DC power input (18-32V DC).

Which chassis are compatible with this power supply?

The 1756-PB75 is compatible with standard 1756 Series B and C chassis, including models 1756-A4, A7, A10, A13, and A17.
