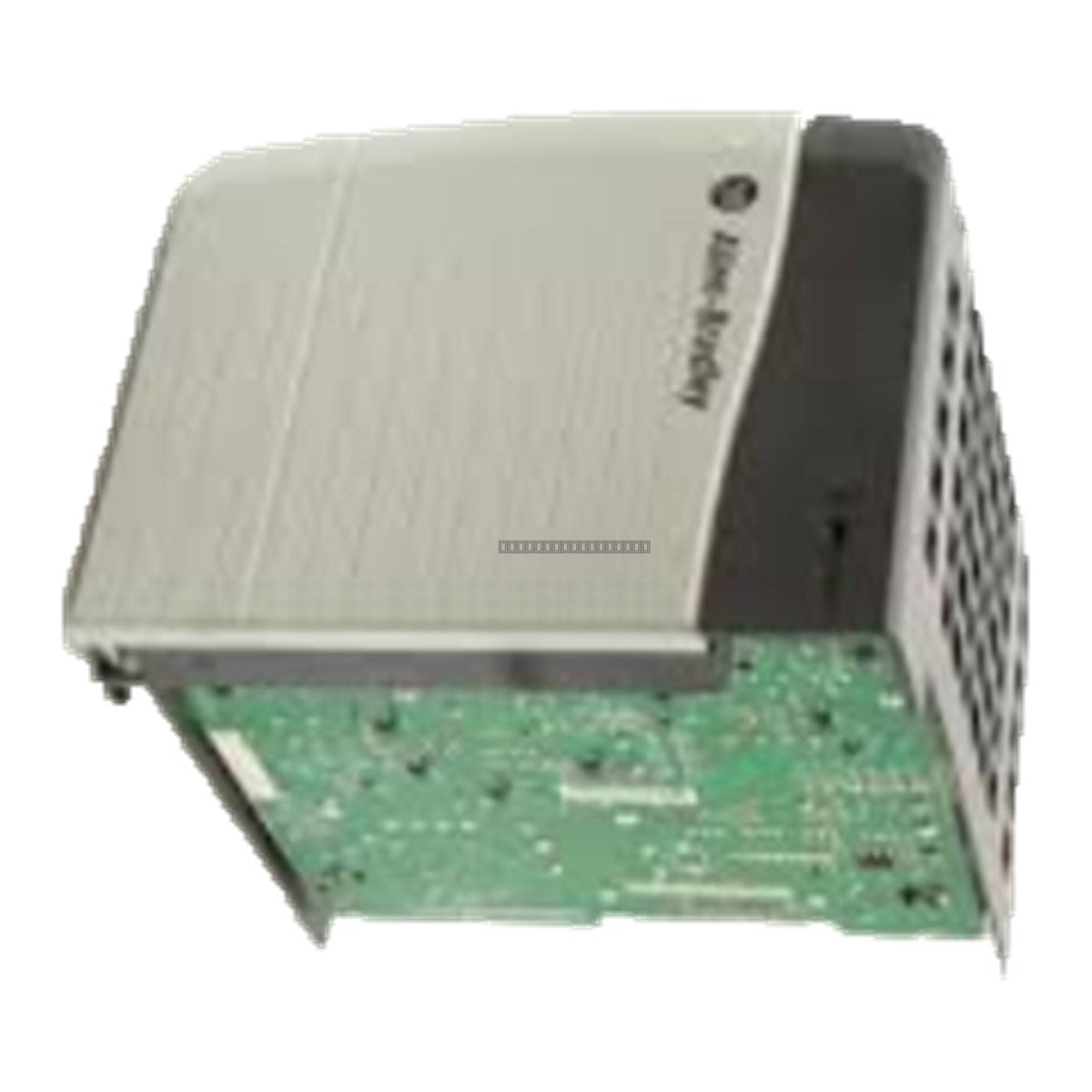

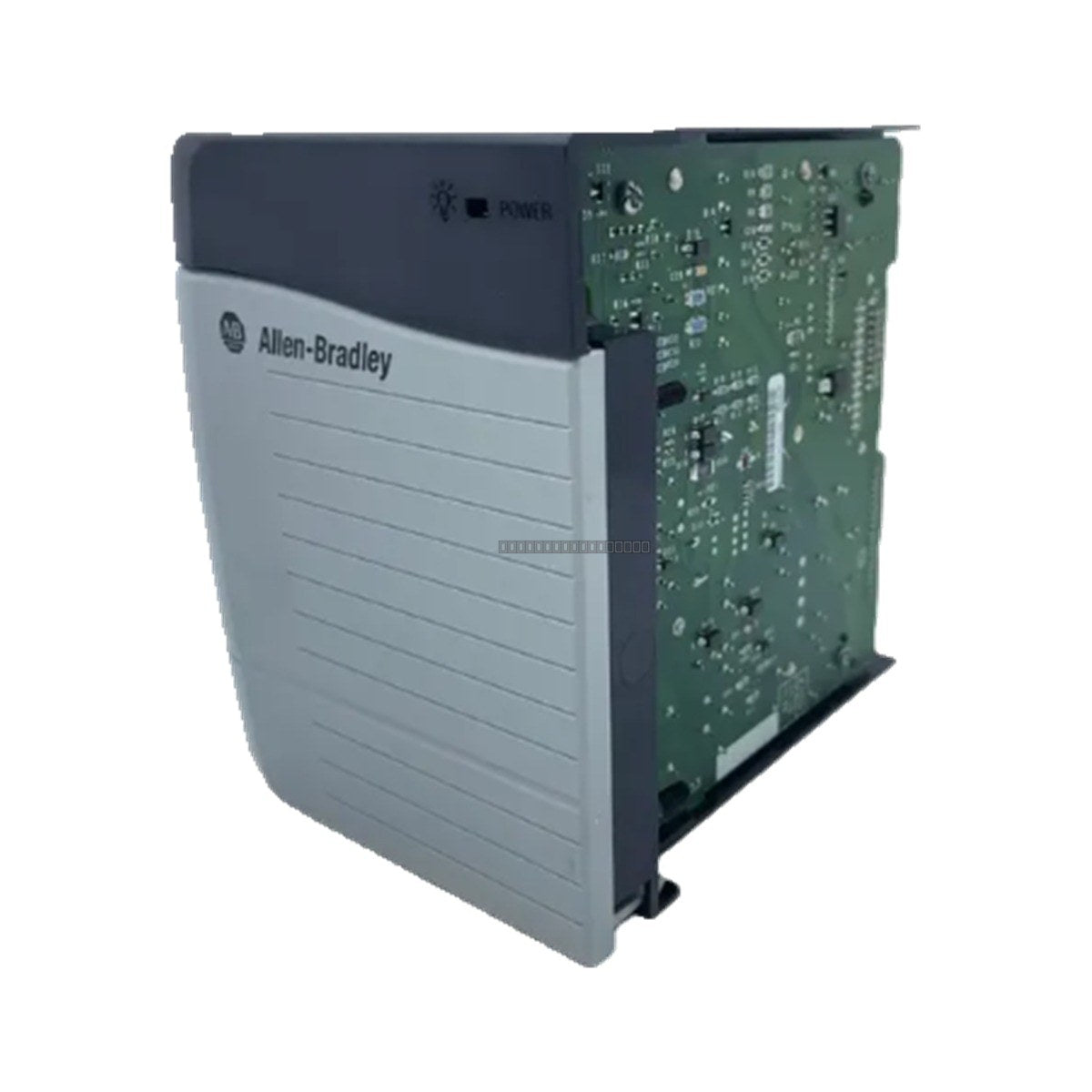

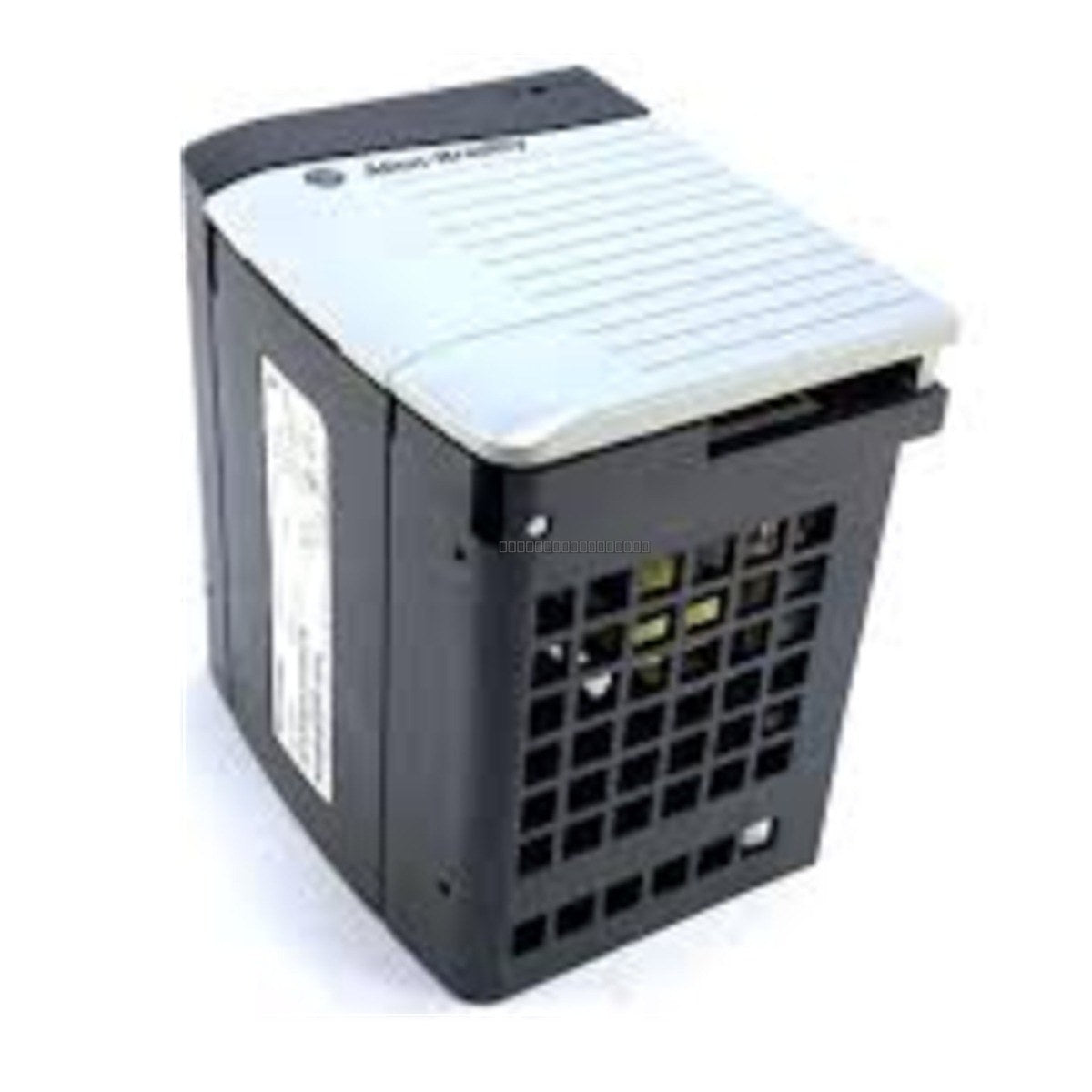

Allen-Bradley 1756-PH75 ControlLogix High-Voltage DC Power Supply Module

Allen-Bradley 1756-PH75 ControlLogix High-Voltage DC Power Supply Module

The 1756-PH75 is a high-efficiency, high-voltage direct current (DC) chassis power supply module designed for the Allen-Bradley ControlLogix 1756 platform. This side-mount module serves as the central electrical power source...

20 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1756-PH75
Vendor: Allen-Bradley
Category: PLC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The 1756-PH75 is a high-efficiency, high-voltage direct current (DC) chassis power supply module designed for the Allen-Bradley ControlLogix 1756 platform. This side-mount module serves as the central electrical power source for the backplane, converting facility-level high-voltage DC into regulated multi-rail logic voltages required for processors, communication modules, and I/O.

Features

  • Designed for 125 VDC nominal input power systems.
  • Provides four regulated output rails: 24 VDC, 5.1 VDC, 3.3 VDC, and 1.2 VDC.
  • Supports 75 Watts of total backplane output power.
  • Features ride-through capability of up to 50 ms to prevent system resets during brief input power dips.
  • Reinforced insulation rated for 250 Volts continuous isolation.
  • Mounts directly to the left side of standard 1756 Series B chassis.
  • Passive cooling design; no internal fans required.

Applications

This power supply is engineered for intensive industrial environments where high-voltage DC bus distribution is standard, including electrical substations, mass transit rail infrastructure, marine power generation, and automated manufacturing facilities.

Technical Specifications

Model 1756-PH75
Input Voltage Range 90 to 143 VDC
Max Input Power 95 Watts
Max Backplane Output 75 Watts (0 to 60 deg C)
Output Current (24V / 5.1V / 3.3V / 1.2V) 2.8A / 13.0A / 4.0A / 1.5A
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Vibration Resistance 2 g @ 10 to 500 Hz
Weight 1.33 kg

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before installing or removing the power supply module.
  • The module must be installed on the left side of the 1756 chassis.
  • Use 2.5 mm2 (approx. 14 AWG) solid or stranded copper wire for input connections.
  • Tighten terminal block screws to 0.8 N·m (7 lb·in) to ensure secure contact and vibration resistance.
  • Maintain adequate clearance around the module to allow for convective airflow; do not obstruct the open-style chassis.
  • Ensure the installation environment meets the specified 5 to 95 percent non-condensing humidity requirements.

FAQ

Is this module compatible with all ControlLogix chassis?
The 1756-PH75 is designed for use with 1756 Series B backplanes, including the 1756-A4, A7, A10, A13, and A17 models.

Does this module require external cooling?
No, the module utilizes an open-style architecture that relies on ambient convective airflow for thermal management.
