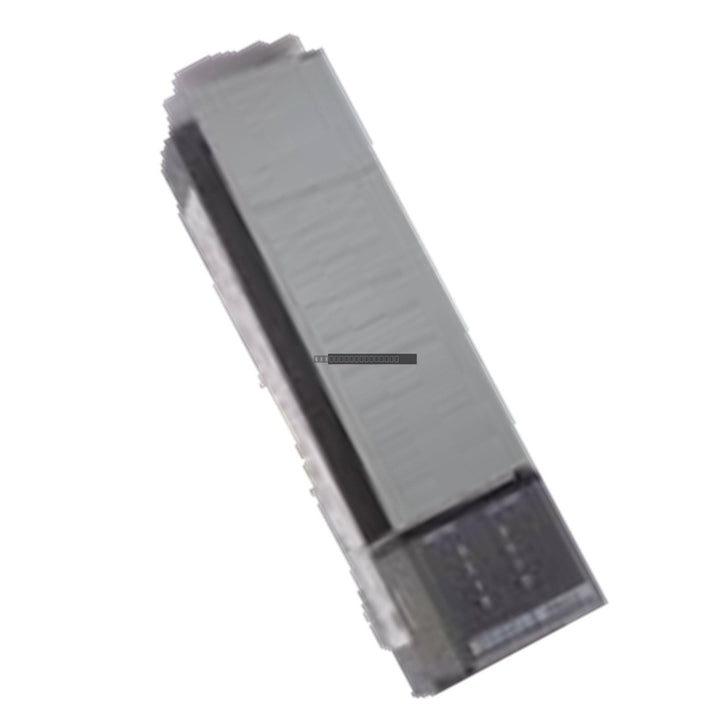

Allen-Bradley 1756-RM/A ControlLogix Redundancy Module

Allen-Bradley 1756-RM/A ControlLogix Redundancy Module

Description

The Allen-Bradley 1756-RM/A is a ControlLogix Redundancy Module designed to provide high-availability operation for industrial automation systems. This module facilitates seamless switchover between primary and secondary controllers, ensuring continuous process...

29 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1756-RM/A
Vendor: Allen-Bradley
Category: Redundancy Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-RM/A is a ControlLogix Redundancy Module designed to provide high-availability operation for industrial automation systems. This module facilitates seamless switchover between primary and secondary controllers, ensuring continuous process control and minimizing downtime in critical applications. It is engineered for integration within the ControlLogix platform, supporting specific controller configurations to maintain system synchronization.

Features

  • Supports redundancy for two 1756-L61, 1756-L62, or 1756-L63 controllers.
  • Supports redundancy for one 1756-L64 controller.
  • Accommodates up to seven communication modules within the redundant chassis configuration.
  • Provides reliable state and data synchronization between redundant controller pairs.
  • Compact module design for standard ControlLogix chassis mounting.

Technical Specifications

Model 1756-RM/A
Power Dissipation 9 Watts
Thermal Dissipation 31 BTU/hr
Current Draw (1.2V DC) 4 mA
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-RM/A module to prevent electrical damage.
  • Verify that the module is fully seated in the chassis slot and that the locking tabs are engaged.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.
  • Ensure adequate ventilation in the cabinet to maintain operating temperatures within the specified 0 to 60 degC range.
  • Confirm that firmware versions across both redundant controllers and the redundancy module are compatible according to the latest Rockwell Automation documentation.

FAQ

What is the primary function of the 1756-RM/A?

The 1756-RM/A acts as a bridge between two ControlLogix controllers, allowing them to operate in a redundant pair. If the primary controller fails, the secondary controller assumes control of the process without significant interruption.

Can this module be used with any ControlLogix controller?

No, the 1756-RM/A is specifically designed for use with the 1756-L6x series controllers. Please verify your specific controller model against the supported list (L61, L62, L63, or L64) before installation.
