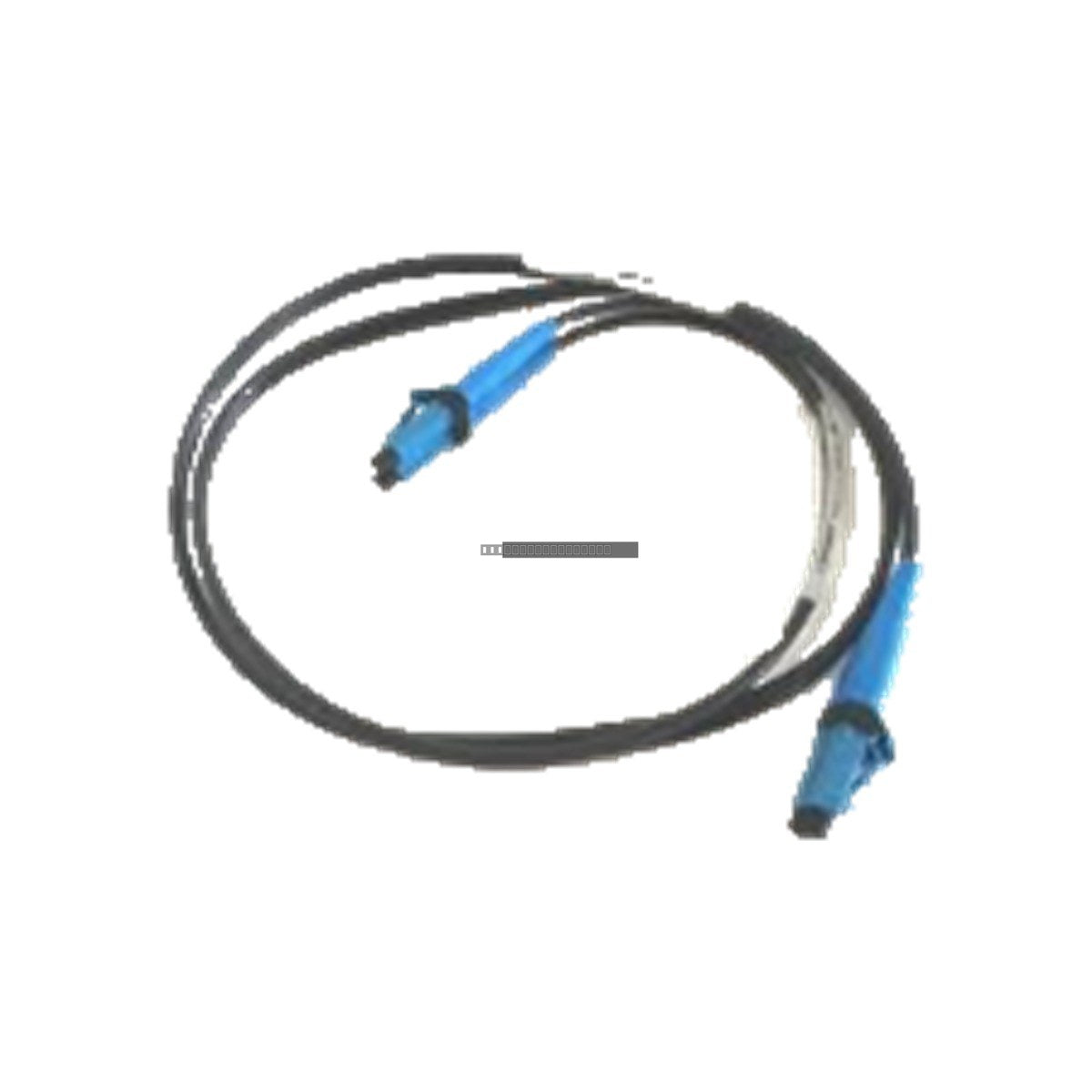

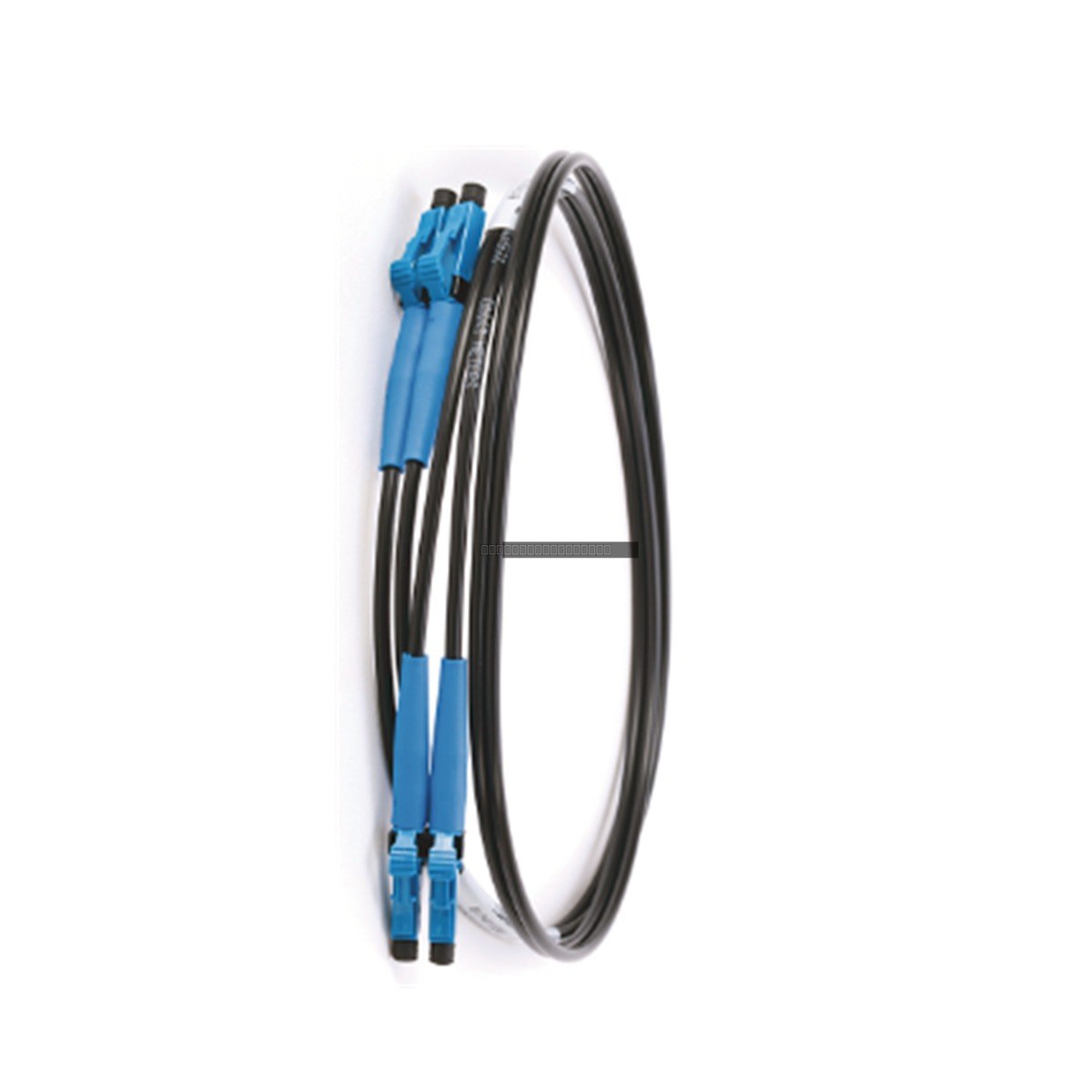

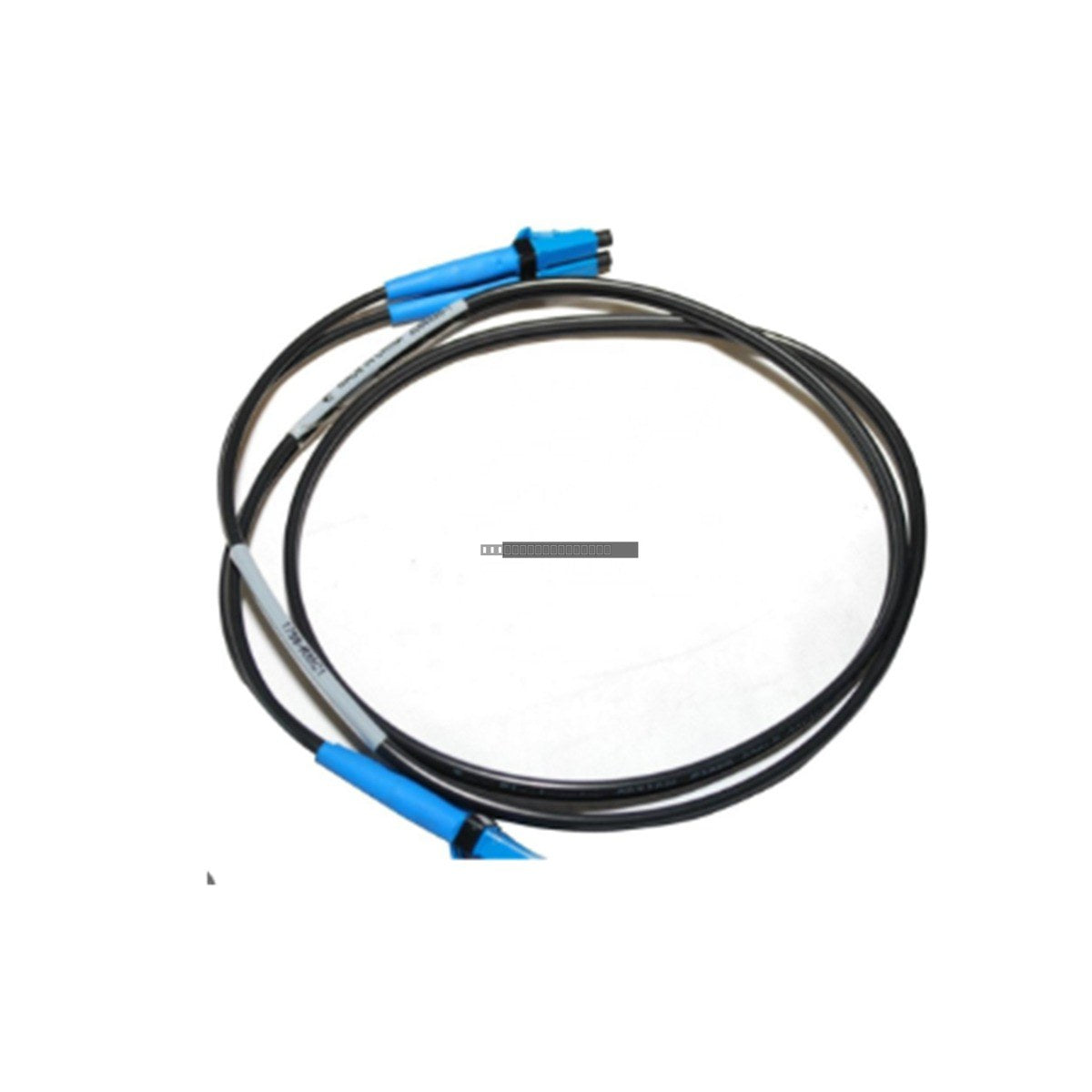

Allen-Bradley 1756-RMC10 ControlLogix Redundancy Module Fiber-Optic Cable

Allen-Bradley 1756-RMC10 ControlLogix Redundancy Module Fiber-Optic Cable

Description

The Allen-Bradley 1756-RMC10 is a 10-meter (32.81 feet) duplex single-mode fiber-optic communication cable engineered for the ControlLogix 1756 platform. This cable serves as the vital synchronization link for ControlLogix redundancy...

24 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1756-RMC10
Vendor: Allen-Bradley
Category: Communication Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-RMC10 is a 10-meter (32.81 feet) duplex single-mode fiber-optic communication cable engineered for the ControlLogix 1756 platform. This cable serves as the vital synchronization link for ControlLogix redundancy modules, including the 1756-RM, 1756-RM2, 1756-RMXT, and 1756-RM2XT. It enables high-speed, deterministic data transfer between primary and secondary chassis, supporting zero-downtime hot-backup configurations in critical industrial automation environments.

Features

  • Industrial-grade duplex LC connectors for secure, reliable mating with redundancy module transceivers.
  • Single-mode fiber construction providing complete immunity to EMI and RFI interference.
  • Optimized for long-distance routing between separate control cabinets.
  • Supports high-speed memory and I/O state synchronization for seamless failover.
  • Designed for robust performance in demanding process control applications.

Installation Guidelines

  • Ensure the cable is routed through protected conduits or wire ducts to prevent physical damage.
  • Maintain the manufacturer-specified minimum bend radius to avoid damaging the internal glass fibers.
  • Use separate physical paths for redundant cable runs to mitigate the risk of simultaneous channel failure.
  • Inspect LC connectors for dust or debris before insertion; use appropriate fiber-optic cleaning tools if necessary.
  • Avoid excessive mechanical strain on the connectors during cabinet installation and maintenance.

Technical Specifications

Model 1756-RMC10
Cable Length 10.0 Meters (32.81 Feet)
Connector Type Duplex LC
Fiber Type Single-Mode
Wavelength 1300 nm
Compatibility 1756-RM, 1756-RM2, 1756-RMXT, 1756-RM2XT
Operating Temperature -25 to 70 deg C
Storage Temperature -40 to 85 deg C
Humidity 5 to 95 percent non-condensing

FAQ

What is the primary function of the 1756-RMC10 cable?

The 1756-RMC10 acts as the physical communication bridge between two ControlLogix redundancy modules, allowing them to synchronize memory and I/O states to maintain system operation during a controller failure.

Is this cable susceptible to electrical noise?

No, because it utilizes fiber-optic technology, the 1756-RMC10 is completely immune to electromagnetic and radio frequency interference, making it ideal for high-voltage industrial environments.

Can this cable be used with any ControlLogix module?

No, it is specifically designed for use with the 1756-RM, 1756-RM2, 1756-RMXT, and 1756-RM2XT redundancy modules.
