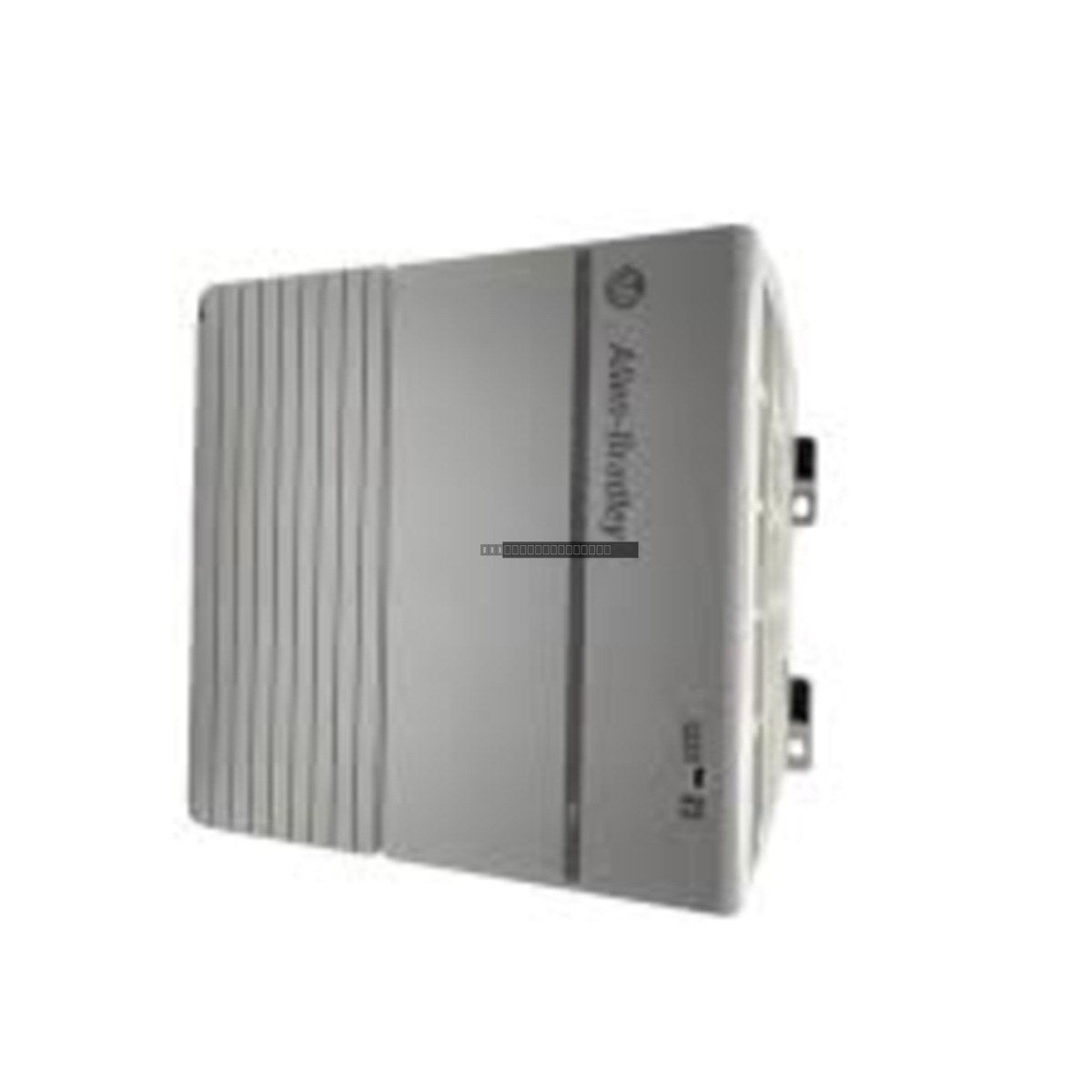

Allen-Bradley 1768-PB3 CompactLogix Power Supply

Allen-Bradley 1768-PB3 CompactLogix Power Supply

Description

The Allen-Bradley 1768-PB3 is a dedicated power supply module designed for the CompactLogix PAC (Programmable Automation Controller) system. This module provides reliable DC power distribution to the backplane, ensuring stable...

17 people are viewing this right now

Availability: Low stock: 5 left

SKU: 1768-PB3
Vendor: Allen-Bradley
Category: DC Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1768-PB3 is a dedicated power supply module designed for the CompactLogix PAC (Programmable Automation Controller) system. This module provides reliable DC power distribution to the backplane, ensuring stable operation of connected I/O and controller components within the CompactLogix architecture.

Features

  • Designed specifically for integration with CompactLogix controller systems.
  • Supports a wide input voltage range of 16.8 to 31.2V DC.
  • Features an extended hold-up interval of 8 to 12 ms at 1.25 W to maintain system integrity during brief power fluctuations.
  • Provides 24V DC output power to the backplane with a current capacity of 1.4 Amps.
  • Flexible installation options supporting both DIN rail and panel mounting configurations.

Technical Specifications

Model 1768-PB3
Input Voltage 16.8 to 31.2V DC
Output Power 24V DC (1.4 Amps backplane current)
Power Consumption 33.6 Watts
Isolation Voltage 30V Continuous
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Vibration Rating 5g at 10 to 500 Hz

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the rack.
  • The module is compatible with standard DIN rail or panel mounting; ensure the mounting surface is clean and provides adequate structural support.
  • Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
  • Verify that the input voltage source is within the specified 16.8 to 31.2V DC range before energizing.

FAQ

What is the primary function of the 1768-PB3?
The 1768-PB3 is a DC power supply module used to provide the necessary operating power to the backplane of an Allen-Bradley CompactLogix system.

Can this module be mounted on a DIN rail?
Yes, the 1768-PB3 is designed to support both DIN rail and panel mounting configurations for flexible installation in control cabinets.
