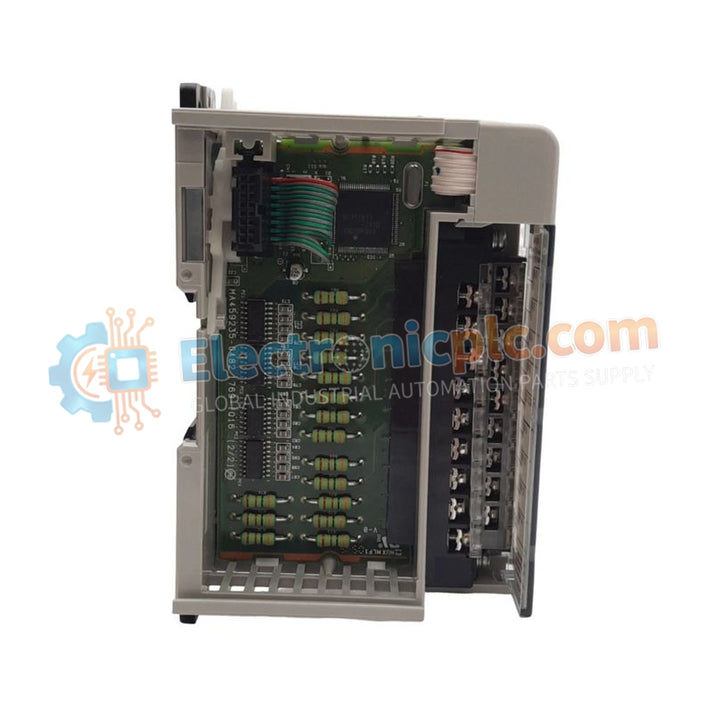

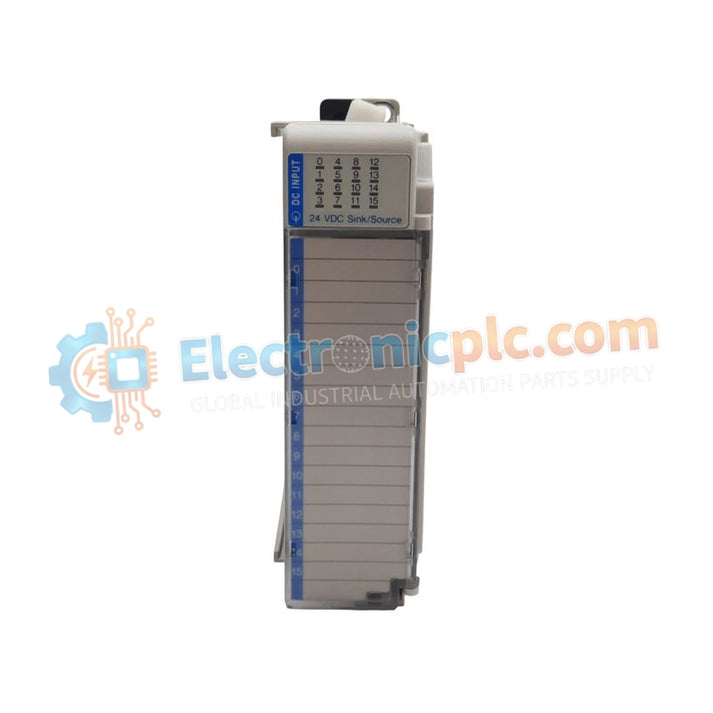

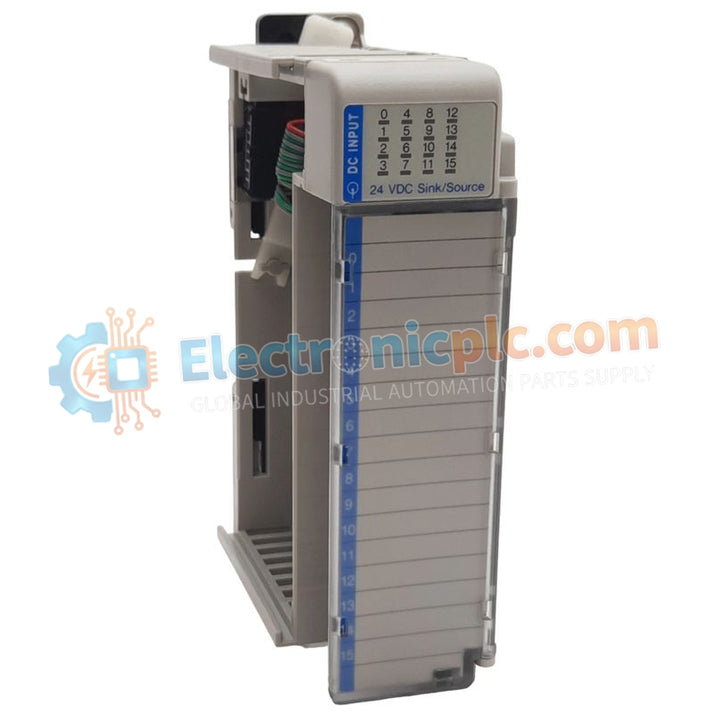

Allen-Bradley 1769-IQ16 Digital Input Module

Allen-Bradley 1769-IQ16 Digital Input Module

Product Description

The 1769-IQ16 is a high-density discrete input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides 16 digital inputs configurable for sink or source wiring, allowing flexible connections to field devices such as limit switches, proximity sensors, and push...

20 people are viewing this right now

Availability: Low stock: 99 left

SKU: 1769-IQ16
Vendor: Allen Bradley
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 1769-IQ16 is a high-density discrete input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It provides 16 digital inputs configurable for sink or source wiring, allowing flexible connections to field devices such as limit switches, proximity sensors, and push buttons.

The module features built-in optical isolation to protect the controller from electrical noise and transients. A removable terminal block simplifies wiring and maintenance.

Specifications

Specification Details
Input Count 16 digital inputs (single group)
Voltage 24V DC (Sink/Source)
Operating Range 10–30V DC (derated at higher temperatures)
Input Delay 8 ms typical (On-to-Off and Off-to-On)
Maximum Inrush Current 250 mA
Current Draw at 5.1V 115 mA
Dimensions 118 × 35 × 87 mm (H × W × D)
Weight 0.27 kg

Application

The 1769-IQ16 is suited for small to mid-sized machine control applications with DIN-rail mounting. It is ideal for monitoring 24V DC sensors and switches in material handling, packaging, and assembly automation.

FAQ

Can the 1769-IQ16 be used standalone?
No. It must connect to a CompactLogix controller or a 1769-based remote I/O adapter and can serve as expansion I/O for MicroLogix 1500.

Does it support individual point isolation?
No. All 16 points share a common return, though they are optically isolated as a group from the backplane logic.
