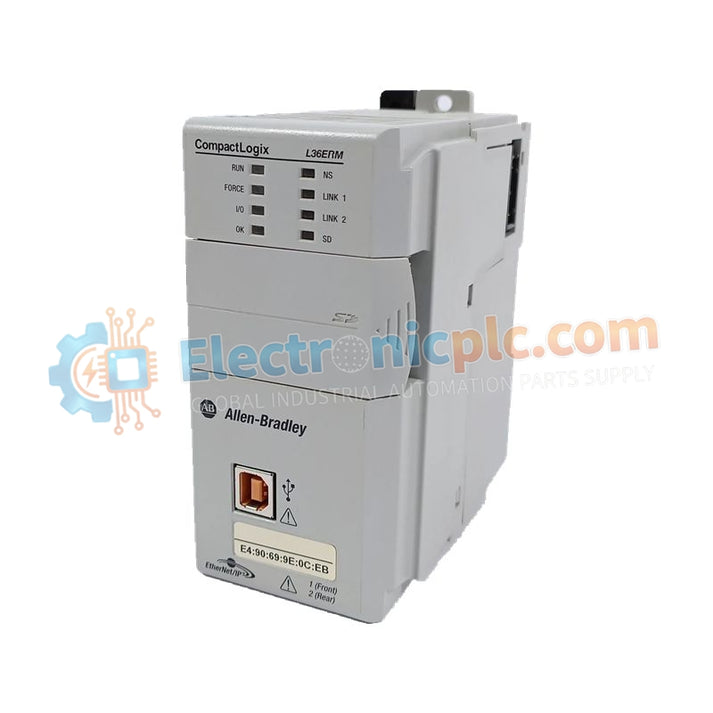

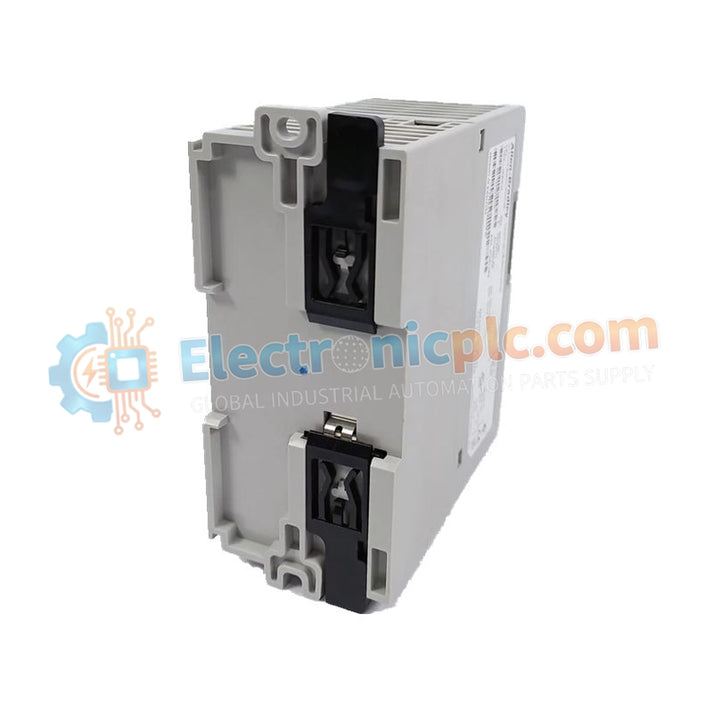

Allen-Bradley 1769-L36ERM Ethernet Controller

Allen-Bradley 1769-L36ERM Ethernet Controller

Product Description

The 1769-L36ERM is a high-performance CompactLogix 5370 L3 processor designed for advanced automation and multi-axis motion control. It supports up to 16 axes of Integrated Motion over EtherNet/IP and up to 30 local 1769 I/O modules across...

28 people are viewing this right now

Availability: Low stock: 99 left

SKU: 1769-L36ERM
Vendor: Allen Bradley
Category: CompactLogix Ethernet Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The 1769-L36ERM is a high-performance CompactLogix 5370 L3 processor designed for advanced automation and multi-axis motion control. It supports up to 16 axes of Integrated Motion over EtherNet/IP and up to 30 local 1769 I/O modules across 3 banks.

Dual Ethernet ports support Device Level Ring (DLR) for network resiliency, making it ideal for critical industrial processes and sophisticated machine control applications.

Specifications

Specification Details
Controller Series CompactLogix 5370 L3
User Memory 3 MB non-volatile
Integrated Motion Up to 16 axes CIP Motion
Network Ports 2 x RJ45 Ethernet (10/100 Mbps, DLR)
Local I/O Capacity Up to 30 modules (3 banks, with expansion cables)
Power Dissipation 4.5 W max
Isolation 30V continuous; 500V AC type-tested for 60 s
Power Supply 1769-PA2 / PB2 / PA4 / PB4 compatible
Physical Width 55 mm (2.17 in)
Mounting Torque 1.1–1.8 N•m (10–16 lb•in)

Application

  • Advanced multi-axis motion control and machine automation.

  • High I/O density and small footprint for compact panels or DIN-rail mounting.

  • Dual Ethernet ports support DLR ring or linear topologies for high network reliability.

FAQ

Does the 1769-L36ERM require a battery for memory backup?

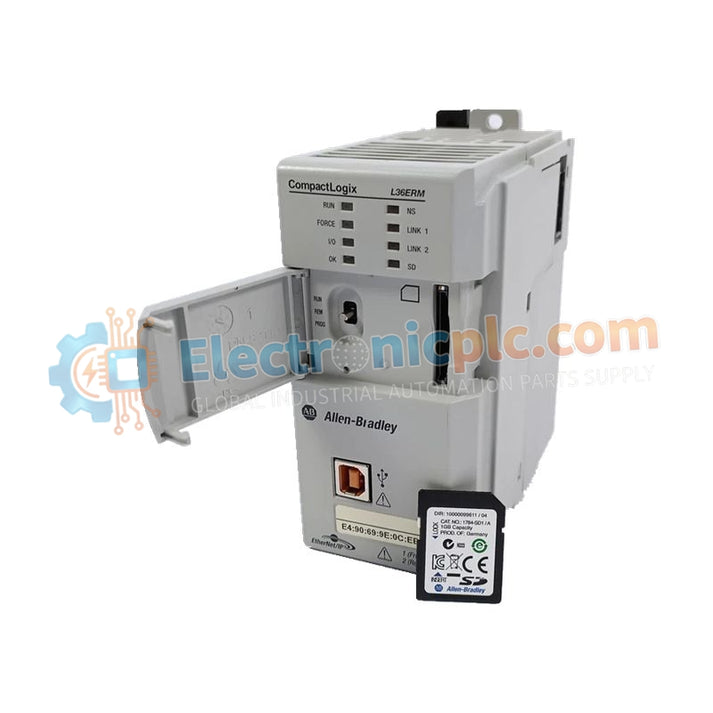

No. It uses internal energy storage plus an SD card for non-volatile memory.

Can the dual Ethernet ports have separate IP addresses?
No. The ports function as an integrated switch, sharing a single IP, suitable for DLR or daisy-chain configurations.
