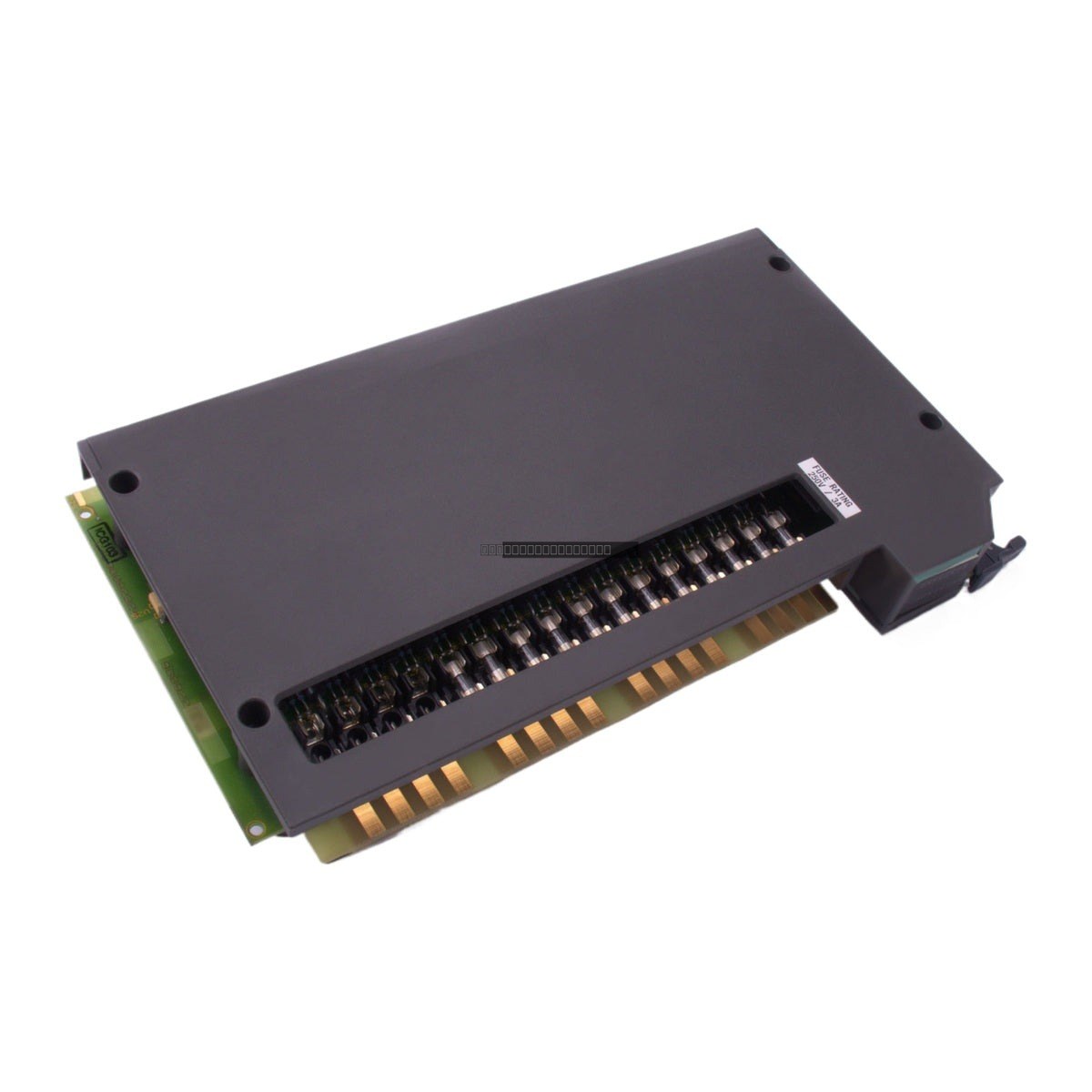

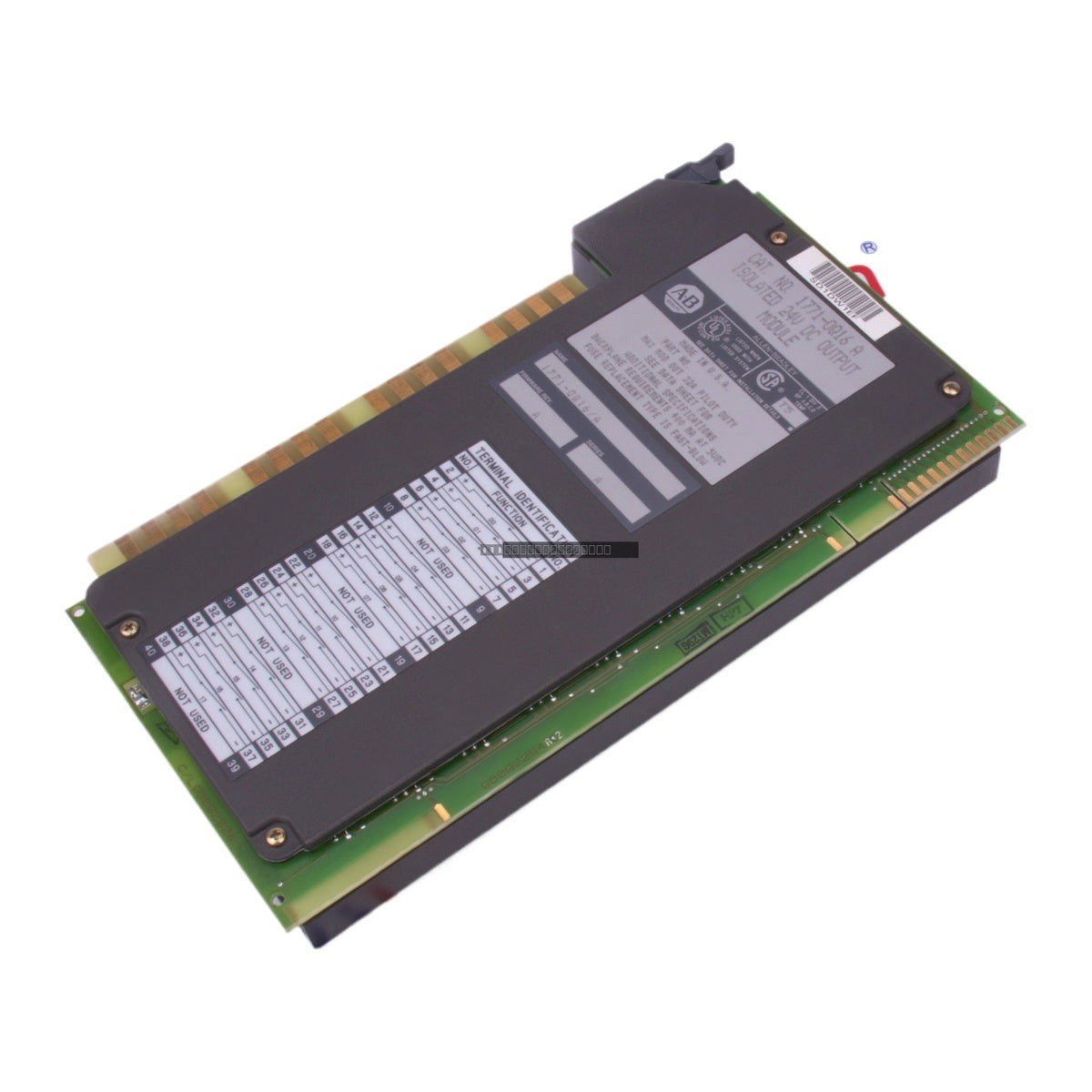

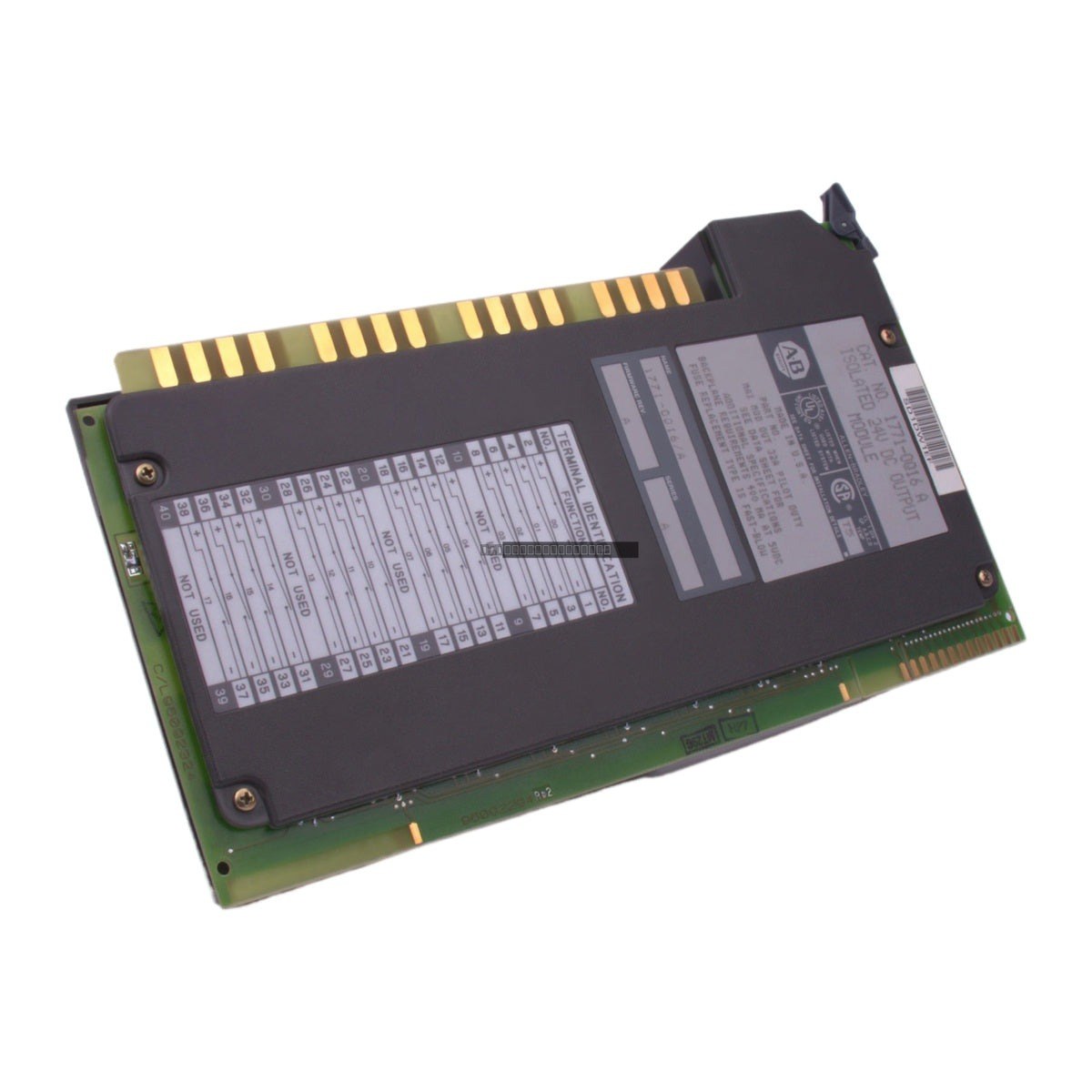

Allen-Bradley 1771-OQ16 Digital Output Module

Allen-Bradley 1771-OQ16 Digital Output Module

Description

The Allen-Bradley 1771-OQ16 is a 16-point isolated digital output module designed for use within the 1771 I/O chassis system. This module provides reliable switching for DC-operated field devices, supporting a...

18 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1771-OQ16
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1771-OQ16 is a 16-point isolated digital output module designed for use within the 1771 I/O chassis system. This module provides reliable switching for DC-operated field devices, supporting a voltage range of 10-32V DC at 100mA per point. As an isolated output module, it offers enhanced flexibility for applications requiring independent circuit control or varied voltage potentials across output groups.

Features

  • 16 isolated output channels for versatile field device control.
  • Compatible with standard 1771 I/O chassis backplanes.
  • Operating voltage range of 10-32V DC.
  • Maximum output current of 100mA per channel.
  • Designed for industrial reliability in PLC control environments.

Applications

This module is commonly utilized in industrial automation systems for controlling actuators, relays, solenoids, and indicators. Its isolated design makes it suitable for complex control loops where electrical isolation between output channels or between the output and the backplane is required to prevent ground loops or cross-channel interference.

Technical Specifications

Model 1771-OQ16
Type Digital Output Module
Points 16
Voltage Range 10-32V DC
Current Rating 100mA per point
Isolation Yes
Series Compatibility A, B, C

Installation Guidelines

  • Ensure the 1771 I/O chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the chassis slot and secured with the locking latch.
  • Use appropriate shielded cabling for field connections to minimize EMI/RFI interference.
  • Ensure that the external power supply connected to the output points is within the specified 10-32V DC range.
  • Follow standard ESD precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1771-OQ16?
The 1771-OQ16 is a digital output module used to interface a PLC system with field devices, allowing the controller to switch 10-32V DC loads.

Is this module compatible with older series versions?
Yes, the 1771-OQ16 is compatible with series A, B, and C revisions of the 1771 I/O system.

Does this module require an external power supply?
Yes, the module requires an external DC power source to drive the field devices connected to the output points.
