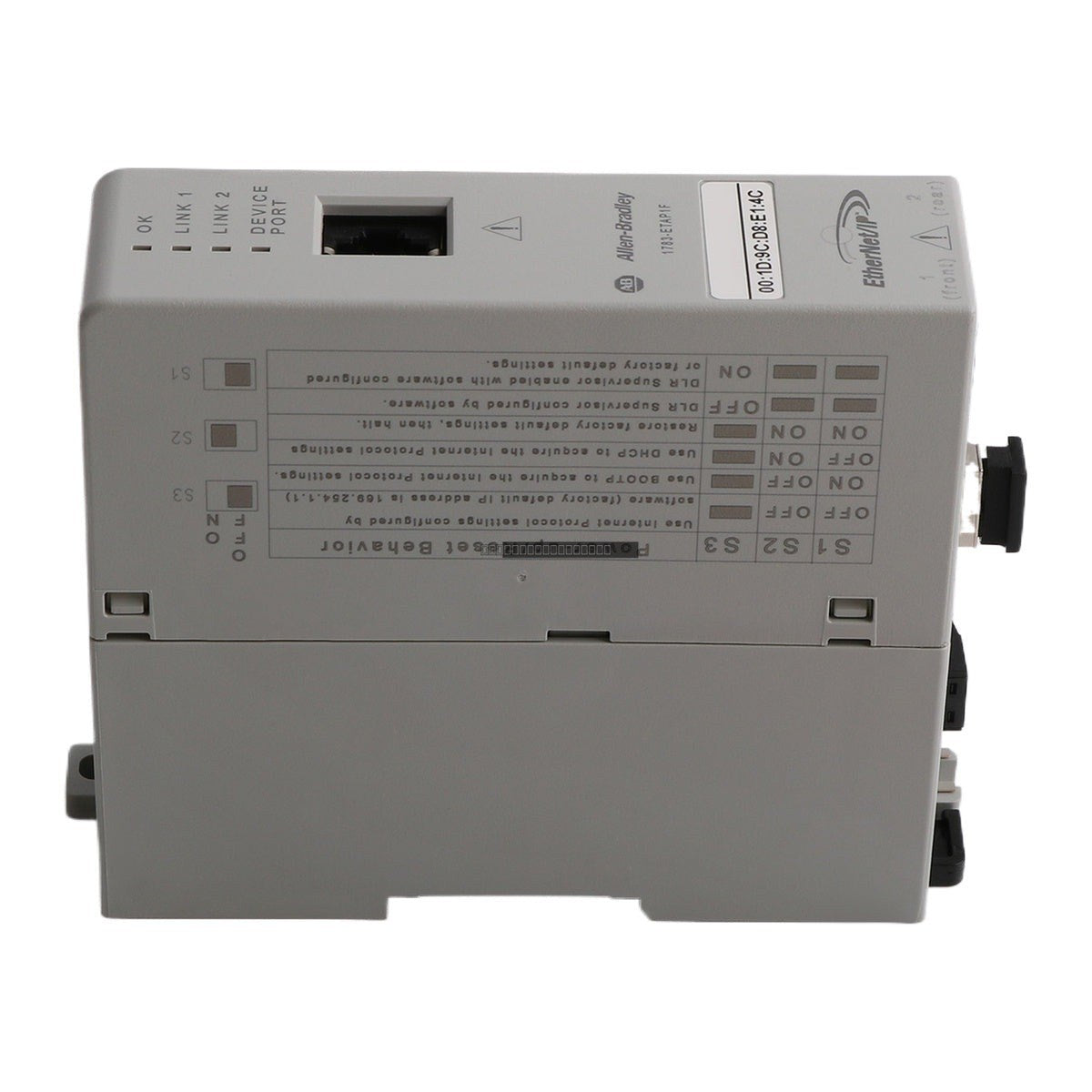

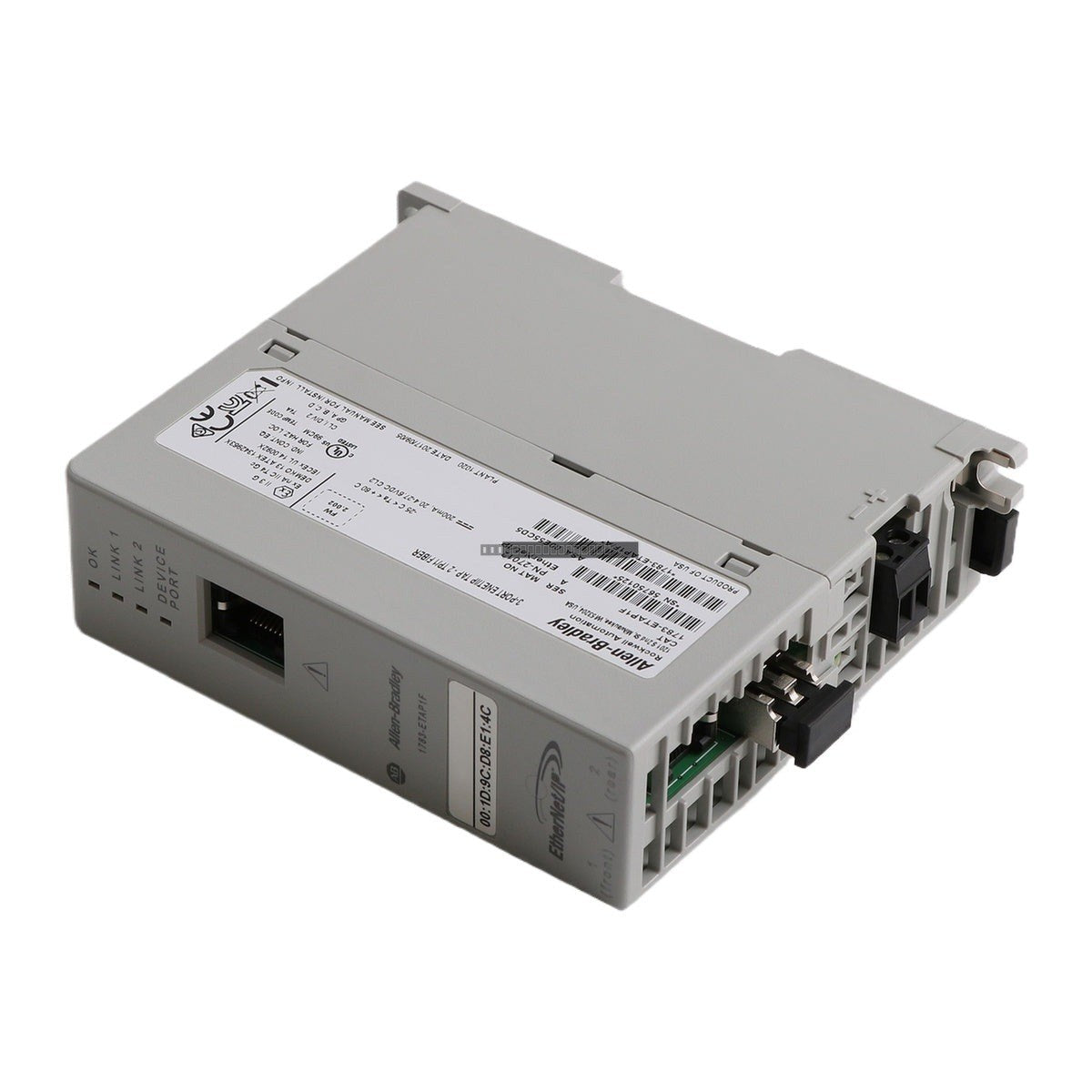

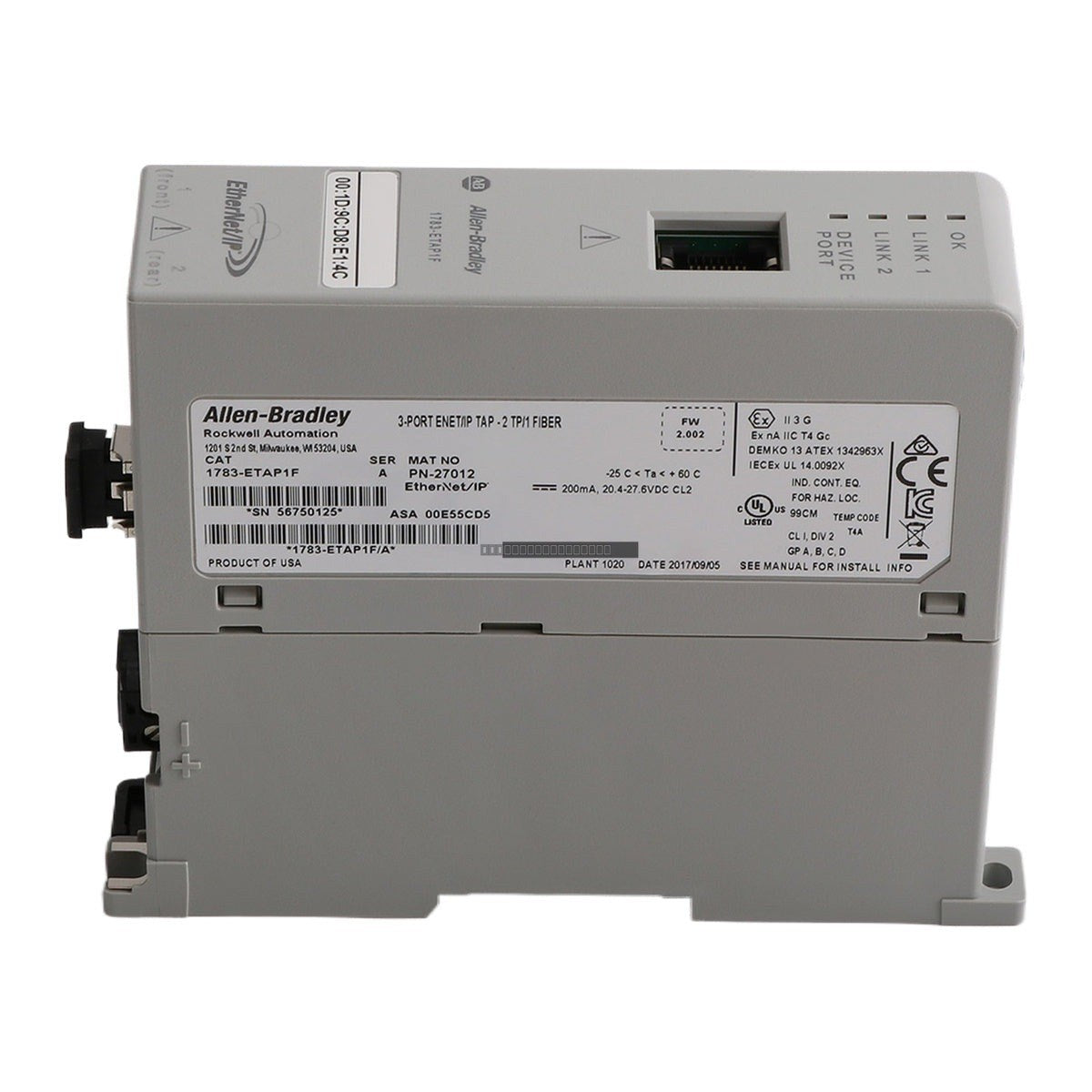

Allen-Bradley 1783-ETAP1F Stratix 2000 Ethernet/IP Tap

Allen-Bradley 1783-ETAP1F Stratix 2000 Ethernet/IP Tap

Description

The Allen-Bradley 1783-ETAP1F is a Stratix 2000 Ethernet/IP Tap designed to provide flexible network connectivity in industrial automation environments. This device allows for the integration of devices into EtherNet/IP networks...

16 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1783-ETAP1F
Vendor: Allen-Bradley
Category: Ethernet Switch
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1783-ETAP1F is a Stratix 2000 Ethernet/IP Tap designed to provide flexible network connectivity in industrial automation environments. This device allows for the integration of devices into EtherNet/IP networks using linear or star topologies, facilitating reliable data communication between controllers, I/O, and other network-enabled equipment.

Features

  • Supports linear and star network topologies for versatile system architecture.
  • Integrated status indicators for OK, Link 1, and Link 2 monitoring.
  • Equipped with an LC fiber optic connector for high-speed, noise-immune communication.
  • Data transmission speeds of 10/100 Mbps.
  • Flexible mounting options including DIN rail or panel installation.

Technical Specifications

Product Model 1783-ETAP1F
Device Type Ethernet/IP Tap
Input Voltage 20.4 to 27.6V DC
Transmission Speed 10/100 Mbps
Connector Type LC Fiber Optic
Mounting DIN Rail / Panel Mount
Manufacturer Allen-Bradley

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module.
  • The unit supports both horizontal and vertical mounting orientations; ensure adequate airflow around the device for heat dissipation.
  • Use shielded Ethernet cabling where required to minimize EMI in high-noise industrial environments.
  • Verify that the input voltage is within the specified 20.4 to 27.6V DC range before applying power.
  • Ensure the DIN rail or panel surface is properly grounded to maintain system integrity.

FAQ

What topologies does the 1783-ETAP1F support?
This device supports both linear and star network topologies, allowing for flexible integration into existing EtherNet/IP infrastructures.

What type of fiber connector is used on this model?
The 1783-ETAP1F utilizes an LC fiber optic connector for its fiber interface.

Can this unit be mounted on a DIN rail?
Yes, the module is designed for both DIN rail and panel mounting, providing flexibility for various enclosure configurations.
