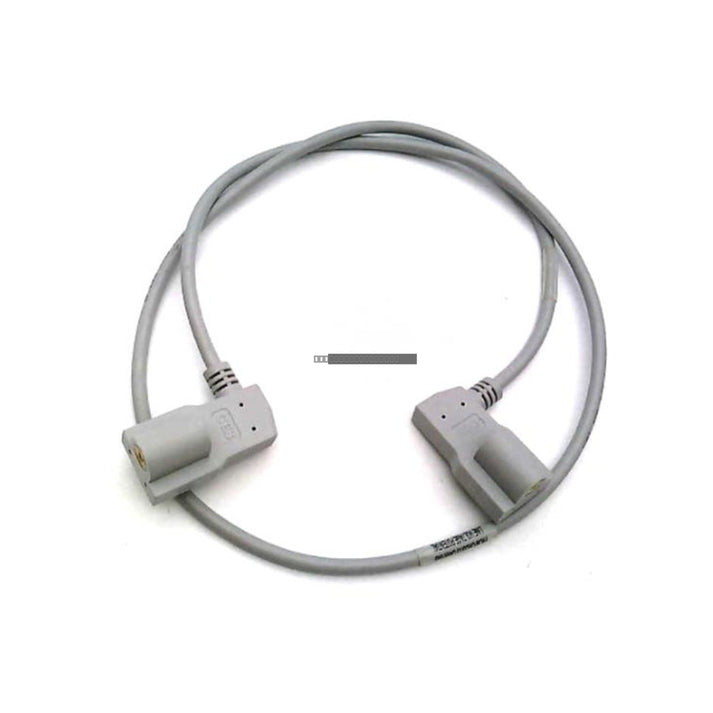

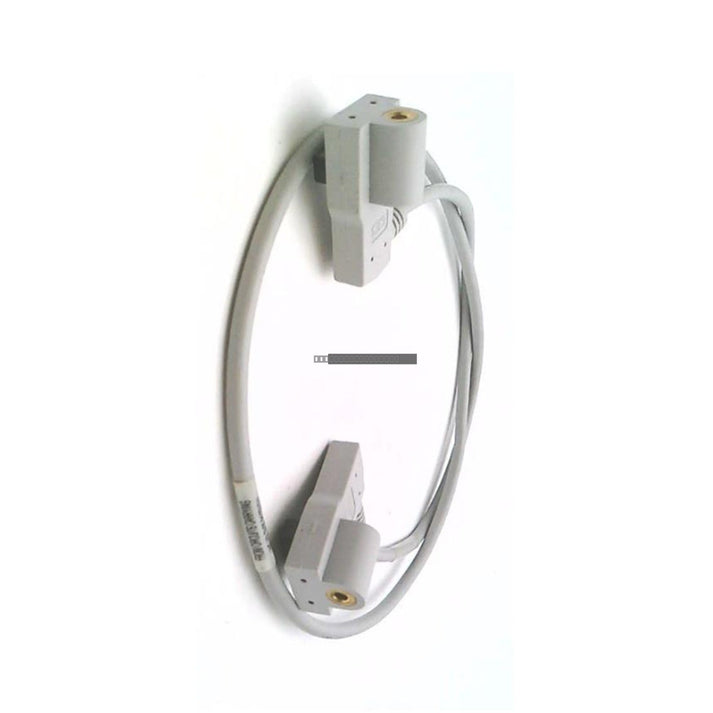

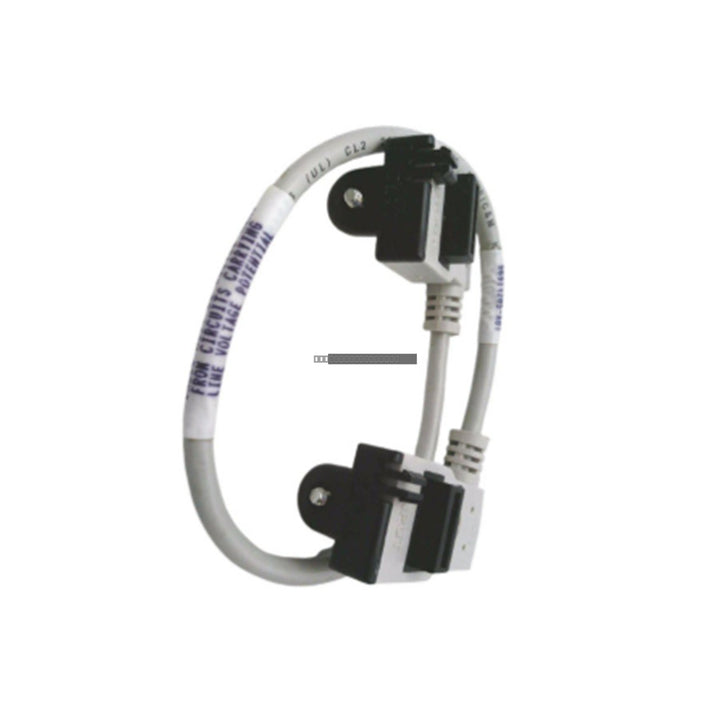

Allen-Bradley 1794-CE3-D01 FLEX I/O Bus Extension Cable Assembly

Allen-Bradley 1794-CE3-D01 FLEX I/O Bus Extension Cable Assembly

Description

The Allen-Bradley 1794-CE3-D01 is a specialized backplane extension cable designed for the FLEX I/O 1794 platform. This assembly provides a reliable method to extend the internal FLEXbus communication path between...

24 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1794-CE3-D01
Vendor: Allen-Bradley
Category: I/O Bus Extension Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1794-CE3-D01 is a specialized backplane extension cable designed for the FLEX I/O 1794 platform. This assembly provides a reliable method to extend the internal FLEXbus communication path between terminal bases, allowing for flexible physical layouts within industrial control enclosures. It is ideal for applications where I/O modules must be distributed across multiple DIN rail rows or separated by physical obstacles while maintaining full bus integrity and deterministic performance.

Features

  • Bus Extension: Enables the separation of a single FLEX I/O cluster into multiple rows, facilitating efficient use of cabinet space.
  • Robust Connectivity: Features factory-molded connectors that ensure a secure, low-resistance interface with 1794 terminal bases.
  • EMI Protection: Designed with high-integrity shielding to maintain signal quality and noise immunity in demanding industrial environments.
  • Flexible Routing: The durable, flexible cable sheath allows for easy installation in tight spaces without compromising internal wire integrity.
  • System Capacity: Supports the standard FLEX I/O configuration, maintaining continuity for up to 8 modules per adapter drop.

Applications

This cable assembly is commonly utilized in distributed control systems, including oil and gas processing skids, automated manufacturing lines, water treatment facilities, and power distribution substations where space-optimized I/O mounting is required.

Technical Specifications

Model 1794-CE3-D01
Brand Allen-Bradley
Product Line FLEX I/O 1794
Cable Length 0.91 meters (3 feet)
Insulation Voltage Rating 150 VAC
Module Capacity Up to 8 modules per adapter
Material Industrial-grade PVC/Plastic

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the cable assembly to prevent electrical damage.
  • Align the cable connectors carefully with the side profile of the 1794 terminal bases; ensure they are fully seated and locked into position.
  • Route the cable away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to maintain signal integrity.
  • Avoid sharp bends or mechanical stress on the cable sheath during installation to prevent internal conductor fatigue.
  • This component is an open-style device and must be housed within a suitable, dust-tight industrial enclosure.

FAQ

Q: Can this cable be used to extend the distance between the adapter and the first terminal base?
A: No, the 1794-CE3-D01 is designed to extend the bus between terminal bases within a cluster. It is not intended to extend the distance between the communication adapter and the first I/O module.

Q: Is this cable compatible with all 1794 terminal bases?
A: Yes, the 1794-CE3-D01 is compatible with standard Allen-Bradley FLEX I/O 1794 terminal base units.
