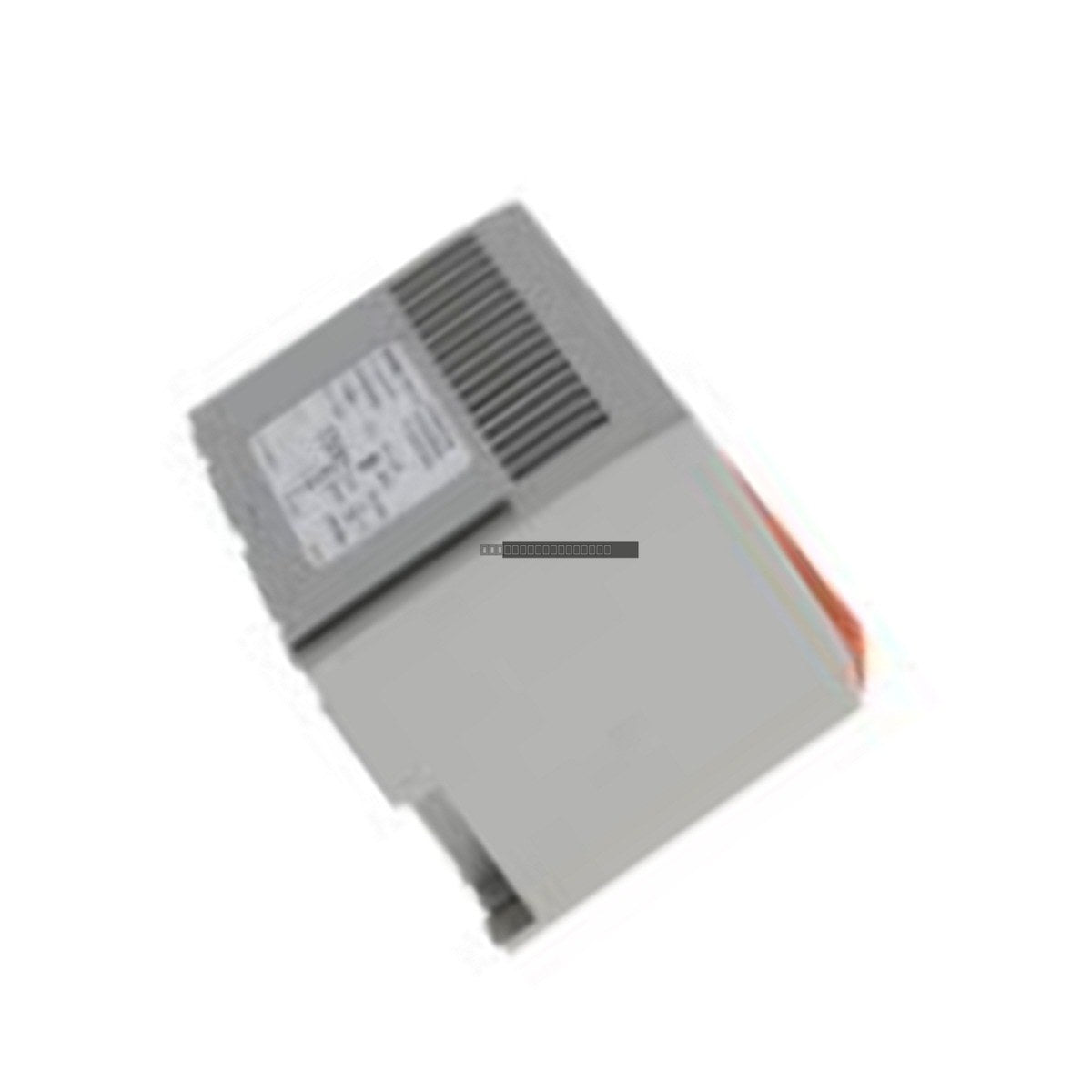

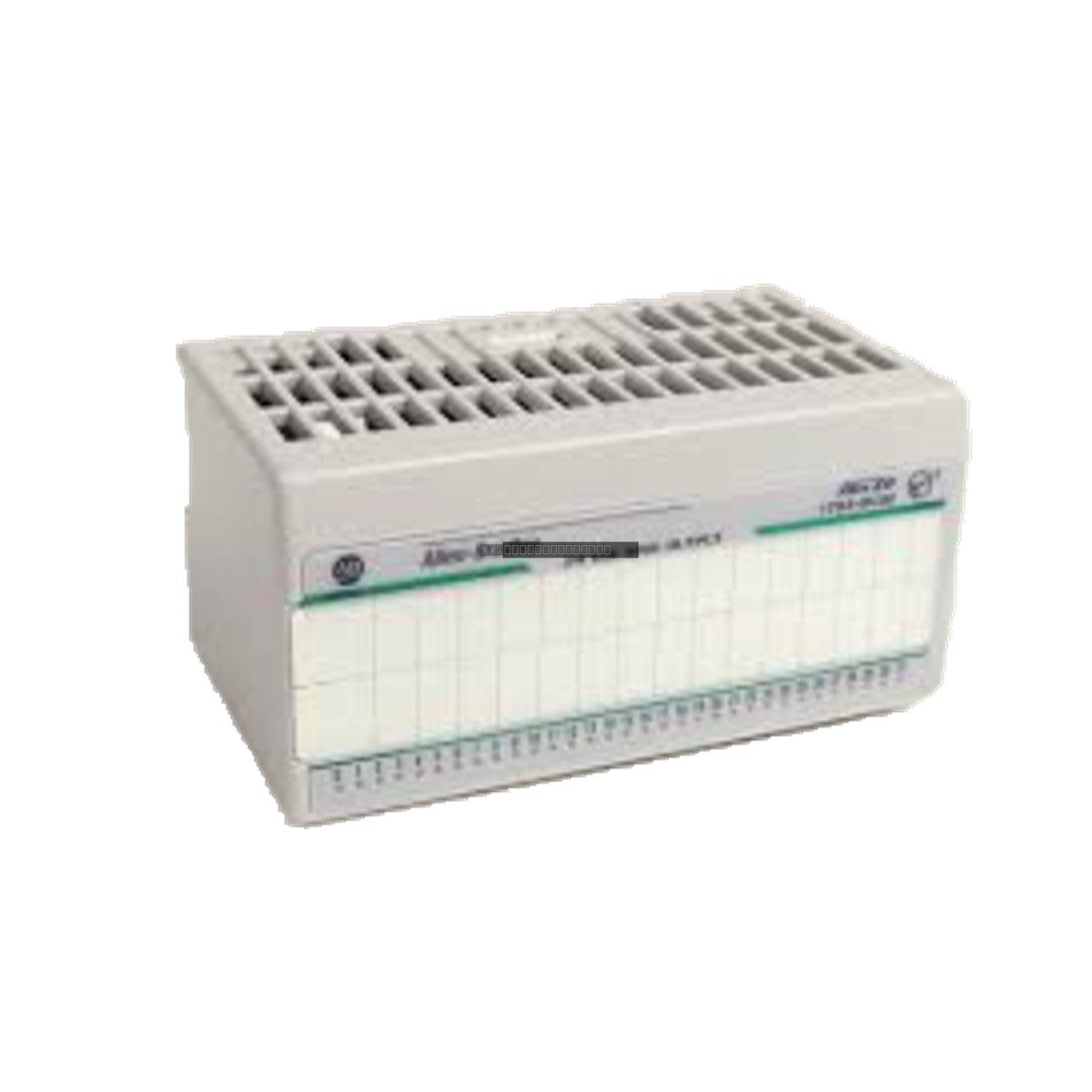

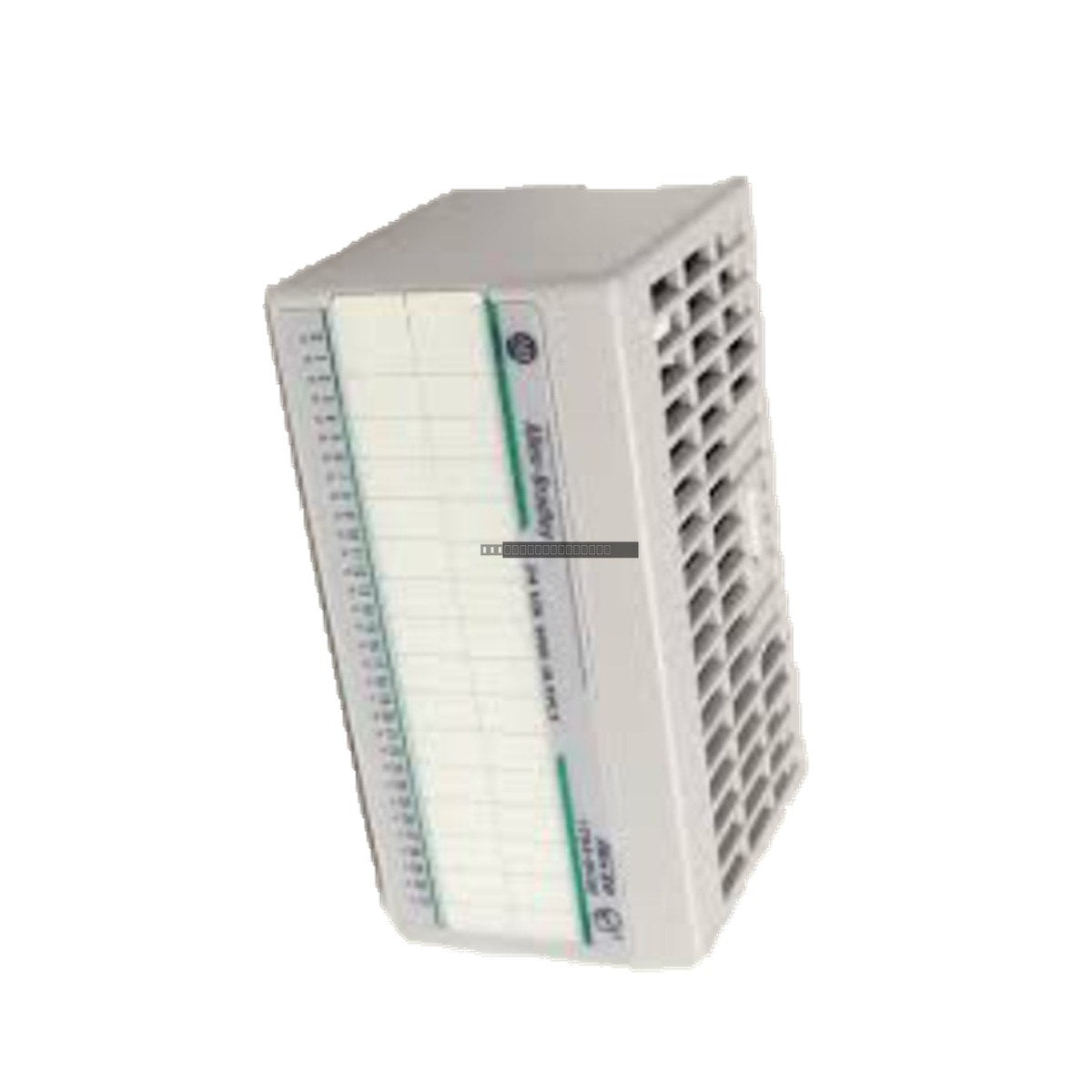

Allen-Bradley 1794-IB10XOB6 Flex I/O Combination Module

Allen-Bradley 1794-IB10XOB6 Flex I/O Combination Module

Description

The Allen-Bradley 1794-IB10XOB6 is a Flex I/O combination module designed for industrial control environments. This unit provides a compact solution for distributed I/O applications, integrating both input and output capabilities...

27 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1794-IB10XOB6
Vendor: Allen-Bradley
Category: Digital I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1794-IB10XOB6 is a Flex I/O combination module designed for industrial control environments. This unit provides a compact solution for distributed I/O applications, integrating both input and output capabilities into a single module to optimize panel space and wiring complexity. It operates on a 24V DC power supply and is compatible with the standard Flex I/O communication adapters.

Features

  • Integrated I/O: Combines 10 sink inputs and 6 source outputs in one module.
  • Voltage Rating: Designed for standard 24V DC industrial control systems.
  • Flexibility: Part of the Allen-Bradley Flex I/O platform, allowing for modular expansion and distributed architecture.
  • Reliability: Engineered for demanding automation environments requiring consistent signal processing.

Technical Specifications

Model 1794-IB10XOB6
Input Type 10 Sink Inputs
Output Type 6 Source Outputs
Operating Voltage 24V DC
Manufacturer Allen-Bradley
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the terminal base.
  • Mount the module onto a compatible 1794 Flex I/O terminal base.
  • Verify that the terminal base is properly grounded to minimize electrical noise interference.
  • Use shielded cabling for input and output signals to maintain signal integrity in high-EMI environments.
  • Ensure adequate ventilation around the module to prevent overheating during continuous operation.

FAQ

What is the primary function of the 1794-IB10XOB6?

This module acts as a combination I/O unit, providing 10 sink inputs and 6 source outputs to interface field devices with a PLC or controller via a Flex I/O adapter.

Is this module compatible with all Flex I/O adapters?

The 1794-IB10XOB6 is designed for use within the Allen-Bradley Flex I/O system; please verify your specific communication adapter's compatibility in the system manual.
