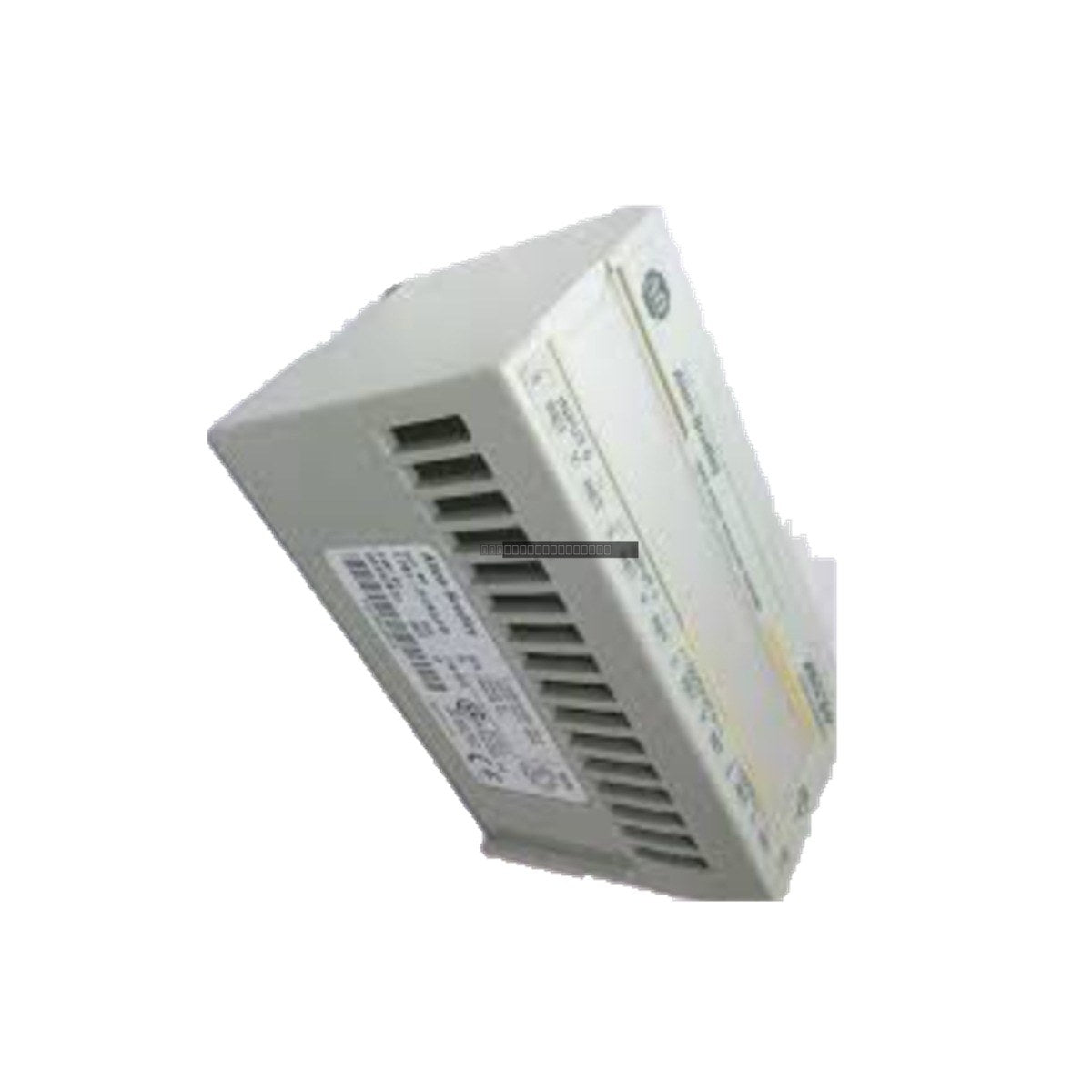

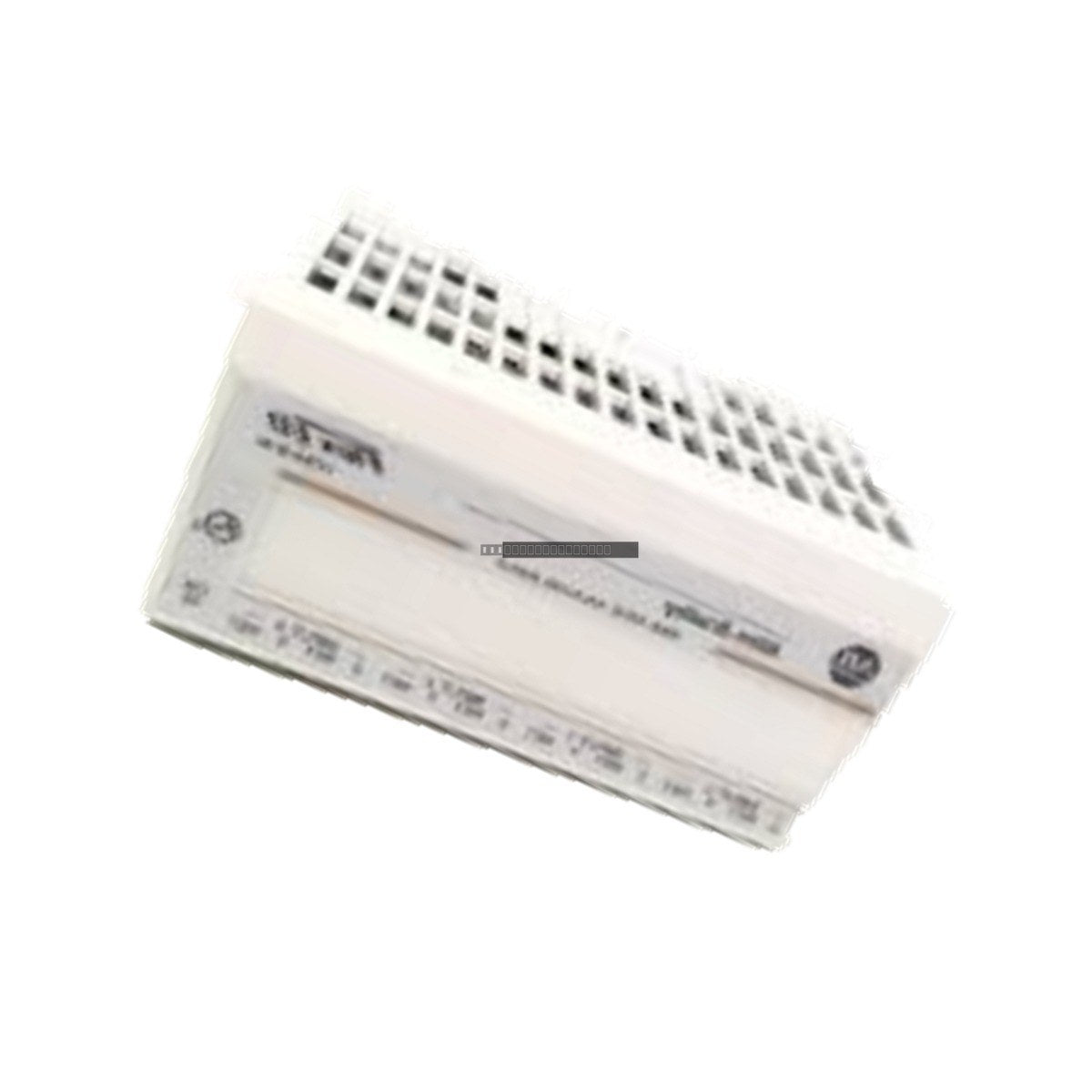

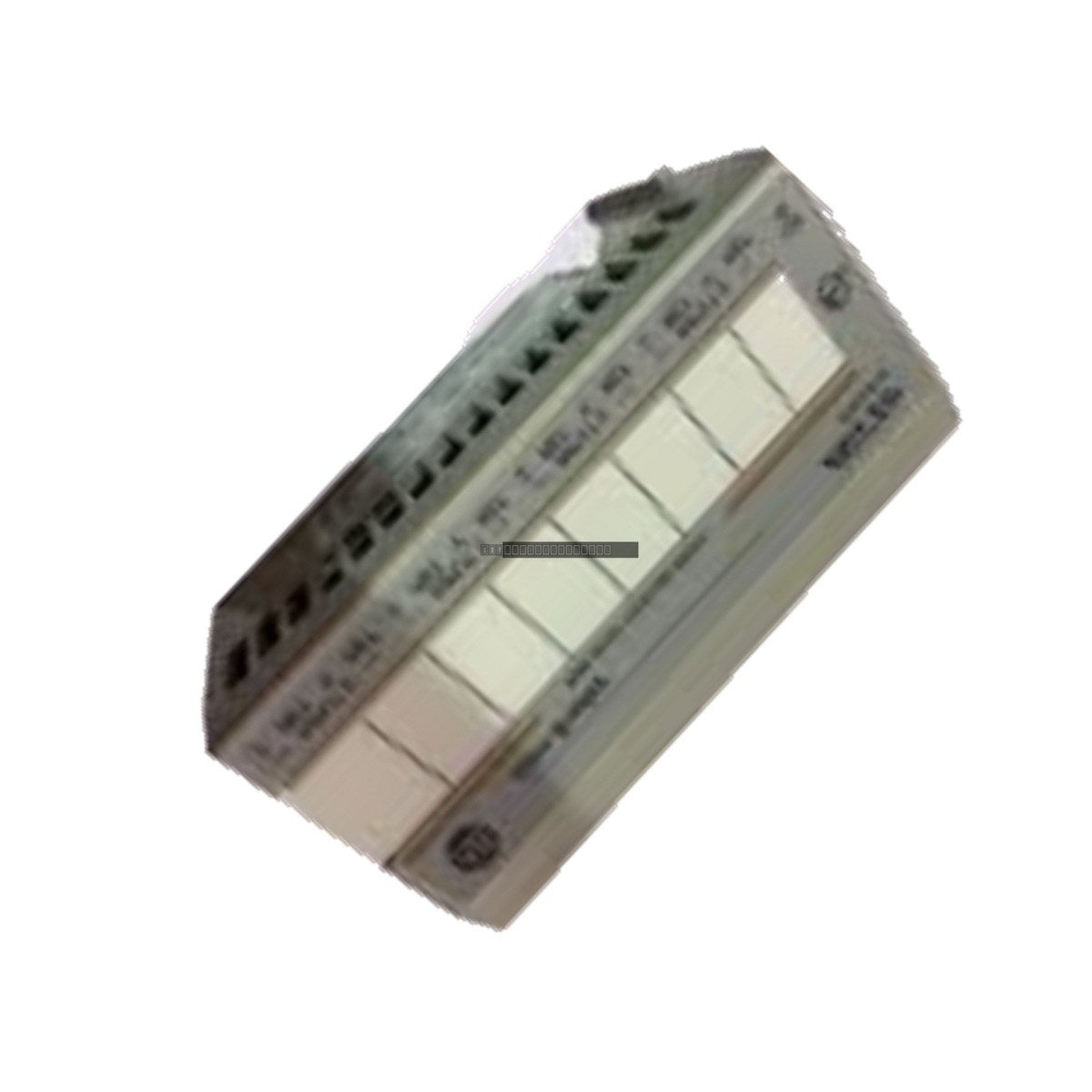

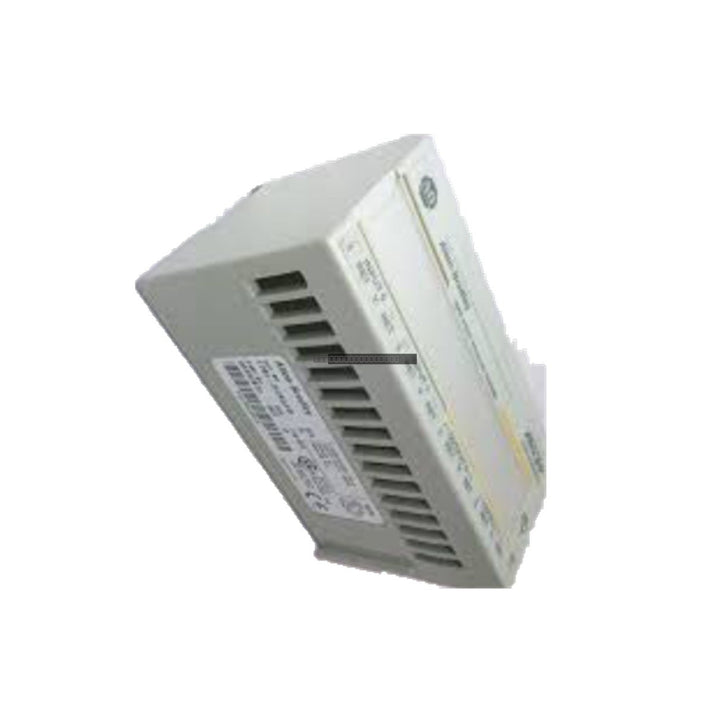

Allen-Bradley 1794-IJ2 FLEX I/O Frequency Input Module

Allen-Bradley 1794-IJ2 FLEX I/O Frequency Input Module

The Allen-Bradley 1794-IJ2 is a high-performance, dual-channel frequency input module engineered for the FLEX I/O 1794 platform. This module is designed to process high-speed pulse signals, providing real-time data on...

20 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1794-IJ2
Vendor: Allen-Bradley
Category: Frequency Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1794-IJ2 is a high-performance, dual-channel frequency input module engineered for the FLEX I/O 1794 platform. This module is designed to process high-speed pulse signals, providing real-time data on acceleration, velocity, and direction. By performing local signal processing, the 1794-IJ2 reduces the computational load on the central controller, ensuring low-latency performance in demanding industrial applications.

Features

  • Dual-Channel Processing: Features two independent channels, each equipped with a primary frequency input and a gate control input.
  • Broad Frequency Range: Capable of processing sine and square wave signals from 1 to 32 kHz.
  • Configurable Sample Windows: Supports user-defined sampling windows between 2 and 1000 ms, allowing for highly precise resolution adjustments.
  • Integrated Alarm Logic: Onboard hardware allows for direct mapping to frequency or acceleration alarms with a response time of 0.5 ms.
  • Diagnostic Capabilities: Includes front-panel LED indicators for status monitoring and wire-off fault detection to ensure system integrity.

Applications

This module is ideal for applications requiring precise monitoring of rotating machinery and flow systems, including:

  • Turbine flowmeter tracking
  • High-speed fan tachometer feedback
  • Web tension control systems
  • Rotating machinery diagnostic loops

Technical Specifications

Model 1794-IJ2
Inputs 2 Frequency / 2 Gate
Outputs 2 Sourced, Isolated
Frequency Bandwidth 1 to 32 kHz
Output Current 1.0 A per channel (continuous)
Response Time 0.5 ms (Turn-on) / 1.0 ms (Turn-off)
Power Supply 19.0 to 31.2 VDC
Operating Temp 0 to 55 deg C
Compatible Bases 1794-TB3G, 1794-TB3GS

Installation Guidelines

  • Ensure the module is installed on a compatible 1794-TB3G or 1794-TB3GS terminal base.
  • The module is designed for 35 mm DIN rail or direct panel mounting; ensure proper clearance for ventilation.
  • Always disconnect external power before inserting or removing the module from the terminal base to prevent electrical damage.
  • Use shielded cabling for input signals to minimize EMI interference in high-speed pulse applications.
  • Ensure the module is housed within an appropriate industrial enclosure, as it is an open-style device.

FAQ

Q: What is the primary function of the 1794-IJ2?
A: It is a frequency input module that processes pulse trains locally to calculate speed, direction, and acceleration, offloading these tasks from the main PLC.

Q: Does this module require an external power supply?
A: Yes, it requires an external 24 VDC power supply (19.0 to 31.2 VDC range) for operation.

Q: Can this module detect broken wires?
A: Yes, the 1794-IJ2 includes a wire-off fault detection feature that alerts the system if an open-circuit condition occurs on the sensor lines.
