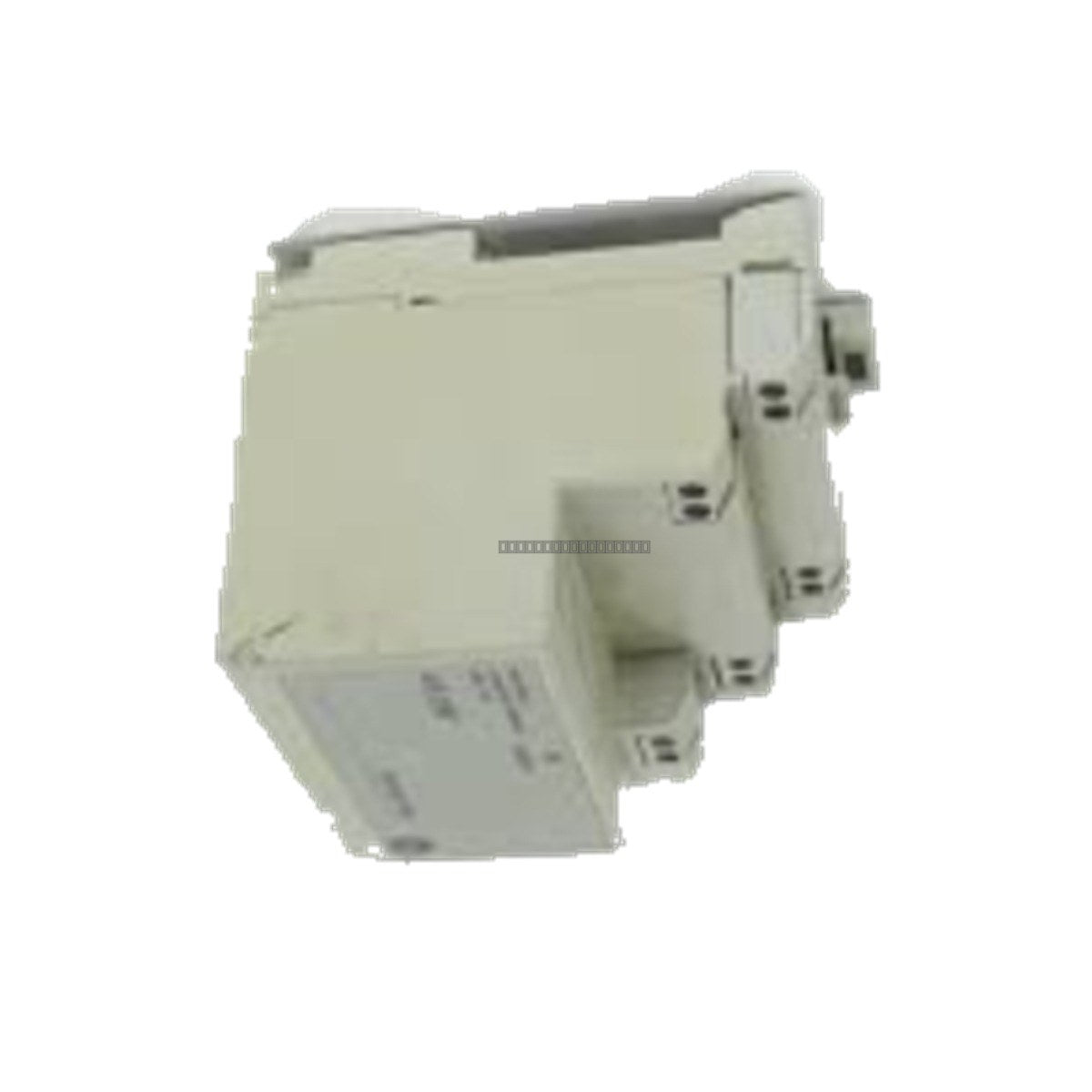

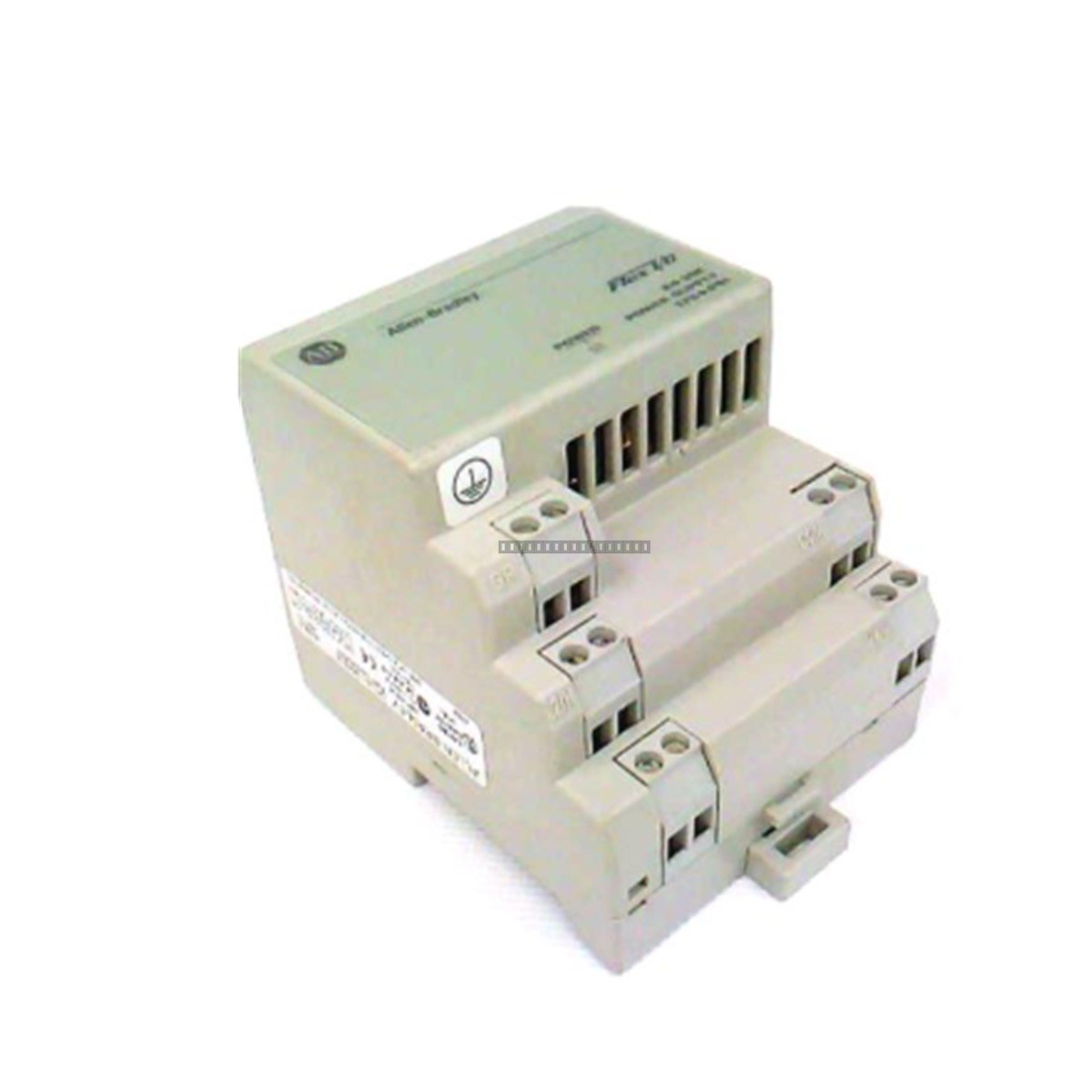

Allen-Bradley 1794-PS13 FLEX I/O Power Supply

Allen-Bradley 1794-PS13 FLEX I/O Power Supply

The Allen-Bradley 1794-PS13 is a robust, industrial-grade power supply module designed for the FLEX I/O distributed system. It converts standard AC line power into a regulated 24V DC output, providing...

22 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1794-PS13
Vendor: Allen-Bradley
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1794-PS13 is a robust, industrial-grade power supply module designed for the FLEX I/O distributed system. It converts standard AC line power into a regulated 24V DC output, providing essential power to FLEX I/O communication adapters and field-side circuitry. By delivering a stabilized power source, this module helps protect sensitive digital and analog signals from external power fluctuations within the I/O rack.

Features

  • Wide AC input voltage range (85-264V AC) for global compatibility.
  • Space-saving design for standard 35mm DIN rail mounting.
  • Integrated over-voltage and over-current protection.
  • Status diagnostic indicator for quick troubleshooting.
  • Designed specifically for the FLEX I/O platform.

Applications

  • Automotive assembly stations for pneumatic valves and sensors.
  • Packaging and bottling lines requiring reliable power for conveyors and sorting gates.
  • Material handling systems including palletizers and automated storage systems.
  • Machine tool control, including coolant pumps and interlocks.
  • Industrial HVAC control skids for dampers and fans.

Technical Specifications

Model 1794-PS13
Input Voltage Range 85-264V AC
Input Frequency 47-63 Hz
Output Voltage 24V DC
Output Current 1.3 A
Output Power 31.2 W
Max Input Current 0.7 A
Overcurrent Protection 1.4 A
Power Dissipation (Max) 7 W

Installation Guidelines

  • Mounting: Hook the module onto a 35mm DIN rail and rotate it down until the locking tab snaps securely into place.
  • AC Input Wiring: Connect 120/230V AC to the input terminals (A, B, C).
  • DC Output Wiring: Connect the 24V DC output to the FLEX I/O adapter (Terminal G: +24V DC, Terminal H: 24V DC common).
  • Daisy-Chaining: Use terminals D, E, and F to daisy-chain AC power to additional power supply modules if required.
  • Ensure power is disconnected before installing or removing the module to prevent electrical shock or equipment damage.

FAQ

What is the 1794-PS13 power supply?

The 1794-PS13 is a 24V DC field power supply module within the Allen-Bradley FLEX I/O product family. It provides power to input/output devices connected to the terminal bases.

How many adapter modules can the 1794-PS13 power?

It provides sufficient 24V DC power to operate up to 4 adapter modules, though it is not designed to power an entire large FLEX I/O system.

What is the output power and current?

It has a nominal output of 24V DC, a maximum output current of 1.3 A, and an output power of 31.2 Watts.

What is the input voltage range of the 1794-PS13?

This module accepts a wide input voltage range of 85–264V AC, 47–63 Hz, suitable for global applications.
