Description

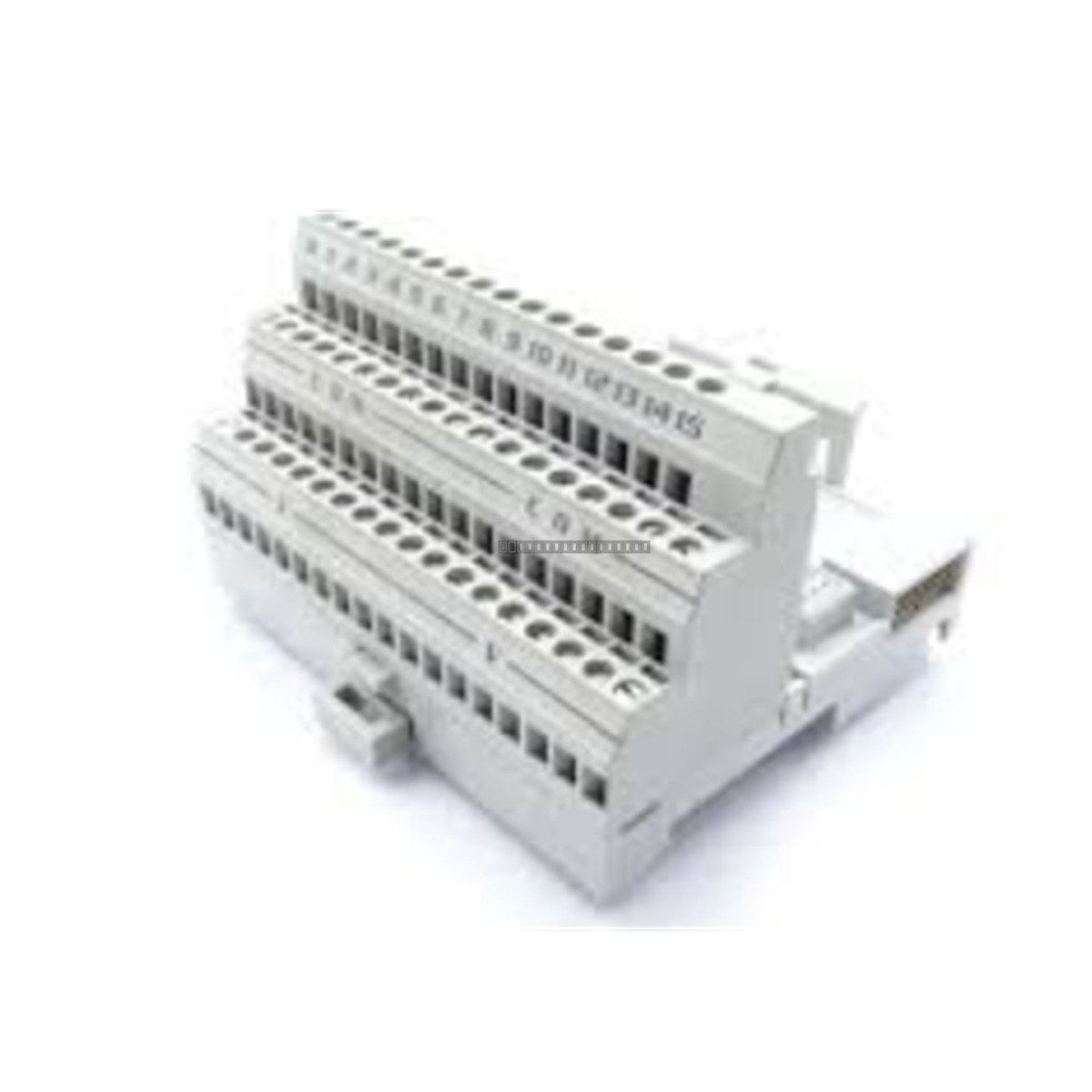

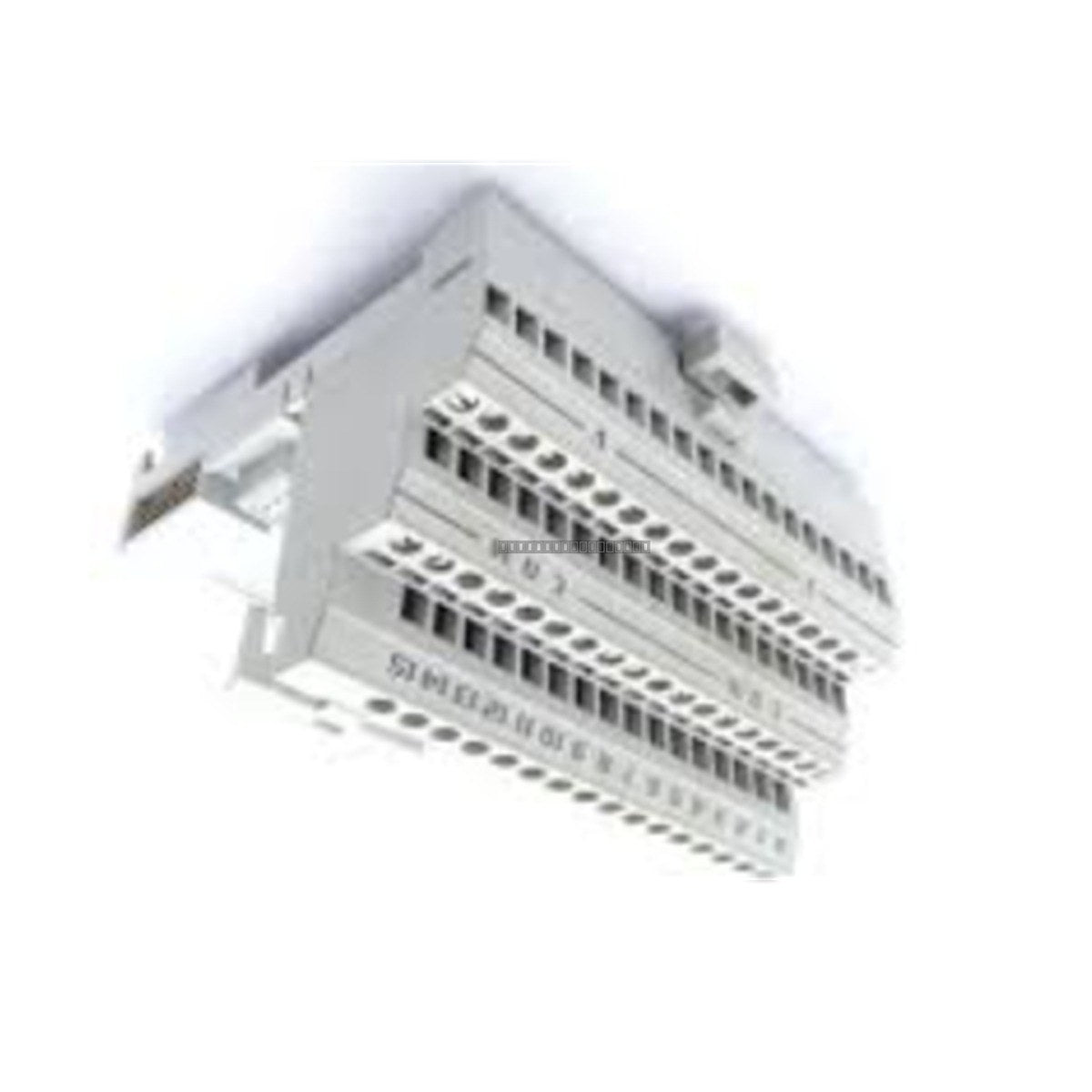

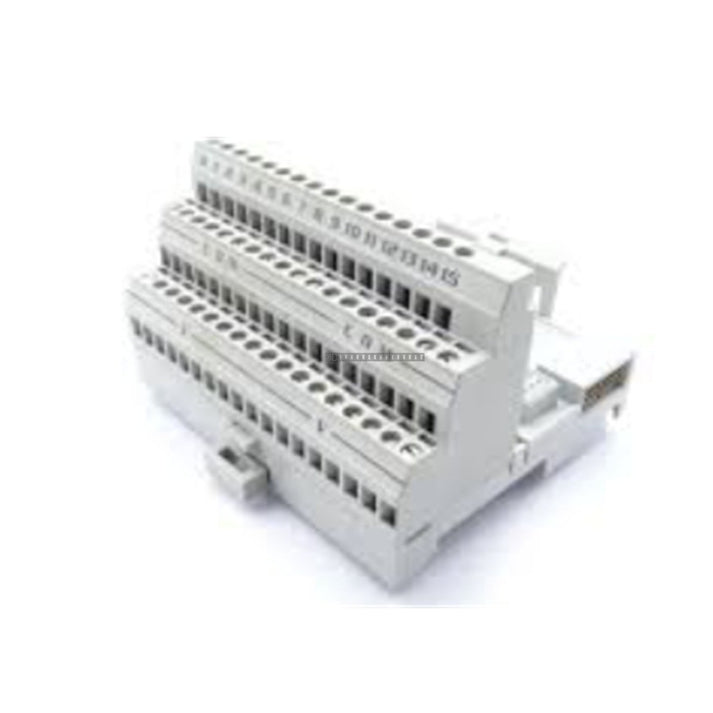

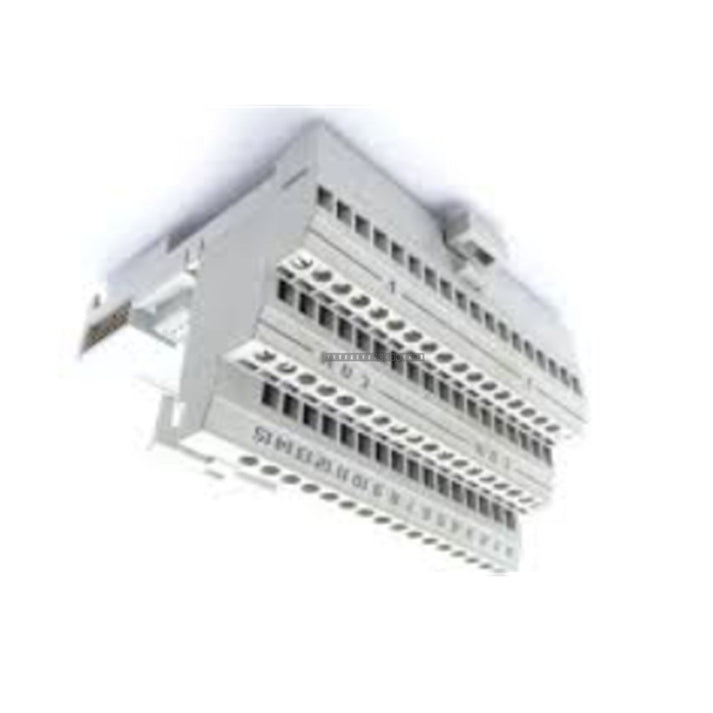

The 1794-TB32S is a high-density, 32-point spring-clamp terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit serves as the physical and electrical interface for high-density Flex I/O modules, providing a robust termination plane for field wiring. Its spring-clamp (cage clamp) design utilizes constant-force internal springs, offering superior resistance to vibration and thermal cycling compared to traditional screw terminals, which reduces maintenance requirements and prevents loose-wire faults.

Features

• 32-point high-density spring-clamp termination for efficient field wiring.
• Vibration-resistant cage clamp design eliminates the need for periodic retightening.
• Integrated Flexbus backplane pass-through for seamless data and logic power distribution.
• Mechanical rotatable keyswitch to prevent incorrect module insertion and protect sensitive I/O circuitry.
• Supports daisy-chaining of field-side power distribution.
• Compact, open-style design for DIN-rail mounting in space-constrained control cabinets.

Applications

This terminal base is intended for use in industrial automation systems requiring high-density I/O configurations. It is compatible with various 32-channel Flex I/O modules, including sourcing output modules and high-density input cards, making it suitable for distributed control systems, machine control, and process automation environments.

Technical Specifications

Installation Guidelines

• Ensure the DIN-rail is securely mounted and grounded according to local electrical standards.
• Before inserting an I/O module, set the mechanical keyswitch on the base to the position corresponding to the specific I/O module type.
• Always power down the Flex I/O system before installing or removing modules from the terminal base to prevent electrical arcing or damage to the backplane.
• Use appropriate wire ferrules for stranded conductors to ensure a secure connection within the spring-clamp terminals.
• Maintain adequate clearance around the module for heat dissipation and cable routing.
• Route field wiring away from high-voltage AC lines and noise-generating equipment to minimize EMI.

FAQ

Q: Does the 1794-TB32S require external power?
A: The terminal base itself is a passive component that routes power and data from the Flexbus backplane. Field-side power is supplied through the terminal connections as required by the specific I/O module installed.

Q: Can I use this with any Flex I/O module?
A: The 1794-TB32S is designed for high-density 32-point modules. Always verify compatibility with your specific I/O module catalog number before installation.
