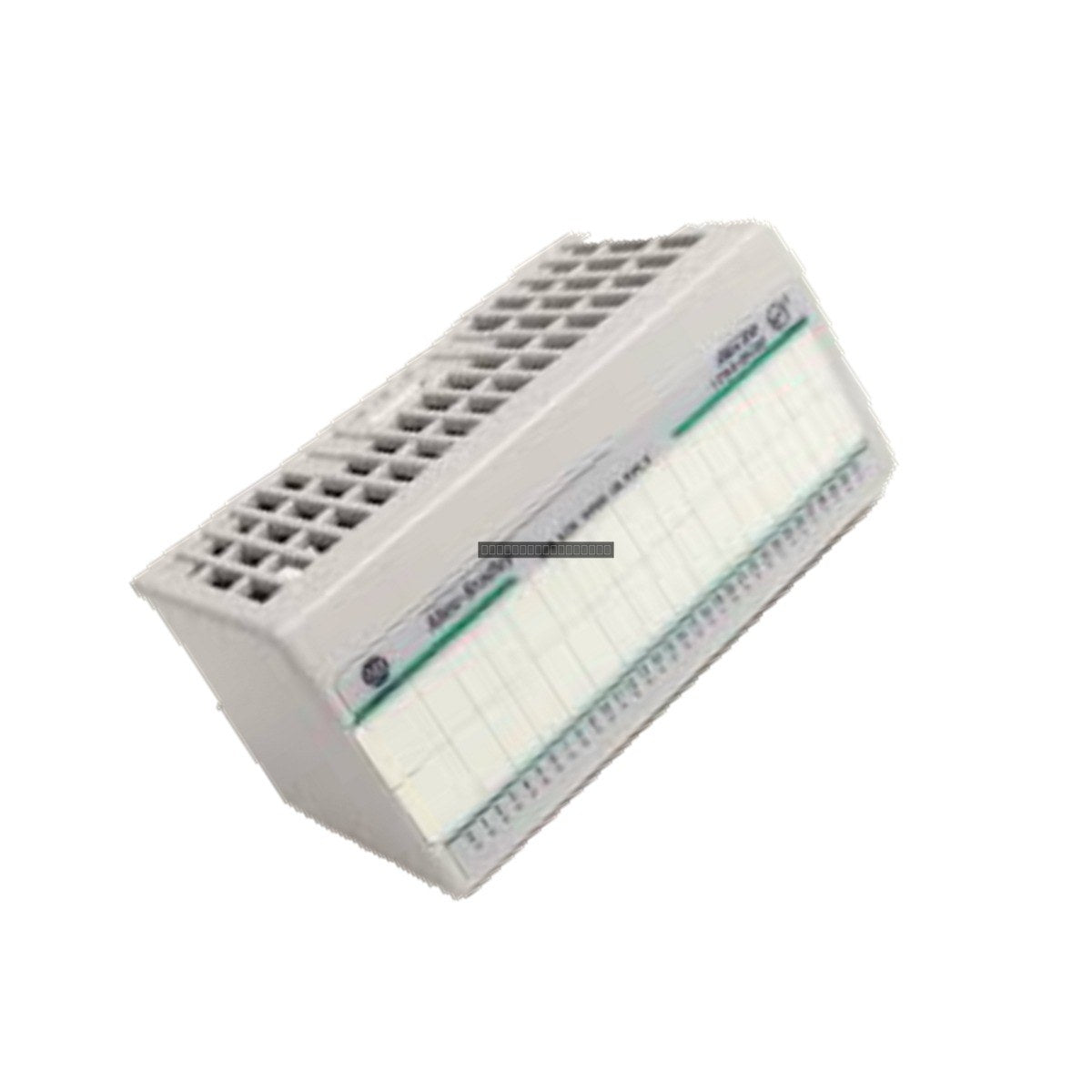

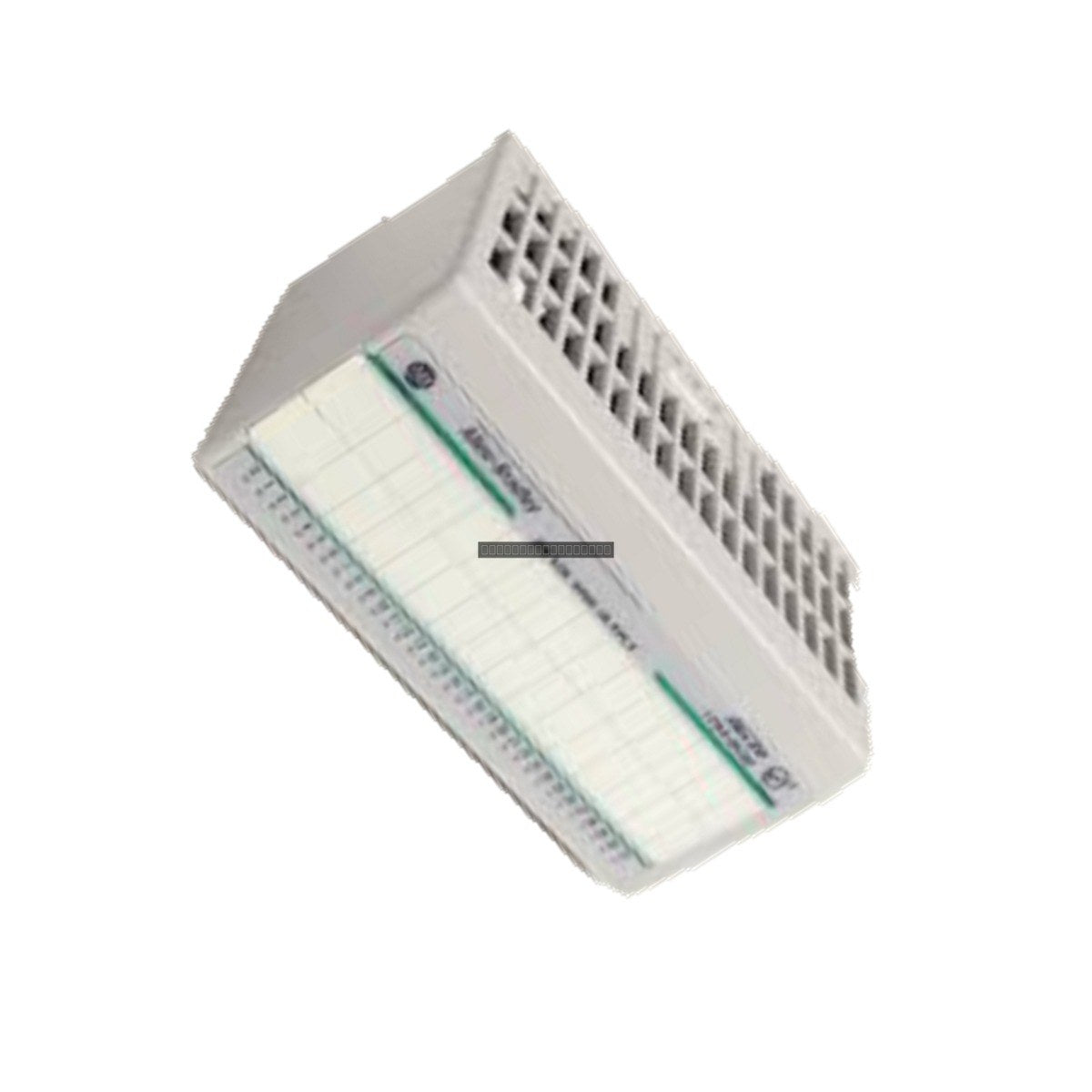

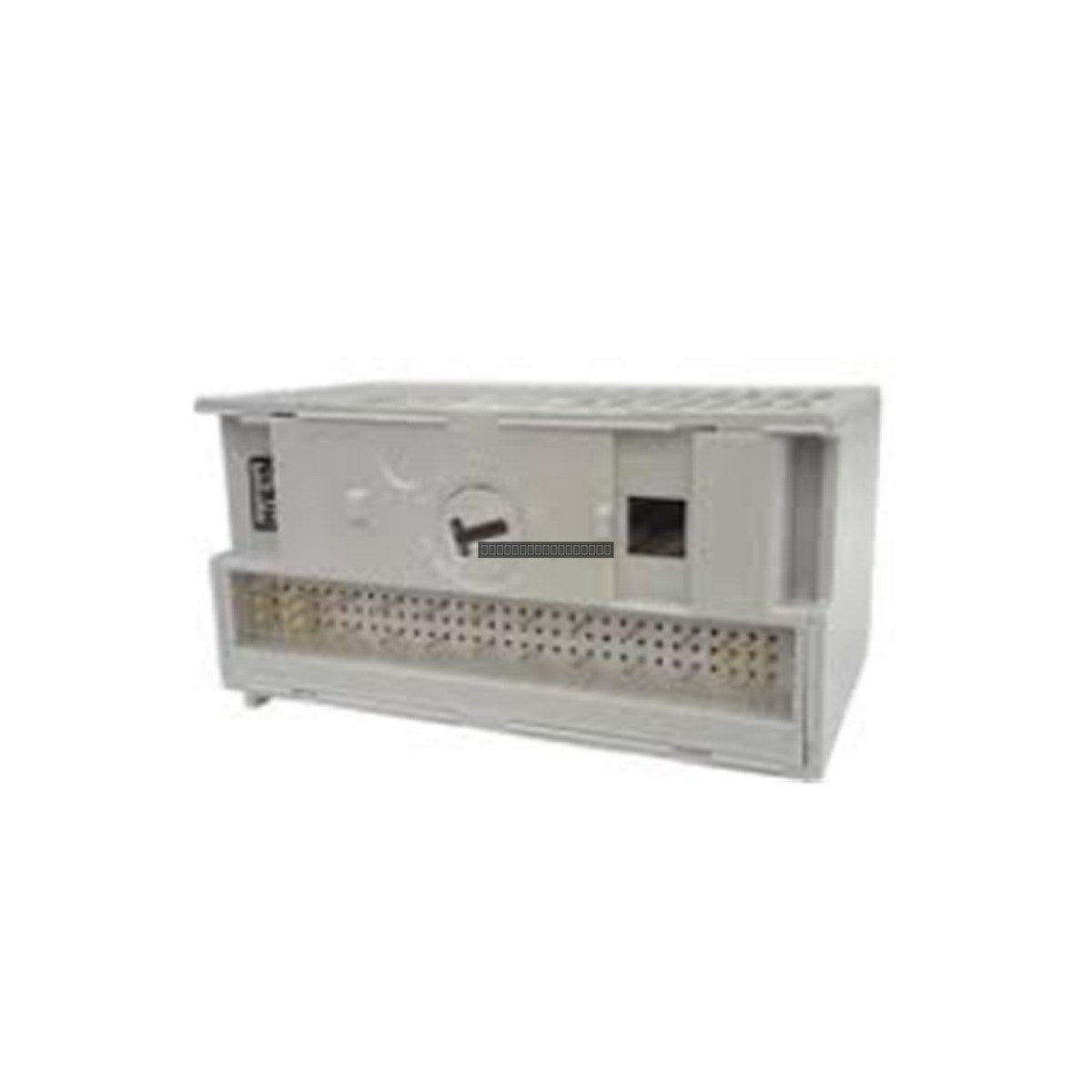

The Allen-Bradley 1794-VHSC is a high-performance counter module designed for the FLEX I/O platform. This module provides advanced counting capabilities for industrial automation applications requiring high-speed pulse processing and precise motion or position feedback.

Features

• Dual-channel configuration for versatile counting applications.
• Supports both 5V DC and 24V DC input signals.
• Two isolated output groups, each containing two outputs for flexible control.
• Compact, open-style construction suitable for standard DIN-rail mounting.
• IP20-rated enclosure for protection against solid objects.
• Compatible with the FLEX I/O system architecture.

Applications

This module is typically utilized in high-speed counting, flow metering, and position tracking tasks within manufacturing and process control environments. It integrates seamlessly into Allen-Bradley control systems to provide real-time data acquisition for high-frequency pulse inputs.

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected from the FLEX I/O rack before installing or removing the module to prevent electrical damage.
• Mount the module on a standard DIN rail, ensuring it is securely seated in the terminal base.
• Use shielded cabling for high-speed input signals to minimize electromagnetic interference (EMI).
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
• Verify that the input voltage levels match the module requirements to avoid signal errors or hardware damage.

FAQ

What is the primary function of the 1794-VHSC?
The 1794-VHSC is a specialized FLEX I/O module designed to count high-speed pulses from sensors or encoders, providing accurate data for control logic.

Is this module compatible with standard FLEX I/O bases?
Yes, it is designed for integration into the standard FLEX I/O system, allowing for modular expansion in Allen-Bradley PLC configurations.
