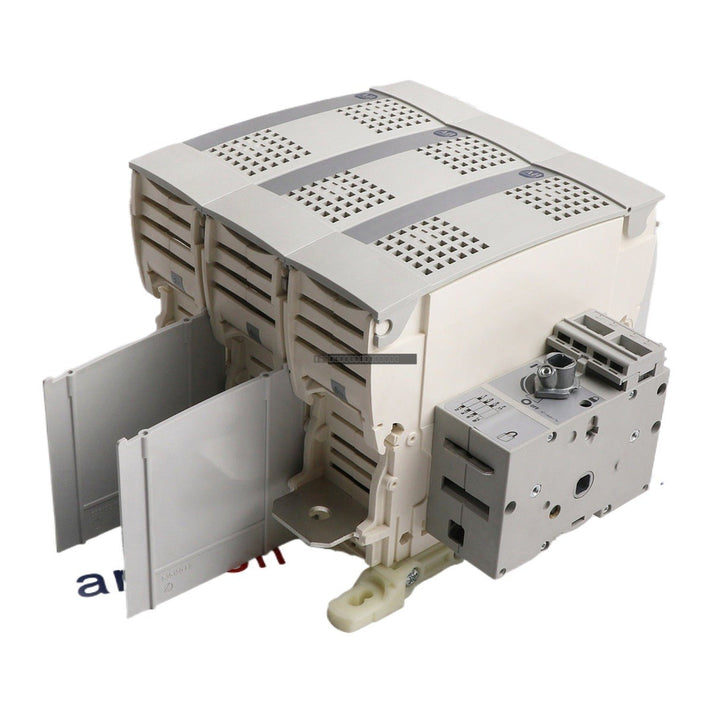

Allen-Bradley 194R-J400-1753 Disconnect Switch, 400A, 3-Pole, Class J Fused

Allen-Bradley 194R-J400-1753 Disconnect Switch, 400A, 3-Pole, Class J Fused

Description

The Allen-Bradley 194R-J400-1753 is a high-performance fused disconnect switch designed for industrial power distribution and motor control applications. This 400 A, 3-pole unit provides reliable circuit isolation and overcurrent protection...

21 people are viewing this right now

Availability: Low stock: 2 left

SKU: 194R-J400-1753
Vendor: Allen-Bradley
Category: Disconnect Switch
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 194R-J400-1753 is a high-performance fused disconnect switch designed for industrial power distribution and motor control applications. This 400 A, 3-pole unit provides reliable circuit isolation and overcurrent protection when equipped with appropriate Class J fuses. Engineered for durability, this open-type switch is suitable for integration into industrial control panels and enclosures requiring robust disconnect capabilities.

Features

  • Rated for 400 A current capacity
  • Configured for 3-pole operation
  • Integrated Class J fuse clips for standardized overcurrent protection
  • Open-type construction for flexible panel mounting
  • Designed for high-duty industrial disconnect applications

Technical Specifications

Product Model 194R-J400-1753
Manufacturer Allen-Bradley
Current Rating 400 A
Number of Poles 3
Fuse Type Class J
Enclosure Type Open
Weight 5.86 kg

Installation Guidelines

  • Ensure the power supply is completely isolated and locked out before attempting installation or maintenance.
  • Mount the switch in an appropriate enclosure that provides sufficient protection against environmental contaminants and accidental contact.
  • Verify that all electrical connections are tightened to the manufacturer's specified torque values to prevent overheating.
  • Ensure adequate clearance around the switch to allow for heat dissipation and safe operation of the handle mechanism.
  • Use appropriate wire gauges and terminal lugs compatible with the 400 A rating of the device.
  • Always verify that the installed Class J fuses match the circuit requirements and the switch ratings.

FAQ

What type of fuses does the 194R-J400-1753 use?

This model is specifically designed for use with Class J fuses, which are installed directly into the integrated fuse clips.

Is this switch enclosed?

No, this is an open-type disconnect switch intended for mounting within a larger industrial control panel or cabinet.

What is the primary function of this device?

The 194R-J400-1753 serves as a manual disconnect switch, allowing for the physical isolation of electrical circuits for maintenance or emergency shutdown, while providing fused overcurrent protection.
