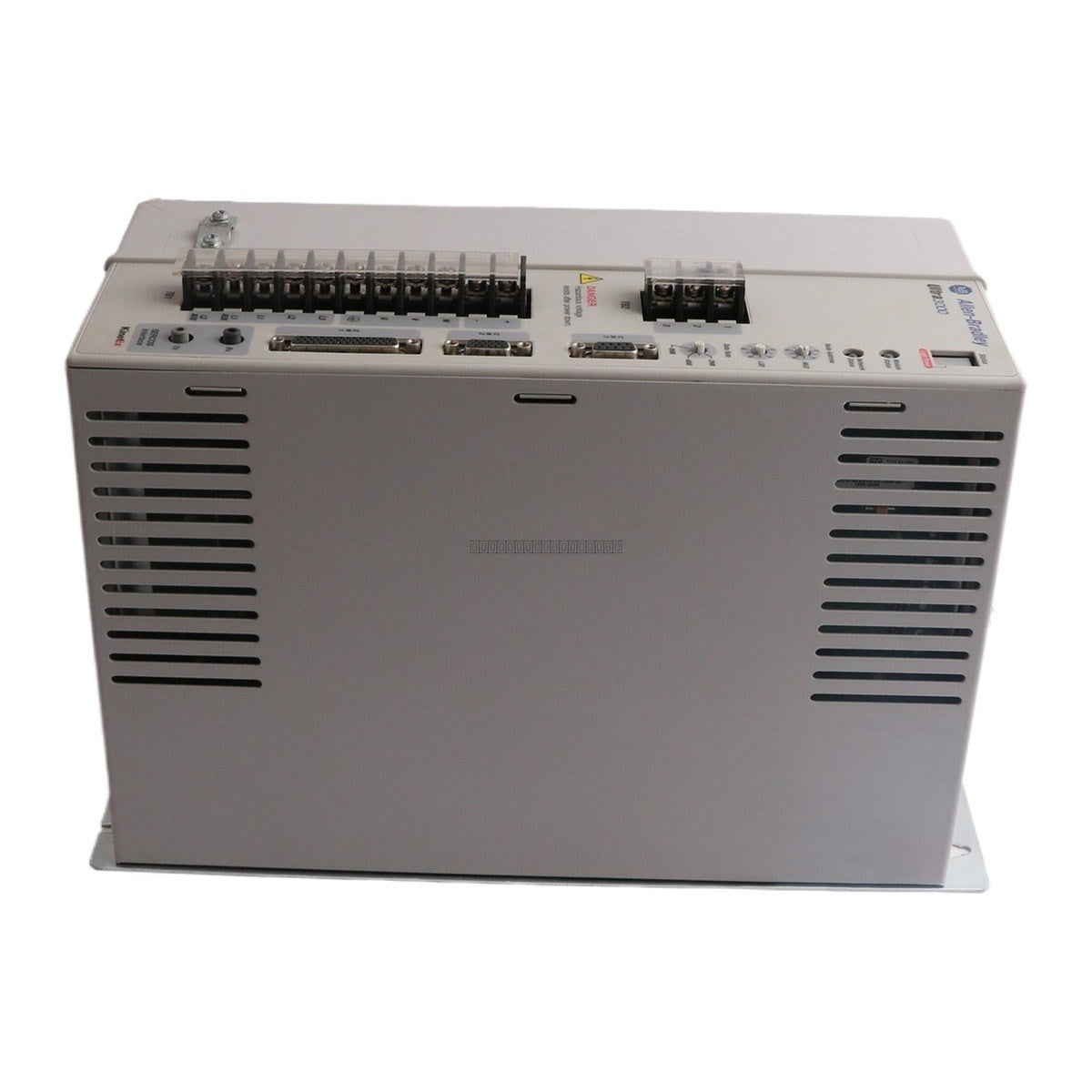

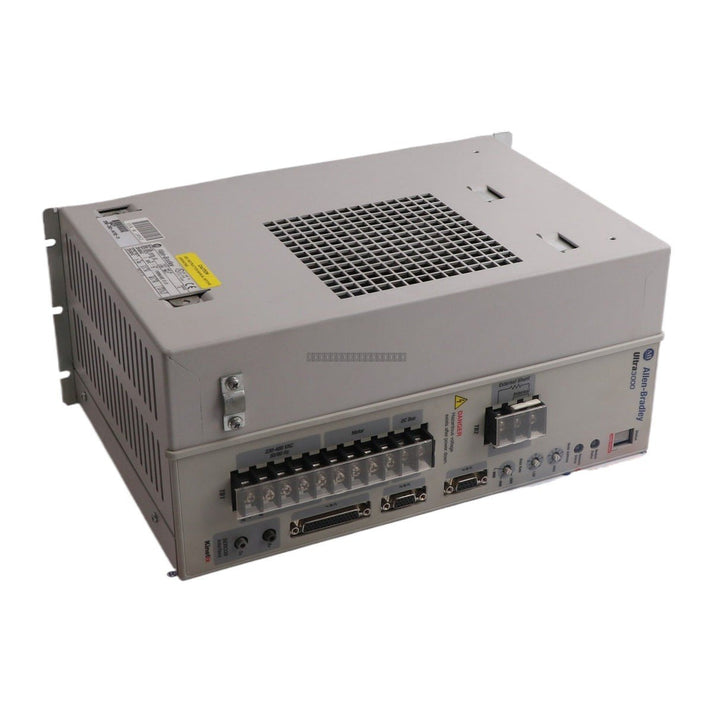

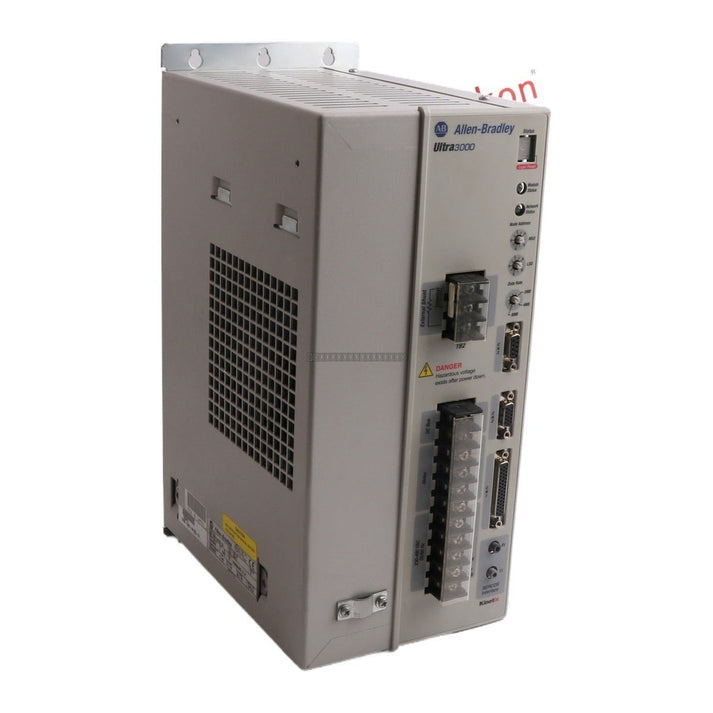

Allen-Bradley 2098-DSD-HV150-SE Ultra 3000 SERCOS Servo Drive

Allen-Bradley 2098-DSD-HV150-SE Ultra 3000 SERCOS Servo Drive

Description

The Allen-Bradley 2098-DSD-HV150-SE is a high-performance digital servo drive from the Ultra 3000 series. Designed for demanding industrial motion control applications, this unit provides precise control for servo motors in...

16 people are viewing this right now

Availability: Low stock: 1 left

SKU: 2098-DSD-HV150-SE
Vendor: Allen-Bradley
Category: Servo Drive
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2098-DSD-HV150-SE is a high-performance digital servo drive from the Ultra 3000 series. Designed for demanding industrial motion control applications, this unit provides precise control for servo motors in a compact, integrated package. This specific model features a SERCOS interface, allowing for high-speed, deterministic communication within complex automation architectures.

Features

  • Integrated SERCOS interface for high-speed digital communication.
  • Power rating of 15 kW for heavy-duty motion control tasks.
  • Supports a wide input voltage range of 230-480 VAC, 50/60 Hz.
  • Flexible control power supply requirements (12/24 VDC).
  • Robust current output range of 34-68 Amps.
  • Part of the reliable Ultra 3000 digital drive family.

Applications

This servo drive is engineered for use in multi-axis motion control systems, high-speed packaging machinery, material handling equipment, and automated assembly lines where precise synchronization and high-speed communication are critical.

Technical Specifications

Model 2098-DSD-HV150-SE
Series Ultra 3000
Interface SERCOS
Power Output 15 kW
Input Voltage 230-480 VAC
Frequency 50/60 Hz
Current Rating 34-68 Amps
Control Supply 12/24 VDC
Weight 10.38 kg

Installation Guidelines

  • Ensure the drive is mounted in a clean, dry, and well-ventilated enclosure to maintain optimal operating temperatures.
  • Verify that the input voltage matches the drive specifications before applying power.
  • Use appropriate shielded cabling for motor and communication connections to minimize EMI interference.
  • Ensure proper grounding of the drive chassis to the system common ground point.
  • Always disconnect all power sources before performing any wiring, maintenance, or module removal/insertion.
  • Follow local electrical codes and Allen-Bradley installation manuals for specific torque requirements and terminal wiring.

FAQ

What communication protocol does this drive use?

This model is equipped with a SERCOS (SE) interface, which is a standardized digital interface for real-time communication in motion control systems.

Is this drive suitable for 480V applications?

Yes, the 2098-DSD-HV150-SE supports an input voltage range of 230-480 VAC, making it compatible with standard industrial power grids.
