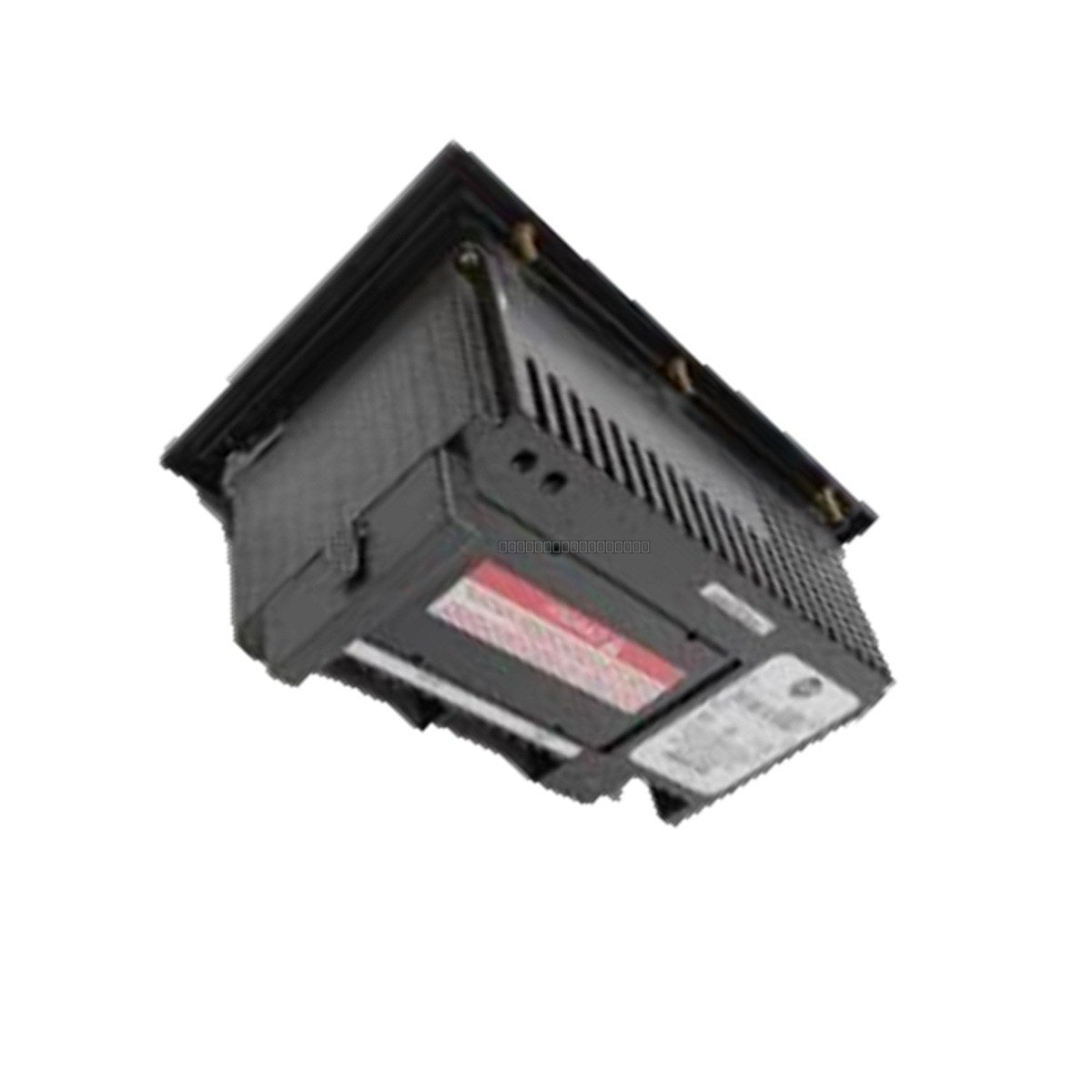

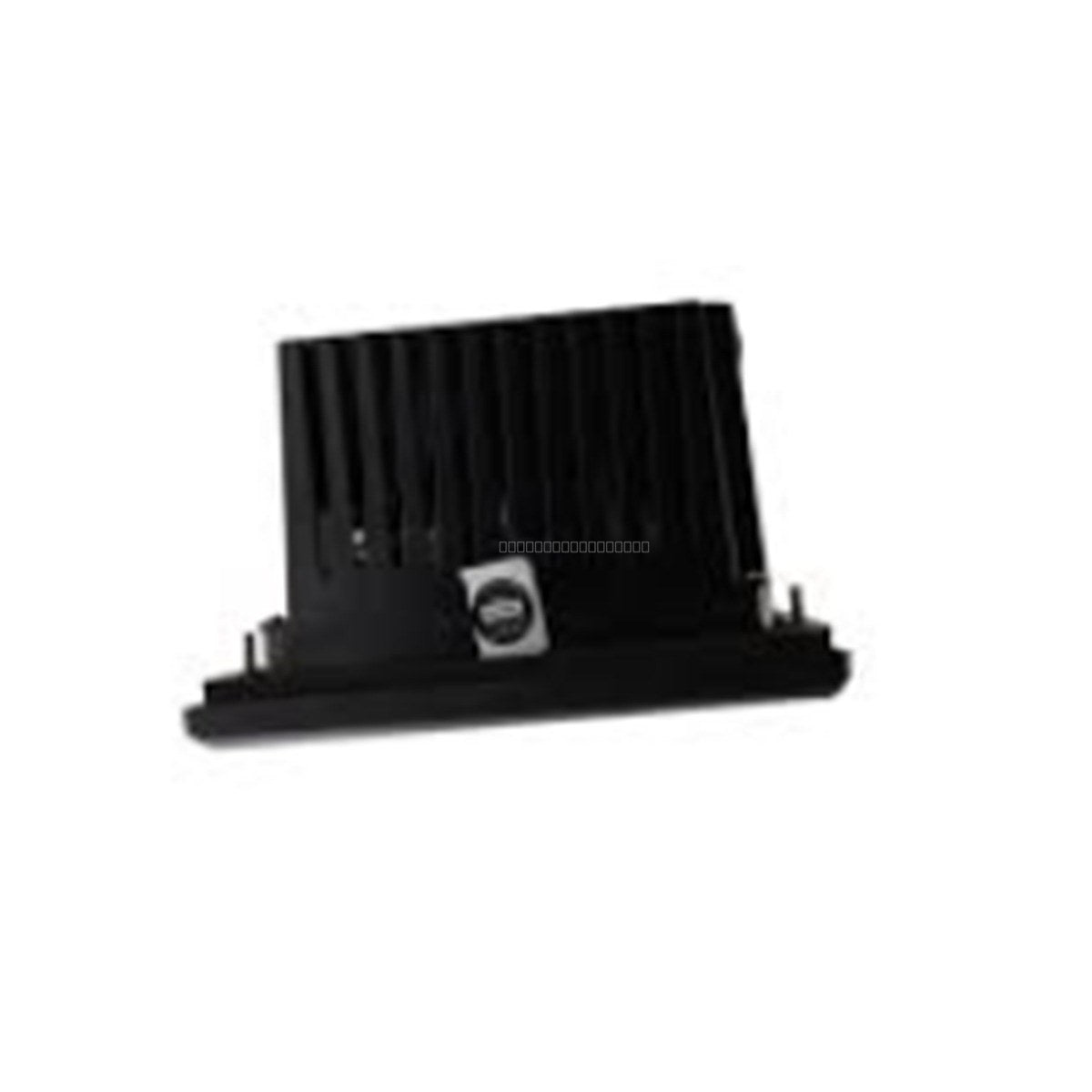

Allen-Bradley 2711-B5A8L1 PanelView 550 Operator Terminal

Allen-Bradley 2711-B5A8L1 PanelView 550 Operator Terminal

The Allen-Bradley 2711-B5A8L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications. This DC-powered unit provides real-time process monitoring, alarm management, and operator control in demanding...

25 people are viewing this right now

Availability: In stock

SKU: 2711-B5A8L1
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711-B5A8L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications. This DC-powered unit provides real-time process monitoring, alarm management, and operator control in demanding industrial environments such as chemical processing, oil and gas, and water treatment facilities.

Features

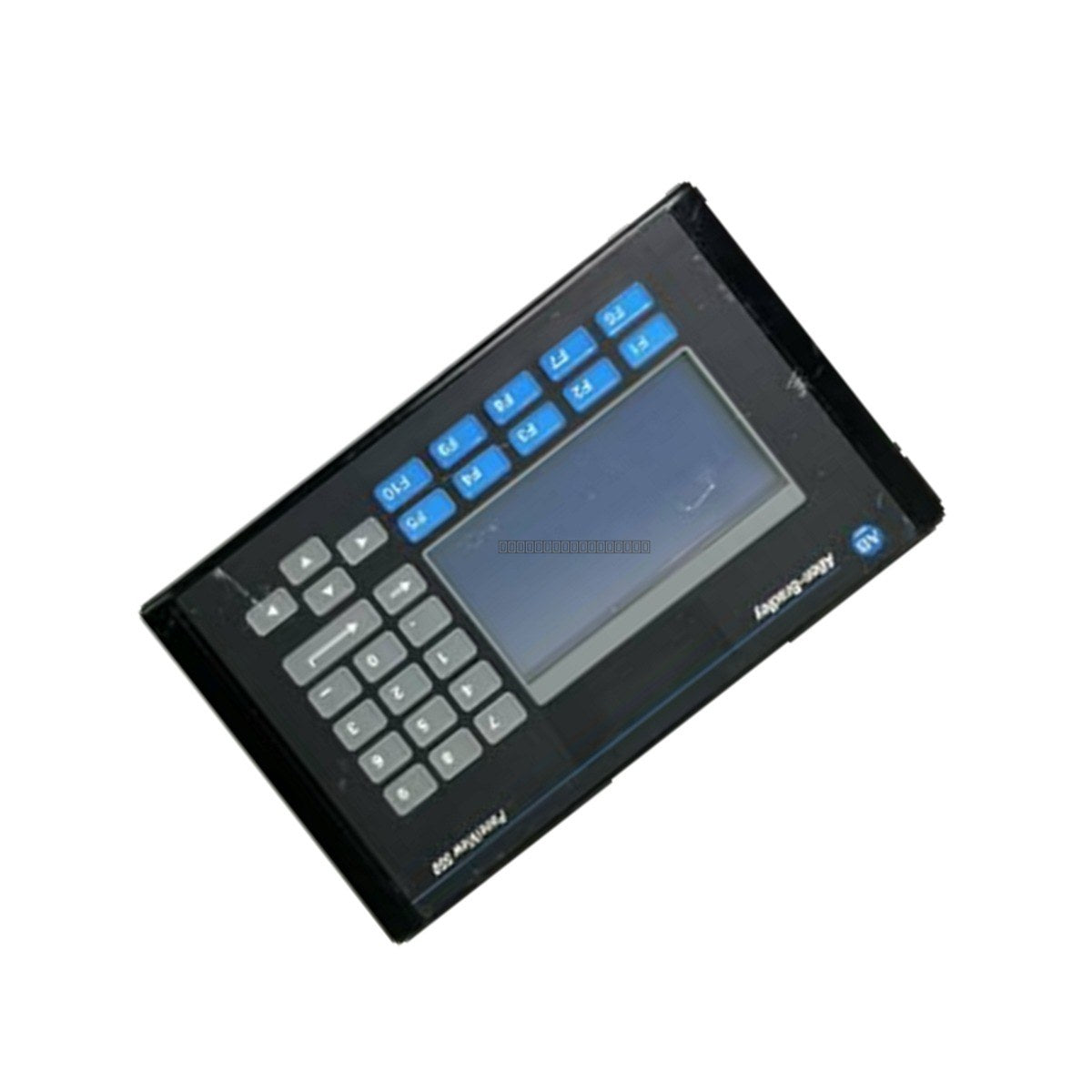

  • Hybrid input interface featuring both an analog resistive touchscreen and a 10-key tactile function keypad (F1 to F10).
  • 5.5-inch monochrome blue-mode LCD display with 256 x 128 pixel resolution.
  • Integrated Data Highway Plus (DH+) communication port for deterministic plant-floor networking.
  • Dedicated RS-232 serial port for local printer connectivity.
  • Long-life LED backlight rated for 100,000 hours of operation.
  • Dual-memory architecture with 170 KB for application runtime and 240 KB for nonvolatile storage.

Applications

This terminal is suitable for industrial automation tasks requiring robust HMI functionality, including machine control, process visualization, and alarm annunciation in environments where high-vibration or harsh conditions necessitate physical keypad input options.

Technical Specifications

Model 2711-B5A8L1
Input Voltage 24 VDC nominal (18-32 VDC range)
Display Size 5.5 inches
Resolution 256 x 128 pixels
Input Type Keypad and Touchscreen
Communication DH+ and RS-232
Operating Temperature 0 to 55 deg C
Memory 170 KB Runtime / 240 KB Nonvolatile

Installation Guidelines

  • Ensure the terminal is mounted in a panel cutout that meets the required clearance for the 152 x 221 x 106 mm chassis.
  • Use a NEMA-rated enclosure to maintain the integrity of the front-panel seal in washdown or dusty environments.
  • Verify that the 24 VDC power supply is within the 18 to 32 VDC range before connection to prevent damage.
  • Maintain proper grounding practices to protect the DH+ communication interface from electrical noise and EMI.
  • Power down the unit before connecting or disconnecting communication cables or peripheral devices.

FAQ

Is this unit still in production? No, the 2711-B5A8L1 is classified as a discontinued or obsolete product by the manufacturer.

What is the primary communication protocol? This model utilizes the Data Highway Plus (DH+) protocol for high-speed deterministic networking.

Can I use this in high-vibration areas? Yes, the inclusion of 10 mechanical function keys allows for reliable control operation even when touchscreen use is difficult due to vibration.
