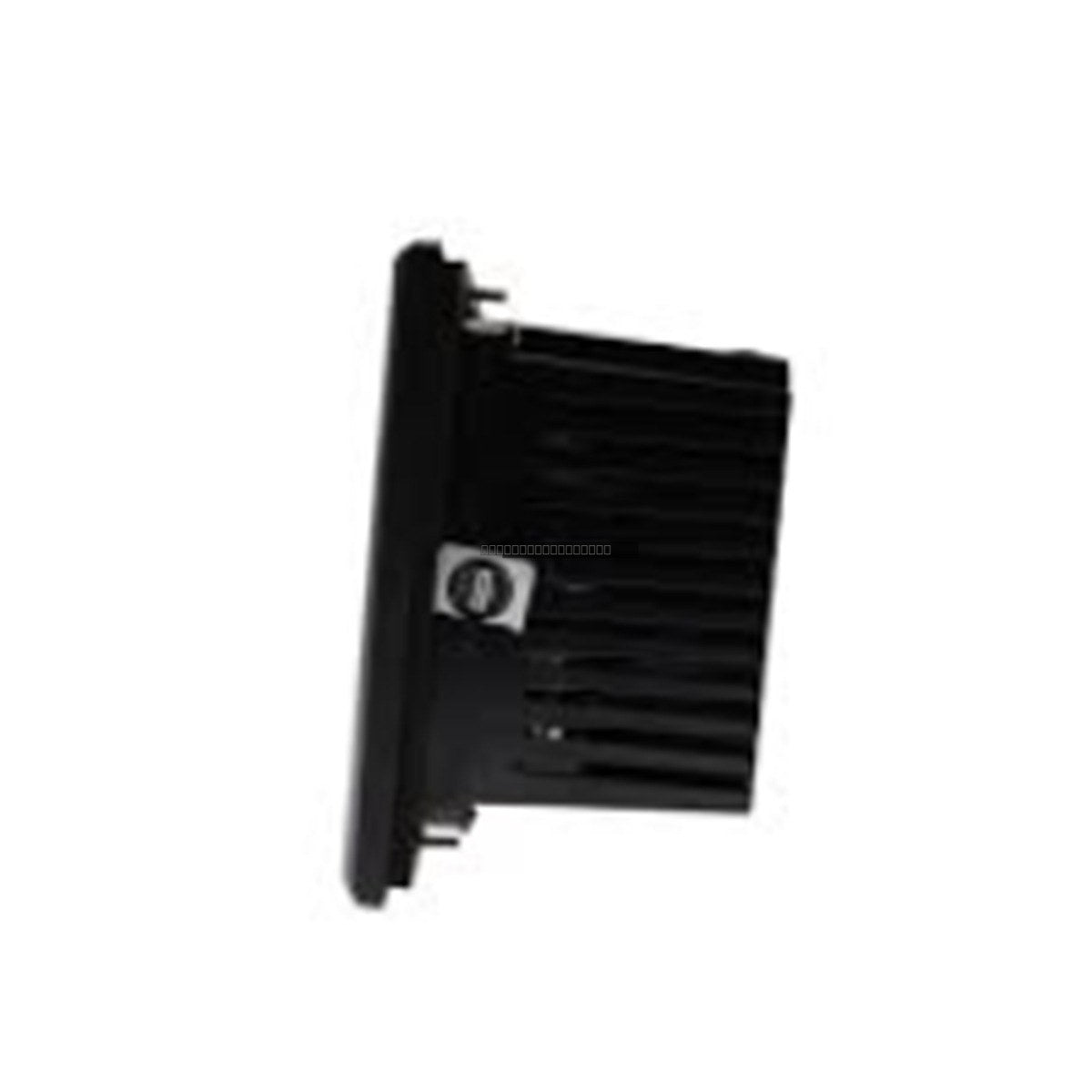

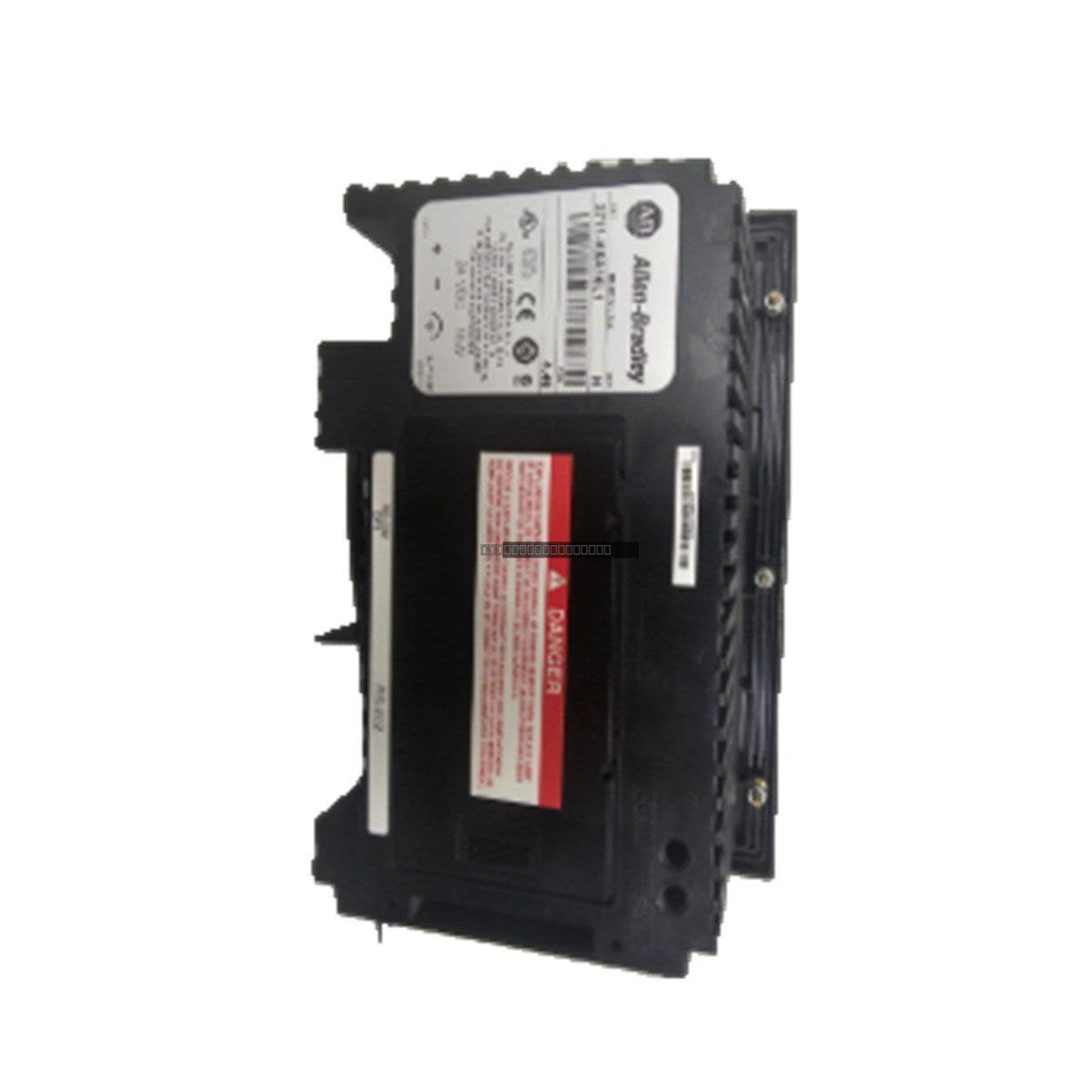

Allen-Bradley 2711-B5A8L3 PanelView 550 Operator Terminal

Allen-Bradley 2711-B5A8L3 PanelView 550 Operator Terminal

Product Overview

The Allen-Bradley 2711-B5A8L3 is a robust operator terminal from the PanelView 550 series, designed to provide reliable human-machine interface (HMI) capabilities in demanding industrial environments. This unit features a...

21 people are viewing this right now

Availability: Low stock: 10 left

SKU: 2711-B5A8L3
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Allen-Bradley 2711-B5A8L3 is a robust operator terminal from the PanelView 550 series, designed to provide reliable human-machine interface (HMI) capabilities in demanding industrial environments. This unit features a hybrid input design, combining a resistive touchscreen with a tactile keypad, allowing for versatile control and monitoring of automated processes. It is engineered for long-term deployment in sectors such as water treatment, chemical processing, and automated manufacturing, where it serves to streamline operator interaction and reduce system downtime.

Hardware Features

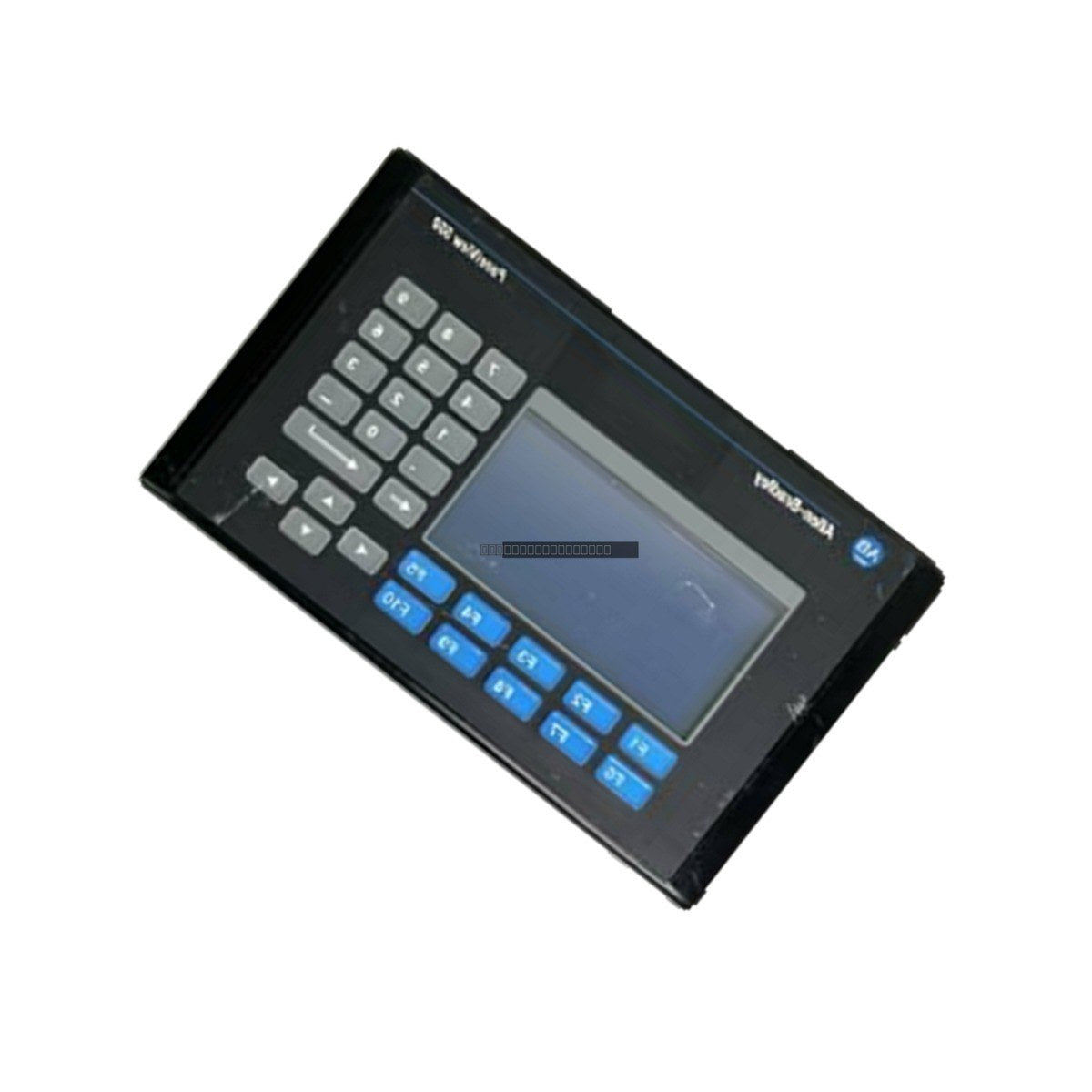

The 2711-B5A8L3 utilizes a 5.5-inch monochrome blue-mode LCD display, offering a clear 256 x 128 pixel resolution suitable for process visualization. The input system includes 10 dedicated function keys (F1-F10) alongside a touchscreen matrix with 128 active cells, ensuring operational reliability even in high-vibration settings. For networking and data management, the terminal is equipped with a Data Highway Plus (DH+) communication port for deterministic plant-floor connectivity and an RS-232 serial port for local printer logging.

Technical Specifications

Model 2711-B5A8L3
Brand Allen-Bradley
Product Line PanelView 550
Display 5.5-inch Monochrome Blue-Mode LCD
Resolution 256 x 128 pixels
Input Method Keypad (10 Function Keys) and Touchscreen
Memory 170 KB Runtime / 240 KB Nonvolatile
Communication DH+ Port, RS-232 Printer Port
Input Voltage 24 VDC (18-32 VDC range)
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's mounting specifications to maintain the NEMA/IP rating of the enclosure.
  • Verify that the DC power supply is within the 18-32 VDC range before connection to prevent damage to the internal circuitry.
  • Use shielded cables for DH+ and RS-232 communications to minimize electromagnetic interference (EMI) in high-noise industrial areas.
  • Always power down the terminal before connecting or disconnecting communication cables or performing maintenance.
  • Handle the unit with care to avoid damage to the resistive touchscreen overlay and the LCD backlight assembly.

FAQ

Is this terminal still in production? No, the 2711-B5A8L3 is classified as a discontinued or obsolete product by the manufacturer. We provide these units as spare parts for legacy system maintenance.

What is the primary communication protocol for this unit? This model features a dedicated Data Highway Plus (DH+) port, which is the standard for high-speed deterministic networking in legacy Allen-Bradley architectures.
