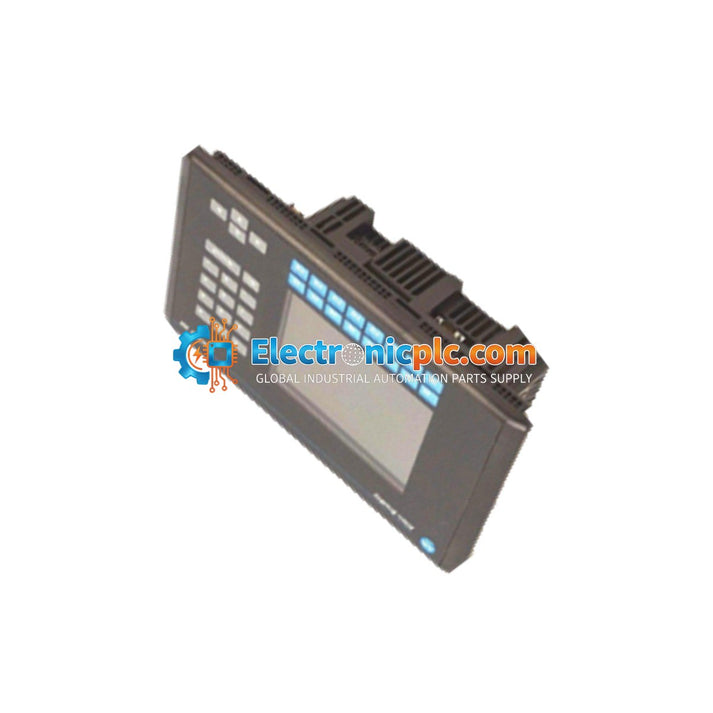

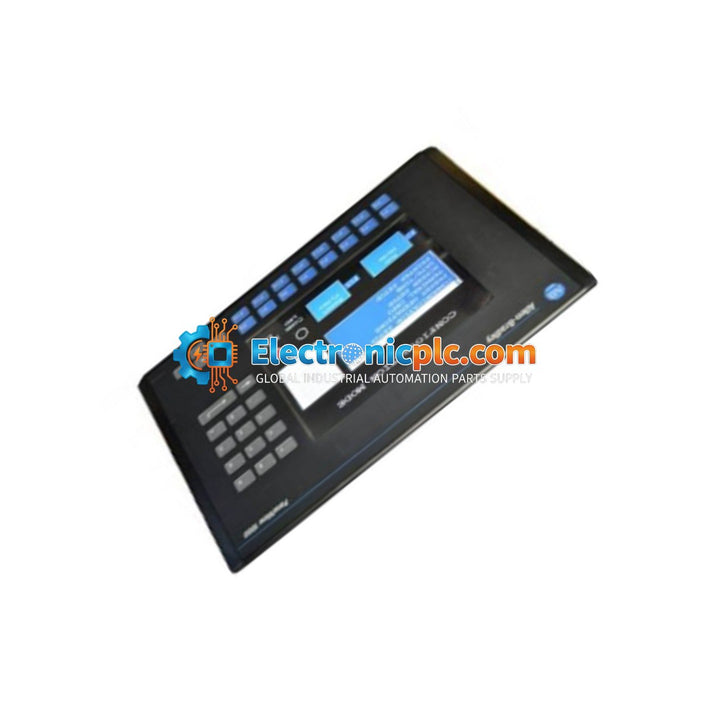

Allen-Bradley 2711-K5A1 PanelView 550 Standard Operator Terminal

Allen-Bradley 2711-K5A1 PanelView 550 Standard Operator Terminal

Description

The Allen-Bradley 2711-K5A1 is a robust, industrial-grade human-machine interface (HMI) from the PanelView 550 Standard series. Designed for reliable process visualization and machine control, this terminal is engineered to withstand...

26 people are viewing this right now

Availability: Low stock: 10 left

SKU: PANELVIEW 550 STANDARD OPERATOR TERMINAL
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-K5A1 is a robust, industrial-grade human-machine interface (HMI) from the PanelView 550 Standard series. Designed for reliable process visualization and machine control, this terminal is engineered to withstand the rigors of demanding factory environments. It serves as a critical localized operational node, providing operators with real-time graphical feedback, diagnostic data, and control capabilities to streamline production and minimize downtime.

Features

  • Tactile Input Assembly: Features a durable keypad with 10 programmable function keys (F1-F10), a full numerical keypad, and dedicated navigation buttons for precise operator input.
  • Display Technology: Equipped with a 5.5-inch monochrome transflective LCD (blue mode) offering a 256 x 128 resolution for clear visualization of machine states.
  • Long-Life Backlight: Integrated LED backlight rated for up to 100,000 hours of continuous operation.
  • Communication Connectivity: Includes a built-in Remote I/O (RIO) port for daisy-chain topology and an RS-232 serial port dedicated to printer and alarm logging tasks.
  • Rugged Enclosure: Rated NEMA 12/13 and 4X (IP54/IP65) for protection against dust, debris, and liquid splashes in indoor industrial settings.

Applications

The 2711-K5A1 is widely utilized in sectors such as automotive sub-assembly, bulk material handling, and municipal water/wastewater management. It is ideal for applications requiring a compact, reliable interface for monitoring active control loops and managing machine diagnostics.

Technical Specifications

Model 2711-K5A1
Display Size 5.5 inches
Resolution 256 x 128 pixels
Input Voltage 85 to 264 VAC (47-63 Hz)
Runtime Memory 170 KB
Nonvolatile Memory 240 KB
Communication Remote I/O (RIO), RS-232 Printer Port
Weight 1.28 kg

Installation Guidelines

  • Mounting: Ensure the panel cutout is clean and free of burrs. Use the provided mounting clips to secure the unit against the enclosure gasket to maintain the NEMA/IP rating.
  • Power Wiring: Verify the input voltage is within the 85-264 VAC range before applying power. Ensure a dedicated ground connection is established to prevent electrical noise interference.
  • Communication: Use shielded cabling (e.g., Belden 9463 for RIO) and keep signal wires separate from high-voltage power lines to minimize EMI.
  • Maintenance: Power down the unit before performing any hardware maintenance or cable connections. Clean the display surface only with a soft, non-abrasive cloth.

FAQ

Is the 2711-K5A1 compatible with modern Ethernet networks?

No, this specific model utilizes Remote I/O (RIO) and RS-232 serial communication. It is designed for legacy Allen-Bradley control architectures and does not support Ethernet/IP natively.

What is the primary function of the RS-232 port?

The RS-232 port on this unit is dedicated to printer operations and real-time process alarm logging, rather than general-purpose PLC communication.
