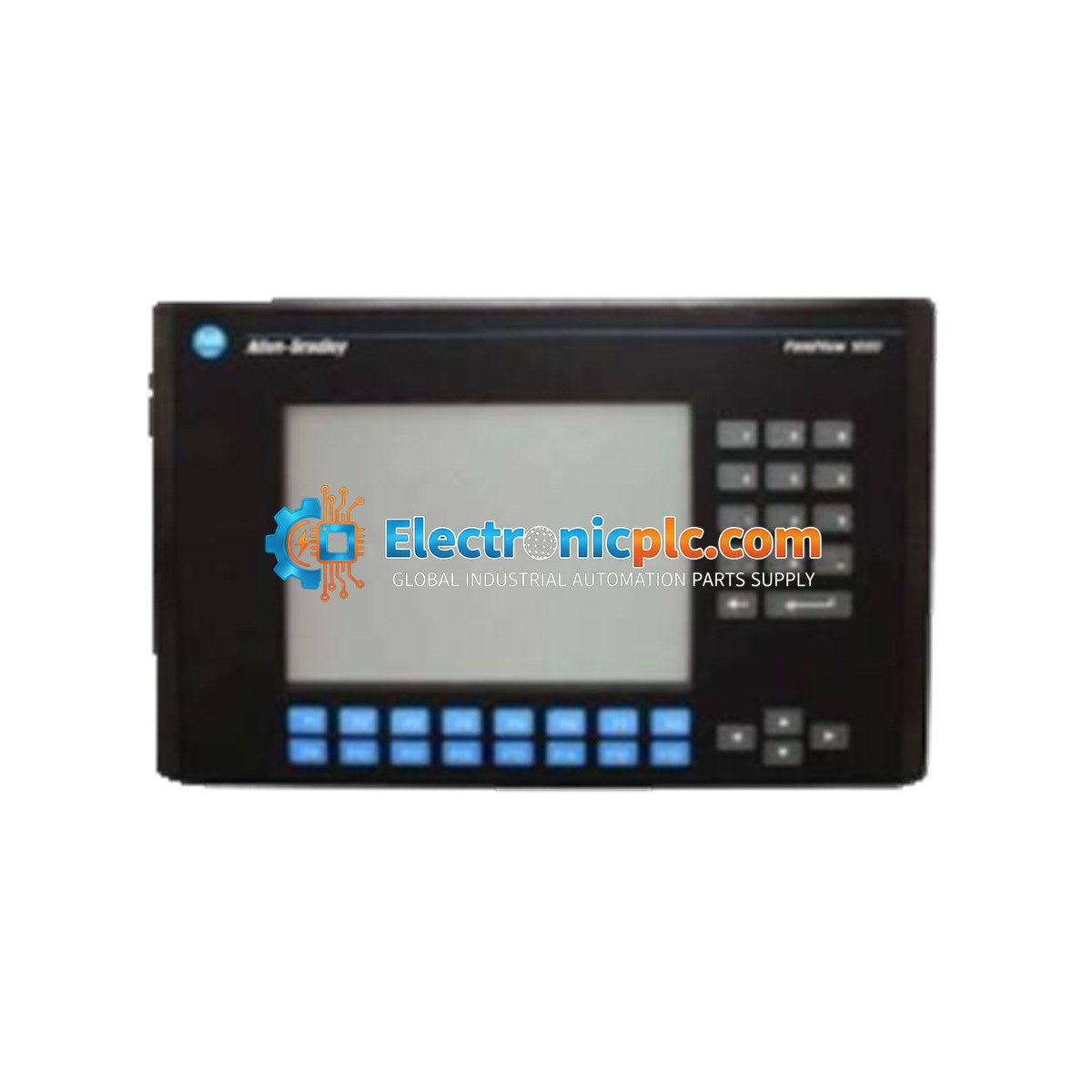

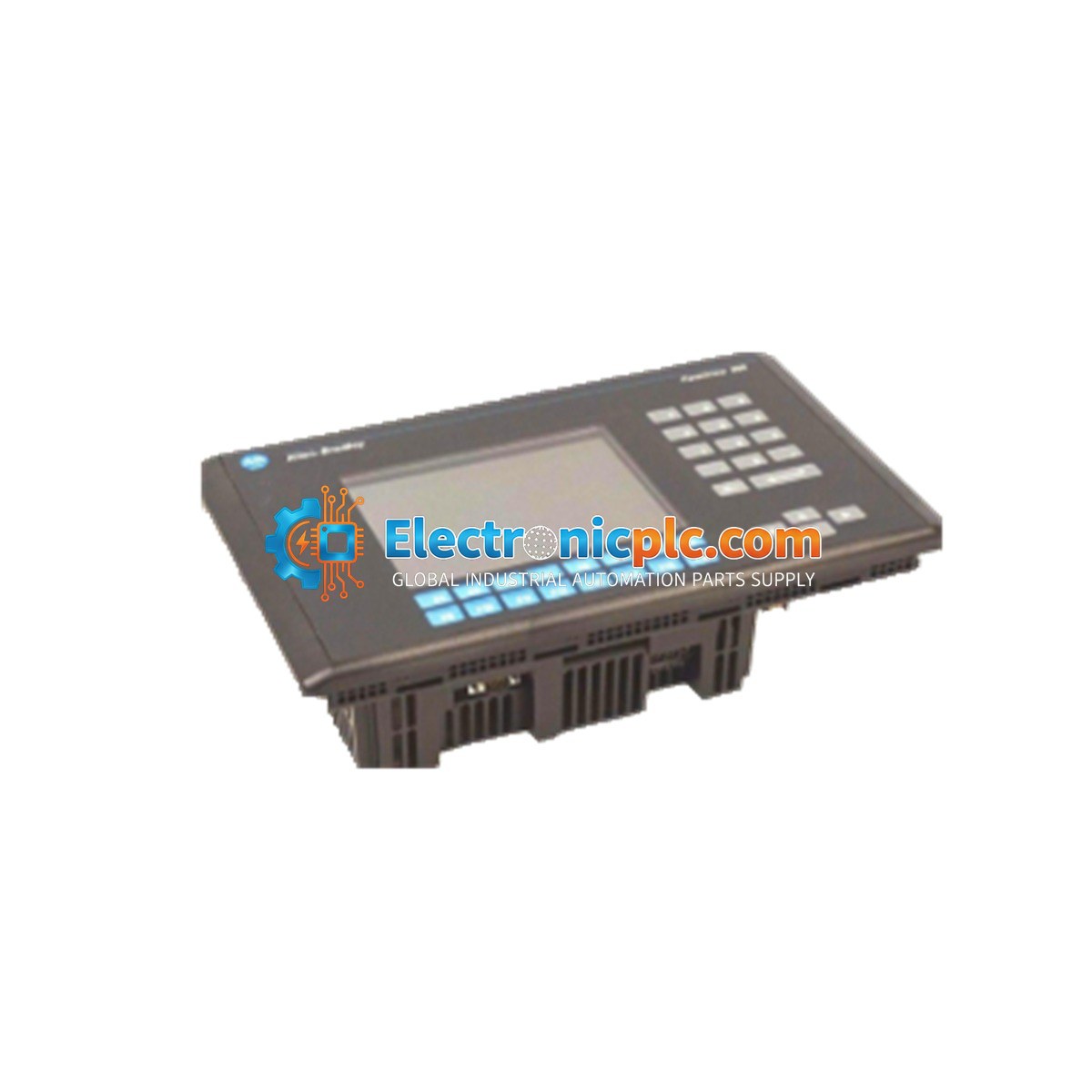

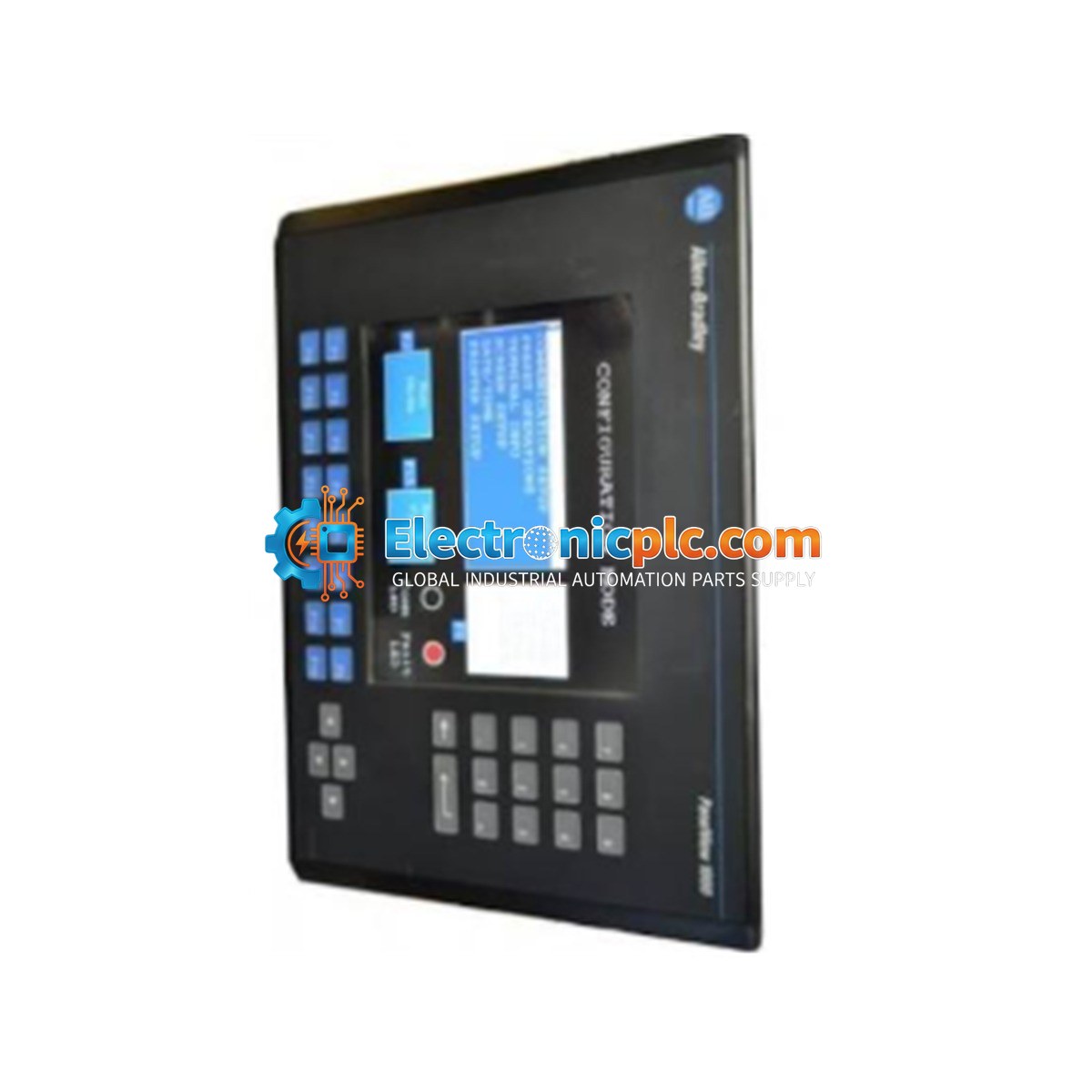

Allen-Bradley 2711-K5A10 PanelView 550 HMI Terminal

Allen-Bradley 2711-K5A10 PanelView 550 HMI Terminal

Description

The Allen-Bradley 2711-K5A10 is a ruggedized industrial human-machine interface (HMI) terminal from the PanelView 550 series. Designed for centralized process visualization and data entry, this unit provides reliable control and...

24 people are viewing this right now

Availability: Low stock: 5 left

SKU: 2711-K5A10
Vendor: Allen-Bradley
Category: HMI Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-K5A10 is a ruggedized industrial human-machine interface (HMI) terminal from the PanelView 550 series. Designed for centralized process visualization and data entry, this unit provides reliable control and monitoring within demanding automated environments. It is widely utilized in sectors such as automotive manufacturing, chemical processing, and water treatment to serve as a localized control node. By rendering clear machine mimic layouts, process symbols, and real-time text diagnostics, the terminal enables operators to monitor system status and respond rapidly to field changes, thereby reducing processing errors and minimizing unexpected downtime.

Features

  • Tactile Input Matrix: Features a physical keypad assembly with 10 programmable function keys (F1 to F10), a numerical key set, and navigation buttons for precise parameter entry and command execution.
  • Industrial Display: Equipped with a 5.5-inch monochrome LCD blue mode display with a 256 x 128 pixel resolution for clear status and diagnostic visualization.
  • Extended Backlight Longevity: Includes a long-life integral LED backlight rated for up to 100,000 hours of operation.
  • Industrial Networking: Integrated DeviceNet communication port for high-speed peer-to-peer data exchange with PLC5 and SLC 500 controllers.
  • Peripheral Logging: Dedicated RS-232 serial printer port for documenting system alarm logs and historical events.
  • Durable Enclosure: NEMA Type 12/13 and 4X (IP54/IP65) indoor-rated chassis designed to resist dust and moisture in harsh industrial settings.

Applications

This terminal is designed for integration into legacy Allen-Bradley control systems. It is ideal for machine-level monitoring, alarm management, and localized operator control in manufacturing lines where high-speed communication via DeviceNet is required.

Technical Specifications

Model 2711-K5A10
Display Size 5.5 inches
Resolution 256 x 128 Pixels
Input Voltage 85 to 264 VAC (47-63 Hz)
Power Consumption 45 VA maximum
Memory 170 KB Runtime / 240 KB Nonvolatile
Communication DeviceNet, RS-232 Printer Port
Weight 1.50 kg

Installation Guidelines

  • Mounting: Ensure the panel cutout is prepared to the specified dimensions (6.20 inches height). Use the provided mounting hardware to secure the terminal against the enclosure gasket to maintain the NEMA/IP seal.
  • Power: Verify input voltage is within the 85-264 VAC range before applying power. Ensure a solid earth ground connection to the chassis to prevent EMI interference.
  • Wiring: Use shielded cables for communication ports. Keep signal cables separated from high-voltage power lines to minimize electrical noise.
  • Environment: Install in an environment that allows for adequate ventilation. Ensure the ambient temperature remains within the specified operational limits for the PanelView 550 series.
  • Maintenance: Power down the unit before performing any maintenance or cable connections.

FAQ

Q: Does this unit support color graphics?
A: No, the 2711-K5A10 features a monochrome LCD blue mode display.

Q: Can this terminal communicate with modern ControlLogix systems?
A: This unit is primarily designed for legacy integration with PLC5 and SLC 500 controllers via DeviceNet. Please consult your system architecture documentation for compatibility with newer platforms.

Q: What is the purpose of the printer port?
A: The RS-232 serial port is dedicated to printing alarm logs and historical event data for record-keeping and troubleshooting purposes.
