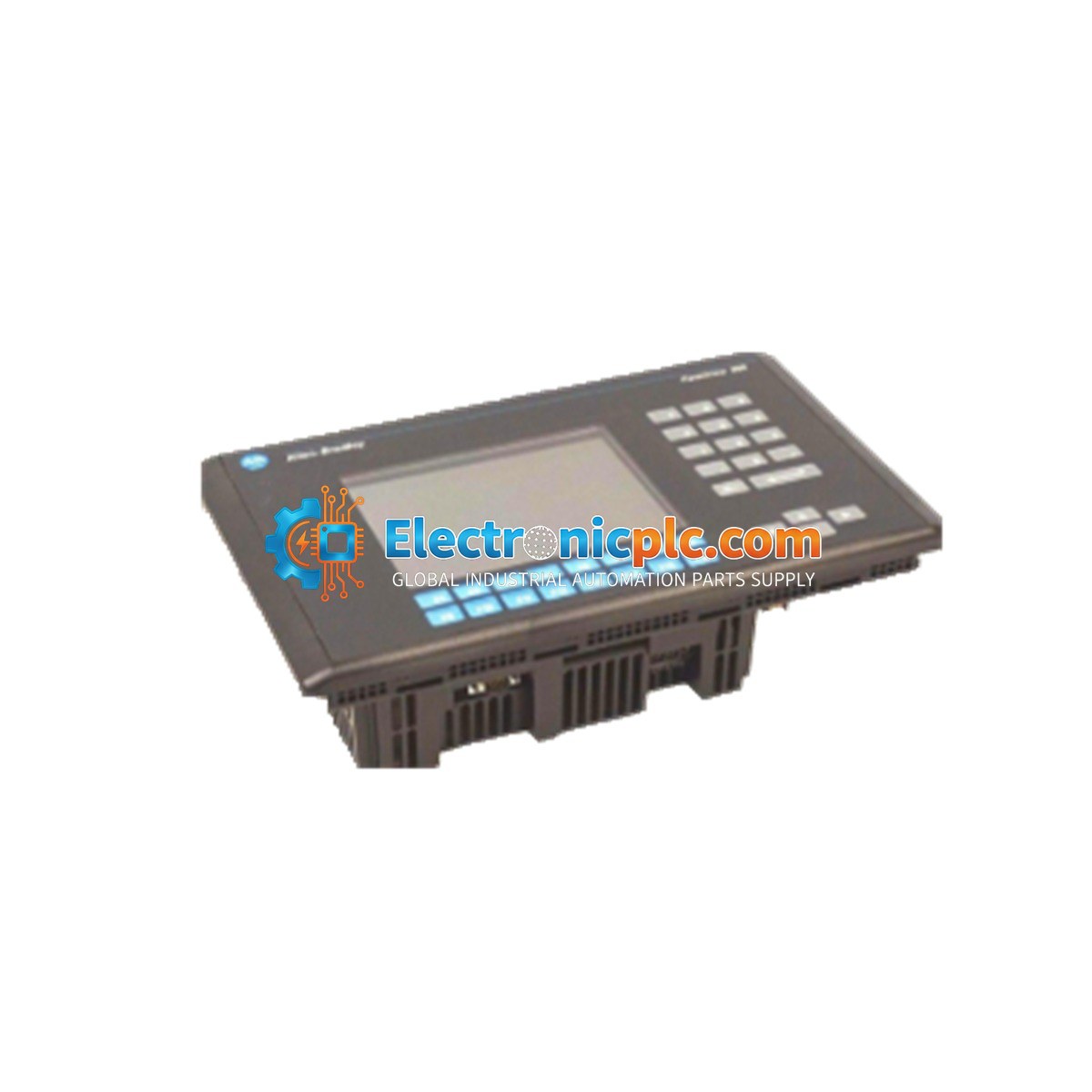

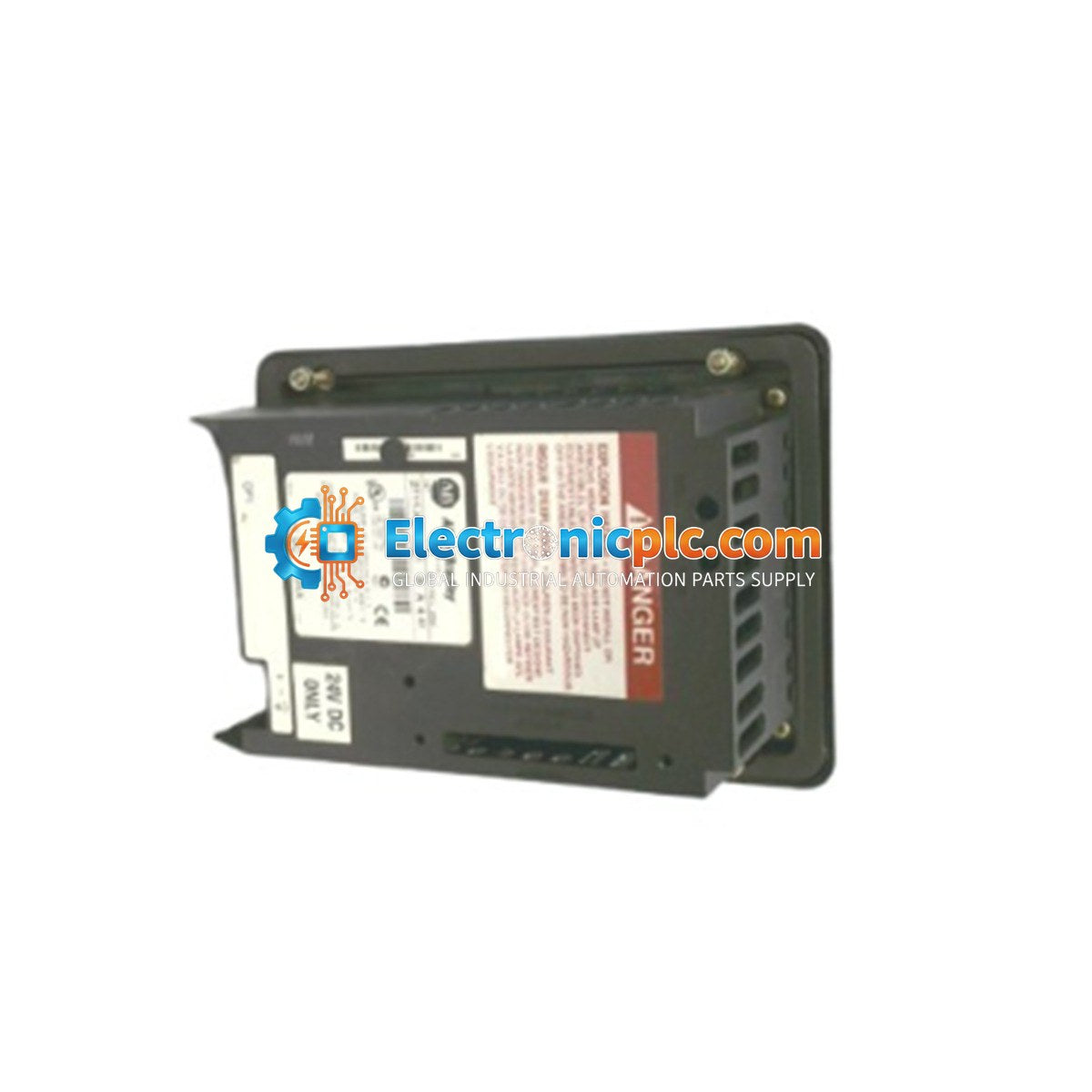

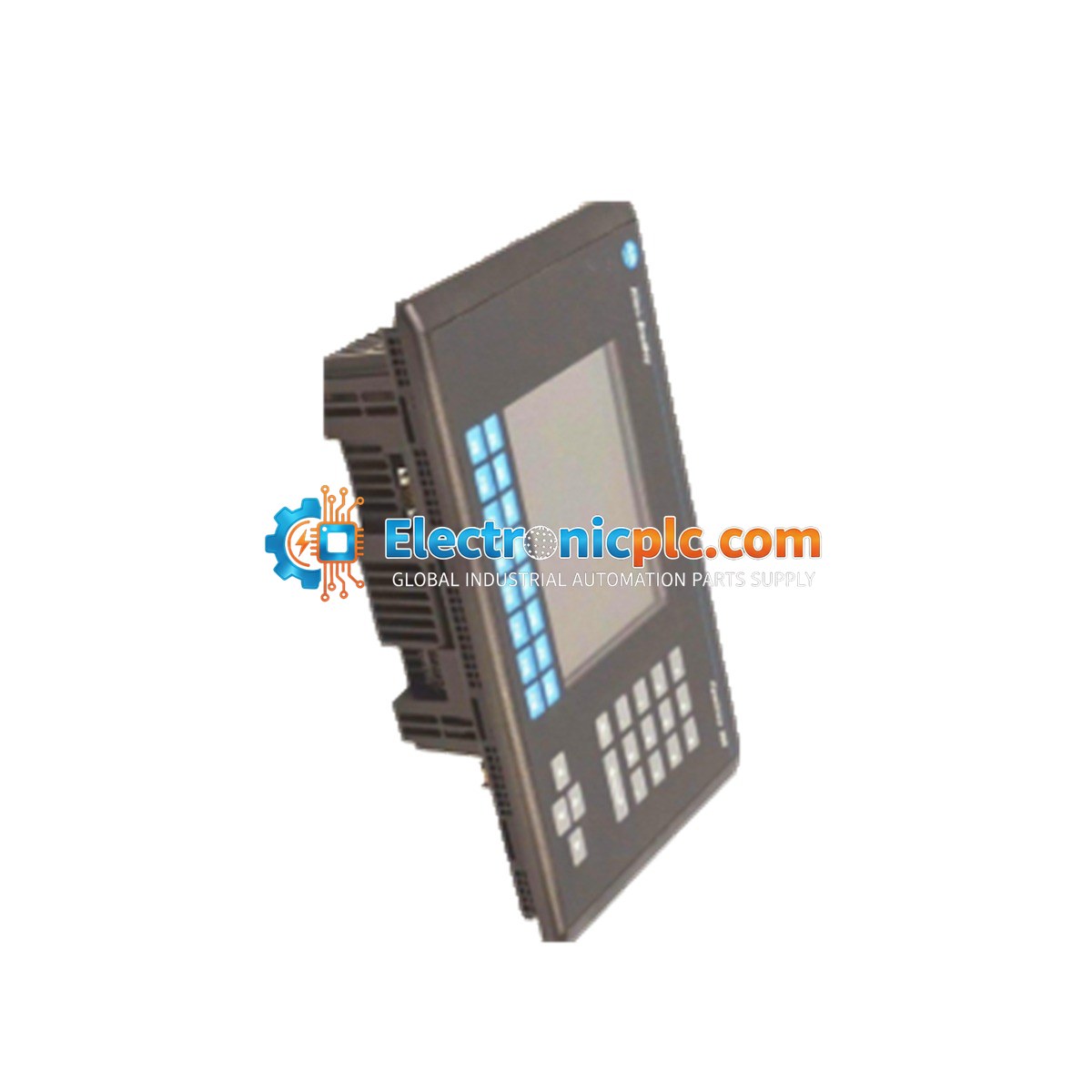

Allen-Bradley 2711-K5A15 PanelView Standard Operator Terminal

Allen-Bradley 2711-K5A15 PanelView Standard Operator Terminal

Description

The Allen-Bradley 2711-K5A15 is a robust industrial Human-Machine Interface (HMI) from the PanelView Standard series, engineered for reliable process monitoring and control in demanding plant-floor environments. This terminal features a...

15 people are viewing this right now

Availability: Low stock: 9 left

SKU: 2711-K5A15
Vendor: Allen-Bradley
Category: HMI Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-K5A15 is a robust industrial Human-Machine Interface (HMI) from the PanelView Standard series, engineered for reliable process monitoring and control in demanding plant-floor environments. This terminal features a 5.5-inch monochrome blue-mode transflective LCD, providing high-contrast visibility for real-time diagnostics, alarm management, and system parameter adjustments. Designed for integration into heavy industrial sectors such as water treatment, chemical processing, and automated logistics, the 2711-K5A15 ensures consistent operational oversight and efficient workflow management.

Features

  • Display Technology: 5.5-inch monochrome blue-mode transflective LCD with a 256 x 128 pixel resolution.
  • Long-Life Illumination: Integrated LED backlight rated for 100,000 hours of service.
  • Tactile Interface: Rugged mechanical keypad featuring dedicated function keys (F1-F10), a numeric keypad, and navigation arrows for precise operator input.
  • Communication Connectivity: Equipped with a ControlNet communication node for deterministic data exchange with Allen-Bradley PLCs, plus an RS-232 serial port for printer connectivity.
  • Memory Capacity: Includes 170 KB of application runtime memory and 240 KB of nonvolatile memory for storing bitmaps, text, and application objects.
  • Environmental Protection: Rated for NEMA 12/13 and 4X (indoor) and IP54/IP65, ensuring resistance to dust and moisture ingress.

Applications

The 2711-K5A15 is ideal for applications requiring direct, high-visibility interaction with automation control systems. Typical use cases include monitoring pump stations, managing conveyor routing, tracking machine-level diagnostic logs, and providing local operator control for PLC-based manufacturing cells.

Technical Specifications

Model 2711-K5A15
Brand Allen-Bradley / Rockwell Automation
Display Size 5.5 inch
Input Voltage 85 to 264 VAC (120 VAC Nominal)
Input Frequency 47 to 63 Hz
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Humidity 5 to 95% Non-condensing
Enclosure Rating NEMA 12/13, 4X, IP54, IP65

Installation Guidelines

  • Mounting: Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain the integrity of the NEMA/IP seal.
  • Power Wiring: Verify the supply voltage is within the 85-264 VAC range before connection. Ensure proper grounding of the chassis to prevent EMI-related logic interference.
  • ESD Precautions: Handle the terminal with standard electrostatic discharge (ESD) precautions to protect internal circuitry.
  • Environment: Install in an area free from excessive vibration and direct exposure to corrosive chemicals. Ensure adequate ventilation to maintain operating temperatures below 55 deg C.
  • Maintenance: Power down the unit before performing any maintenance or cable connections to the ControlNet or RS-232 ports.

FAQ

What is the primary communication protocol for this terminal? The 2711-K5A15 utilizes a ControlNet communication node for deterministic messaging with supported Allen-Bradley controllers.

Can this unit be used outdoors? No, while the unit carries NEMA 4X ratings, it is designed for indoor use only.

What is the purpose of the RS-232 port? The RS-232 port on this model is dedicated to printer connectivity for generating hardcopy alarm summaries and diagnostic reports.
