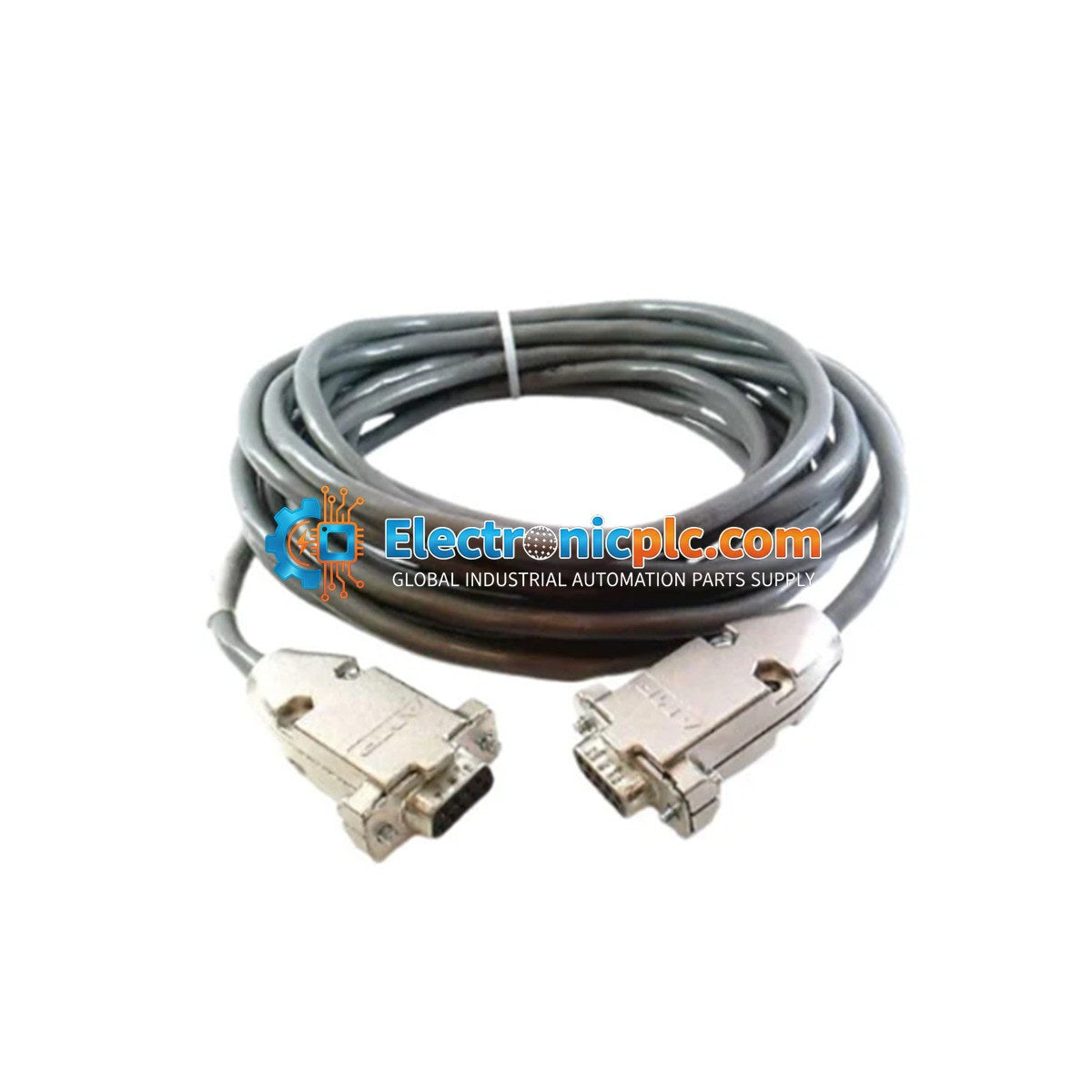

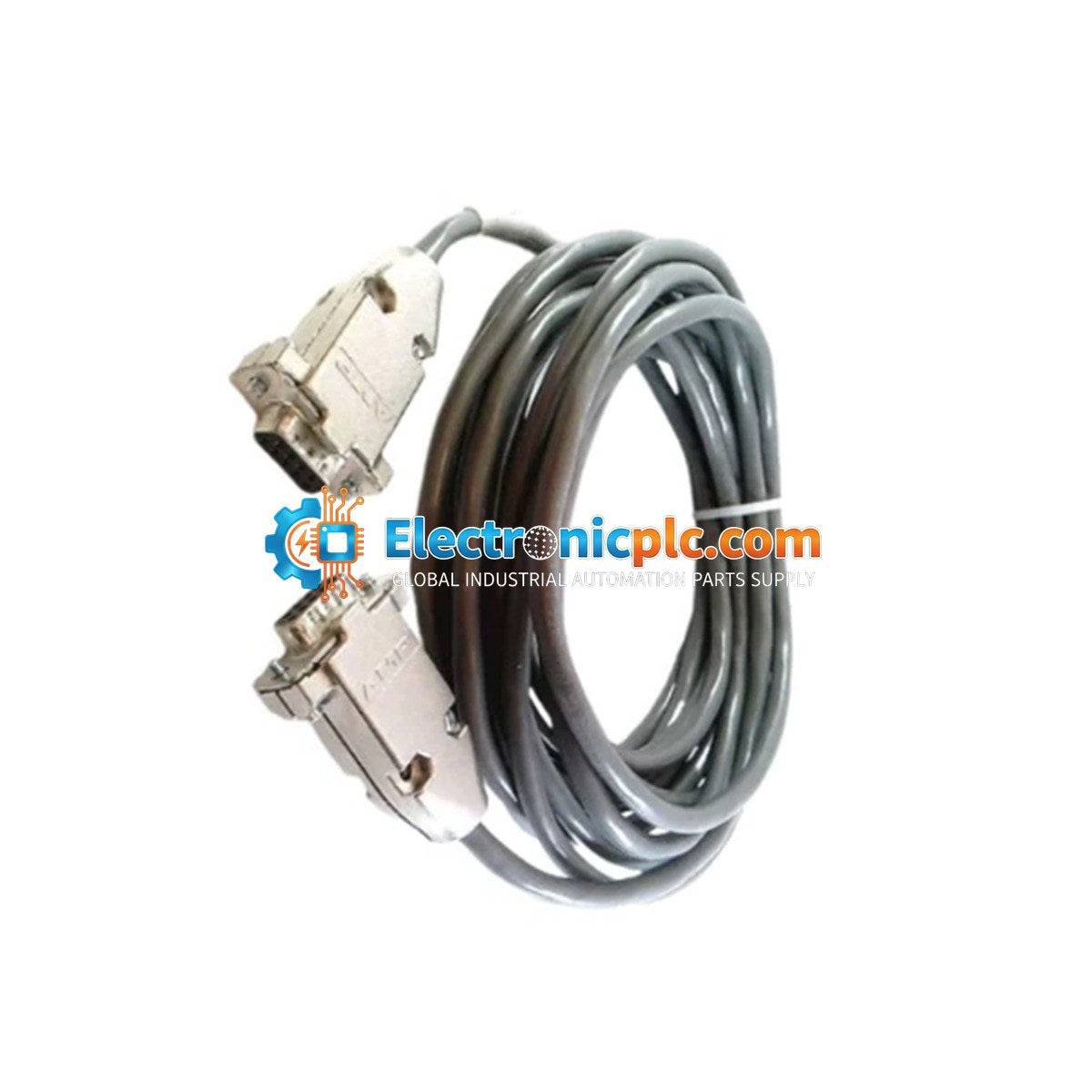

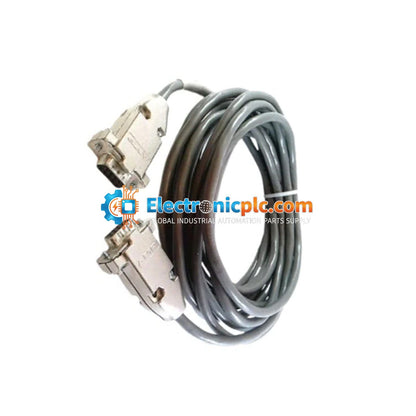

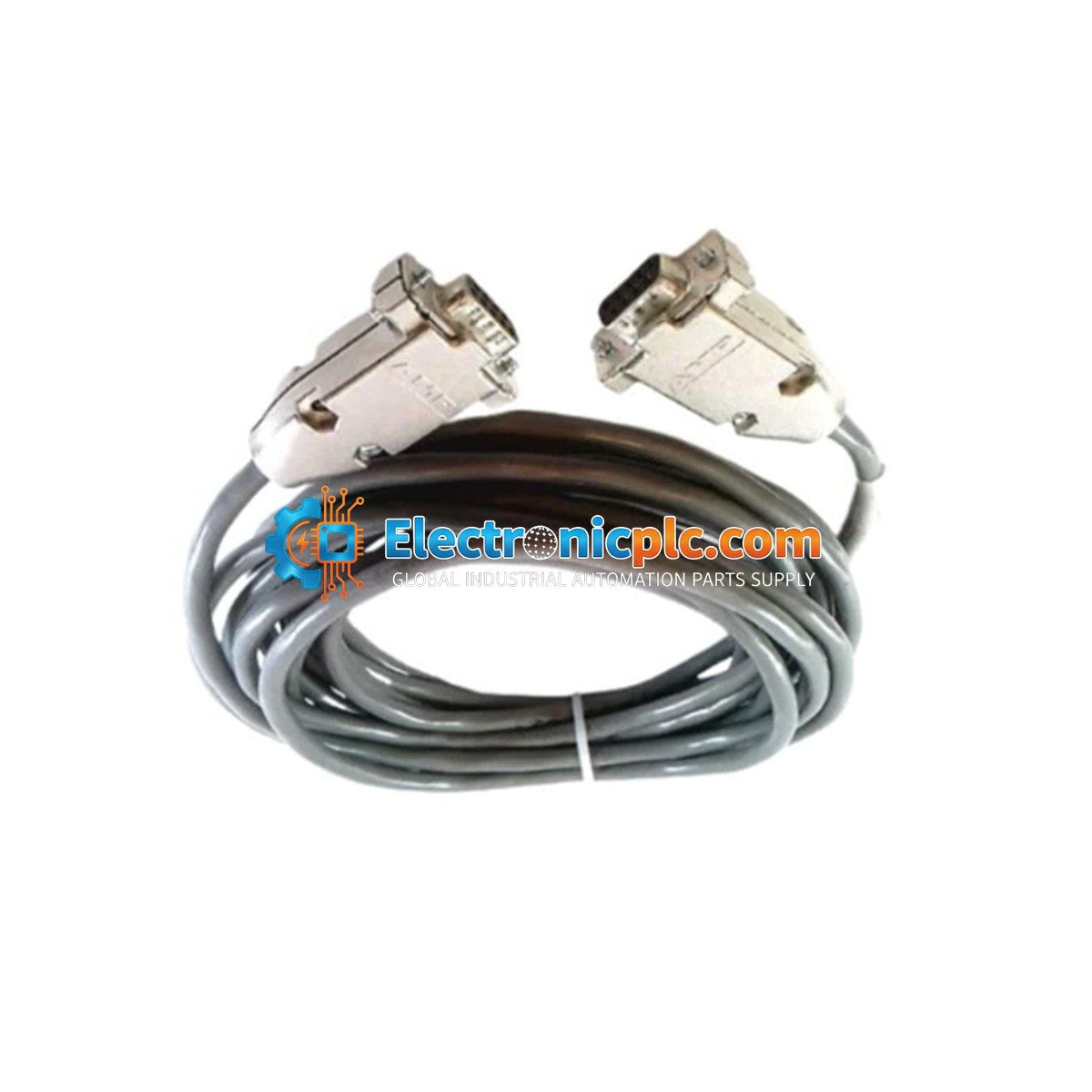

Allen-Bradley 2711-NC1 RS-232 Upload/Download Cable

Allen-Bradley 2711-NC1 RS-232 Upload/Download Cable

Description

The Allen-Bradley 2711-NC1 is a specialized 3-meter communication cable designed for use with PanelView operator terminals. This cable serves as a critical interface for uploading and downloading configuration files, firmware...

18 people are viewing this right now

Availability: Low stock: 7 left

SKU: 2711-NC1
Vendor: Allen-Bradley
Category: Communication Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2711-NC1 is a specialized 3-meter communication cable designed for use with PanelView operator terminals. This cable serves as a critical interface for uploading and downloading configuration files, firmware updates, and application data between a development workstation and the terminal. It is specifically engineered to ensure reliable data integrity and stable communication in industrial environments.

Features

  • Designed for seamless file transfer between development PCs and PanelView terminals.
  • Standardized 3-meter length for flexible installation and programming access.
  • Robust construction suitable for industrial maintenance and configuration tasks.
  • Compatible with legacy PanelView 1200e and 1400e operator terminal systems.

Technical Specifications

Model 2711-NC1
Cable Type RS-232 Upload/Download Cable
Connector A Female DB9
Connector B Male DB25
Length 3 Meters
Operating Temperature 0 to 50 degC

Installation Guidelines

  • Ensure the operator terminal and the development computer are powered down before connecting or disconnecting the cable to prevent potential electrical damage to the communication ports.
  • Verify that the DB9 and DB25 connectors are fully seated and secured using the integrated locking screws to maintain a stable connection during data transfer.
  • Route the cable away from high-voltage power lines, variable frequency drives (VFDs), and other sources of electromagnetic interference (EMI) to prevent data corruption.
  • Avoid sharp bends or excessive tension on the cable during installation to preserve the integrity of the internal conductors.

FAQ

Is this cable compatible with modern PanelView Plus terminals?

The 2711-NC1 is specifically designed for the PanelView 1200e and 1400e series. Please verify your specific terminal model's communication port requirements, as newer PanelView Plus units typically utilize different cabling standards.

Can this cable be used for real-time control?

No, this cable is intended for configuration management, including uploading and downloading files. It is not designed for real-time industrial control or high-speed fieldbus communication.
