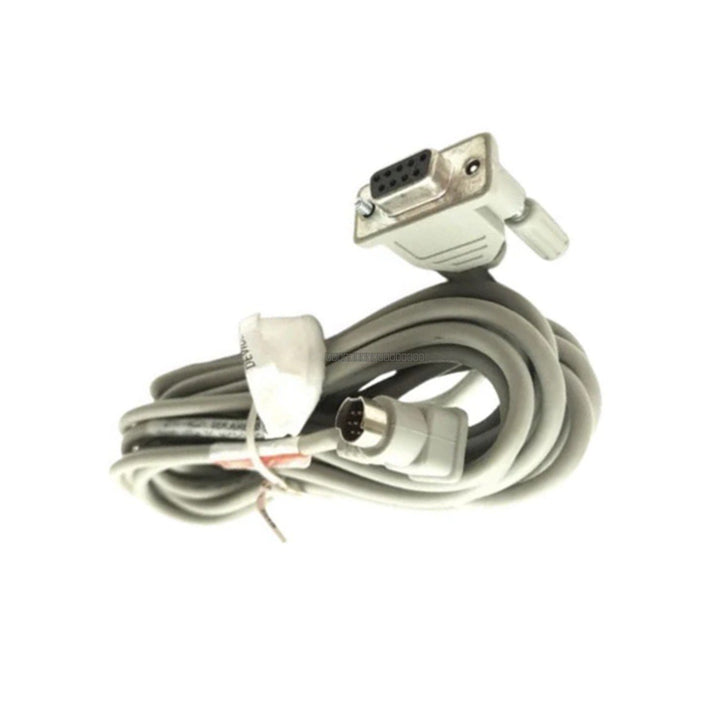

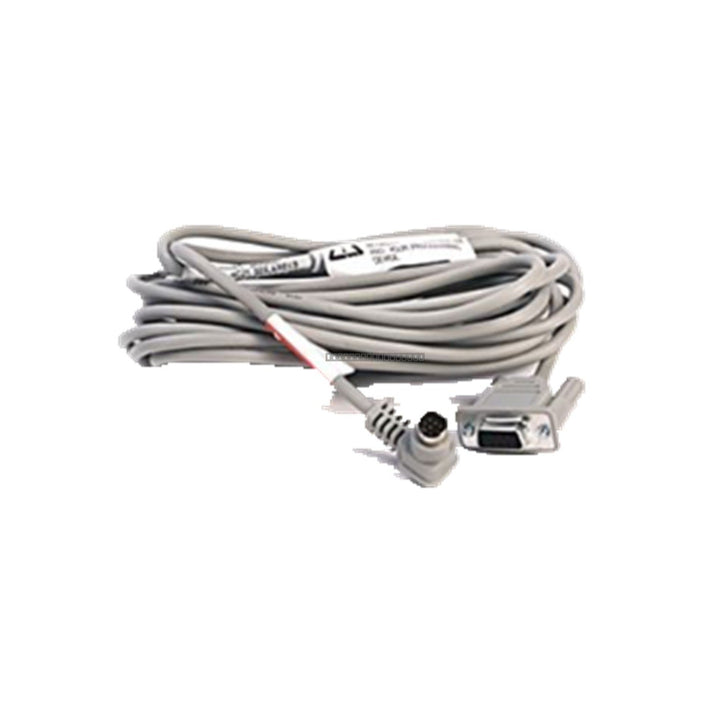

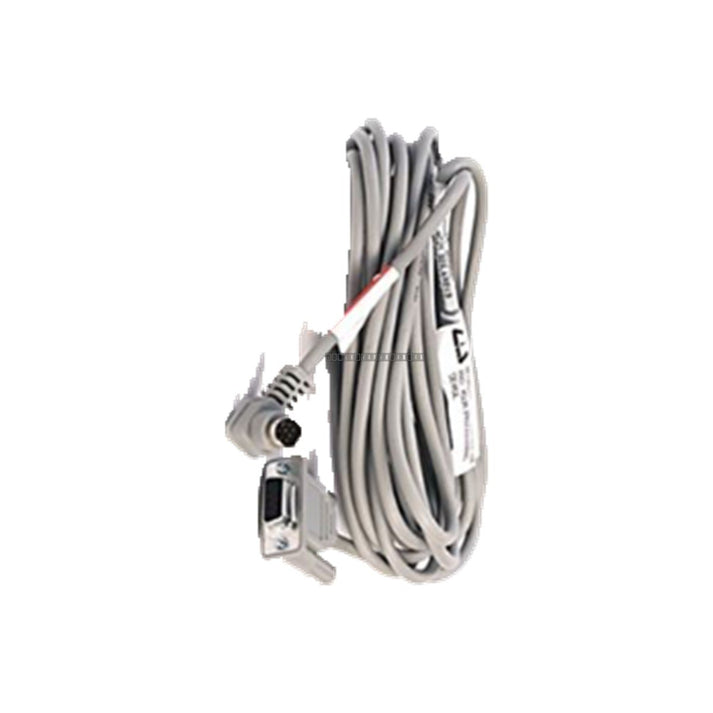

Allen-Bradley 2711-NC22 PanelView Communication Cable

Allen-Bradley 2711-NC22 PanelView Communication Cable

Description

The 2711-NC22 is an extended-length communication cable designed by Allen-Bradley to facilitate reliable serial connectivity between PanelView operator terminals and MicroLogix controllers. Engineered for demanding industrial environments such as automated...

16 people are viewing this right now

Availability: Low stock: 2 left

SKU: 2711-NC22
Vendor: Allen-Bradley
Category: Communication Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The 2711-NC22 is an extended-length communication cable designed by Allen-Bradley to facilitate reliable serial connectivity between PanelView operator terminals and MicroLogix controllers. Engineered for demanding industrial environments such as automated manufacturing lines and distributed control systems, this cable ensures stable data transmission over long distances, effectively mitigating signal attenuation and maintaining consistent operator-to-controller communication.

Features

  • Extended 15-meter (49 ft) length for flexible routing in large control cabinets and cable trays.
  • RS-232 communication standard support for robust serial data exchange.
  • Equipped with a 9-pin D-shell connector and an 8-pin mini DIN connector for direct hardware interfacing.
  • Passive design requiring no external power supply.
  • Compatible with a wide range of PanelView terminals and MicroLogix controllers (excluding PanelView 300 Micro).

Applications

This cable is primarily used in industrial automation setups where the operator interface must be mounted at a significant distance from the PLC controller. It is suitable for control room applications, remote monitoring stations, and distributed plant floor architectures requiring reliable serial communication.

Technical Specifications

Model 2711-NC22
Brand Allen-Bradley
Cable Length 15 meters (49 ft)
Communication Standard RS-232
Connector A 9-pin D-shell
Connector B 8-pin mini DIN
Operating Temperature 0 to 55 degC
Power Consumption Passive

Installation Guidelines

  • Ensure the system is powered down before connecting or disconnecting the cable to prevent potential damage to communication ports.
  • Route the cable through dedicated cable trays or conduits, keeping it away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Verify that the connectors are fully seated and secured to ensure a stable, vibration-resistant connection.
  • Avoid sharp bends or excessive tension on the cable during installation to maintain the integrity of the internal conductors.

FAQ

Is this cable compatible with all PanelView models?

The 2711-NC22 is compatible with most standard PanelView terminals when connecting to MicroLogix controllers, but it is specifically noted as not compatible with the PanelView 300 Micro model.

Does this cable require external power?

No, the 2711-NC22 is a passive communication cable and does not require an external power supply to function.
