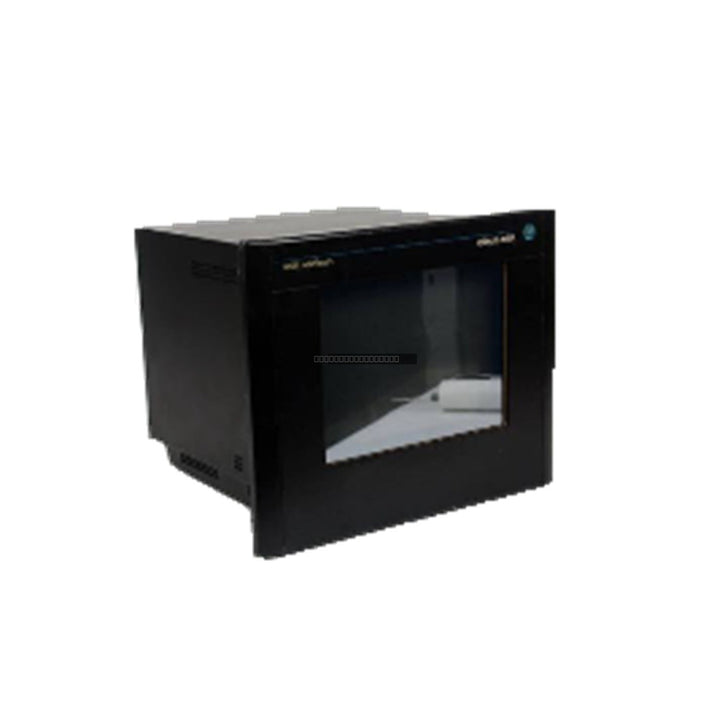

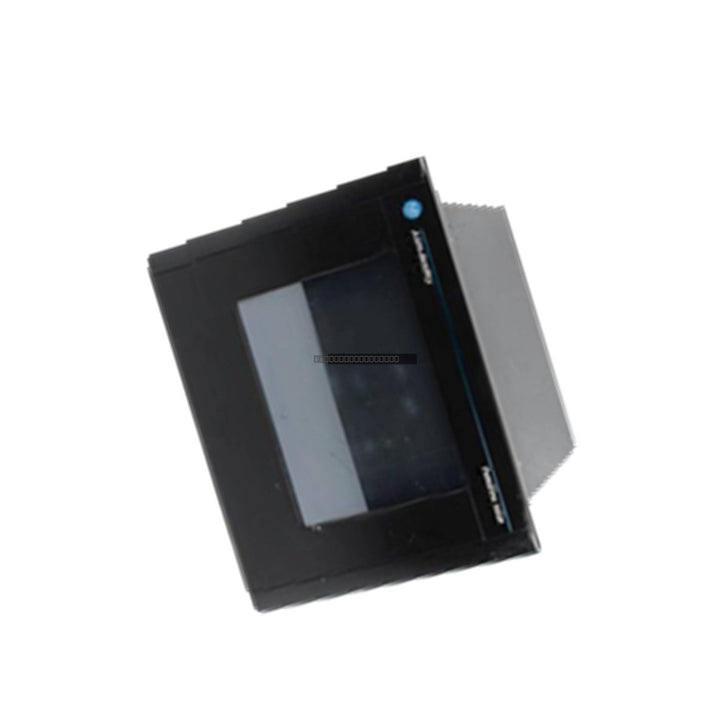

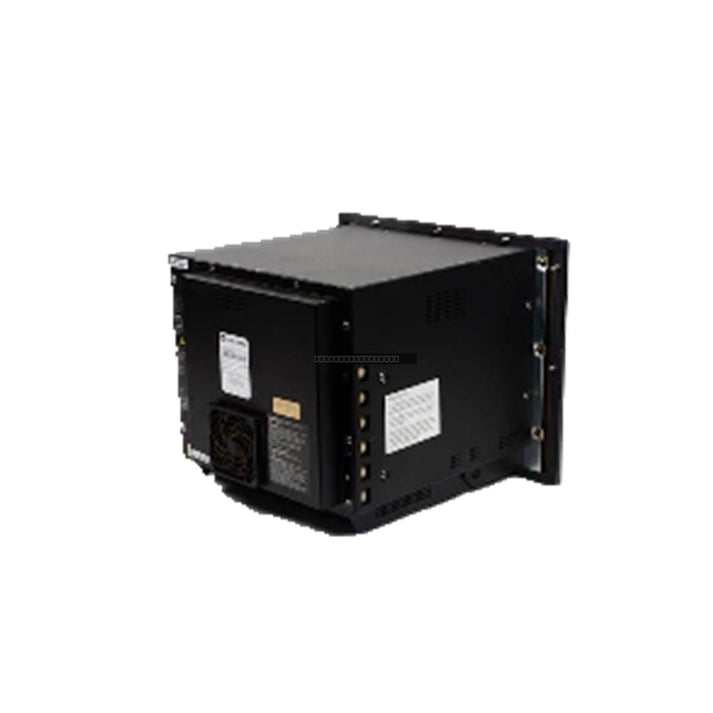

Allen-Bradley 2711E-UKCK10 PanelView Standard 1000 Operator Interface Terminal

Allen-Bradley 2711E-UKCK10 PanelView Standard 1000 Operator Interface Terminal

The Allen-Bradley 2711E-UKCK10 is a robust HMI terminal designed for the PanelView Standard 1000 series, providing reliable process visualization and operator control in demanding industrial environments. This unit features a...

29 people are viewing this right now

Availability: Low stock: 10 left

SKU: 2711E-UKCK10
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711E-UKCK10 is a robust HMI terminal designed for the PanelView Standard 1000 series, providing reliable process visualization and operator control in demanding industrial environments. This unit features a 10-inch color display and a physical keypad, offering a durable solution for monitoring and interacting with PLC-based control systems. It is engineered to operate on a universal 100 to 240 VAC power supply, ensuring compatibility with diverse plant power infrastructures.

Features

  • 10-inch color display with 640 x 480 pixel resolution for clear process monitoring.
  • Integrated mechanical bezel keypad for reliable tactile input, suitable for use with industrial gloves.
  • Built-in Data Highway Plus (DH+) and RS-232 serial communication ports for integration with PLC-5, SLC 500, and ControlLogix systems.
  • Rugged design capable of withstanding continuous plant floor vibrations and electrical noise.
  • Non-volatile memory for secure storage of configuration files and alarm blocks.

Applications

This terminal is suitable for legacy automation systems in sectors such as automotive manufacturing, water treatment, chemical processing, and paper production. It serves as a centralized interface for machine registers, replacing traditional hardwired push-button panels.

Technical Specifications

Model 2711E-UKCK10
Brand Allen-Bradley
Series PanelView Standard 1000
Display Size 10.0 inches
Resolution 640 x 480 pixels
Input Voltage 100 to 240 VAC
Line Frequency 50 / 60 Hz
Communication DH+ and RS-232
Input Method Mechanical Bezel Keypad
Status Discontinued

Installation Guidelines

  • Ensure the unit is mounted in a NEMA-rated enclosure to maintain protection against environmental contaminants.
  • Verify that the panel cutout dimensions are correct before mounting to ensure a proper seal.
  • Connect the DH+ and RS-232 cables according to the specific wiring requirements of your PLC network architecture.
  • Always disconnect power before performing any installation, wiring, or maintenance tasks.
  • Ensure proper grounding of the terminal chassis to minimize the impact of EMI and electrical surges.

FAQ

Is this terminal still supported by the manufacturer?

The 2711E-UKCK10 is classified as a discontinued product. Support and availability may be limited to secondary market channels.

What type of controllers can this HMI connect to?

This terminal is designed to interface with Allen-Bradley PLC-5, SLC 500, and ControlLogix systems via the integrated DH+ and RS-232 ports.
