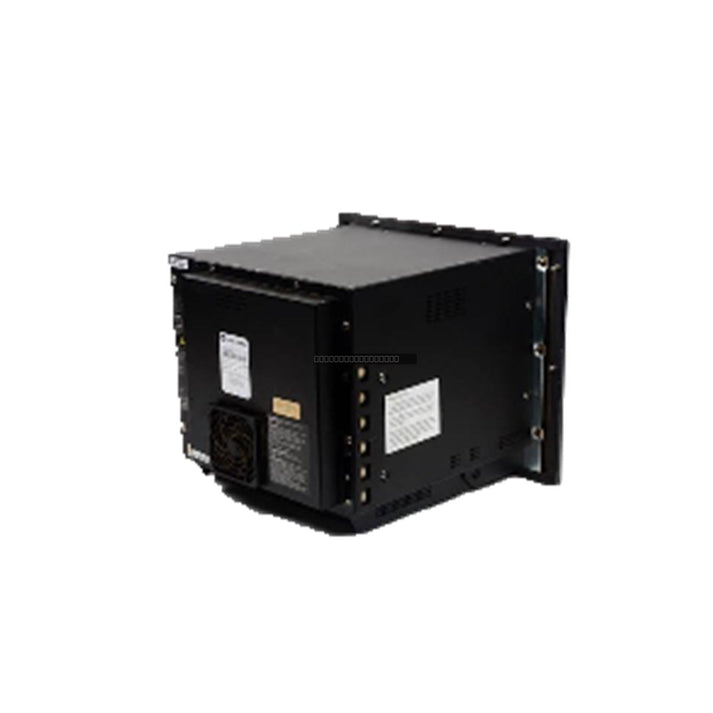

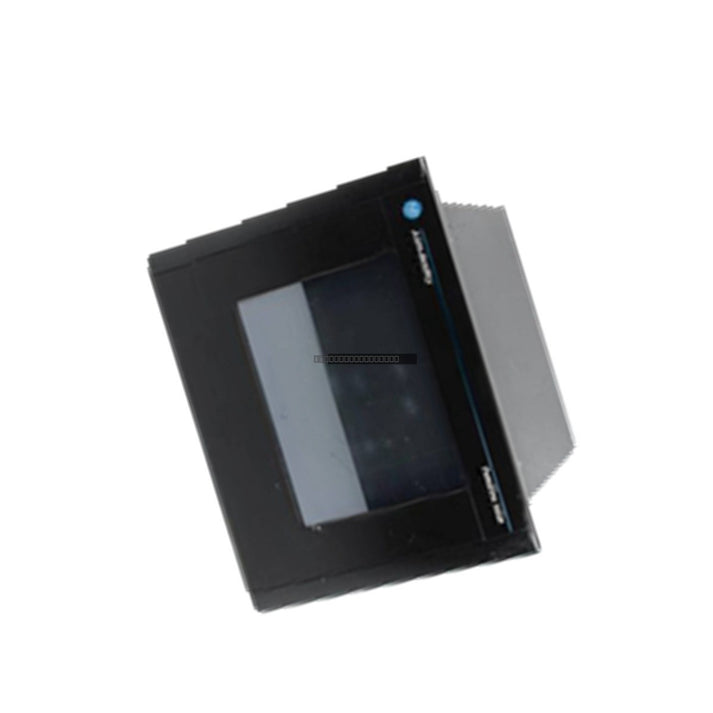

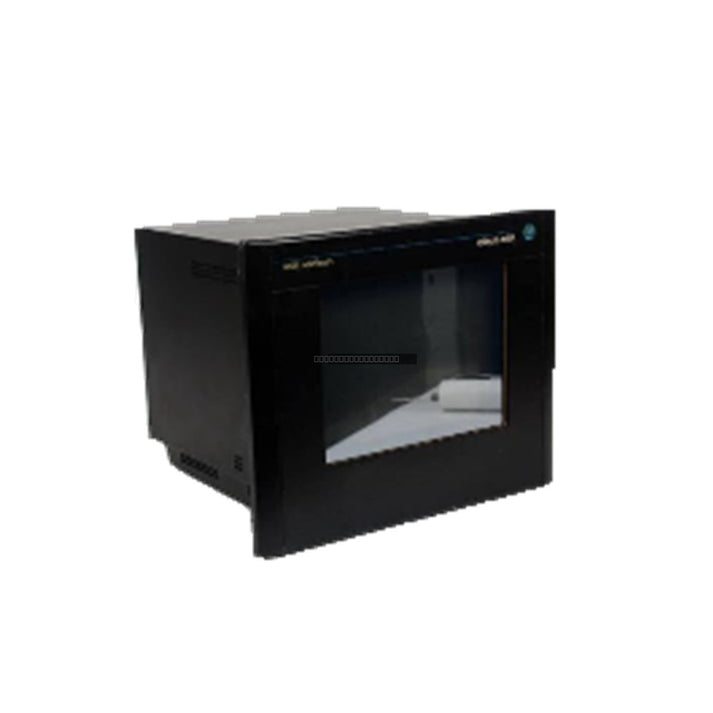

Allen-Bradley 2711E-UKCK10SW Keypad Migration Kit

Allen-Bradley 2711E-UKCK10SW Keypad Migration Kit

The Allen-Bradley 2711E-UKCK10SW is an industrial-grade migration and retrofit bundle engineered to simplify the transition from legacy 12-inch PanelView 1200 keypad terminals to the 10.4-inch PanelView 1000e series. This comprehensive...

19 people are viewing this right now

Availability: Low stock: 8 left

SKU: 2711E-UKCK10SW
Vendor: Allen-Bradley
Category: HMI Migration Kit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711E-UKCK10SW is an industrial-grade migration and retrofit bundle engineered to simplify the transition from legacy 12-inch PanelView 1200 keypad terminals to the 10.4-inch PanelView 1000e series. This comprehensive kit provides the necessary mechanical, electrical, and software components to modernize operator stations without requiring extensive panel modifications or custom sheet-metal fabrication. It is designed to maintain enclosure integrity while reducing downtime during critical system upgrades in manufacturing environments.

Features

  • Turnkey migration solution for PanelView 1200 to PanelView 1000e transition.
  • Includes 2711E-K10C6 HMI terminal with 10.4-inch color TFT display and keypad interface.
  • Integrated support for Data Highway Plus (DH+), Remote I/O (RIO), and RS-232 communication protocols.
  • Includes 2711-NR5K mechanical cutout adapter plate for seamless mounting in existing 12-inch cutouts.
  • Maintains NEMA Type 4X/12 enclosure sealing standards when installed correctly.
  • Supplied with 2711-NC13 serial communication cable and application migration utility software.

Applications

This kit is intended for use in continuous processing industries where legacy HMI hardware requires replacement due to obsolescence. Typical applications include automotive assembly lines, chemical batch processing, and pulp and paper manufacturing facilities where maintaining the physical enclosure rating is essential.

Technical Specifications

Model 2711E-UKCK10SW
Included HMI 2711E-K10C6 (10.4-inch Color TFT)
Input Power 180 to 264 VAC
Communication DH+, RIO, RS-232
Operating Temperature 0 to 50 deg C
Storage Temperature -25 to 70 deg C
Enclosure Rating NEMA Type 4X / 12 (when mounted)

Installation Guidelines

  • Ensure power is disconnected from the control panel before beginning the installation process.
  • Use the provided 2711-NR5K adapter plate to secure the 10.4-inch terminal into the legacy 12-inch cutout.
  • Verify that all compression gaskets are seated correctly to maintain the NEMA 4X/12 environmental seal.
  • Follow standard ESD precautions when handling the HMI terminal and internal components.
  • Route communication cables (DH+/RIO) away from high-voltage power lines to minimize EMI interference.
  • Perform a full backup of legacy application files before initiating the conversion process using the provided utility software.

FAQ

Does this kit include the software required for migration? Yes, the 2711E-UKCK10SW includes the necessary utility software to assist in the conversion and transfer of legacy screen files to the 1000e environment.

Can this kit be used for non-keypad terminals? No, this specific kit is designed for the migration of keypad-based PanelView 1200 units to the keypad-based 1000e series.
