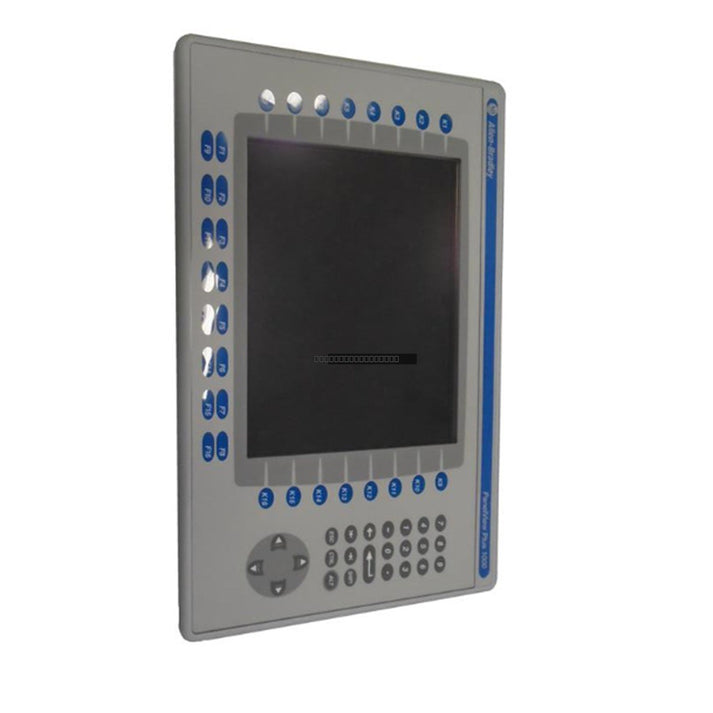

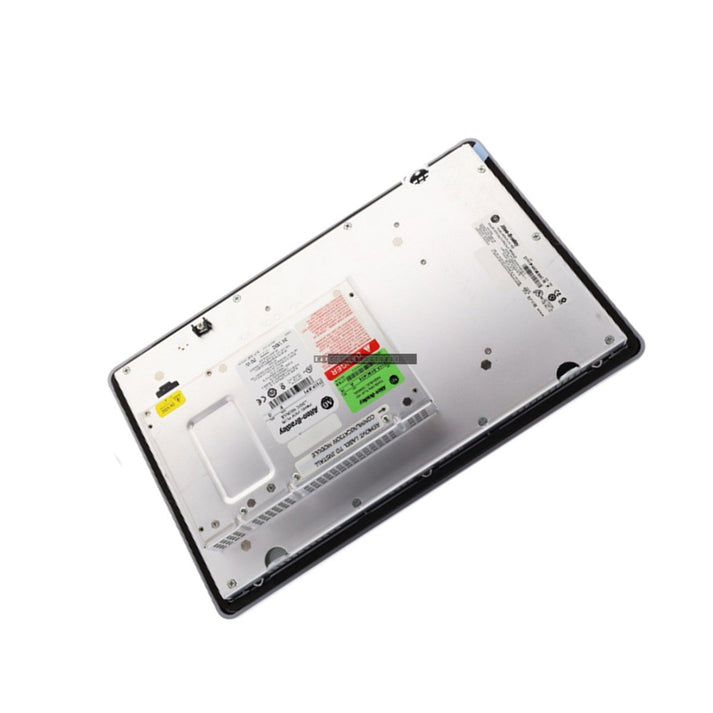

Allen-Bradley 2711P-B12C15D7 PanelView Plus 1250 Operator Interface

Allen-Bradley 2711P-B12C15D7 PanelView Plus 1250 Operator Interface

The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an...

16 people are viewing this right now

Availability: Low stock: 8 left

SKU: 2711P-B12C15D7
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an Intel Celeron 650 MHz processor, this unit facilitates reliable interaction between operators and PLC-controlled machinery. It is suitable for diverse industrial environments, including automotive assembly, water treatment, and chemical processing, where deterministic communication and clear process monitoring are essential.

Features

  • Hybrid Input Interface: Combines a 12.1-inch analog resistive touchscreen with a 40-key stainless steel domed membrane keypad for versatile operation, even when wearing gloves.
  • Advanced Connectivity: Supports integrated ControlNet and Ethernet networking, alongside RS-232 serial communication for flexible integration into existing control architectures.
  • High-Visibility Display: Features an 18-bit color active-matrix TFT display with 800 x 600 resolution and a 300 cd/m2 luminance rating.
  • Reliable Memory: Equipped with 256 MB of Flash memory and 256 MB of RAM to handle complex HMI applications and data logging.
  • Industrial Durability: Rated for NEMA 12, 13, 4X, IP54, and IP65, ensuring protection against dust, water, and environmental contaminants.

Technical Specifications

Model 2711P-B12C15D7
Display Size 12.1 inches
Resolution 800 x 600 pixels
Processor Intel Celeron 650 MHz
Memory 256 MB Flash / 256 MB RAM
Input Voltage 18-32 VDC (24 VDC nominal)
Power Consumption 70 W max
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP enclosure rating.
  • Use the provided mounting clips to secure the terminal firmly to the enclosure door.
  • Verify that the power supply provides a stable 24 VDC nominal input within the 18-32 VDC range.
  • Route communication cables (Ethernet/ControlNet) away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Ensure adequate ventilation around the rear of the unit to prevent overheating during continuous operation.
  • Always power down the system before performing any wiring or maintenance on the terminal.

FAQ

Q: What operating system does this terminal use?
A: The 2711P-B12C15D7 runs on the Windows CE operating system.

Q: Can the backlight be replaced?
A: Yes, the unit features a field-replaceable backlight rated for approximately 50,000 hours of service life.

Q: What is the primary communication method for this model?
A: This unit supports ControlNet and Ethernet as its primary fieldbus communication protocols.
