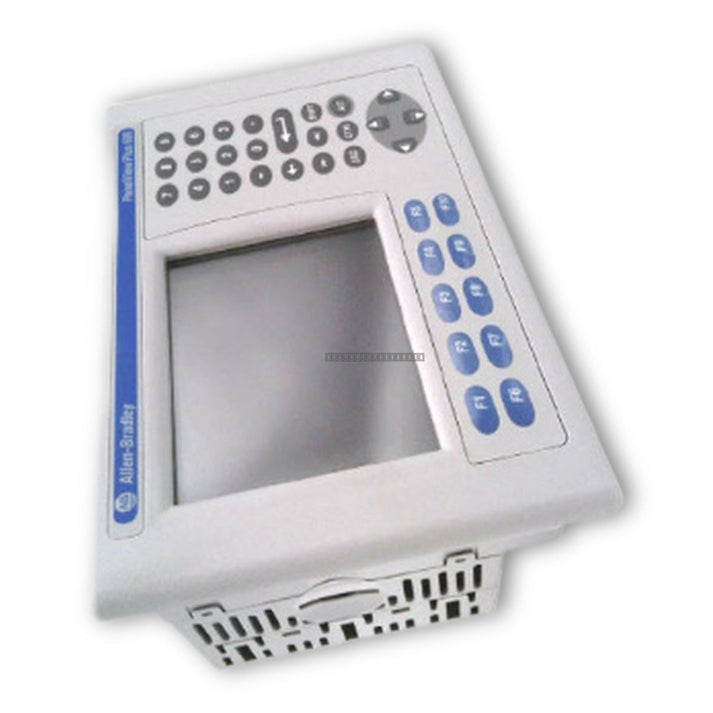

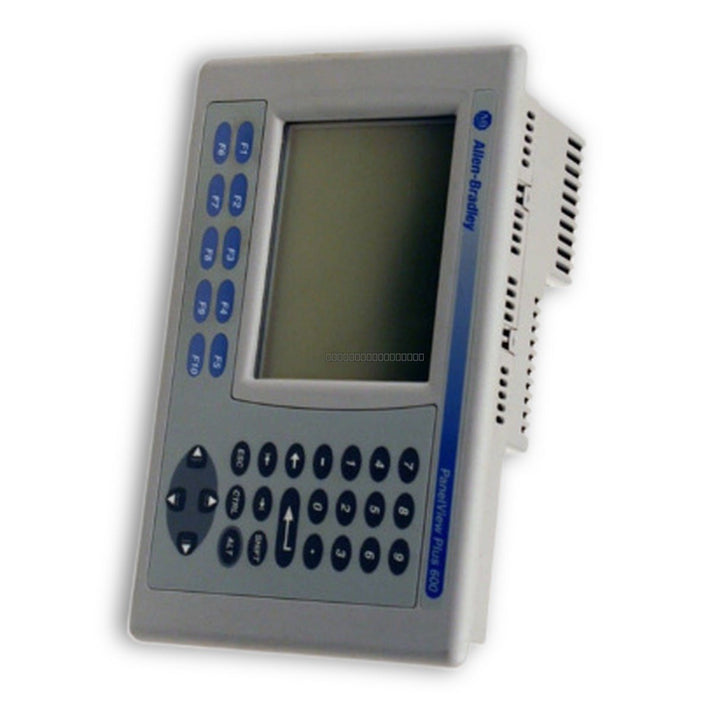

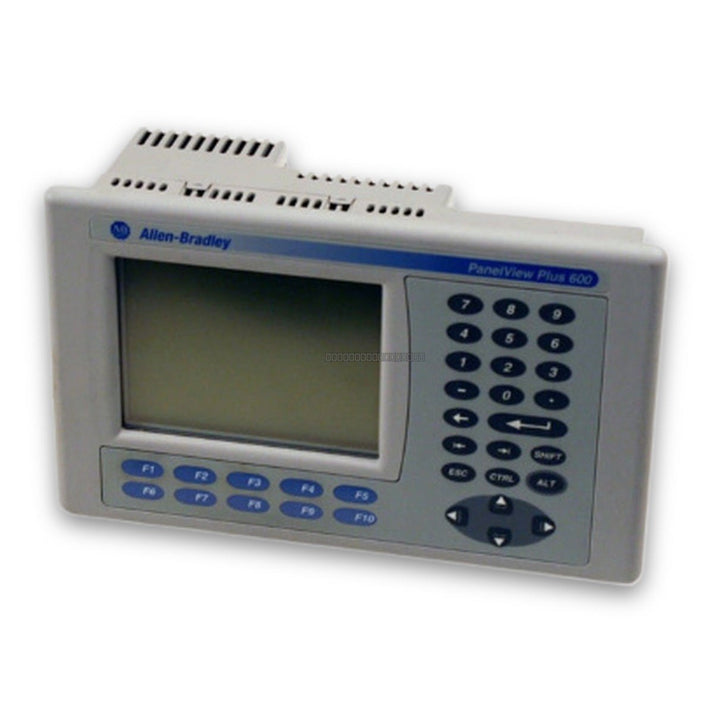

Allen-Bradley 2711P-B6M3D PanelView Plus Operator Terminal

Allen-Bradley 2711P-B6M3D PanelView Plus Operator Terminal

The Allen-Bradley 2711P-B6M3D is a high-performance operator interface terminal designed for demanding industrial automation environments. As part of the PanelView Plus series, this unit provides robust visualization and control capabilities,...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: 2711P-B6M3D
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711P-B6M3D is a high-performance operator interface terminal designed for demanding industrial automation environments. As part of the PanelView Plus series, this unit provides robust visualization and control capabilities, making it suitable for applications ranging from manufacturing assembly lines to municipal infrastructure management.

Features

  • 5.7-inch monochrome LCD display with 320 x 240 QVGA resolution for clear process monitoring.
  • Dual-input interface featuring both a 40-function key physical keypad and an analog resistive touchscreen.
  • Integrated communication suite including RS-232, USB, Ethernet, and DH-485 ports for flexible system connectivity.
  • Designed for reliable operation in harsh industrial conditions with a durable enclosure rating.

Applications

  • Automated manufacturing and assembly lines.
  • Municipal water and wastewater treatment facilities.
  • Process control and machine monitoring systems.

Technical Specifications

Model 2711P-B6M3D
Display Type 5.7 inch Monochrome LCD
Input Voltage 24 VDC
Power Consumption 24 W
Input Current 1.0 A
Isolation Voltage 50 V continuous
Operating Temperature 0 deg C to 55 deg C
Enclosure Rating IP54

Installation Guidelines

  • Ensure the unit is mounted in an enclosure that provides adequate protection and ventilation to maintain operating temperatures below 55 deg C.
  • Verify that the 24 VDC power supply is properly grounded and isolated to prevent electrical noise interference.
  • Use shielded communication cables for Ethernet and serial connections to maintain signal integrity in high-EMI environments.
  • Always disconnect power before installing or removing the terminal or connecting communication cables.
  • Ensure the gasket is properly seated during panel mounting to maintain the IP54 enclosure rating.

FAQ

What is the primary input method for this terminal?

This unit features a dual-input design, allowing operators to use either the 40-function physical keypad or the analog resistive touchscreen for system interaction.

What communication protocols are supported?

The 2711P-B6M3D supports standard industrial communication via its integrated RS-232, USB, Ethernet, and DH-485 ports.
