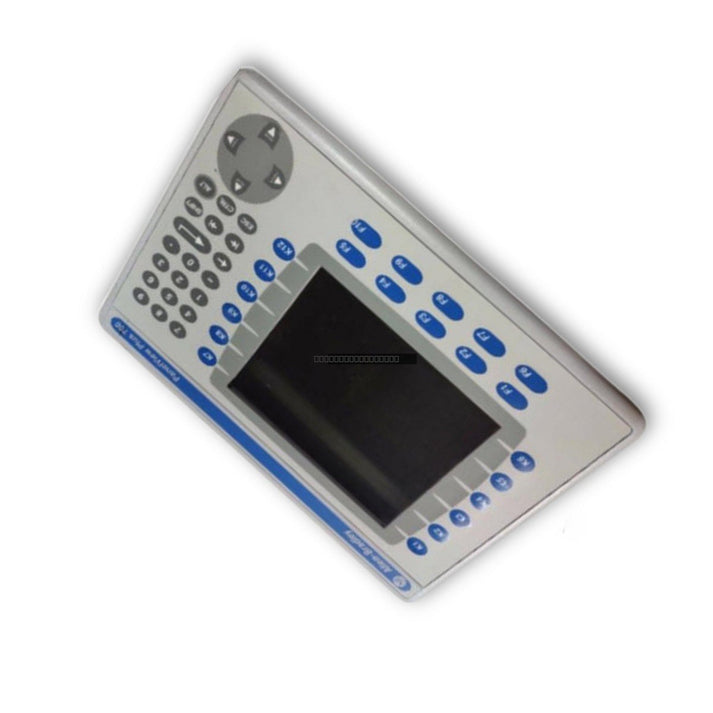

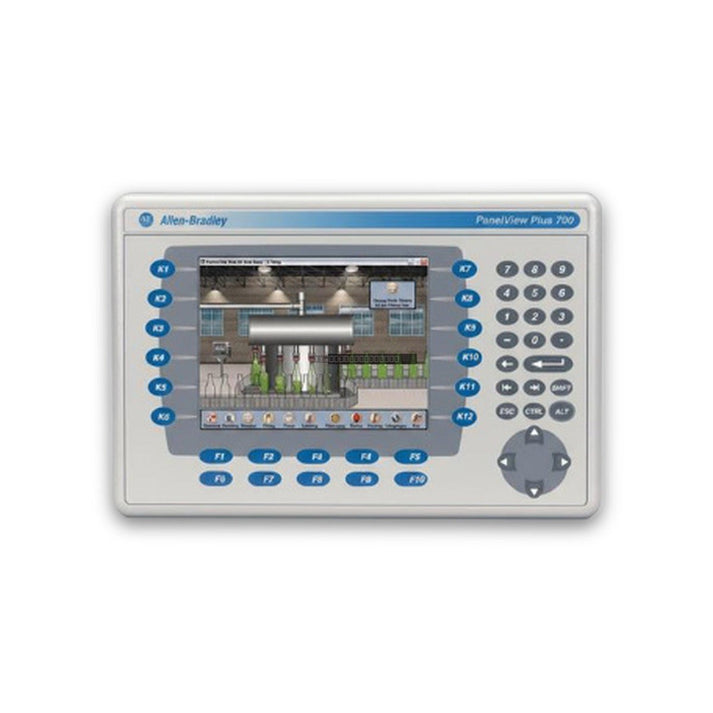

Allen-Bradley 2711P-K10C4D6 PanelView Plus Operator Terminal

Allen-Bradley 2711P-K10C4D6 PanelView Plus Operator Terminal

The Allen-Bradley 2711P-K10C4D6 is a robust PanelView Plus operator terminal engineered for demanding industrial HMI applications. Featuring a 10.4-inch active-matrix color TFT display and a tactile keypad interface, this unit...

25 people are viewing this right now

Availability: Low stock: 9 left

SKU: 2711P-K10C4D6
Vendor: Allen-Bradley
Category: Operator Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711P-K10C4D6 is a robust PanelView Plus operator terminal engineered for demanding industrial HMI applications. Featuring a 10.4-inch active-matrix color TFT display and a tactile keypad interface, this unit provides operators with reliable control, diagnostic visualization, and real-time process monitoring capabilities. Designed for integration into complex automated systems, it supports stable communication and high-performance data handling in environments ranging from manufacturing lines to heavy processing facilities.

Features

  • 10.4-inch color TFT LCD display with 640 x 480 resolution for clear process visualization.
  • Tactile keypad input for precise operator control, including numeric, function, and navigation keys.
  • Integrated communication suite including 10/100Base-T Ethernet, RS-232 serial, and dual USB host ports.
  • Windows CE open platform architecture for flexible application deployment.
  • Field-replaceable CCFL backlight module to extend service life and simplify maintenance.
  • DC power input designed for 18-32 VDC supply ranges.

Technical Specifications

Model 2711P-K10C4D6
Display Size 10.4 in
Display Type Active Matrix Color TFT LCD
Resolution 640 x 480 pixels
Input Voltage 18-32 VDC (24 VDC nominal)
Power Consumption 70 W maximum
Memory 128 MB RAM / Flash
Operating Temperature 0 to 55 deg C
Communication Ethernet, RS-232, USB

Installation Guidelines

  • Ensure the terminal is mounted in a clean, dry, and vibration-resistant enclosure suitable for the IP rating of the front panel.
  • Maintain adequate clearance around the unit to allow for proper ventilation and heat dissipation.
  • Verify that the power source is within the 18-32 VDC range before connection to prevent damage to internal circuitry.
  • Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Always disconnect power before installing or removing memory cards or peripheral modules.
  • Ensure proper grounding of the chassis to the system ground bus to protect against electrical surges and noise.

FAQ

What is the primary power requirement for this terminal?

The 2711P-K10C4D6 is designed for a DC power input, specifically accepting a range of 18-32 VDC, with 24 VDC being the nominal operating voltage.

Can the backlight be replaced in the field?

Yes, the unit features a field-replaceable CCFL backlight. The compatible replacement part number is 2711P-RL10C.

What type of input does this model use?

This specific model utilizes a tactile keypad interface, which includes dedicated numeric, function, and navigation keys for operator input.
