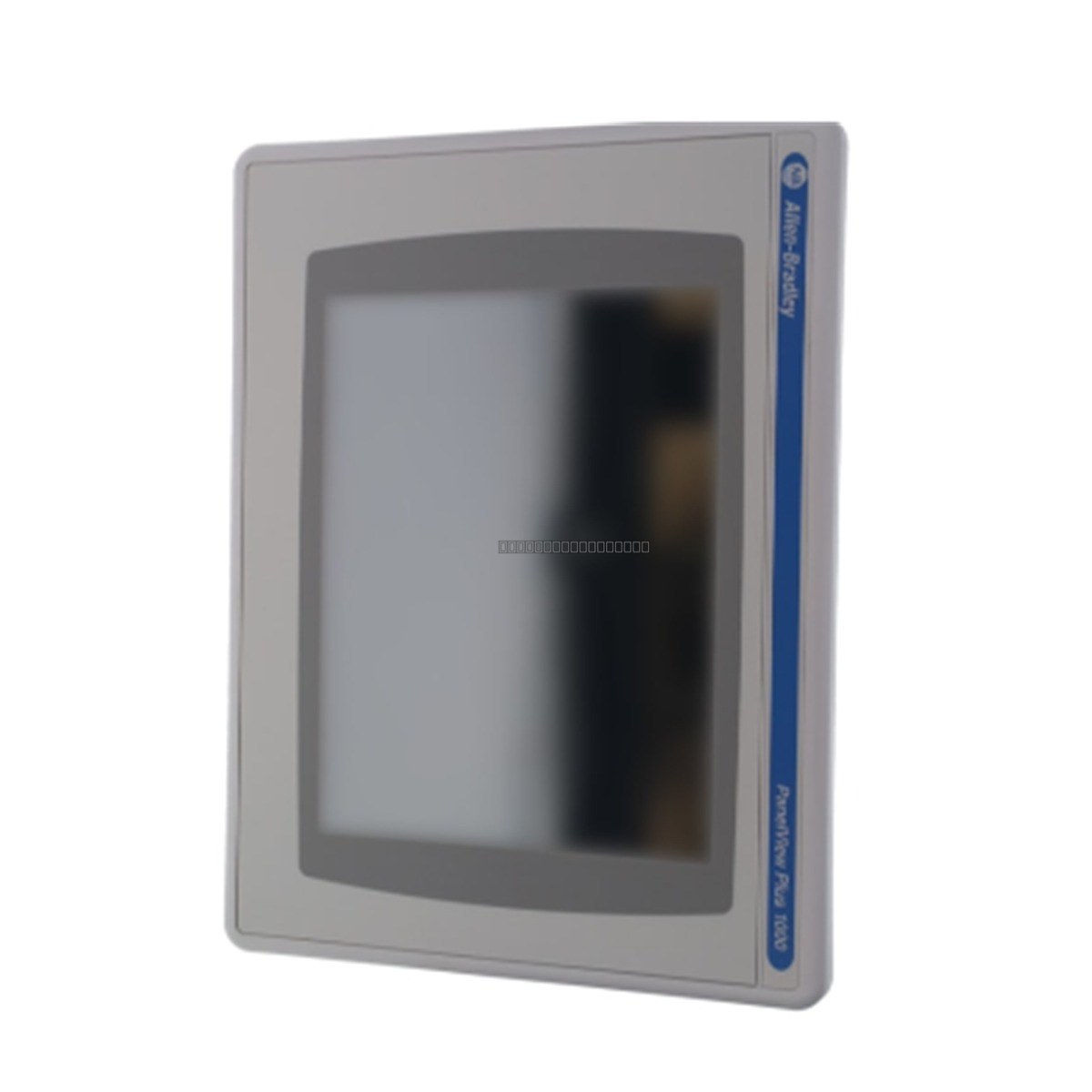

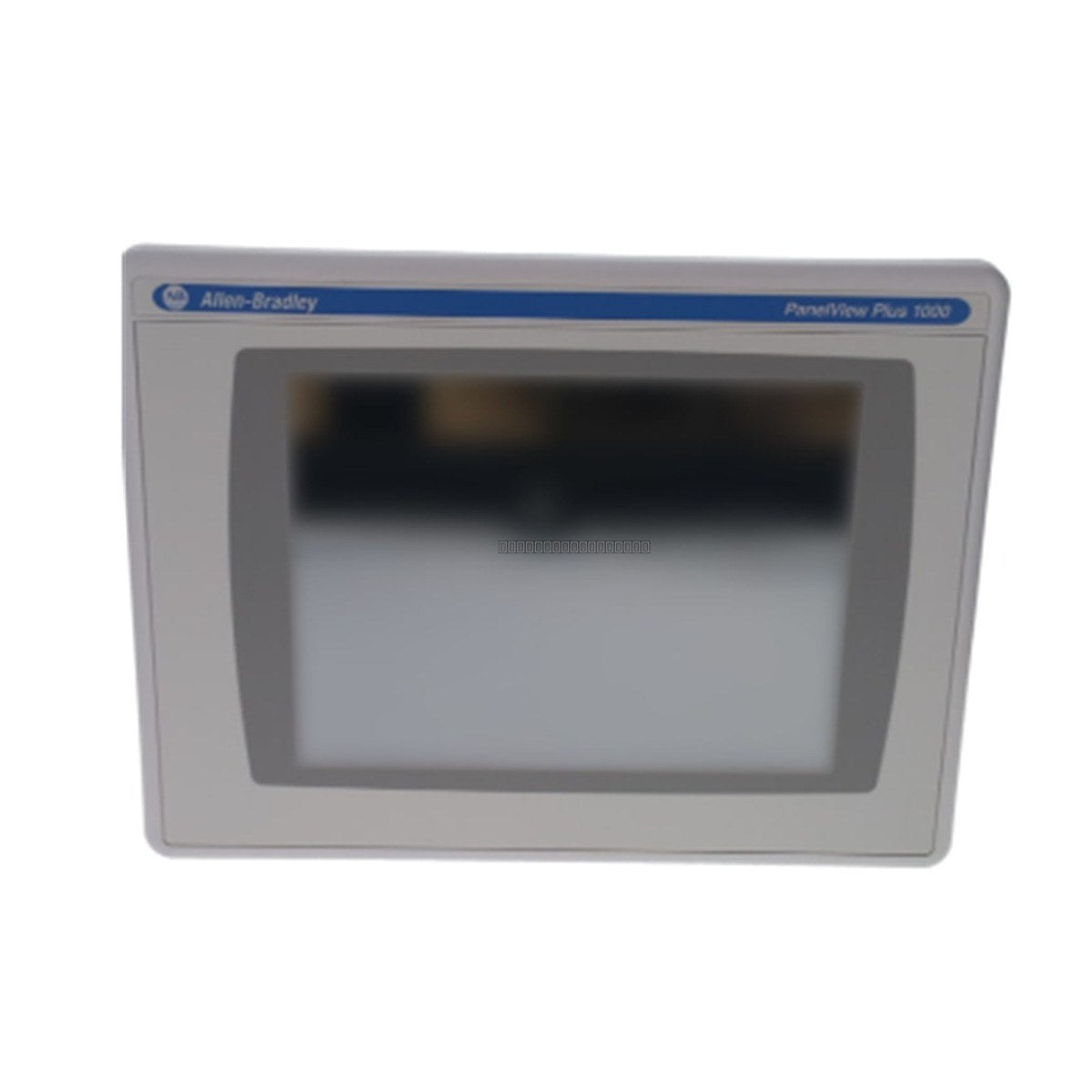

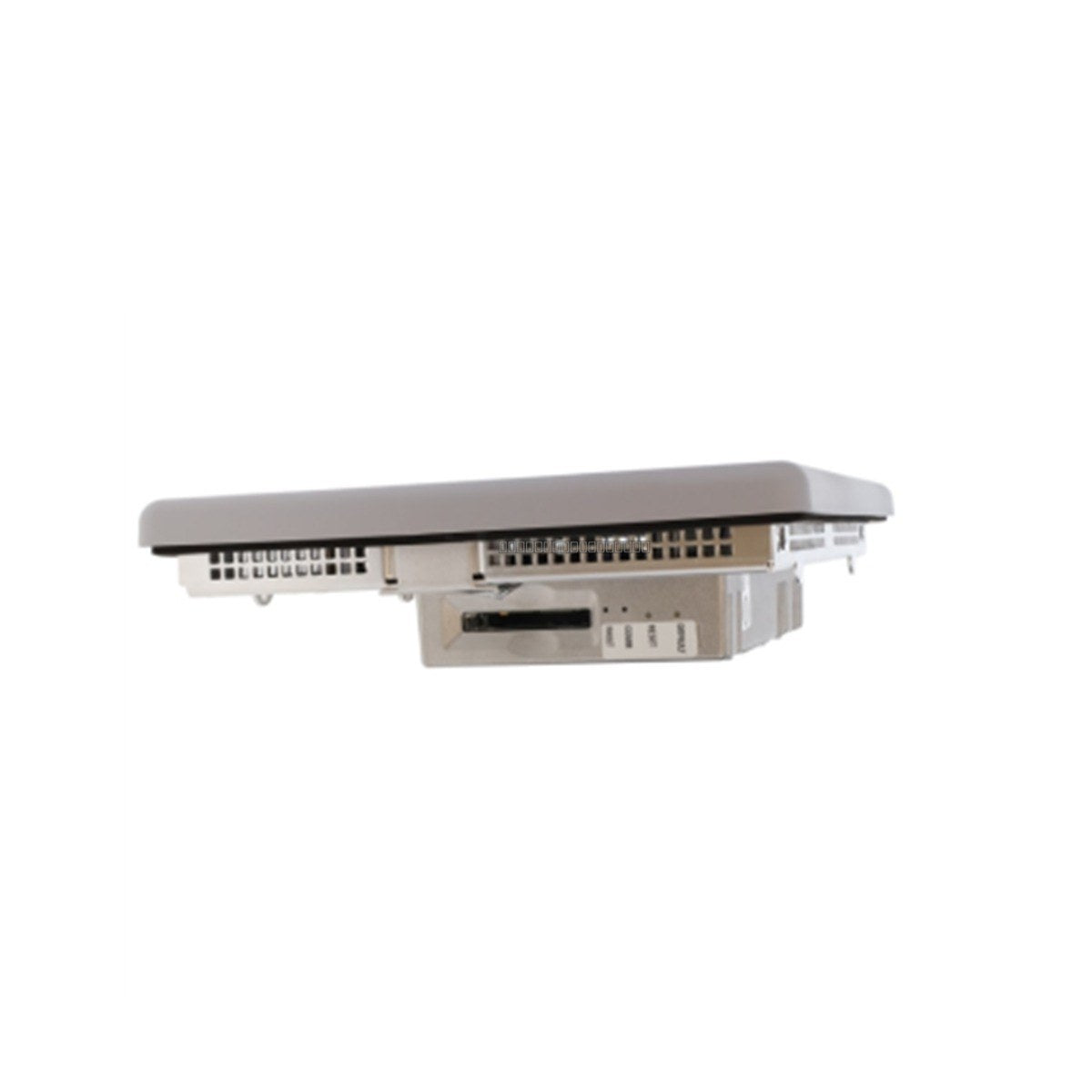

Allen-Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact 1000

Allen-Bradley 2711PC-T10C4D8 PanelView Plus 6 Compact 1000

The Allen-Bradley 2711PC-T10C4D8 is a PanelView Plus 6 Compact 1000 operator terminal designed for localized graphic visualization and real-time supervisory control in industrial automation environments. Operating on a Windows CE...

15 people are viewing this right now

Availability: Low stock: 1 left

SKU: 2711PC-T10C4D8
Vendor: Allen-Bradley
Category: Operator Interface Terminal
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 2711PC-T10C4D8 is a PanelView Plus 6 Compact 1000 operator terminal designed for localized graphic visualization and real-time supervisory control in industrial automation environments. Operating on a Windows CE 6.0 platform, this terminal facilitates direct communication with CompactLogix and ControlLogix controllers, making it suitable for applications in automotive assembly, packaging, and chemical processing. The unit centralizes machine control, alarm management, and trend monitoring to enhance operational efficiency and reduce downtime.

Features

  • 10.4-inch active-matrix color TFT display with 640 x 480 VGA resolution.
  • Analog resistive touchscreen interface for reliable operator input.
  • Integrated 10/100 Mbps Ethernet port supporting EtherNet/IP protocol.
  • RS-232 serial interface and two USB host ports for peripheral device support and firmware updates.
  • Robust NEMA Type 12, 13, 4X (Indoor) and IEC IP66 enclosure ratings.

Applications

This operator interface terminal is engineered for demanding industrial environments requiring high-visibility HMI solutions. It is commonly deployed in machine-level control systems where space is at a premium and direct integration with Allen-Bradley controller families is required for system monitoring and command execution.

Technical Specifications

Model 2711PC-T10C4D8
Display Size 10.4 in
Display Type Color TFT LCD
Resolution 640 x 480 pixels
Input Power 24 VDC (18 to 30 VDC range)
Power Consumption 70 W max
Operating System Windows CE 6.0
Communication Ports Ethernet, RS-232, 2 USB
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Relative Humidity 5-95% non-condensing
Enclosure Rating NEMA 12, 13, 4X; IP66

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP seal.
  • Use the provided mounting clips to secure the terminal firmly against the enclosure surface.
  • Verify that the power supply is within the 18-30 VDC range before connection to prevent damage.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI).
  • Ensure adequate clearance around the unit for ventilation and to prevent overheating during operation.
  • Always power down the system before connecting or disconnecting communication cables or USB peripherals.

FAQ

What controllers are compatible with the 2711PC-T10C4D8?

This terminal is designed to interface directly with Allen-Bradley CompactLogix and ControlLogix controller families.

Can I use a mouse or keyboard with this terminal?

Yes, the unit features two integrated USB host ports that support standard peripheral devices such as keyboards, mice, or external storage for firmware management.

What is the required power supply for this unit?

The unit operates on a nominal 24 VDC power input, with an acceptable operating range of 18 to 30 VDC.
