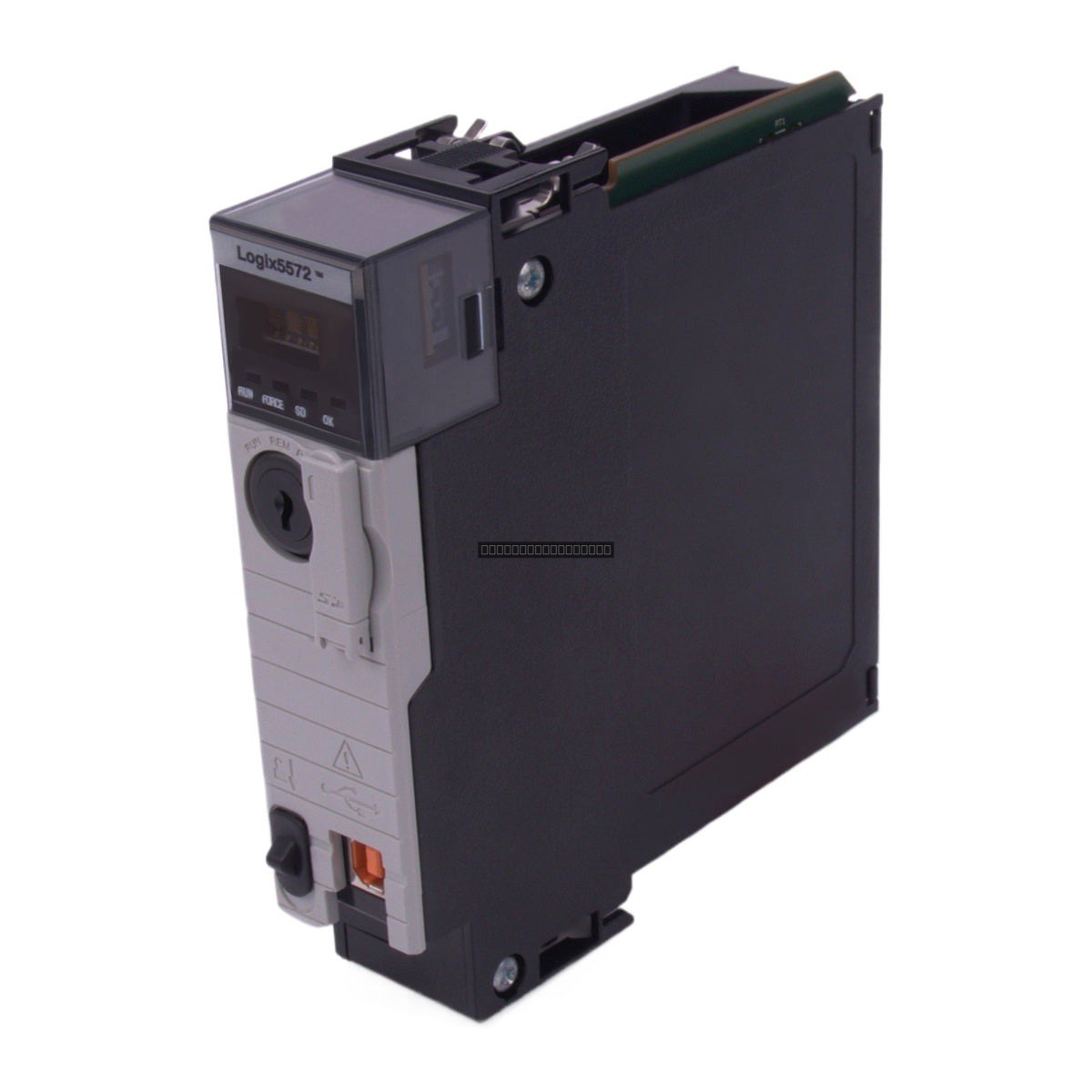

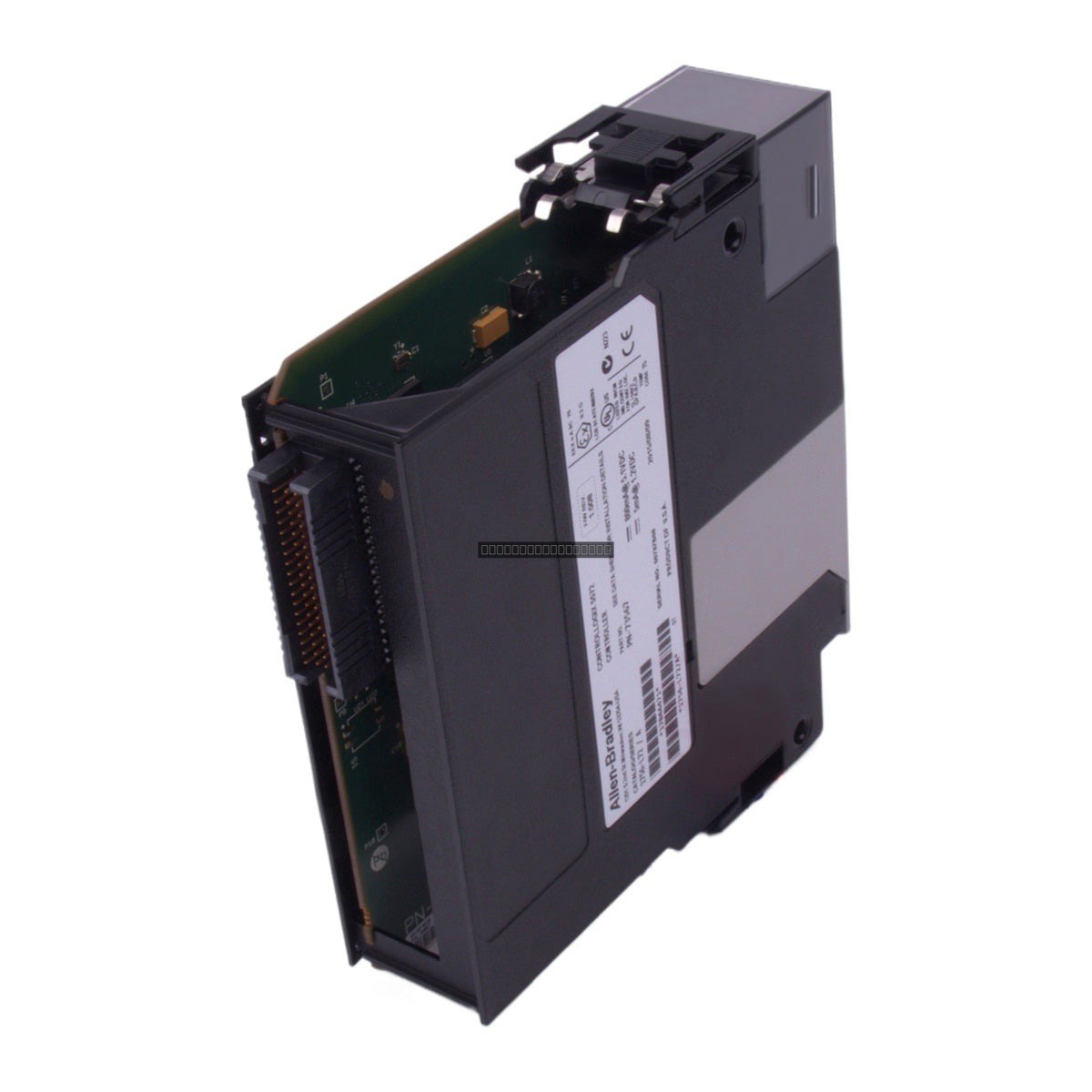

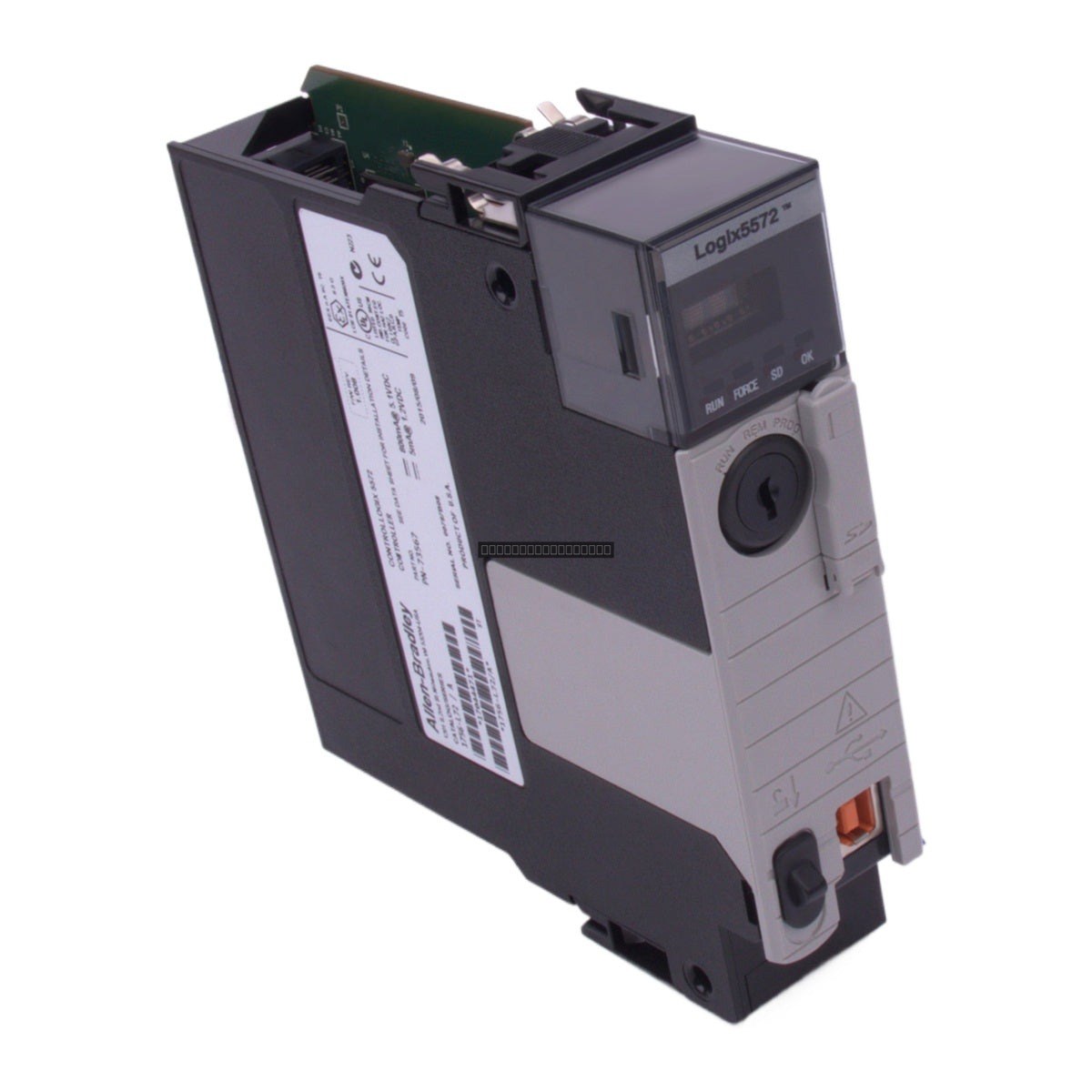

The Allen-Bradley 1756-L72 is a high-performance standard controller within the ControlLogix 5570 series, engineered for demanding industrial automation environments. This controller provides 4 MB of user memory and 0.98 MB of I/O memory, supporting complex logic execution across up to 32 independent tasks, with each task capable of running 100 individual programs.

Features

• 4 MB user memory and 0.98 MB I/O memory for complex logic and data handling.
• Supports up to 32 tasks with 100 programs per task.
• Capacitor-based energy storage eliminates the need for traditional batteries for memory retention.
• Integrated USB port for efficient local configuration and data transfer.
• Supports diverse communication protocols including Ethernet/IP, ControlNet, DeviceNet, and Data Highway Plus.
• Includes a 1 GB Secure Digital (SD) card (1784-SD1) for non-volatile storage and diagnostic logging.

Applications

• Automotive Assembly Lines: Part tracking, serialization, and robotics control.
• Warehouse & Material Handling: Automated storage and retrieval systems (ASRS) and sorting gates.
• Water & Wastewater Treatment: PID loop control for dosing, leveling, and telemetry.
• Oil, Gas, & Petrochemical: Custody transfer, gas compression, and separator skid management.
• Power Generation & Utilities: Balance of Plant (BoP) and fuel network monitoring.

Technical Specifications

Installation Guidelines

• Ensure the controller is seated firmly in a 1756 chassis (e.g., 1756-A4, A7, A10, A13, or A17).
• Verify backplane power balancing: The sum of current draw across 1.2V, 5.1V, and 24V rails must not exceed the capacity of the installed power supply.
• Always power down the chassis before inserting or removing the controller to prevent electrical damage.
• Use external suppression (diodes for DC, MOV/RC snubbers for AC) on all inductive loads such as relays and solenoids to mitigate electrical noise.
• Handle with standard ESD precautions to protect internal components.

FAQ

Does the 1756-L72 require a physical battery?

No, the 1756-L72 utilizes maintenance-free, built-in supercapacitors to retain memory and maintain the Real-Time Clock during power cycles.

What storage media is compatible?

The unit uses removable SD cards. It ships with a 1 GB 1784-SD1 card, which is used for firmware, program loading, and automatic diagnostic data storage during faults.

Is this controller compatible with existing ControlLogix chassis?

Yes, it is compatible with standard 1756 series chassis, including those with conformal coating.
