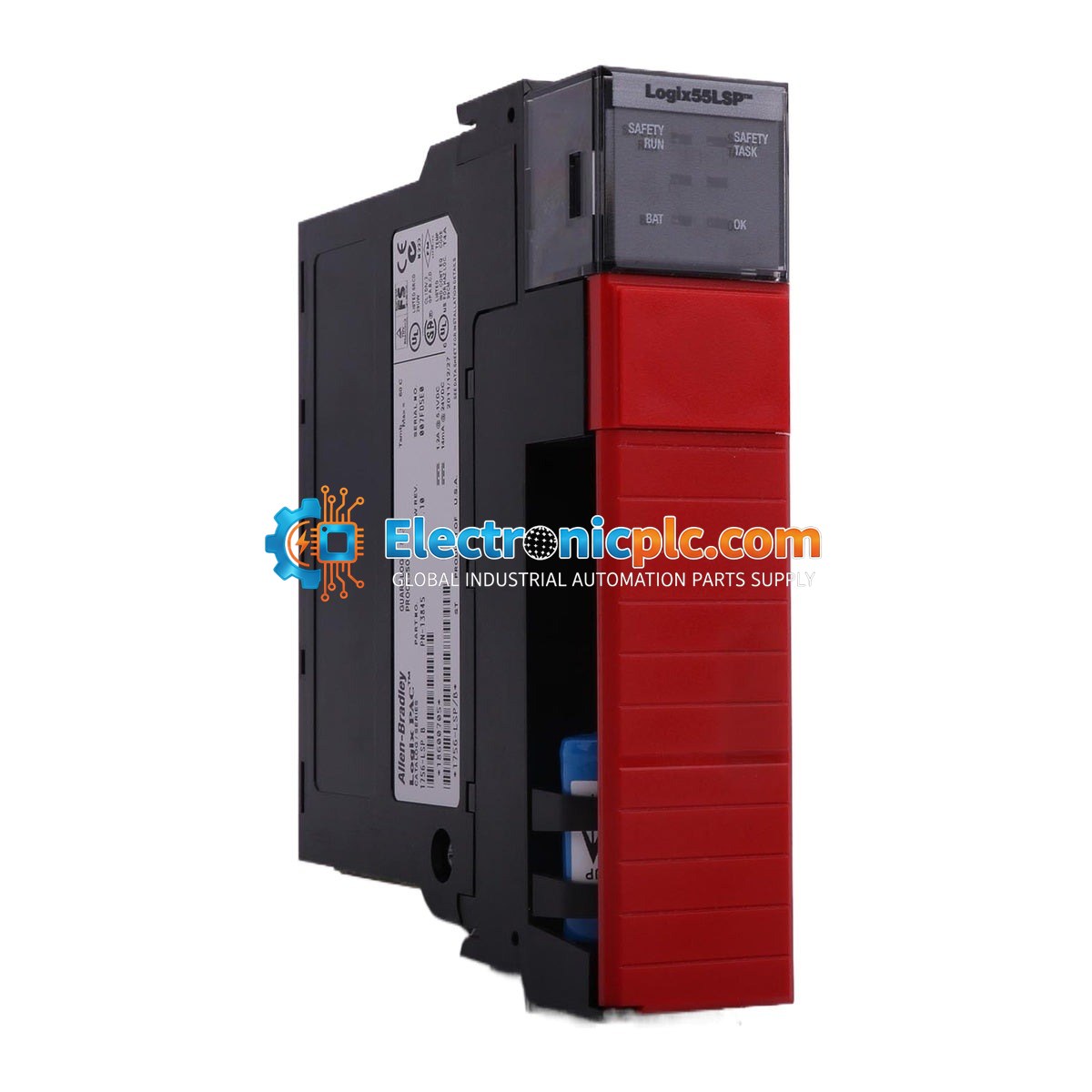

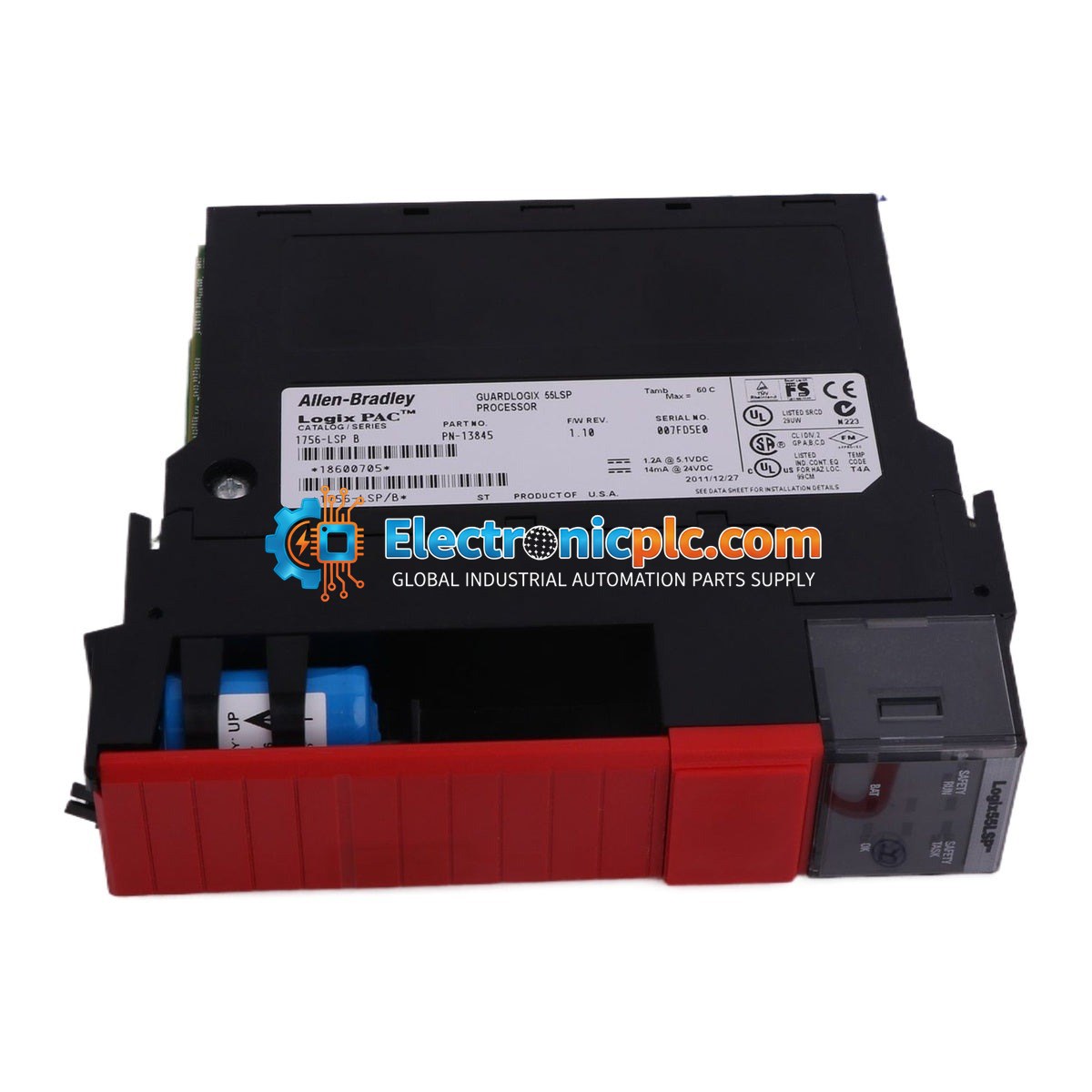

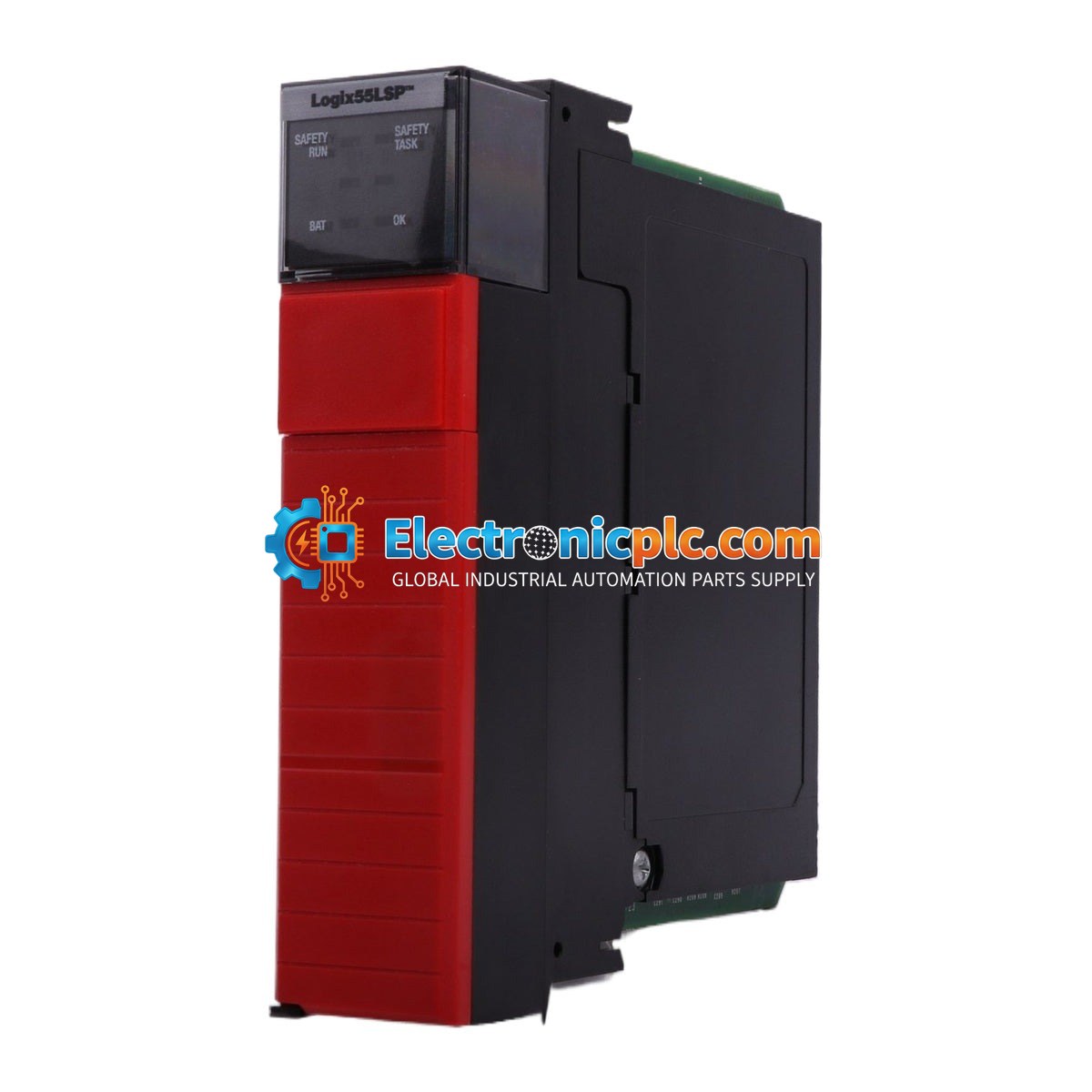

Allen-Bradley 1756-LSP ControlLogix GuardLogix Safety Partner Module

Allen-Bradley 1756-LSP ControlLogix GuardLogix Safety Partner Module

Description

The Allen-Bradley 1756-LSP is a ControlLogix GuardLogix Safety Partner module designed to operate within the GuardLogix 5560 controller series. This module is essential for implementing safety-rated control systems, providing the...

18 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1756-LSP
Vendor: Allen-Bradley
Category: Safety Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-LSP is a ControlLogix GuardLogix Safety Partner module designed to operate within the GuardLogix 5560 controller series. This module is essential for implementing safety-rated control systems, providing the necessary redundancy and synchronization required for safety-critical applications in industrial automation environments.

Features

  • Designed for integration with GuardLogix 5560 series controllers.
  • Supports safety-rated logic execution and system synchronization.
  • Compact ControlLogix form factor for standard chassis mounting.
  • Low power dissipation for efficient thermal management within the control cabinet.

Technical Specifications

Module Type Safety Partner Module
Series GuardLogix 5560
Power Dissipation 3.5 W
Current Draw @ 5.1 VDC 1200 mA
Current Draw @ 24 VDC 14 mA
Thermal Dissipation 11.9 BTU/Hr
Isolation Voltage 30 V Continuous

Installation Guidelines

  • Ensure the ControlLogix chassis is properly grounded before installing the module.
  • The 1756-LSP must be installed in a compatible ControlLogix chassis slot; verify that the chassis power supply is sufficient for the total system load.
  • Always power down the chassis before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
  • Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
  • Ensure adequate ventilation around the chassis to maintain thermal dissipation within specified limits.

FAQ

What is the primary function of the 1756-LSP?

The 1756-LSP acts as a safety partner module in a GuardLogix system, working in tandem with the primary controller to provide the safety-rated functionality required for high-integrity safety applications.

Is this module compatible with standard ControlLogix controllers?

The 1756-LSP is specifically designed for the GuardLogix 5560 series. It is not intended for use as a standard, non-safety ControlLogix controller module.
