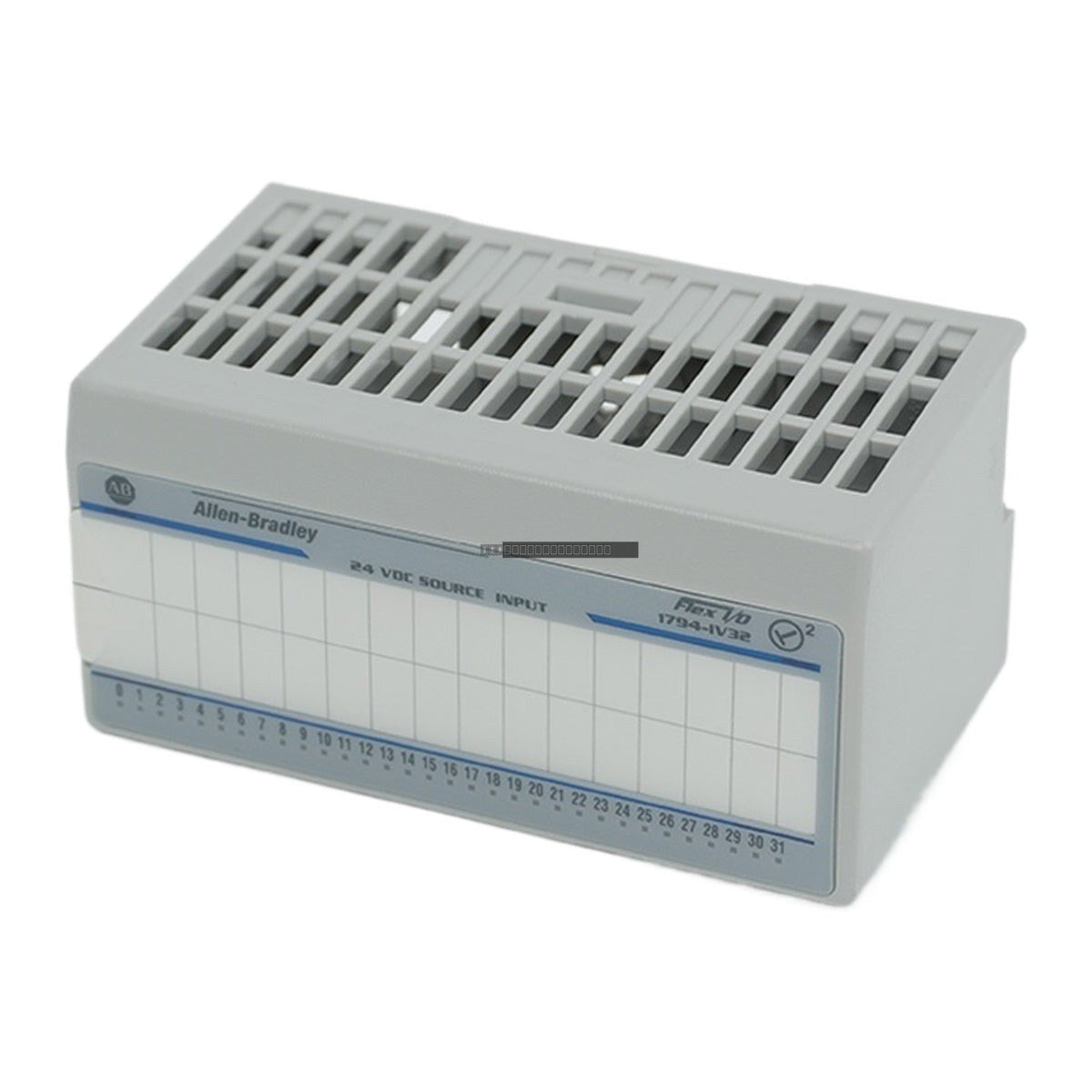

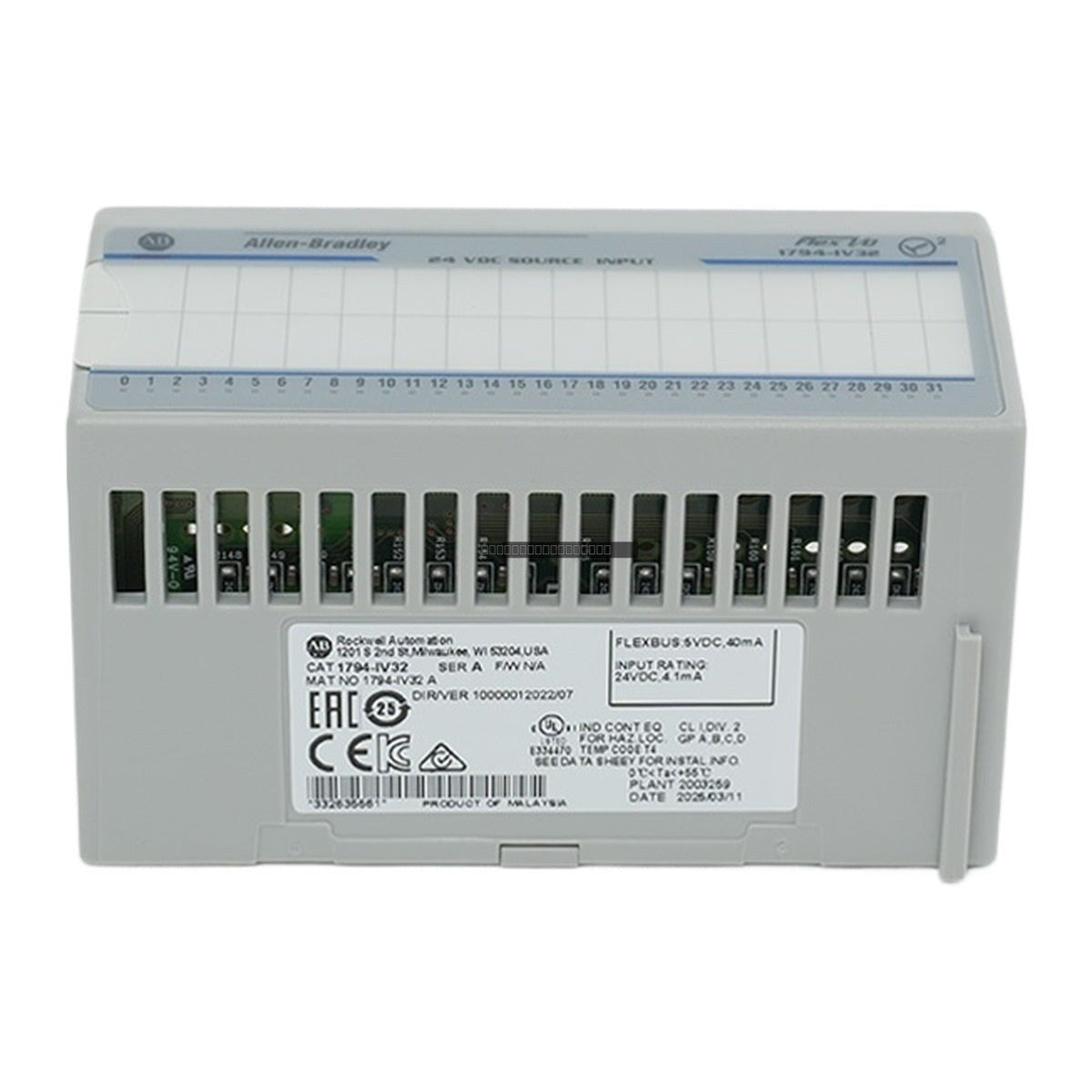

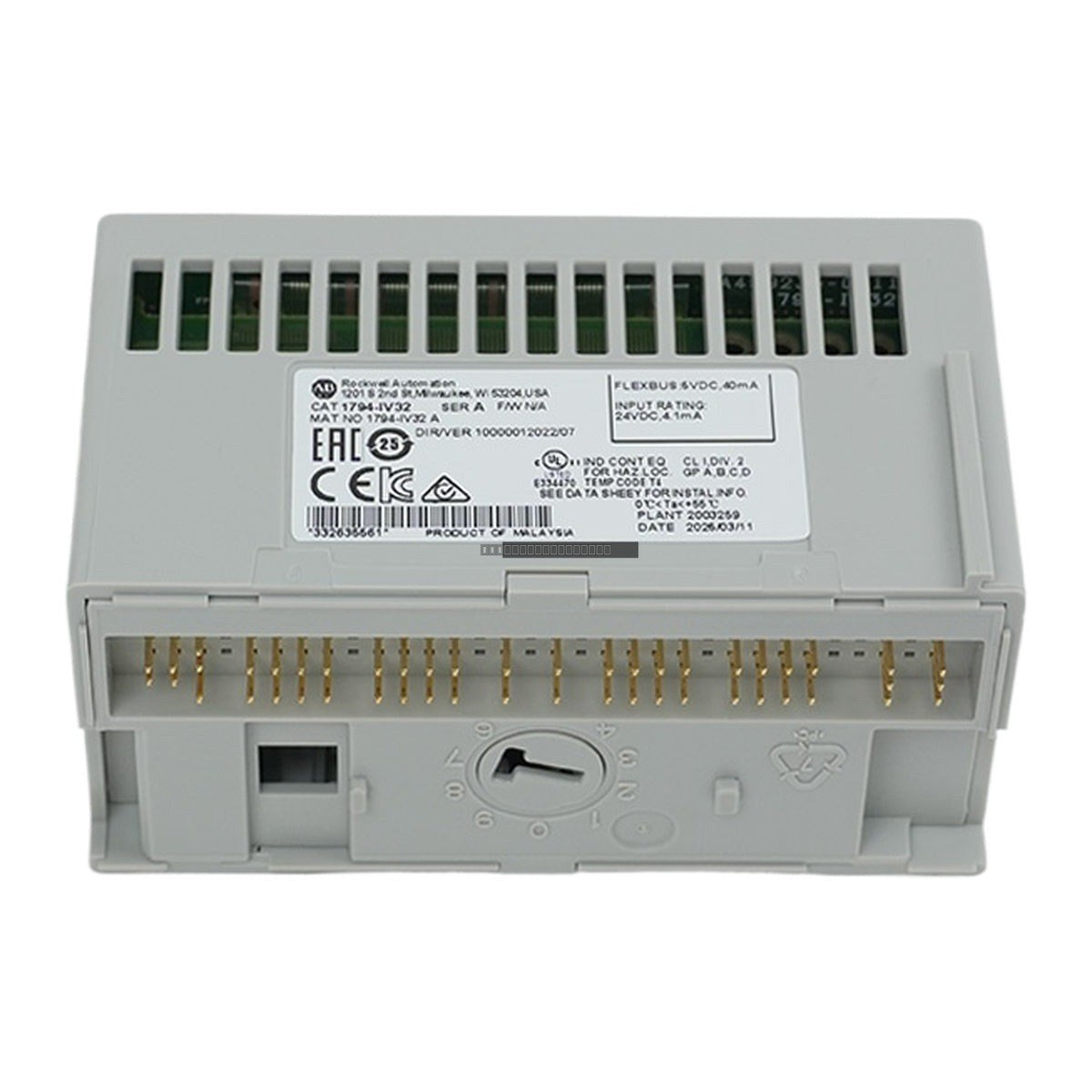

The Allen-Bradley 1794-IV32 is a high-density digital input module designed for the FLEX I/O platform. This module provides 32 sourcing-style 24V DC inputs, offering a space-efficient solution for distributed I/O architectures in industrial control environments. It is engineered to interface with various field devices such as proximity sensors, limit switches, and auxiliary contacts, facilitating reliable signal acquisition for host controllers.

Features

• High-density 32-point input configuration in a compact modular housing.
• Current sourcing input design for 24V DC signals.
• Supports Removal and Insertion Under Power (RIUP), allowing for maintenance without shutting down the entire communication network.
• Individual channel status LEDs for real-time diagnostic and operational monitoring.
• Configurable input filter times (0.25 ms to 32 ms) to mitigate signal noise and contact bounce.

Applications

• Automotive assembly lines and robotic work cells.
• Packaging and high-speed bottling machinery.
• Material handling, palletizing, and automated storage systems.
• Machine tool control, including CNC and metalworking interlocks.
• Industrial HVAC and environmental control skids.

Technical Specifications

Installation Guidelines

• Ensure the FLEX I/O communication adapter is properly seated before installing the 1794-IV32 module.
• The module is designed for DIN-rail mounting; ensure the rail is securely grounded to minimize EMI.
• Always power down the system before inserting or removing the module from the terminal base to prevent electrical arcing or damage to the backplane.
• Use shielded cabling for input signals to reduce the impact of electrical noise in high-interference environments.
• Verify that the external 24V DC power supply is within the specified nominal operating range before connecting field devices.

FAQ

What is the primary function of the 1794-IV32?

The 1794-IV32 is a digital input module used to collect 32 discrete 24V DC signals and transmit them to a controller via a FLEX I/O communication adapter.

Can I replace this module while the system is running?

Yes, the 1794-IV32 supports Removal and Insertion Under Power (RIUP), which allows for module replacement without interrupting the operation of other modules on the same communication bus.

How do I handle signal noise?

The module allows for configurable input filter times (ranging from 0.25 ms to 32 ms). Increasing the filter time can help eliminate false activations caused by electrical noise or mechanical switch debouncing.

Is this module compatible with sinking devices?

No, the 1794-IV32 is a sourcing input module. For sinking input applications, a different module, such as the 1794-IB32, should be utilized.
