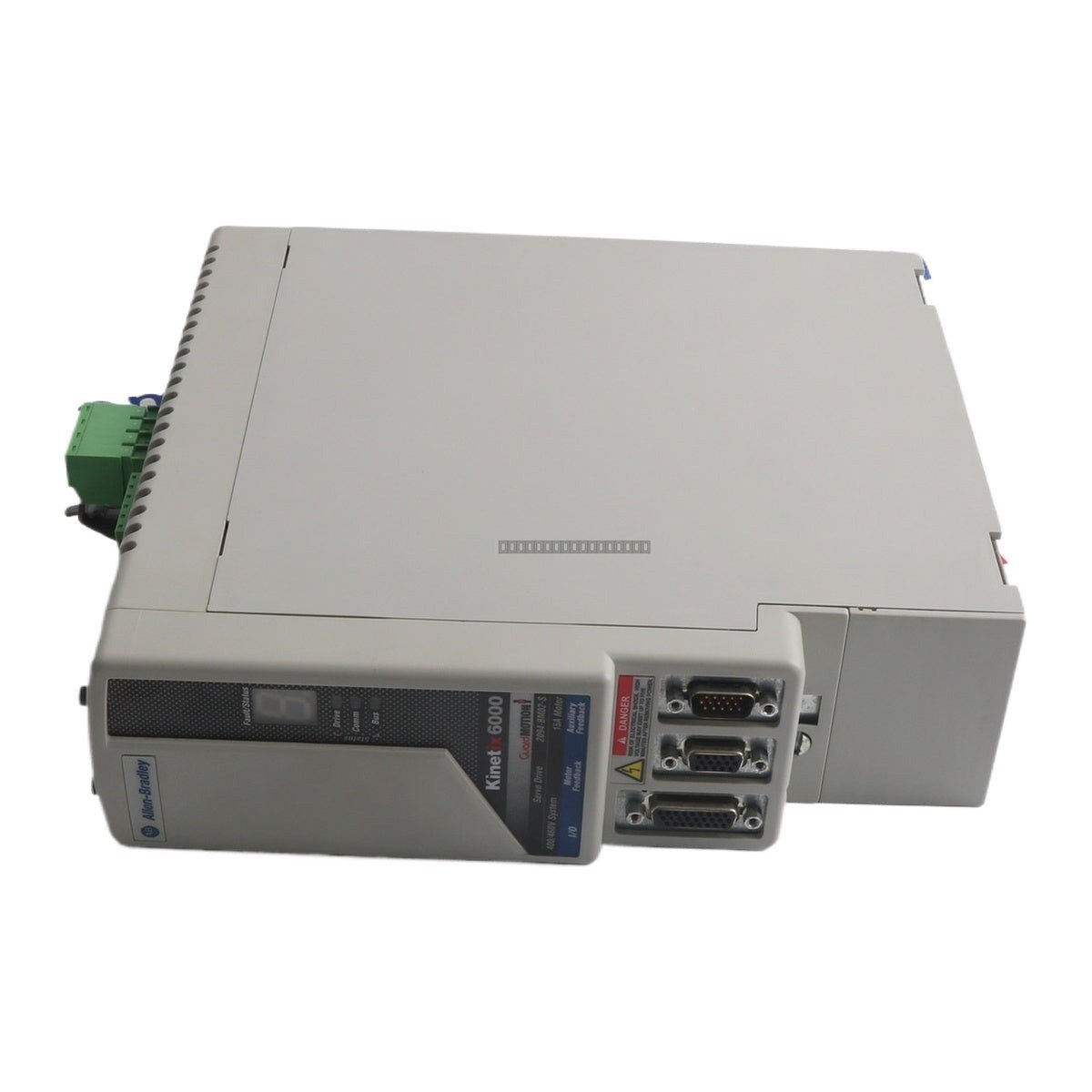

Allen-Bradley 2094-BM02-S Kinetix 6000 Axis Module

Allen-Bradley 2094-BM02-S Kinetix 6000 Axis Module

Description

The Allen-Bradley 2094-BM02-S is a high-performance axis module belonging to the Kinetix 6000 multi-axis servo drive system. Designed for demanding motion control applications, this module provides integrated power conversion and...

17 people are viewing this right now

Availability: Low stock: 9 left

SKU: 2094-BM02-S
Vendor: Allen-Bradley
Category: Servo Drive Axis Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 2094-BM02-S is a high-performance axis module belonging to the Kinetix 6000 multi-axis servo drive system. Designed for demanding motion control applications, this module provides integrated power conversion and control for servo motors within a compact, modular footprint. This unit features an integrated Safe Torque-Off (STO) function to enhance machine safety by removing rotational power from the motor without removing power from the drive.

Features

  • Integrated Safe Torque-Off (STO) functionality for enhanced safety compliance.
  • Designed for 400V class operation with a nominal input voltage range of 360-480V AC (3-phase).
  • Provides 6.6 kW of continuous output power.
  • Compact modular design optimized for multi-axis Kinetix 6000 configurations.
  • Includes internal shunt capabilities for effective energy dissipation during deceleration.

Technical Specifications

Model 2094-BM02-S
Series Kinetix 6000
Continuous Output Current 10.3 A
Continuous Output Current (Sine) 14.6 A
Peak Current 25.8 A
Continuous Power Output (Nominal) 6.6 kW
Input Voltage 360-480V AC (3-Phase)
Internal Shunt Continuous Power 50 W
Internal Shunt Peak Power 5.6 kW
Heat Dissipation 93 W

Installation Guidelines

  • Ensure the drive is mounted in a clean, dry, and vibration-free environment with adequate airflow for cooling.
  • Maintain proper clearance above and below the module to allow for heat dissipation.
  • Always disconnect all power sources and verify zero energy state before installing or removing the module from the Kinetix 6000 power rail.
  • Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the chassis to the cabinet backplane to maintain signal integrity and safety.
  • Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.

FAQ

Is the 2094-BM02-S still in production?

No, this model has been superseded. The manufacturer recommends the 2198-D032-ERS3 as a replacement for Kinetix 6000 system upgrades.

Does this module support Safe Torque-Off?

Yes, the 2094-BM02-S includes the Safe Torque-Off feature as a standard integrated safety function.
