Allen-Bradley 1761-L16BWB MicroLogix 1000 Programmable Controller

Allen-Bradley 1761-L16BWB MicroLogix 1000 Programmable Controller

Description

The Allen-Bradley 1761-L16BWB is a compact MicroLogix 1000 programmable controller engineered for small-scale automation and discrete I/O control tasks. This all-in-one unit integrates the processor, power supply, and input/output circuitry...

18 people are viewing this right now

Availability: In stock

SKU: 1761-L16BWB
Vendor: Allen-Bradley
Category: Programmable Logic Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

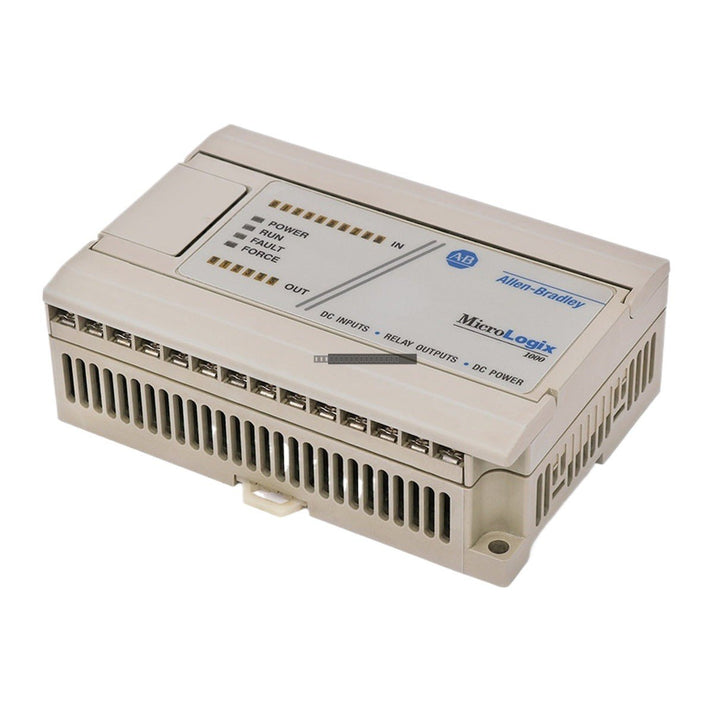

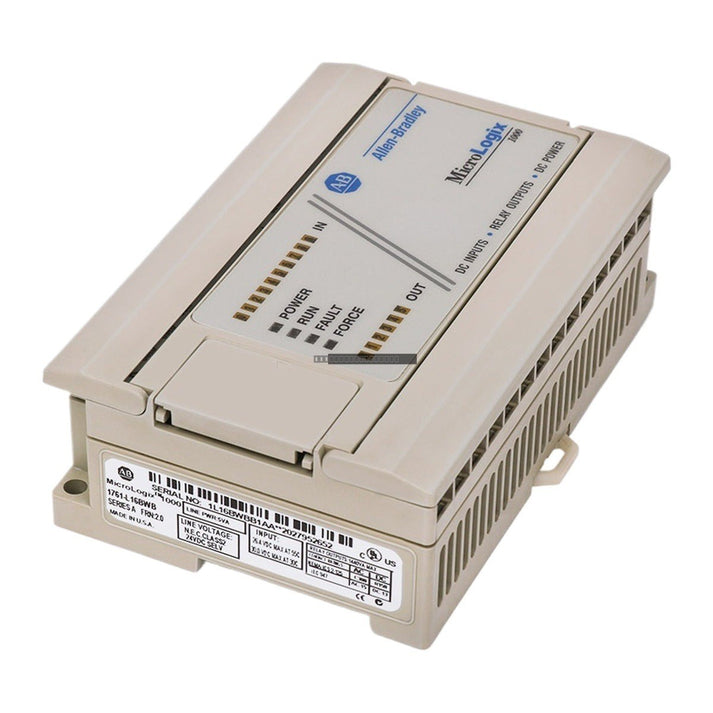

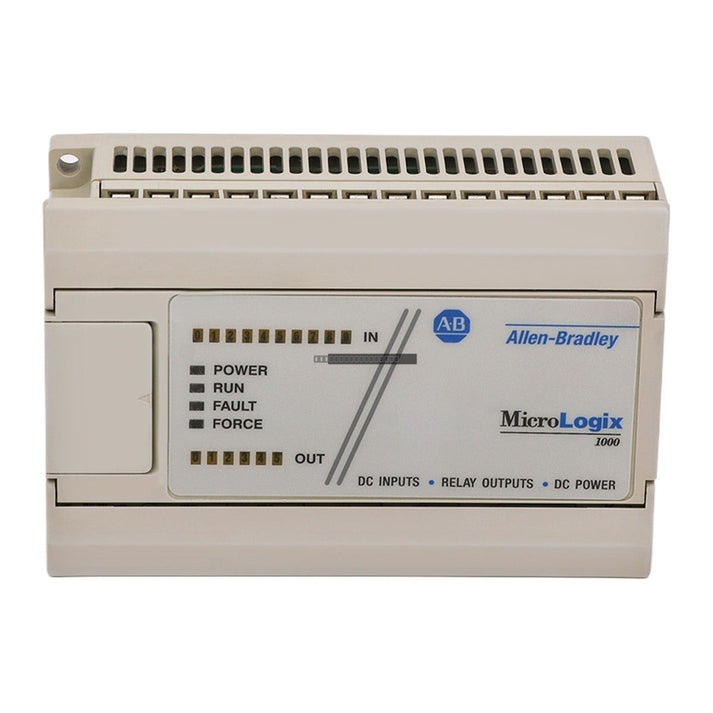

The Allen-Bradley 1761-L16BWB is a compact MicroLogix 1000 programmable controller engineered for small-scale automation and discrete I/O control tasks. This all-in-one unit integrates the processor, power supply, and input/output circuitry into a single, space-efficient housing, making it suitable for applications where panel space is limited.

Features

  • Integrated 16-point I/O configuration: 10 DC inputs and 6 relay outputs.
  • Supports both sinking and sourcing input configurations for flexible wiring.
  • Relay outputs support a wide range of voltages (5 to 125V DC and 5 to 264V AC).
  • Designed for high reliability with a minimum of 50,000 power cycles.
  • Compact footprint suitable for DIN-rail or panel mounting.

Applications

This controller is typically utilized in standalone machine control, small conveyor systems, packaging equipment, and basic process monitoring where a cost-effective, fixed-configuration PLC is required.

Technical Specifications

Model 1761-L16BWB
Series MicroLogix 1000
Total I/O 16 Points
Input Type 24V DC (14-30V DC range)
Output Type 6 Relay Outputs
Power Supply 24V DC (20.4-26.4V DC range)
Power Consumption 10W nominal
Inrush Current 30A for 4 ms

Installation Guidelines

  • Ensure the controller is mounted in an environment free from excessive dust, moisture, and corrosive gases.
  • Maintain adequate clearance around the unit to facilitate proper ventilation and prevent overheating.
  • Always disconnect power before installing or removing wiring to prevent electrical shock or damage to the module.
  • Use shielded cables for I/O signals to minimize electromagnetic interference (EMI) in industrial environments.
  • Ensure proper grounding of the controller chassis to a common ground point to maintain signal integrity.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal components.

FAQ

What is the primary power requirement for the 1761-L16BWB?
The unit operates on 24V DC power, with an acceptable operating range of 20.4 to 26.4V DC.

Does this controller support expansion modules?
The MicroLogix 1000 series (including the 1761-L16BWB) is a fixed-configuration controller and does not support additional I/O expansion modules.
