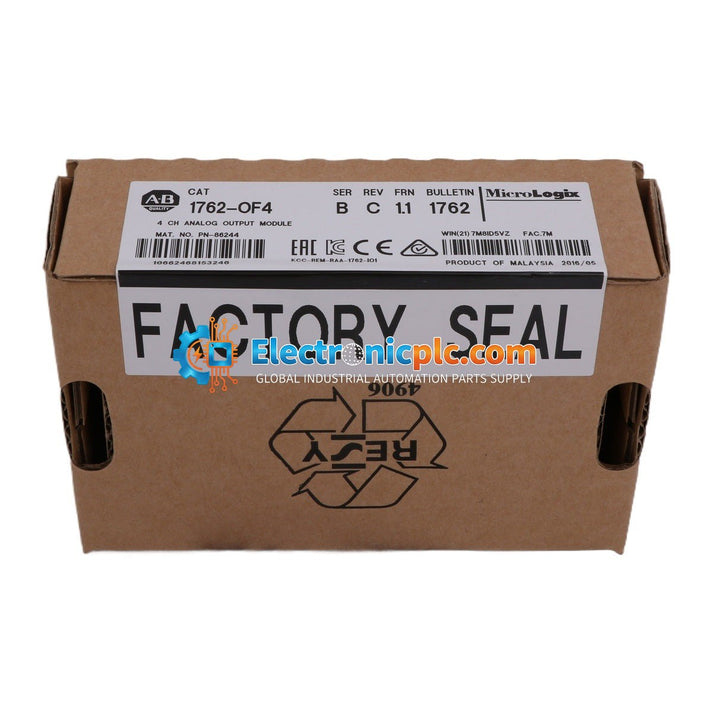

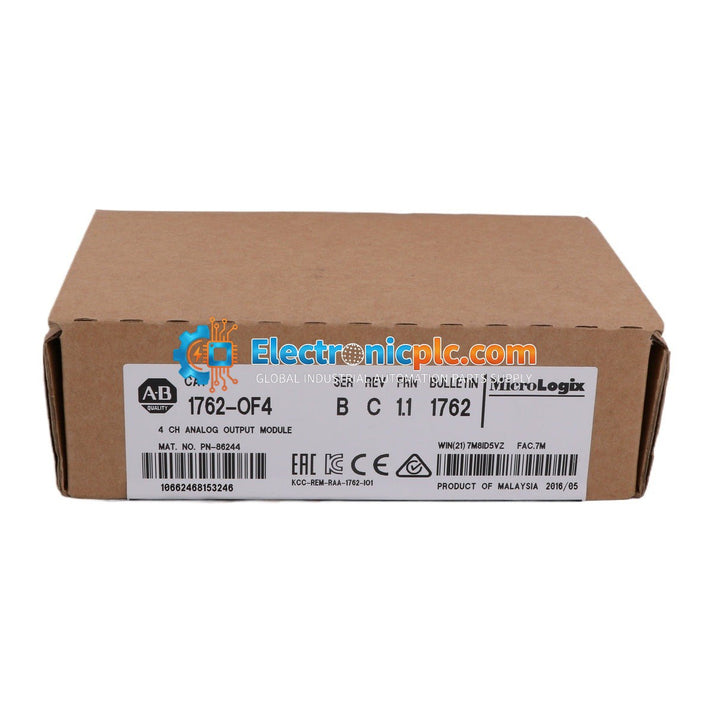

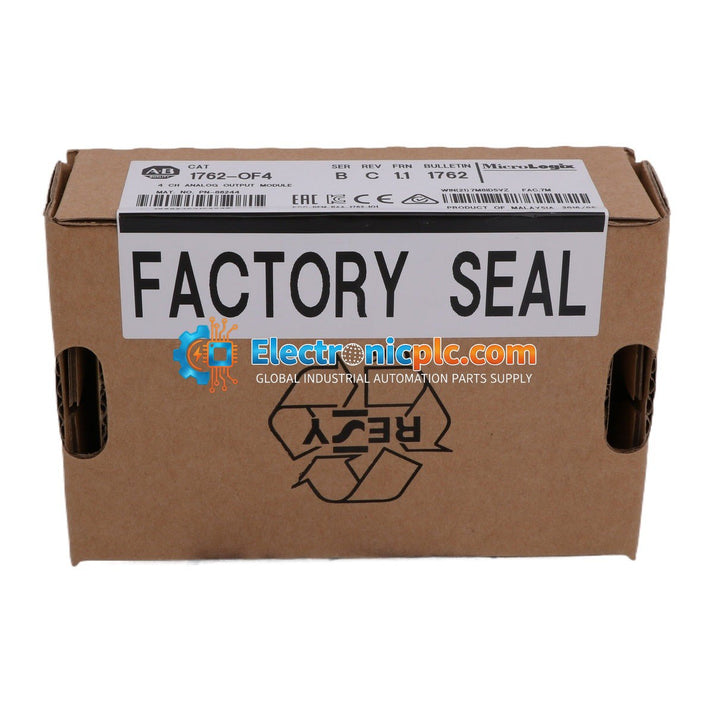

Allen-Bradley 1762-OF4 MicroLogix 1200 Analog Output Module

Allen-Bradley 1762-OF4 MicroLogix 1200 Analog Output Module

Description

The Allen-Bradley 1762-OF4 is a high-performance analog output module designed for use with the MicroLogix 1200 programmable logic controller (PLC) system. This module provides four single-ended analog output channels, allowing...

23 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1762-OF4
Vendor: Allen-Bradley
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1762-OF4 is a high-performance analog output module designed for use with the MicroLogix 1200 programmable logic controller (PLC) system. This module provides four single-ended analog output channels, allowing for precise control of external devices such as variable frequency drives, actuators, or proportional valves. It supports both voltage and current output modes, providing versatility for various industrial automation applications.

Features

  • Four (4) single-ended analog output channels.
  • Configurable output ranges: 0 to 10 VDC or 4 to 20 mA.
  • Full-scale analog ranges up to 10.5 VDC and 21 mA.
  • Designed for seamless integration with the MicroLogix 1200 expansion I/O bus.
  • Requires 24 VDC input power for operation.

Applications

This module is typically utilized in industrial control environments requiring analog signal generation for process regulation. Common applications include speed control for motor drives, positioning for hydraulic or pneumatic valves, and signal transmission to remote instrumentation or chart recorders within a MicroLogix-based control architecture.

Technical Specifications

Model 1762-OF4
Number of Outputs 4 Single-ended
Output Range (Voltage) 0 to 10 VDC
Output Range (Current) 0 to 20 mA / 4 to 20 mA
Full Scale Range 10.5 VDC / 21 mA
Input Power 24 VDC
Series MicroLogix 1200

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the 1762-OF4 module to prevent electrical damage.
  • Mount the module securely to the MicroLogix 1200 expansion bus using the provided connector interface.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the cable shields at one end to prevent ground loops.
  • Maintain adequate clearance around the module to ensure proper ventilation and prevent overheating.
  • Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.

FAQ

What output ranges does the 1762-OF4 support?

The module supports 0-10 VDC voltage output and 0-20 mA or 4-20 mA current output, with full-scale capabilities up to 10.5 VDC and 21 mA.

Is this module compatible with other MicroLogix series?

The 1762-OF4 is specifically designed for the MicroLogix 1200 series expansion I/O bus. Please consult your specific controller hardware manual to verify compatibility with other MicroLogix models.
