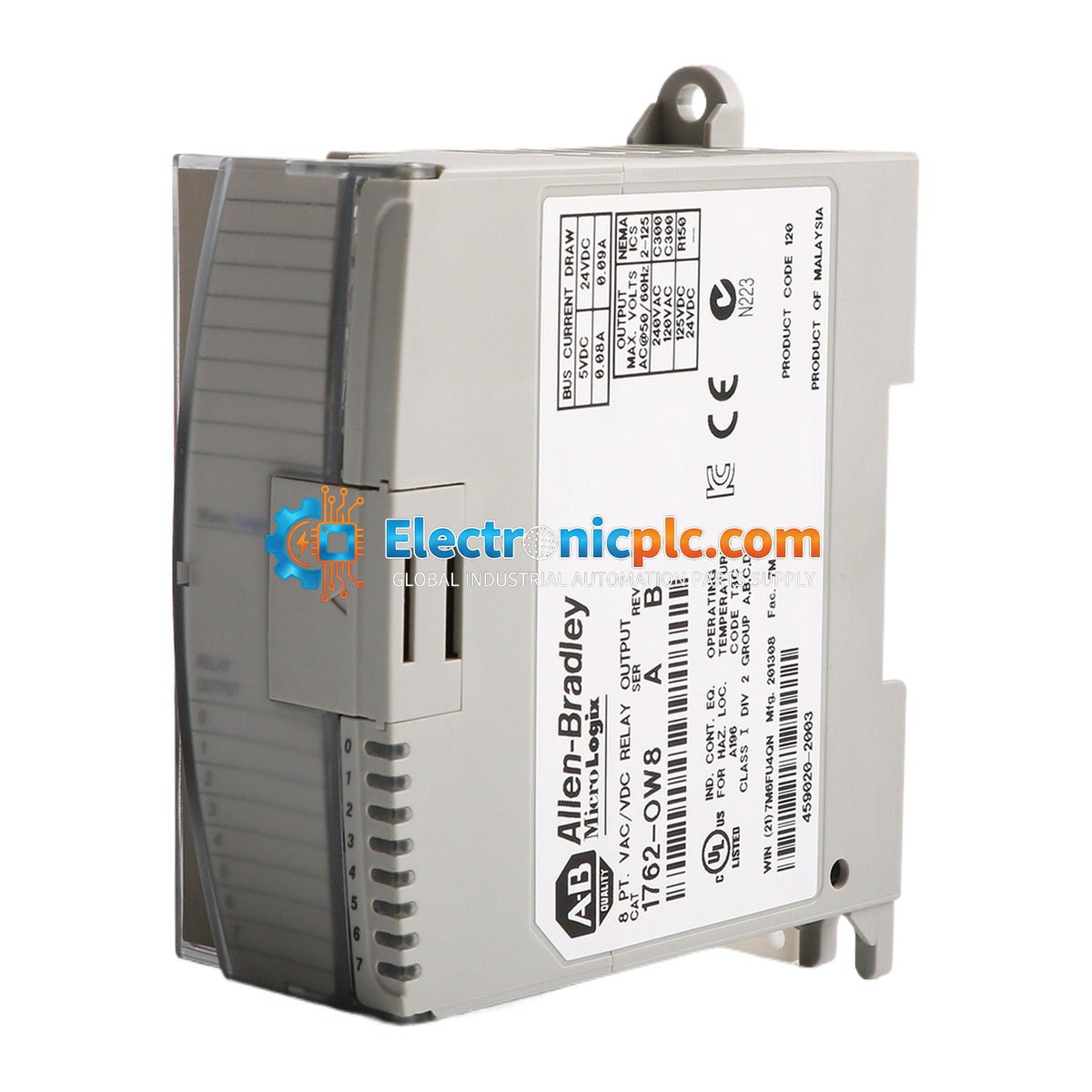

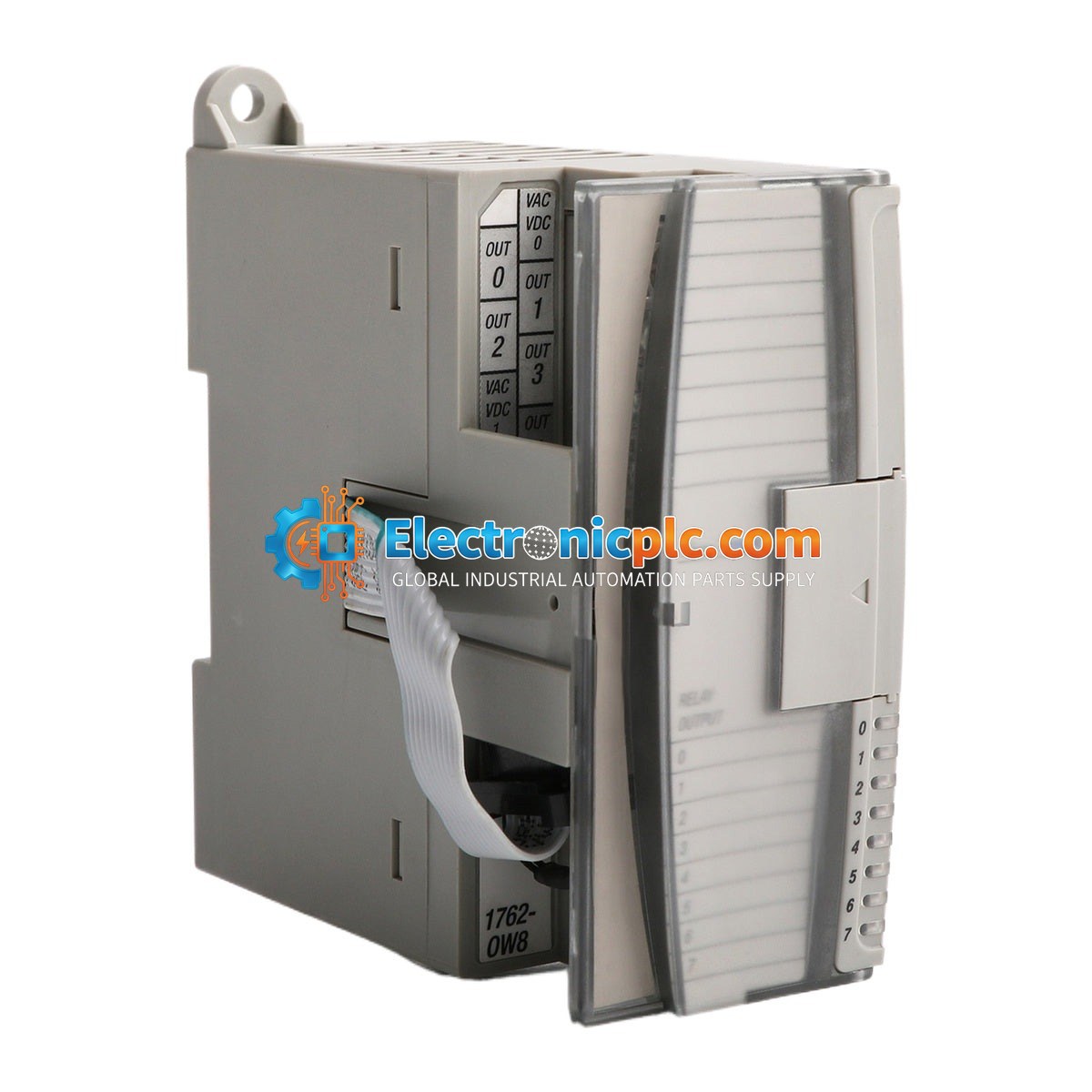

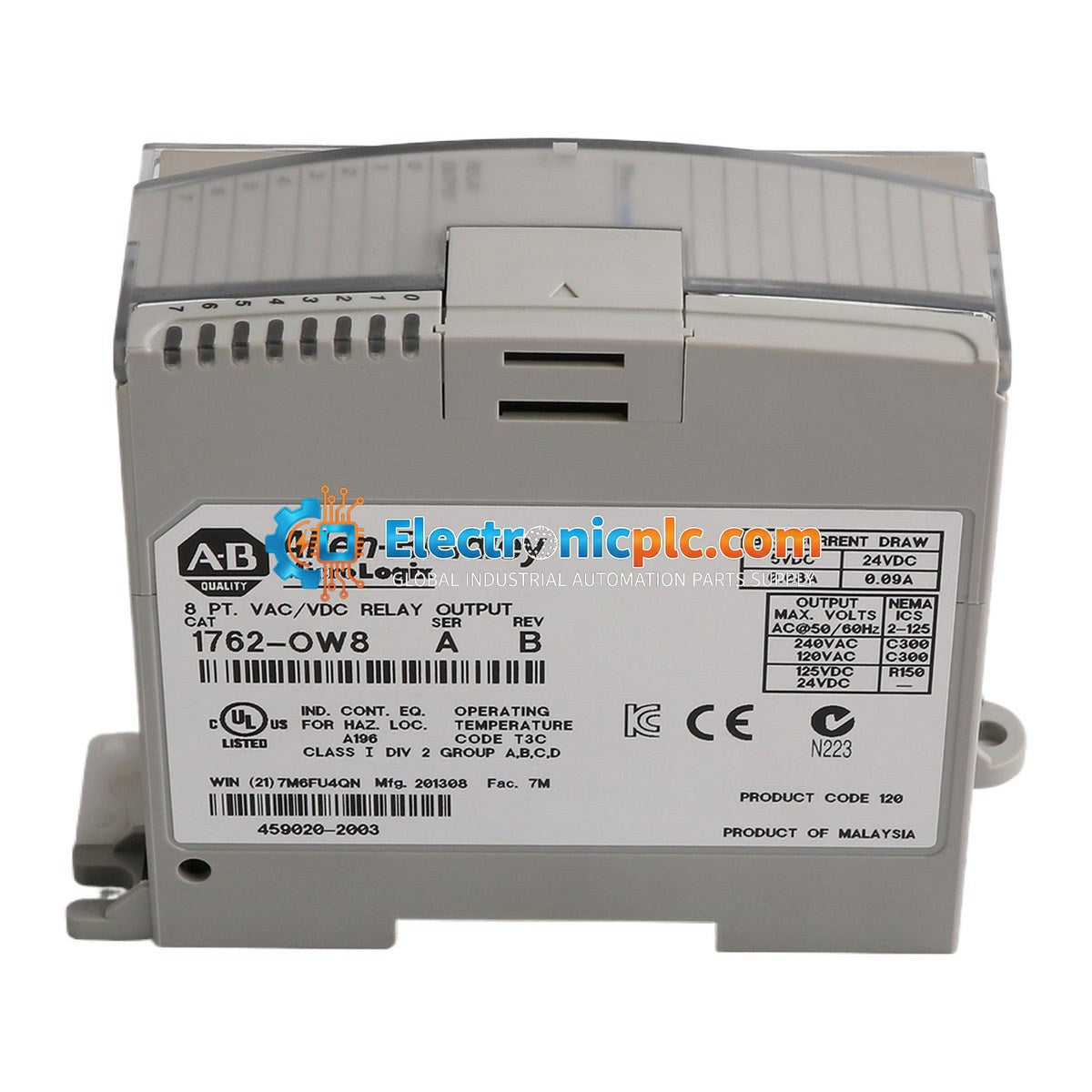

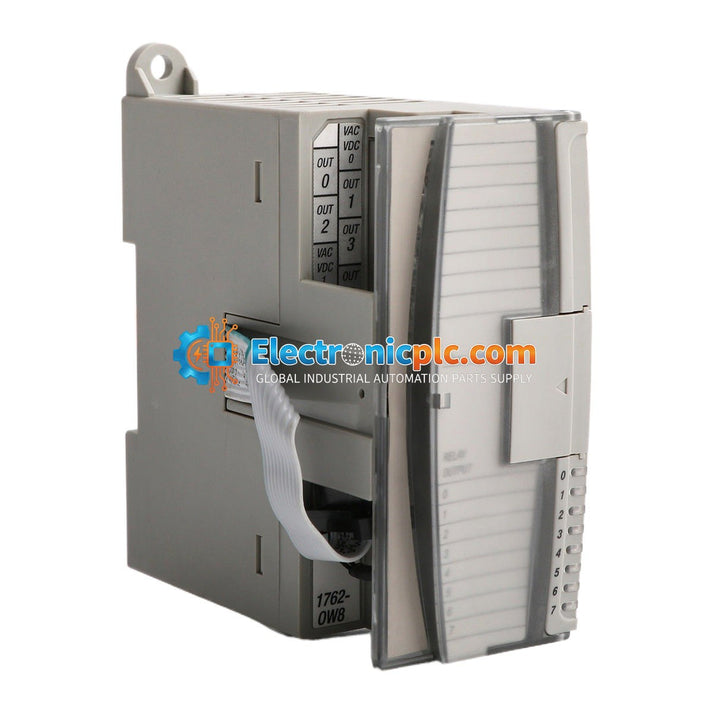

Allen-Bradley 1762-OW8 MicroLogix Relay Output Module

Allen-Bradley 1762-OW8 MicroLogix Relay Output Module

Description

The Allen-Bradley 1762-OW8 is a specialized relay output expansion module designed for the MicroLogix 1100, 1200, and 1400 controller families. This module provides eight isolated relay output points, allowing for...

27 people are viewing this right now

Availability: Low stock: 3 left

SKU: 1762-OW8
Vendor: Allen-Bradley
Category: Relay Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1762-OW8 is a specialized relay output expansion module designed for the MicroLogix 1100, 1200, and 1400 controller families. This module provides eight isolated relay output points, allowing for the control of various field devices such as motor starters, contactors, and solenoid valves. It is engineered to provide flexible switching capabilities for both AC and DC load applications within industrial control systems.

Features

  • Eight (8) independent AC/DC relay output channels.
  • Organized into two (2) isolated groups of four (4) channels each.
  • Compatible with MicroLogix 1100, 1200, and 1400 programmable logic controllers.
  • Supports a wide operating voltage range for versatile field device integration.
  • Compact design suitable for space-constrained control cabinets.
  • DIN-rail or panel mounting options for flexible installation.

Technical Specifications

Product Model 1762-OW8
Output Type Normally Open Relay
Number of Outputs 8
Groups 2 (4 points per group)
Operating Voltage Range 5-265V AC; 5-125V DC
Max Current per Point 2.5 A
Signal Delay 10 ms
Mounting DIN Rail or Panel Mount
Power Supply Distance Rating 6 Modules

Installation Guidelines

  • Ensure the controller power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
  • The module should be mounted in a clean, dry environment within the specified operating temperature range.
  • Use shielded cables for output wiring to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Ensure proper grounding of the DIN rail or panel to maintain system integrity.
  • Verify that the load current does not exceed the 2.5 A per-point rating to prevent relay contact degradation.
  • Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.

FAQ

What controllers are compatible with the 1762-OW8?

The 1762-OW8 is designed specifically for use with the Allen-Bradley MicroLogix 1100, 1200, and 1400 series controllers.

Can this module handle both AC and DC loads?

Yes, the 1762-OW8 features relay outputs capable of switching both AC (5-265V) and DC (5-125V) loads, making it highly versatile for mixed-voltage applications.

How are the outputs grouped on this module?

The eight outputs are divided into two isolated groups, with four channels in each group, allowing for separate power source configurations if required by the application.
