Allen-Bradley 1764-24BWA MicroLogix 1500 24-Point Controller

Allen-Bradley 1764-24BWA MicroLogix 1500 24-Point Controller

The Allen-Bradley 1764-24BWA is a base unit controller from the MicroLogix 1500 series, designed to provide reliable control for small-to-medium industrial automation applications. This base unit features a compact footprint...

26 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1764-24BWA
Vendor: Allen-Bradley
Category: PLC Controller
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

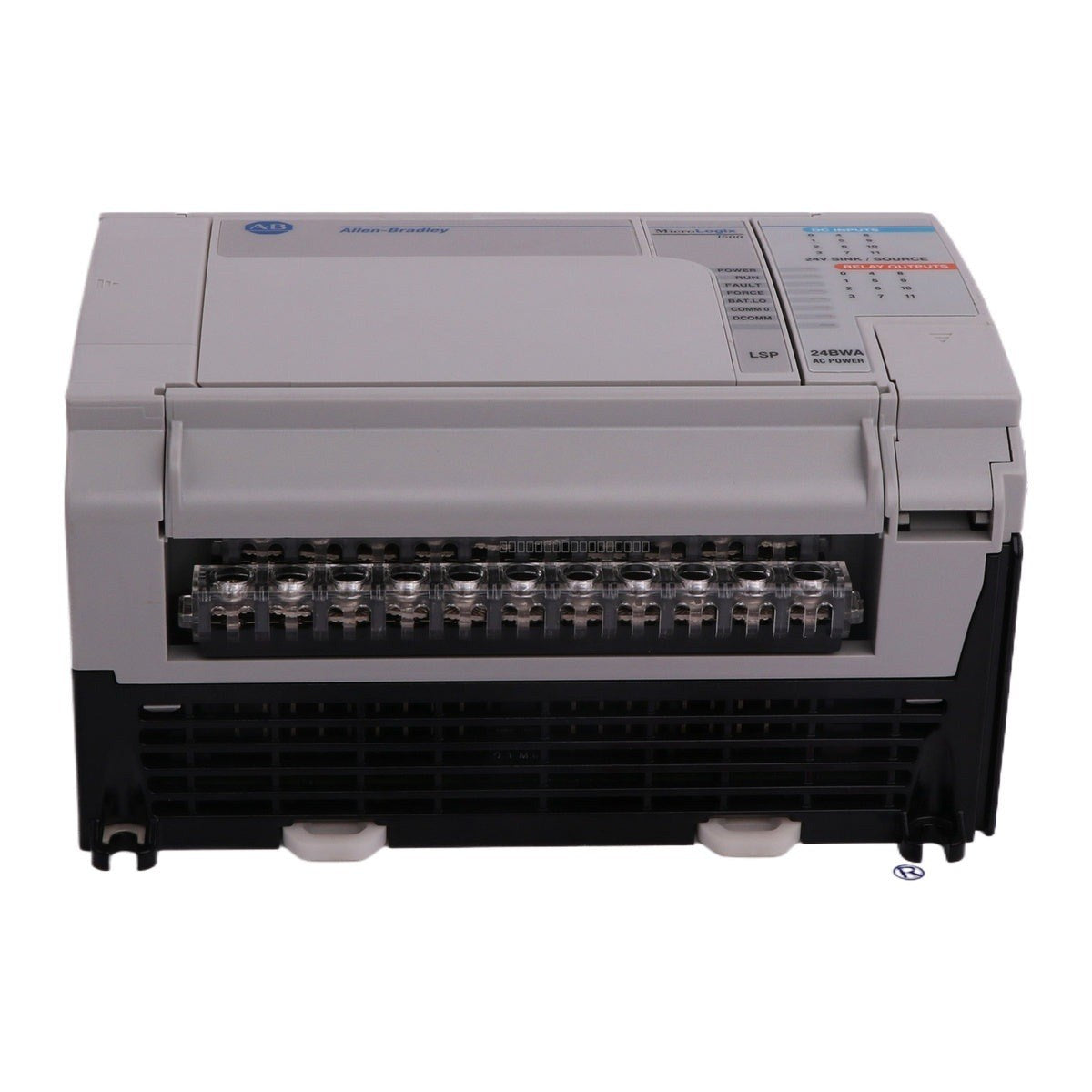

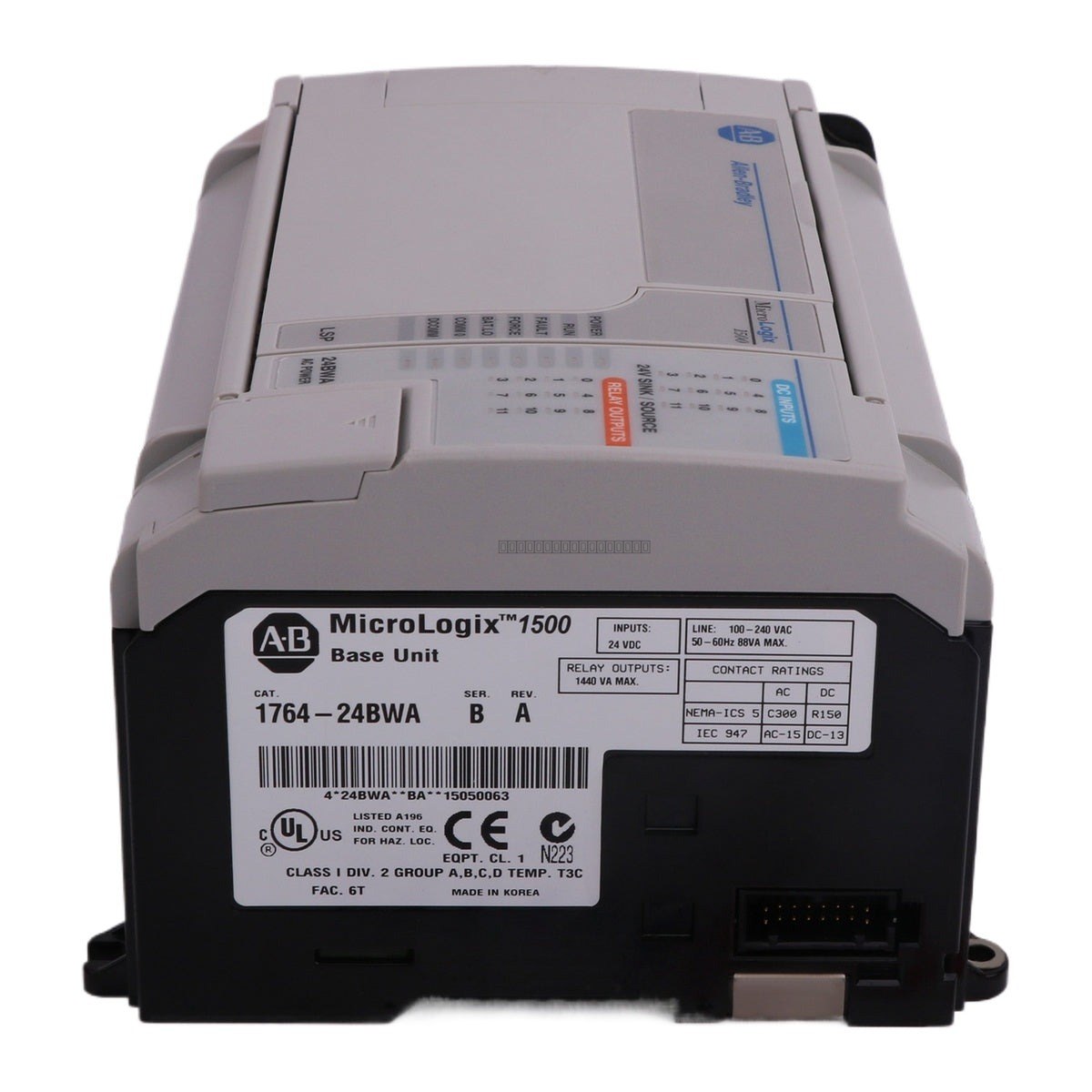

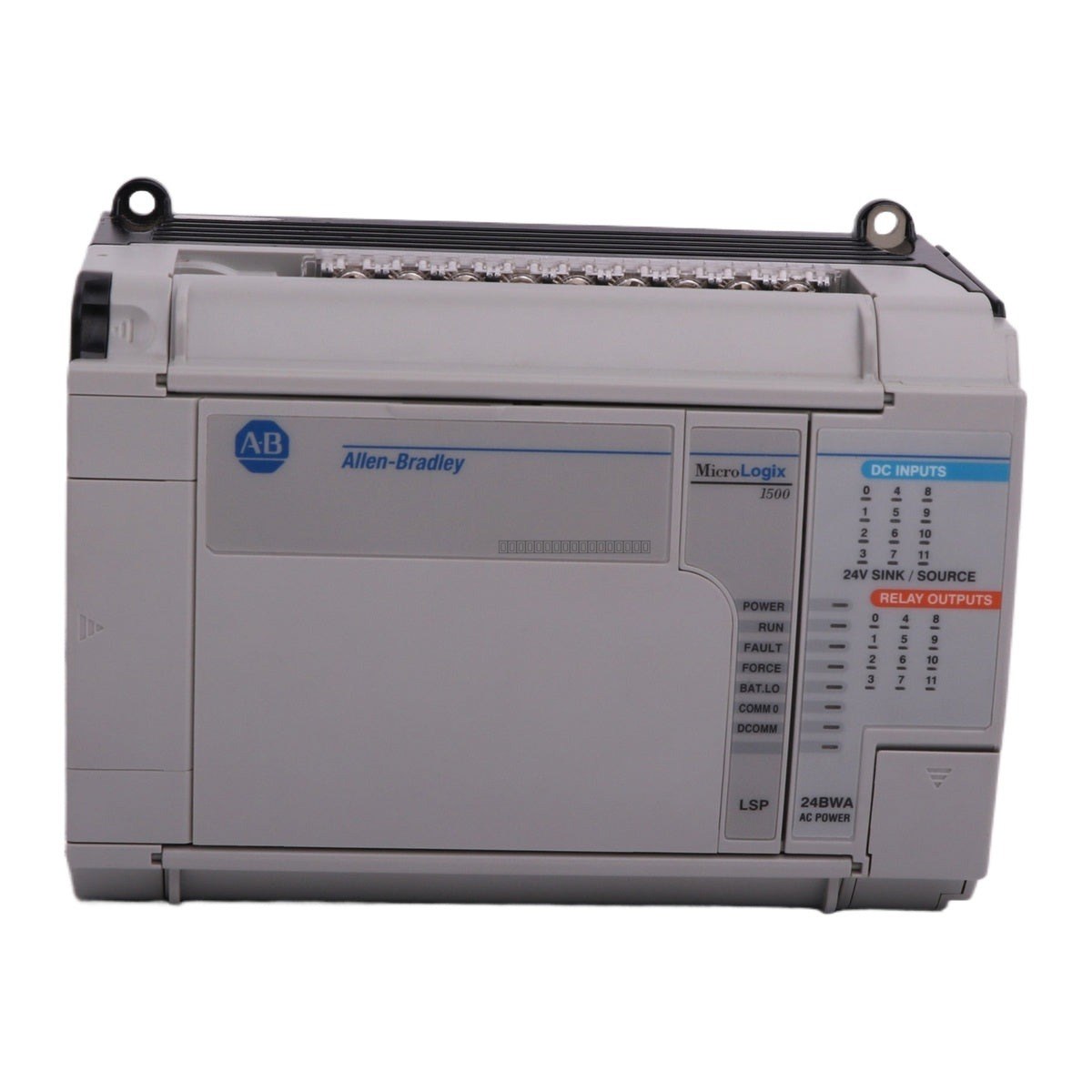

The Allen-Bradley 1764-24BWA is a base unit controller from the MicroLogix 1500 series, designed to provide reliable control for small-to-medium industrial automation applications. This base unit features a compact footprint and integrates both digital inputs and relay outputs to interface with a variety of field devices.

Features

  • Integrated 120/240V AC power supply for standalone operation.
  • 12 x 24V DC sink/source digital inputs for flexible sensor interfacing.
  • 12 x Relay outputs capable of handling 24-125V DC or 120-240V AC loads.
  • Compact modular design suitable for DIN-rail or panel mounting.
  • Supports high-speed input frequency up to 20 kHz.

Technical Specifications

Product Model 1764-24BWA
Manufacturer Allen-Bradley
Module Type Base Unit
Line Power 85 to 265V AC
Digital Inputs 12 x 24V DC (Sink/Source)
Digital Outputs 12 x Relay
Output Voltage Range 24-125V DC; 120-240V AC
Input Frequency 0 to 20 kHz

Installation Guidelines

  • Ensure the controller is installed in a clean, dry environment with adequate ventilation to prevent overheating.
  • Mount the unit on a standard DIN-rail or directly to a backplane using the provided mounting holes.
  • Always disconnect power before performing any wiring or module installation to prevent electrical shock or damage.
  • Ensure proper grounding of the chassis to minimize electromagnetic interference (EMI) and improve signal integrity.
  • Use shielded cables for input and output signals, keeping them separate from high-voltage power lines.

FAQ

Q: Does this unit require an external power supply for the inputs?
A: The 1764-24BWA inputs are rated for 24V DC; you must provide a suitable 24V DC power source for the input devices.

Q: Can this unit be expanded with additional I/O?
A: Yes, the MicroLogix 1500 base units are designed to support expansion I/O modules to increase the total point count of the system.
